AViPAS AV-1081 10x HDMI PTZ Camera wtth IP Live Streaming - White

ITEM #: AV-1081-WE MFG #: AV-1081 (WHITE COLOR)

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$650.00

Our Price:

$620.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    AV-1081 (WHITE COLOR) - Overview

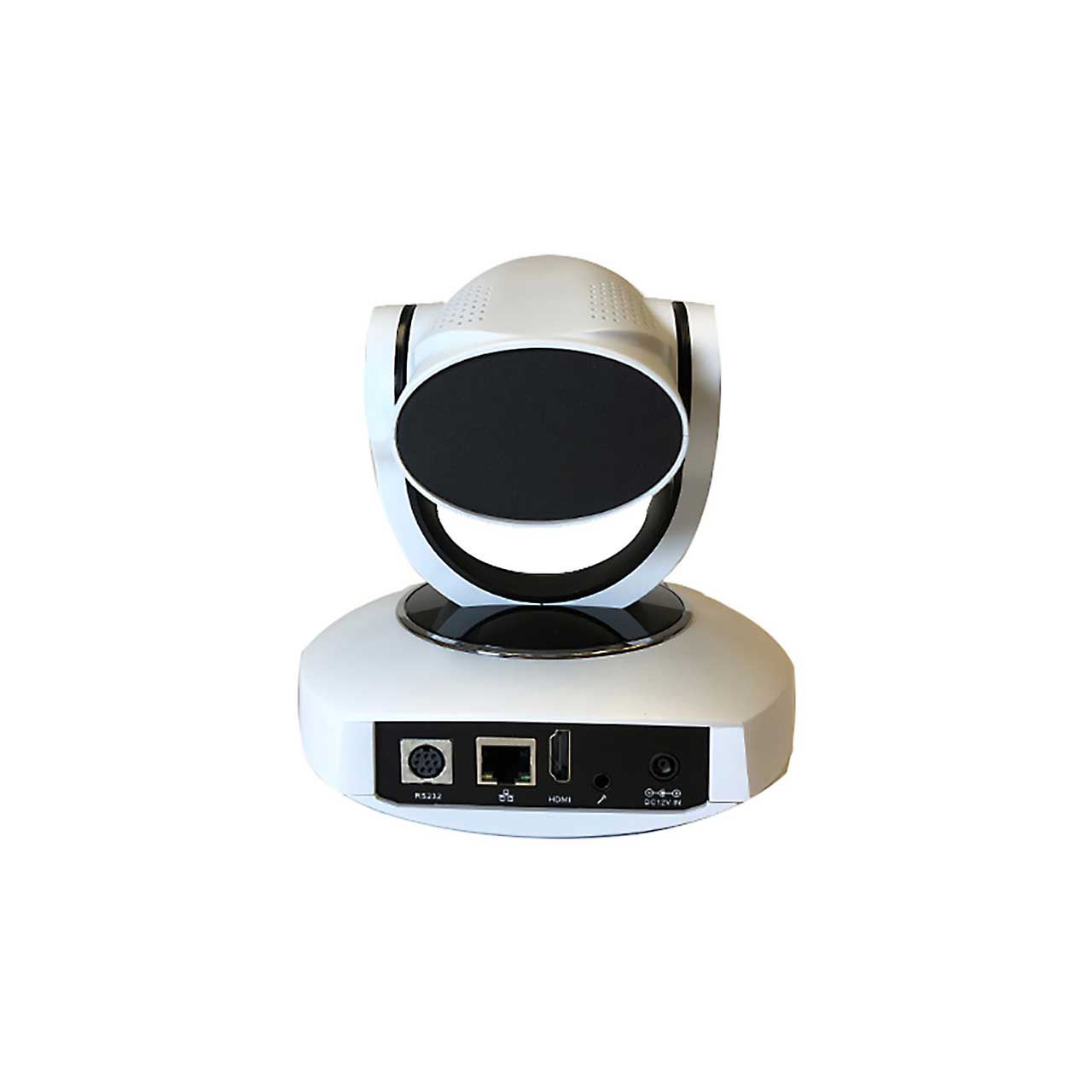

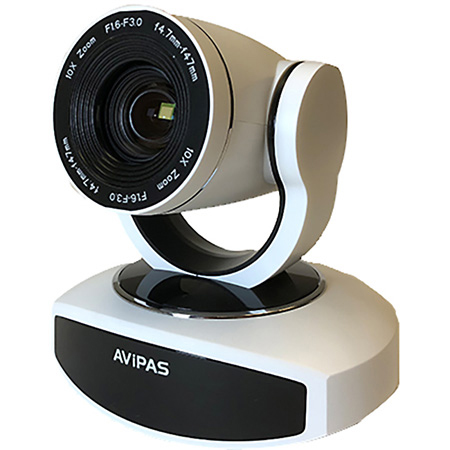

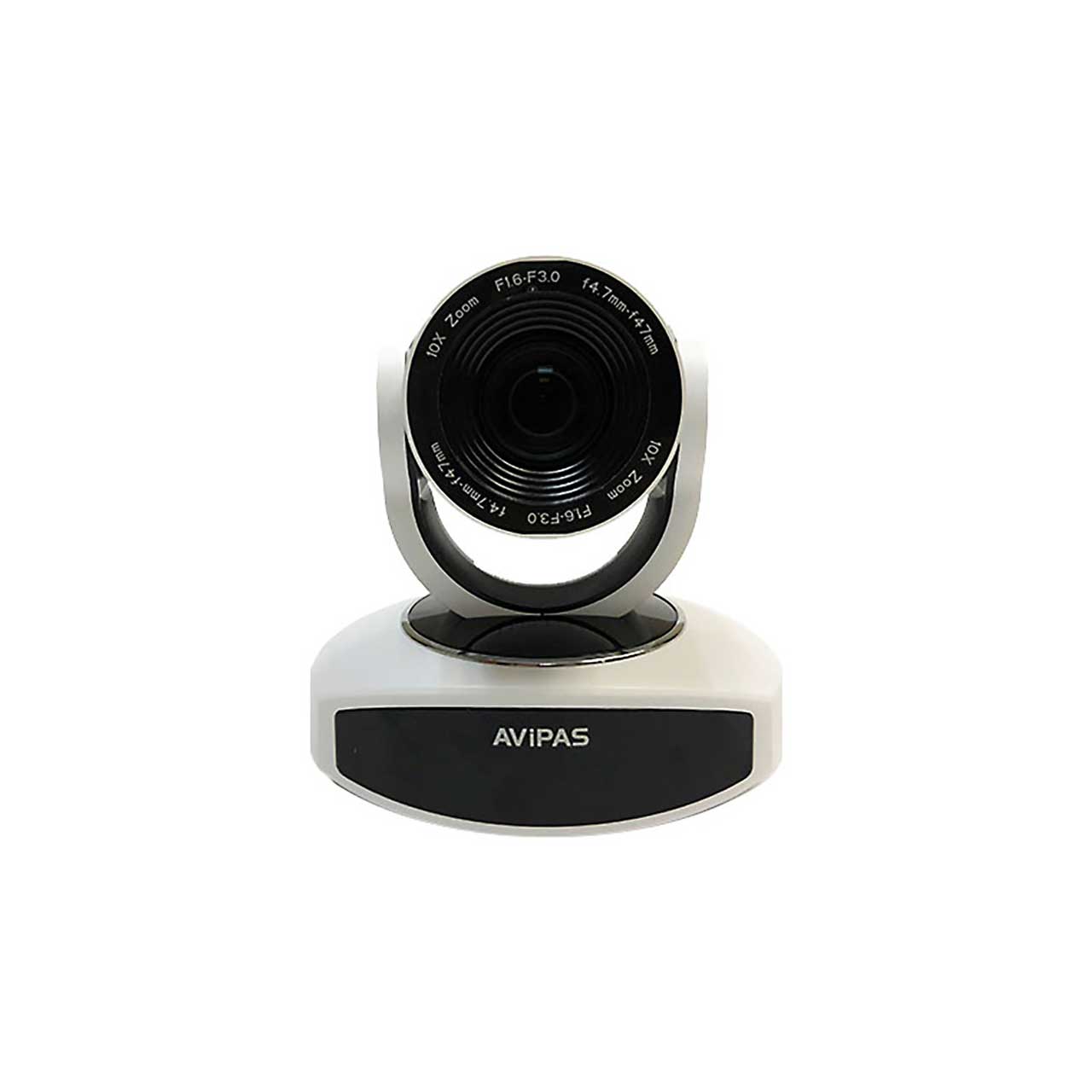

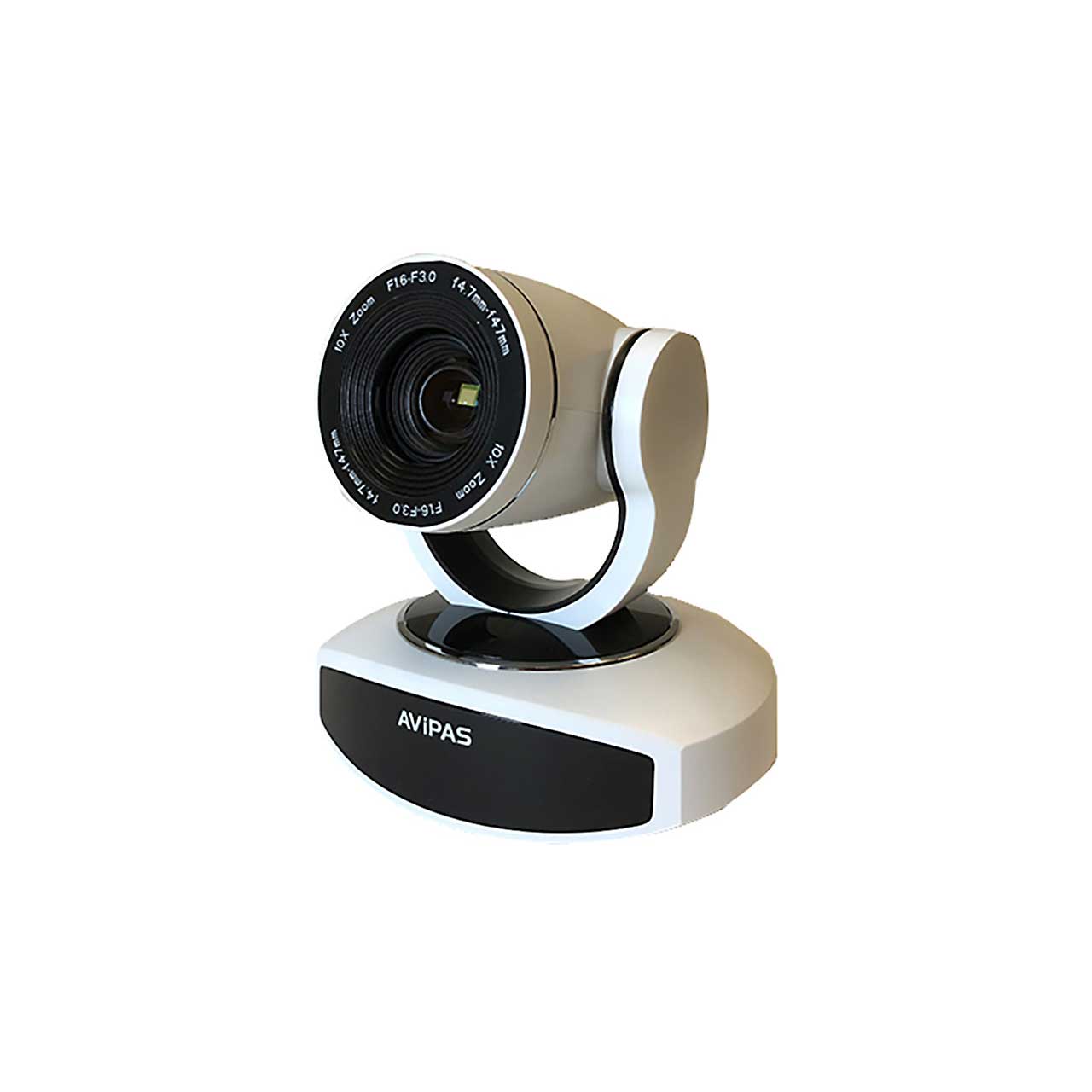

    The AViPAS AV-1081 (White) is a compact, 10X optical zoom HDMI PTZ camera with IP live streaming, It is suitable for the applications in video conferencing, education and houses of worship. The AV-1081 has 2 outputs: HDMI and LAN. It features a 10x optical zoom lens and a 1/2.8 Inch, CMOS sensor with 2.07 million effective pixels to capture video images in 1080p up to 60fps and IP live steaming in H.264/H.265. It also support Dual streaming outputs in different resolution. With its 10x optical zoom and 5x digital zoom, and f4.7mm ~ 47mm, F1.6 ~ 3.0 lens that makes your subject more clarity, and minimum Illumination 0.5 Lux is prefect for low light conditions. The camera has HDMI and LAN outputs; RS232 for communication. The camera also has a 3.5mm audio input. AV-1081 can be controlled via IR remote control, via RJ45 over network or RS232 via protocol commands.

    • Features:

      • Remote Pan, Tilt and Zoom
      • 10x Optical Zoom and 5x Digital Zoom
      • Full HD 1920x1080p at 60 fps
      • H.264/H.265 Video streaming
      • Video Stream: First streaming , Second streaming
      • 2.07 MP 1/2.8" CMOS Sensor
      • 83.7° wide-angle, f4.7-47mm, F1.6-F3.0 Lens
      • 0.5 Lux minimum illumination at F1.8
      • 2D&3D Digital Noise Reduction
      • AAC/MP3/G.711A Audio Encoding
      • HDMI and LAN Outputs simultaneously
      • 255-preset positions via RS232
      • 10-preset positions using IR Remote controler
      • IR Remote control
      • VISCA/Pelco-D/Pelco-P communication protocol
      • Horizontal/ Vertical Image Flip
      • Standard Ceiling or Wall Mounting

    • Specifications:

      • Camera Specification
      • Image sensor: 1/2.8" Panosonic CMOS sensor, 2.07 MP
      • Shutter Speed: 1/30s ~ 1/10000s
      • Minimum illumination: 0.5 Lux @ (F1.8, AGC on)
      • Gain: Auto and Manual
      • Signal to Noise Ratio: more than 55dB
      • White Balance: Manual, Auto, Indoor, Outdoor, One Push 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
      • Image Flip: Selectable On/Off
      • Video Output:1x HDMI, 1x LAN
      • Signal Format: HDMI: 1080p30/25/50/60; 1080i60/50; 720p60/50; Fisrt stream: 1920x1080, 1280x720, 640x480; Second stream: 320x180, 320x240, 640x360, 640x480, 1280x720, 1920x1080

        Lens Specification
      • Focus System: Auto One-push, Manual
      • Focal Length 4.7 - 47mm
      • Zoom Ratio: 10x (Optical) 5x (Digital)
      • View Angle: 6.43° ~60.9°

        Controls
      • Interface: RS-232/RJ45
      • Protocol: VISCA, Pelco-D/Pelco-P
      • Pan Rotation: ±170°; Tilt Rotation: -30° ~ +90°

        Input/ Output Interface
      • Outputs: 1x HDMI, 1x LAN
      • Video Compression Format: H.264/ H.265

        General Specifications
      • Power Requirements: DC 12 V
      • Power Consumption: 12W
      • Operating Temperature: 20°F~80°F(-10°C ~ 50°C)
      • Storage Temperature: 20°F~95°F (-10°C ~ 60°C)
      • Weight: 3 lbs (1.4 kg )
      • Dimensions: 6" x 6" x 5" (1151.2mm X 152.5mm X 126.7mm)

    • Item Includes:

      • 1x AV-1081(White)
      • 1x AC power adaptor
      • 1x Power cord
      • 1x RS232 cable
      • 1x Remote control
      • 1x User manual

    • Warranty:

      • 1 Year

    • GTIN:

      0858738005374
