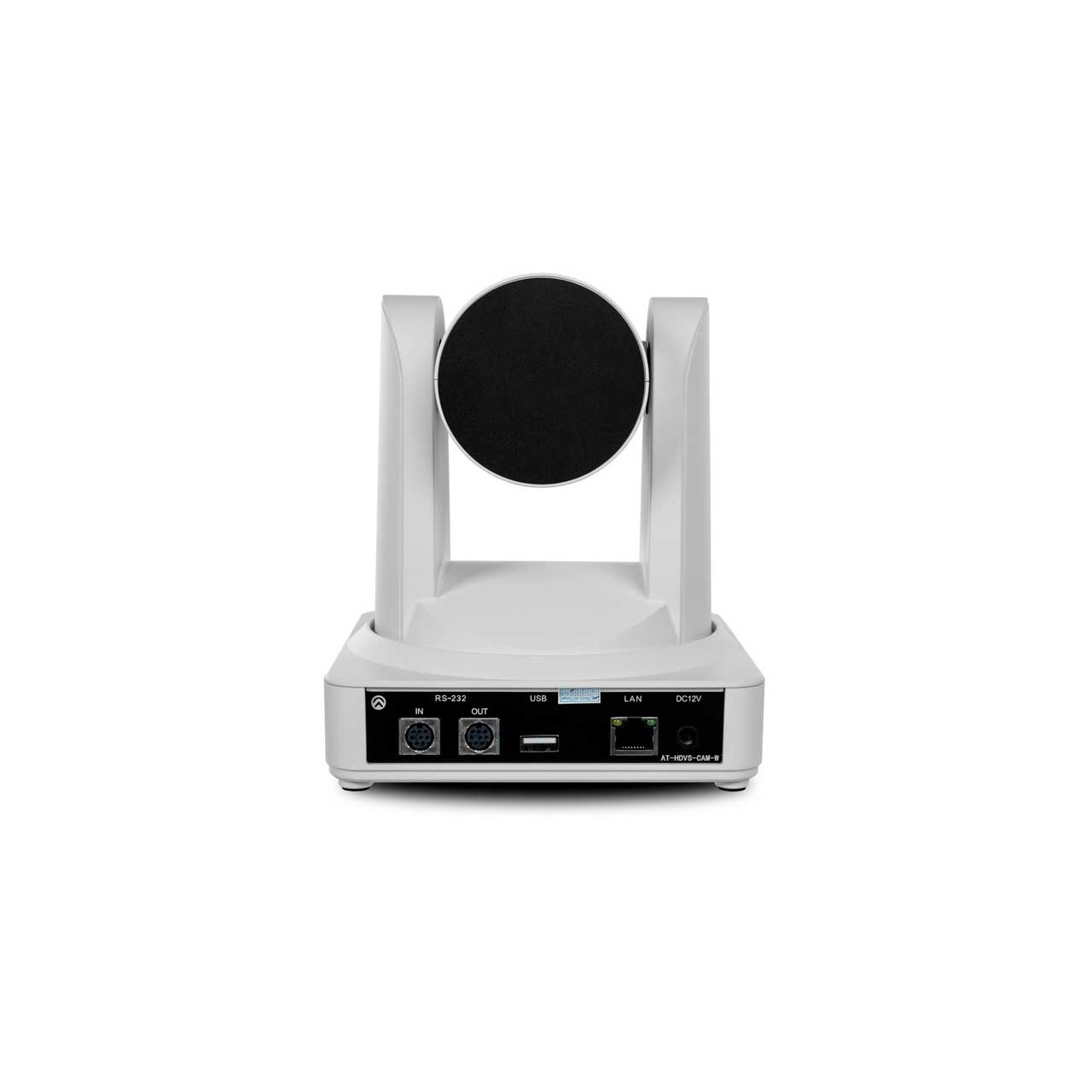

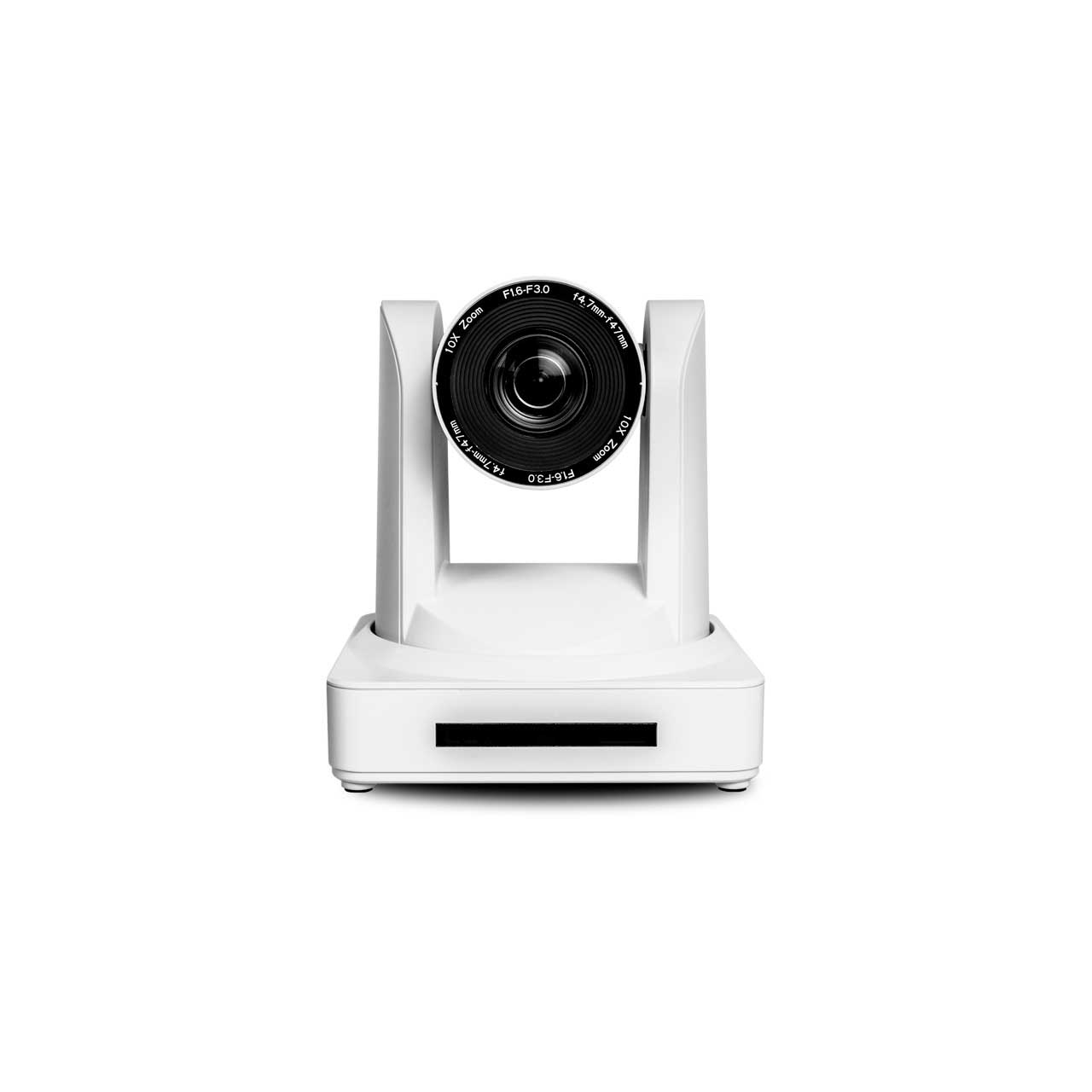

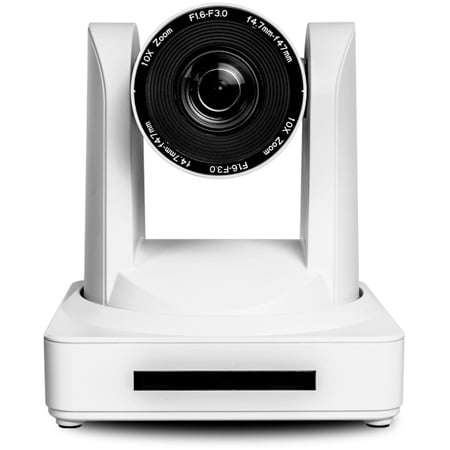

Atlona AT-HDVS-CAM-W PTZ Camera for Soft Codec Conferencing System - White

ITEM #: ATNO-AT-HDVSCAMW MFG #: AT-HDVS-CAM-W

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$750.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AT-HDVS-CAM-W - Overview

The Atlona AT-HDVS-CAM is an enterprise-grade PTZ camera designed for use in video conferencing and other applications such as lecture capture and distance learning. It features a USB 2.0 interface for video and camera control. The HDVS-CAM seamlessly integrates with the Omega Series, and OmniStream for a complete, automated conferencing system that includes AV and USB extension. The HDVS-CAM delivers high performance, professional-quality imaging with video resolutions up to 1080p @ 30 Hz, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. Also available is H.264 or H.265 streaming over IP with support for RTMP and RTSP protocols. This PTZ camera is ideal for a wide range of small to medium-sized meeting spaces, classrooms, and training rooms. The HDVS-CAM is also available in black.

Applications include:

  • Meeting spaces and conference rooms - The HDVS-CAM works together with the USB extension capability to enable simple, clean connectivity from the front wall to PCs at the meeting table. The camera is universally compatible with any PC using the standard USB video driver.
  • Classrooms and other instructional spaces - The HDVS-CAM is ideal for distance learning and collaboration, as well as lecture capture.
  • The HDVS-CAM includes a handheld IR remote control, plus mounting hardware for convenient on-wall installation.

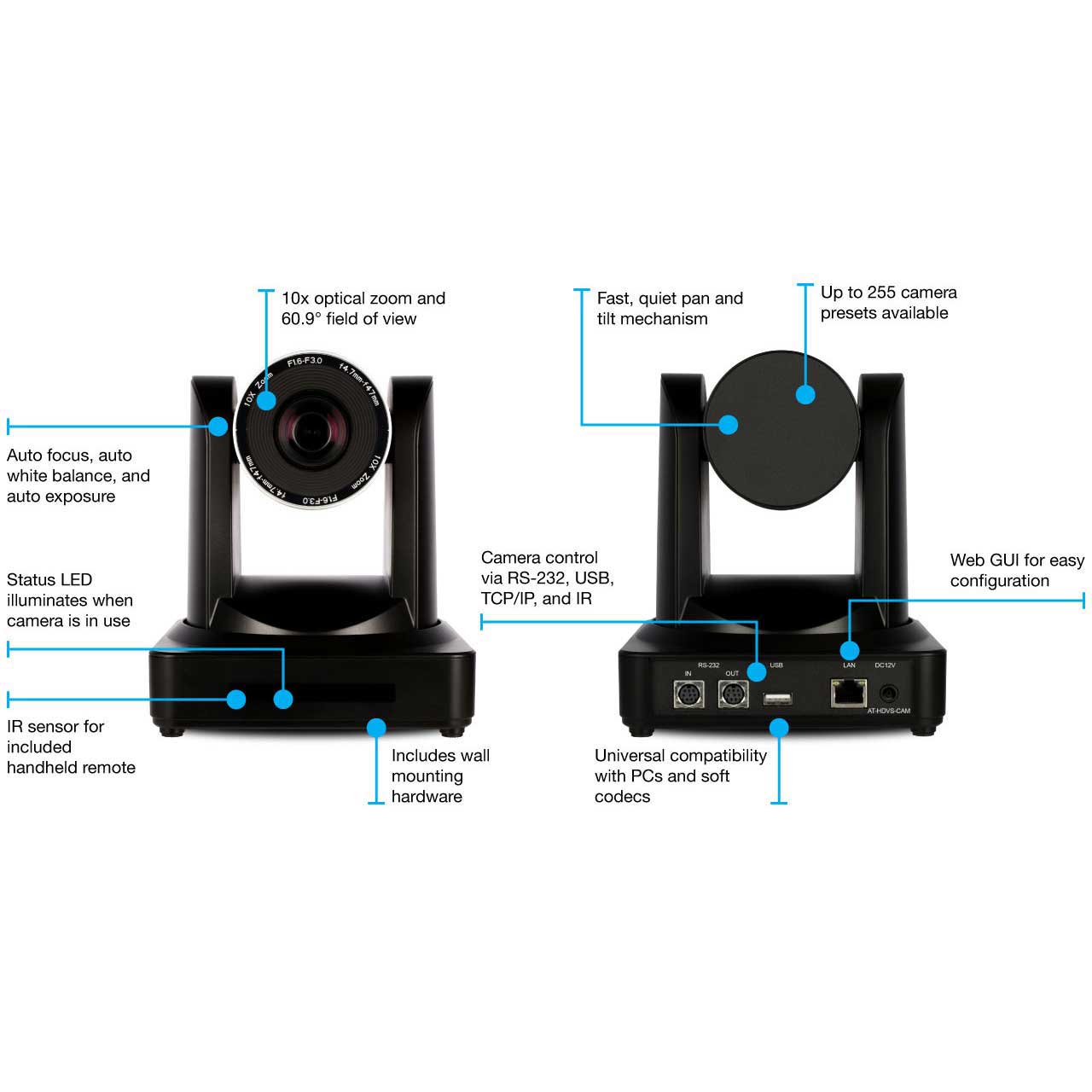

    • Features:

      • Designed for soft codec applications
      • USB 2.0 interface for video and camera control
      • High quality H.264 real-time HD streaming (future)
      • Universal PC compatibility through standard UVC (USB Video Class) driver
      • Compatible with a wide range of soft codecs and unified communications (UC) platforms
      • High performance imaging, fine detail, and color rendering with 1/2.8" low-noise, HD CMOS sensor
      • Available video resolutions from 176x144 up to 1080p @ 30 Hz
      • Fast and accurate auto focus, plus auto white balance and auto exposure modes
      • Fast and quiet pan and tilt mechanism
      • Multi-element zoom lens with 10x optical zoom and a 60.9° horizontal field of view
      • Picture controls available for brightness, color, saturation, contrast, sharpness, and gamma
      • TCP/IP, RS-232, USB, and IR control - convenient handheld IR remote control included
      • Up to 255 camera presets available, 10 accessible from IR remote
      • Supports VISCA camera control protocol
      • PTZ camera control available from popular soft codec and UC clients such as Skype for Business
      • Easy, GUI-based configuration using integrated web server
      • Camera can be mounted on a wall, or inverted for ceiling installation

    • Specifications:

      • Video
      • HD/SD/VESA (all resolutions are @30/25/20/15/10/5Hz): 1080p, 720p, 1680x896, 1024x768, 1024x576, 960x540, 800x600, 640x360, 720x576, 640x480, 352x288, 320x240, 320x180, 176x144
      • Optical Zoom: 10X, f = 4.7 ~ 47 mm
      • Viewing Angle: 6.43° (telephoto), 60.9° (wide-angle)
      • AV: F1.6 - F3.0
      • Minimum Illumination: 0.5 lm, F1.8 with Automatic Gain Control ON
      • Video Compression: H.264, H.265
      • Control Protocol: VISCA/Pelco-D/Pelco-P
      • Network Protocol: RTSP/RTMP, ONVIF
      • Pan Rotation: ±170°
      • Tilt Rotation: -30° ~ ±90°
      • Pan Control Speed: 0.1 - 180° / sec
      • Tilt Control Speed: 0.1 - 80° / sec

        Temperature
      • Operating 14 to 122F
      • Storage -14 to 140F
      • Operating Humidity (RH): 20% to 95%, non-condensing
      • Storage Humidity (RH): 20% to 80%, non-condensing

        Power
      • Consumption 12 W
      • Supply: Input: 110 - 220 V AC, 50/60 Hz; Output: 12 V DC, 1 A

        General
      • H x W x D: 6.59 x 5.90 x 5.90 in.
      • Weight: 3.08 lb

    • Item Includes:

      • 1 Atlona AT-HDVS-CAM-W PTZ Camera
      • 1 Installation guide
      • 1 Wall mounting bracket
      • 1 IR remote control
      • 1 USB Type-A male to male cable
      • 1 Lens cap
      • 1 External universal power supply

    • Warranty:

      • Award-winning 10 year limited product warranty

    • GTIN:

      0846352006228
