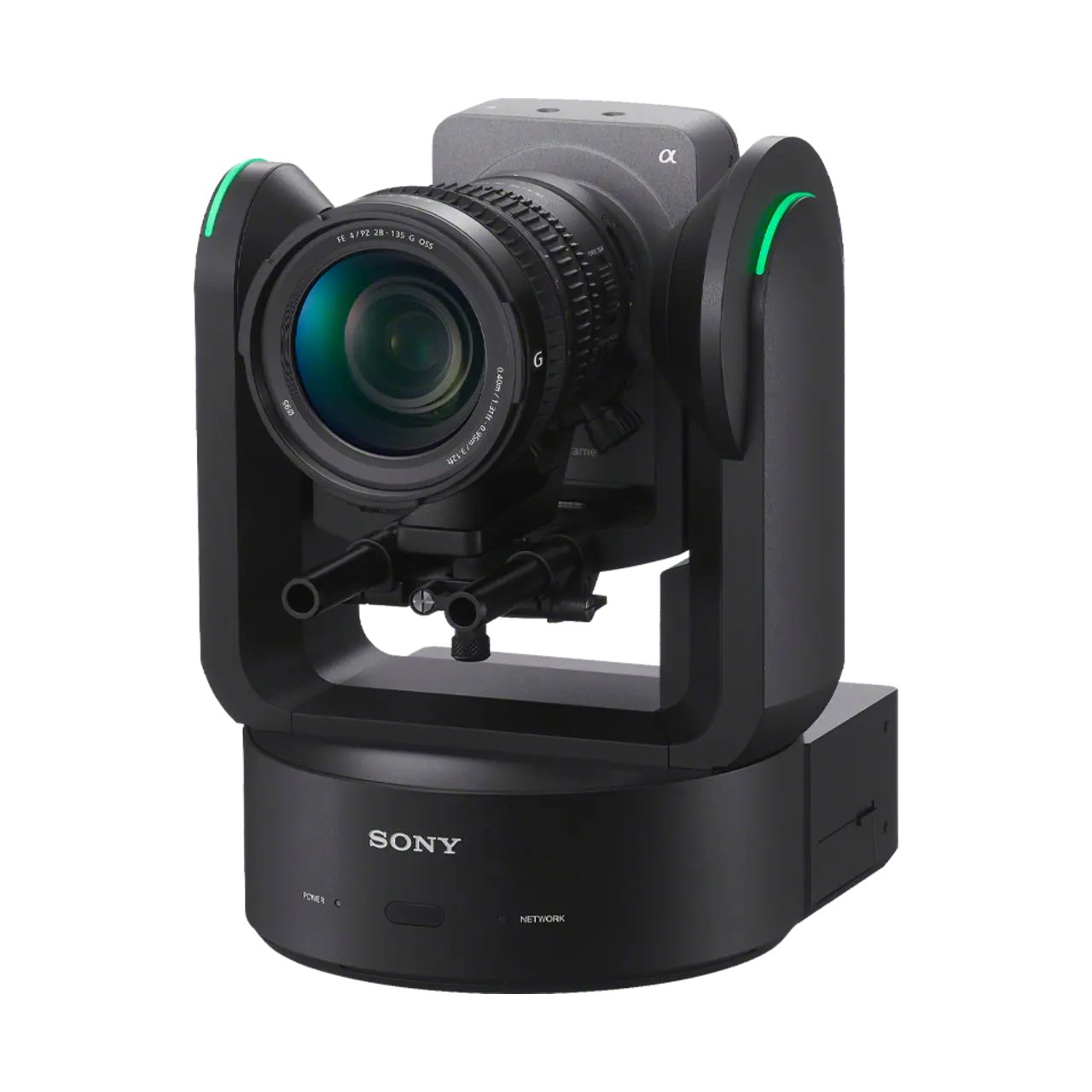

Sony ILMEFR7K FR7 Cinema Line Full-Frame PTZ Robotic Camera with with SELP28135G Standard Zoom G Master Lens

ILMEFR7K - Overview

Cinematography Meets Robotics

• Features:

  • World's first Full-frame interchangeable lens camera with pan/tilt/zoom (PTZ) functionality
  • Remotely controlled pan/tilt/zoom mechanism with up to 100 camera presets
  • Compatible with 70 E-mount lenses ranging from 12mm to 1200mm including power zoom models

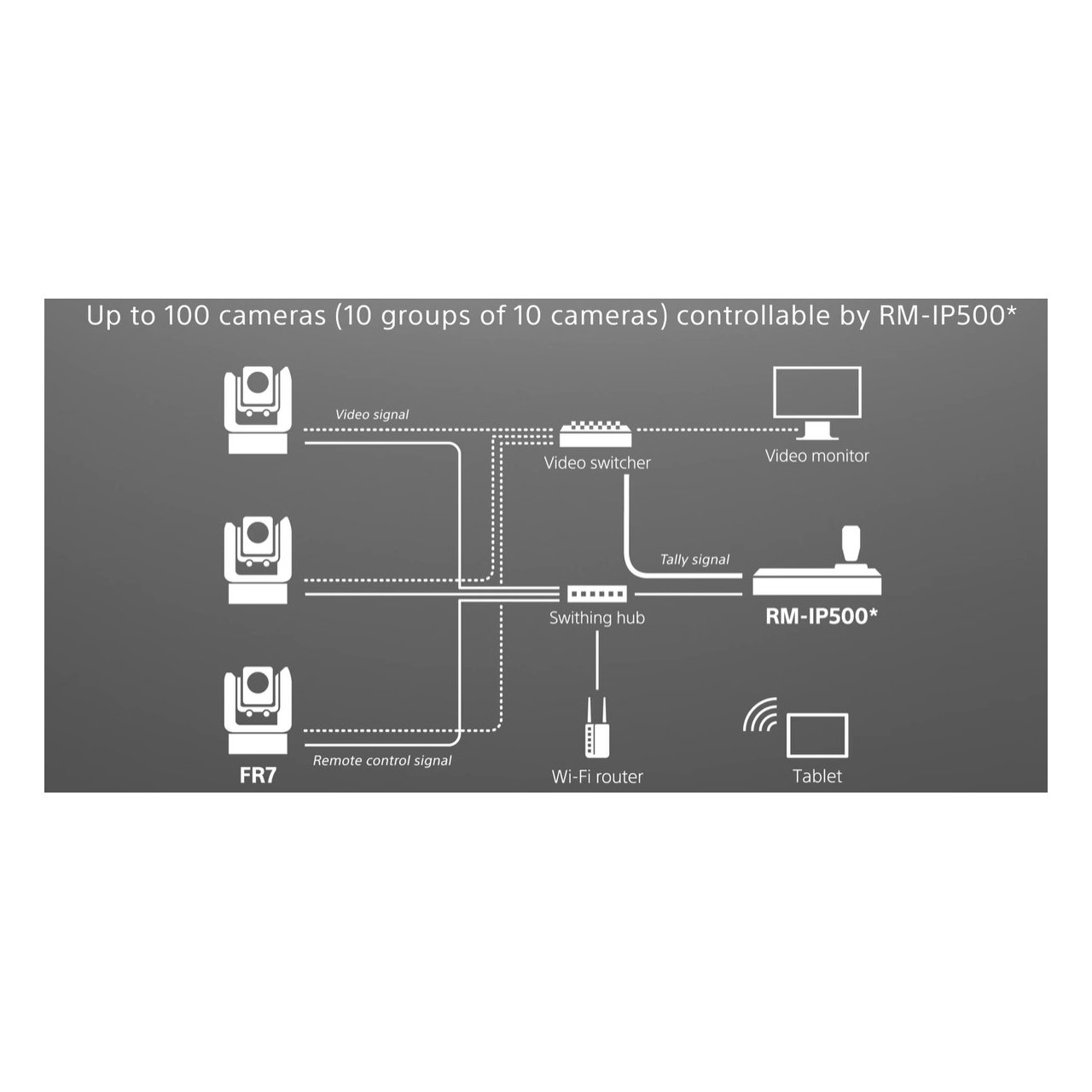

  • Web App for control by tablet or PC via web browser or with RM-IP500 for precise joystick control
  • High sensitivity up to ISO 409,6006 and 15+ stop dynamic range, selectable 800 or 12800 base ISO
  • In-camera Slow & Quick motion from 1 fps up to 120 fps 4K (QFHD)/240 fps FHD
  • Fast Hybrid AF with 627 phase-detection AF points and Real time Eye-AF
  • Remotely controllable continuously variable electronic ND filter (1/4 to 1/128)
  • Custom and Cine EI mode shooting modes to match creative workflows
  • Professional connectivity - up to 12G SDI, HDMI A, XLR input, TC, GENLOCK
  • 12G SDI BNC output/ HDMI type A video output
  • XLR 5-pin 2 Channel audio input connector
  • RTSP/NDI|HX/SRT IP streaming
  • Tally lights facilitate multi-camera operation


• Specifications:

  • General
  • Operating Temperature: 32°F to 104°F
  • Storage Temperature: -4°F to 140°F
  • Weight: 13.22 lbs (with SELP28135G Lens)
  • Dimensions (W x H x D): 9" x 1.5" x 9.25"
  • Power Requirements: PoE++(IEEE802.3bt Type 4 Class 8 compliant) 41.1 V - 57.0 V
  • Power Consumption: ≤71.3 W(PoE++)
  • Ceiling Mount: Yes (with Ceiling Bracket option)
  • Tally Ramp: 1xLeft/1xRight, Red/Green
  • Recording Format (Video): For Full Specifications, please see the Attachments Tab
  • Recording Format (Audio): LPCM 24 bits, 48 kHz, 4 channels
  • Recording Frame Rate: For Full Specifications, please see the Attachments Tab
  • Recording/Playback Time: For Full Specifications, please see the Attachments Tab
  • Recording Format (Proxy Audio): XAVC Proxy: AAC-LC, 128 kbps, 2 channels
  • Recording Format (Proxy Video): XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR 1920 x 1080, 9 Mbps
  • Lens Mount: E-Mount

    Camera Section
  • Shutter Speed: 64 frame to 1/8000 sec
  • Built-In Optical Filters: Clear, linear variable ND(1/4ND to 1/128ND)
  • Imaging Device (Type): 35mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor
  • Number of Pixels (Total): Approx. 12.9 megapixels
  • Number of Pixels (Effective): Approx. 10.3 megapixels
  • ISO Sensitivity: ISO 800/12800 (Cine EI mode, D55 Light source)
  • Focus Type: Fast Hybrid AF (phase-detection AF / contrast-detection AF)
  • Focus Point: 627 points
  • Focus Area: Wide / Zone / Flexible Spot
  • Other Focus Features: Real-time Tracking AF
  • Output Format / SDI: 4096 x 2160 / 59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 29.97PsF, 2
  • Output Format / HDMI: 4096 x 2160 / 59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 720 x 480 / 59.94p, 720 x 576 / 50p
  • Clear Image Zoom: QFHD/4K: 1.5x, HD: 2x
  • Slow and Quick Motion Function: XAVC-I/L 3840 x 2160 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98) 1920 x 1080 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98)
  • White Balance: Preset, Memory A(2000K-15000K)/ATW
  • Gain: -3 to 30 dB (every 1dB), AGC
  • Gamma Curve:
    - SDR Mode :S-Cinetone, Standard, Still, ITU709
    - HDR mode : HLG_Live, HLG_Natural
  • Latitude: 15+ stop

    Pan-Tilt
  • Pan/Tilt Angle: Tilt: -30 deg.- 195 deg.
  • Preset Position: 100
  • Quietness: NC35 or less
  • Pan/Tilt Speed: Tilt: 0.02 deg. to 60 deg./s

    Network Streaming
  • Protocols IPv6: TCP, UDP, ICMPv6, HTTP, HTTPS, DHCPv6, DNS, mDNS, RTP/RTCP, RTSP, SRT, FTP, FTPS
  • Protocols IPv4: TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, mDNS, RTP/RTCP, RTSP, VISCA over IP, SRT, NDI/HX, FTP, FTPS
  • Video Resolution: 4096 x 2160, 3840 x 2160, 2048 x 1080, 1920 x 1080, 1280 x 720, 640 x 360
  • Compression Format: H.264: High/Main/Baseline Profile H.265: Main/Main10 Profile
  • Maximum Frame Rate: H.264: 59.94fps H.265: 59.94fps
  • Bitrate Control Mode: CBR/VBR
  • Range of Bitrate Setting: 512 Kbps - 80 Mbps
  • NDI/HX Capability: Yes Option

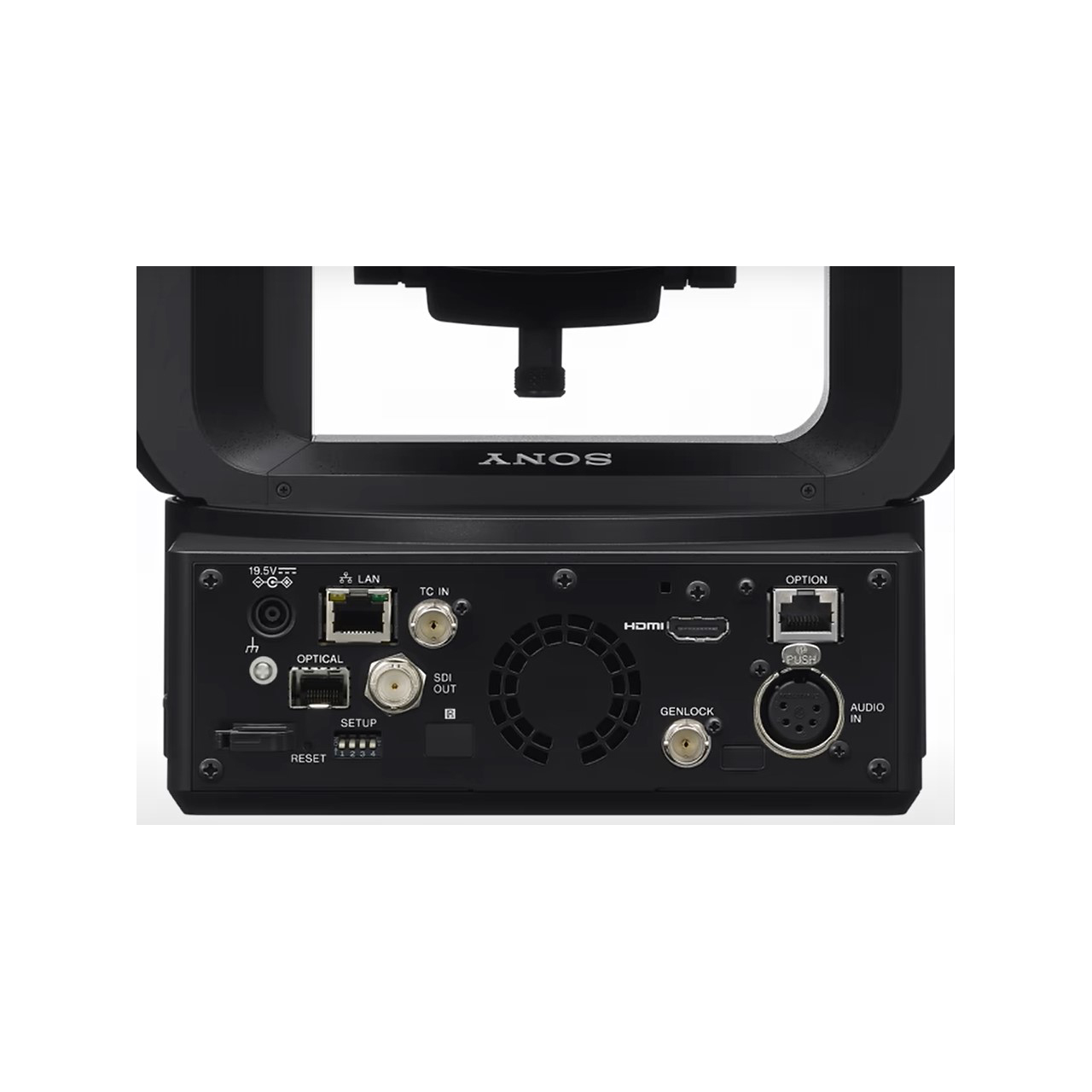

    Input/Output
  • Audio Input: XLR-type 5-pin (female) (x1), line/mic/mic +48 V selectable Mic Reference: -30 to -80 dBu
  • SDI Output: 1x BNC, 12G-SDI, 6G-SDI, 3G-SDI(Level A/B), HD-SDI
  • HDMI Output: 1x Type-A Connector
  • Genlock Input: 1x BNC, 1.0 Vp-p, 75 Ω
  • Optical Output: SFP+ compliant video is same as SDI, video output only
  • DC Input: 1x DC Jack
  • Network: 1x RJ-45(LAN), 1000BASE-T
  • Remote Control: RJ-45(OPTION) 1x Red Tally IO/Green Tally IO
  • IR Remote Control: Yes
  • TC Input/TC Output: 1x BNC, TC IN only


• Item Includes:

  • 1x Sony FR7 Cinema Line Full-Frame PTZ Robotic Camer
  • 1x Sony SELP28135G Lens
  • 1x Lens Cap


• Warranty:

  • 1-Year Limited Warranty
