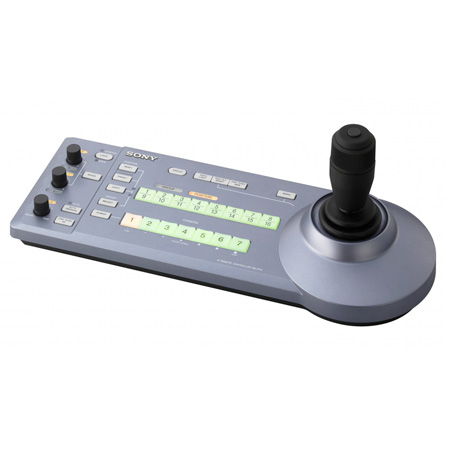

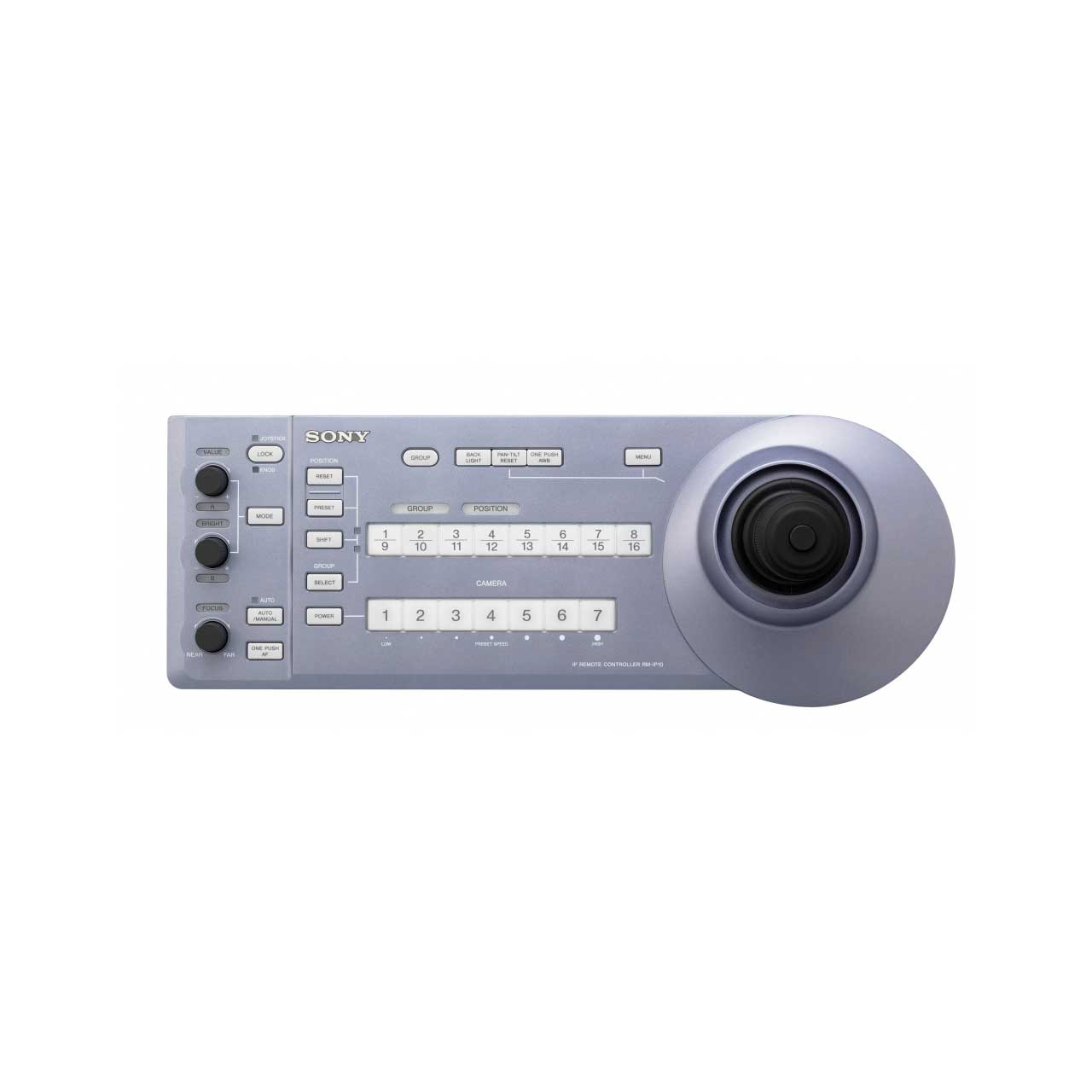

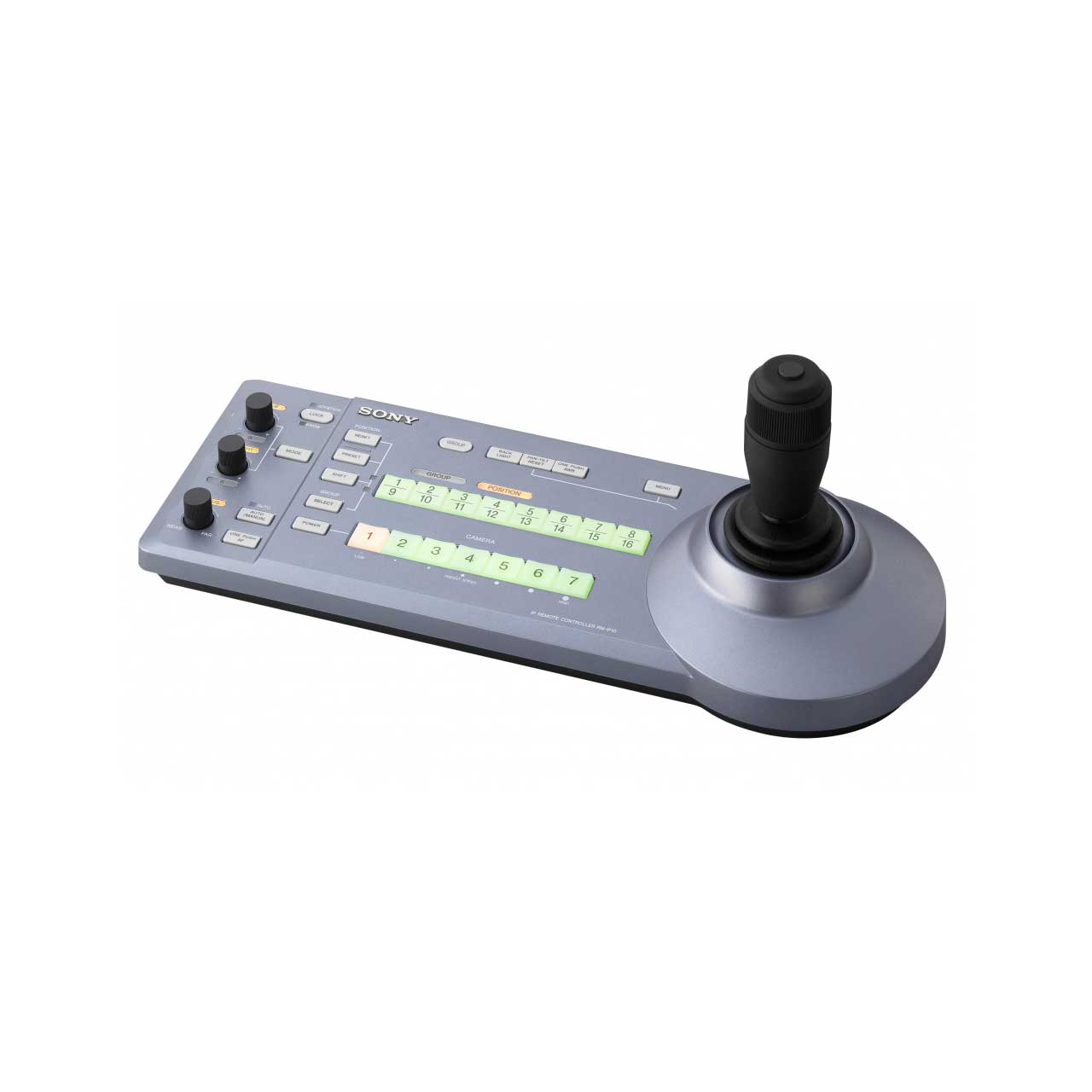

Sony RMIP10 IP Remote Controller for Select BRC and SRG PTZ Cameras

RMIP10 - Overview

Control of up to 112 BRC cameras via an IP network

• Features:

  • Control of up to 112 BRC cameras via IP: The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network.
  • Additional ability to use VISCA control: The RM-IP10 can also control up to 7 BRC cameras over a traditional VISCA (Video System Control Architecture) network.
  • Compatible with BRC-H900, BRC-Z330 and BRC-Z700 cameras: The RM-IP10 is compatible with the BRC-H900 and BRC-Z330 cameras when they are fitted with the BRBK-IP10 option board, and the BRC-Z700 camera when it is fitted with the BRBK-IP7Z option board.
  • Simple RJ-45 (10Base-T/100Base-TX) connection for easy connection: The RM-IP10 links to an IP network with via a RJ-45 connector providing very easy, low cost and speedy installation.
  • PC configuration software supplied: The RM-IP10 provides for convenient configuration of system IPs and BRCs numbers, with location free configuration of a network.
  • Up to 5 controllers can operate on a single network: Up to 5 RM-IP10 control panels can be used on a single network allowing shared control and simultaneous multi-operator control of large camera systems.
  • Simultaneous Preset recall to all cameras under control: Instantaneous set-up of multiple cameras provides a big time saving for camera adjustments.


• Specifications:

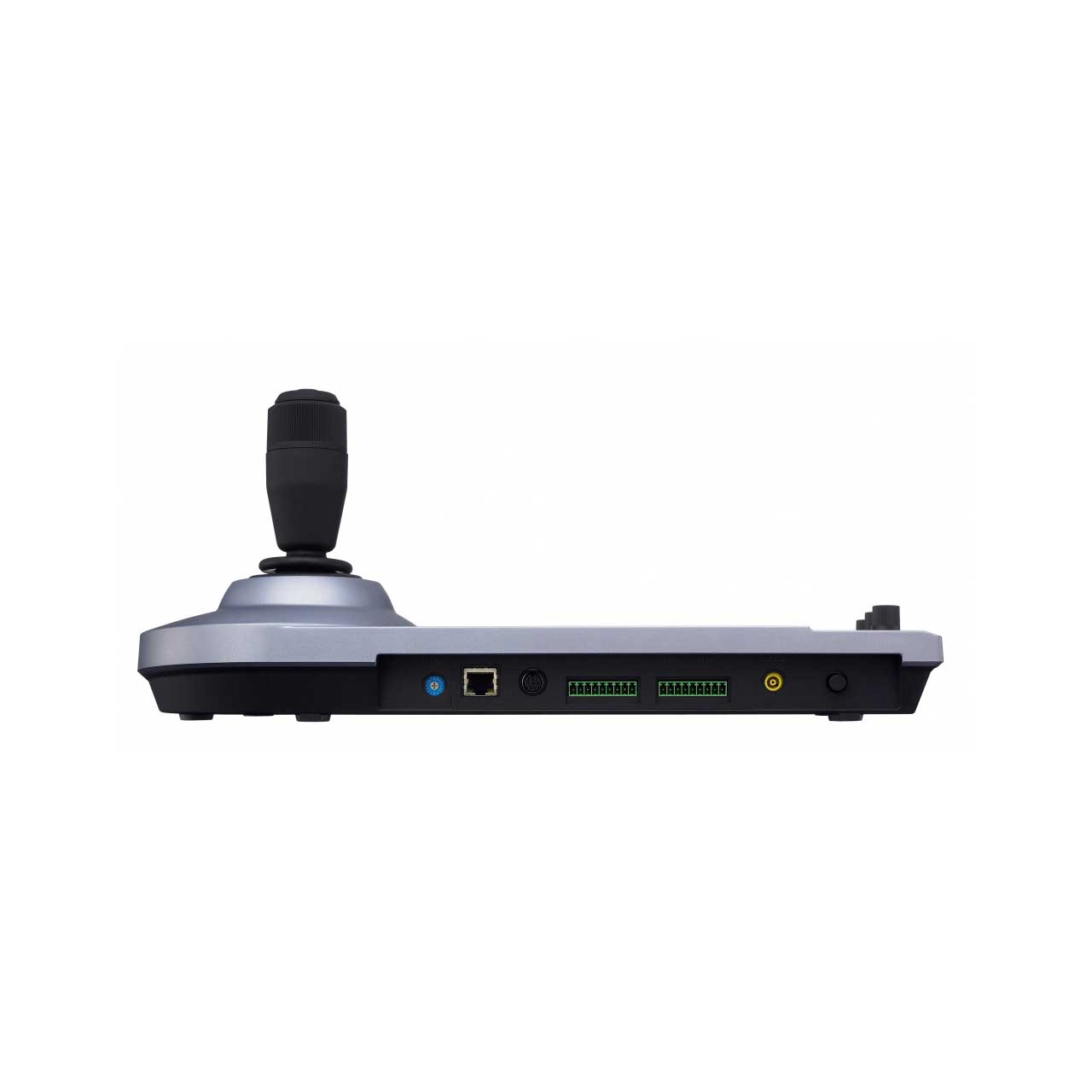

  • Control input/outputVISCA RS-232C OUT Connector : Mini DIN 8pin type
  • VISCA RS-422 connector: 9-pin type LAN : RJ-45, 10BASE-T/100BASE-TX automatically detected
  • Tally In/Contact Out: 9-pin type
  • Control signal format9,600 bps/38,400 bps (for RS-232C/RS-422 communication)
  • VISCA over IP communication
  • Power ConnectorJEITA type 4 (DC IN 12V)
  • Input voltage12V DC (10.8 to 13.2V DC)
  • Current consumption: 0.3A max. (at 12V DC), 3.6W
  • Operating temperature: 32°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Dimensions (W x H x D): 15 1/2 inches x 6 1/2 inches x 5 inches
  • MassApprox. 950g (2 lb 15 oz)
  • Maximum IP Connections112
  • Maximum Serial Connections7
  • Control ProtocolVISCA over IP/VISCA RS-422/VISCA RS-232C switchable
  • max Controller qty (/sys)5


• Item Includes:

  • Operating Instructions (1)
  • AC Power Adapter (SONY)(1)
  • AC power cord (1)
  • CD-ROM (1)
  • RS-422 connector plug (attached to the unit) (2)


• GTIN:

  0027242278820
