AViPAS AV-3106 3D Joystick Keyboard Controller for Avipas HD P/T/Z Cameras

ITEM #: SWIT-AV-3106 MFG #: AV-3106

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$380.00

Our Price:

$340.00

Special Price:

$310.00

Availability: In Stock
iAvailability Description Popup


AV-3106 - Overview

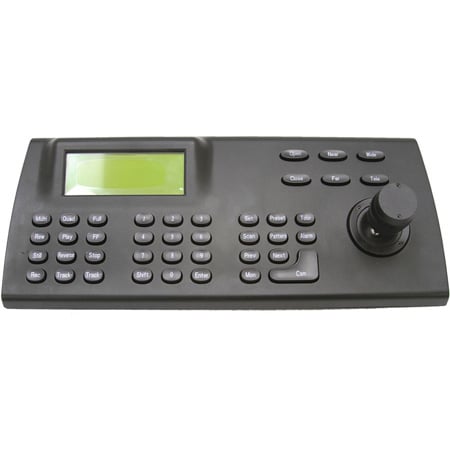

The AViPAS AV-3106 is a 3D joystick keyboard controller that is designed for Avipas HD P/T/Z cameras and supports VISCA, Pelco-D and Pelco-P protocol. It has almost all of the functions of the Avipas PTZ camera handheld IR remote and adds a touch sensitive joystick control. In addition to the joystick and keyboard, the controller has a small screen for displaying commands and the camera's working status.

  • Features:

    • Supports VISCA/ Pelco-D/Pelco-P protocol
    • Set and call presets of Avipas PTZ cameras
    • Communication modes: RS232, RS422, RS485, RJ45
    • All camera settings/functions can be set conveniently through function keys
    • Control up to 31 channels Avipas PTZ cameras with one controller in a daisy-chain configuration
    • Touch sensitive joystick control of pan, tilt and zoom speed
    • Selectable speed range of pan/tilt control (low, medium or high)
    • Supports password lock of camera function keys

  • Specifications:

    • Electrical
    • Input voltage: 9V-12V AC/DC
    • Rated power: 2.5W

      Communication
    • Communication interface: RS485, RS422, RS232,RJ45
    • Communication frequency: 2400Bps ,4800Bps, 9600Bps
    • Communication distance: 1.2km (RS485 and Rs422)

      Operational Environment
    • Operating temperature: 0°C - 40°C
    • Relative humidity: less than 90%

      Physical property
    • Dimensions(LxWxH): 378mm x 160mm x 98mm
    • Weight: 1.3kg
