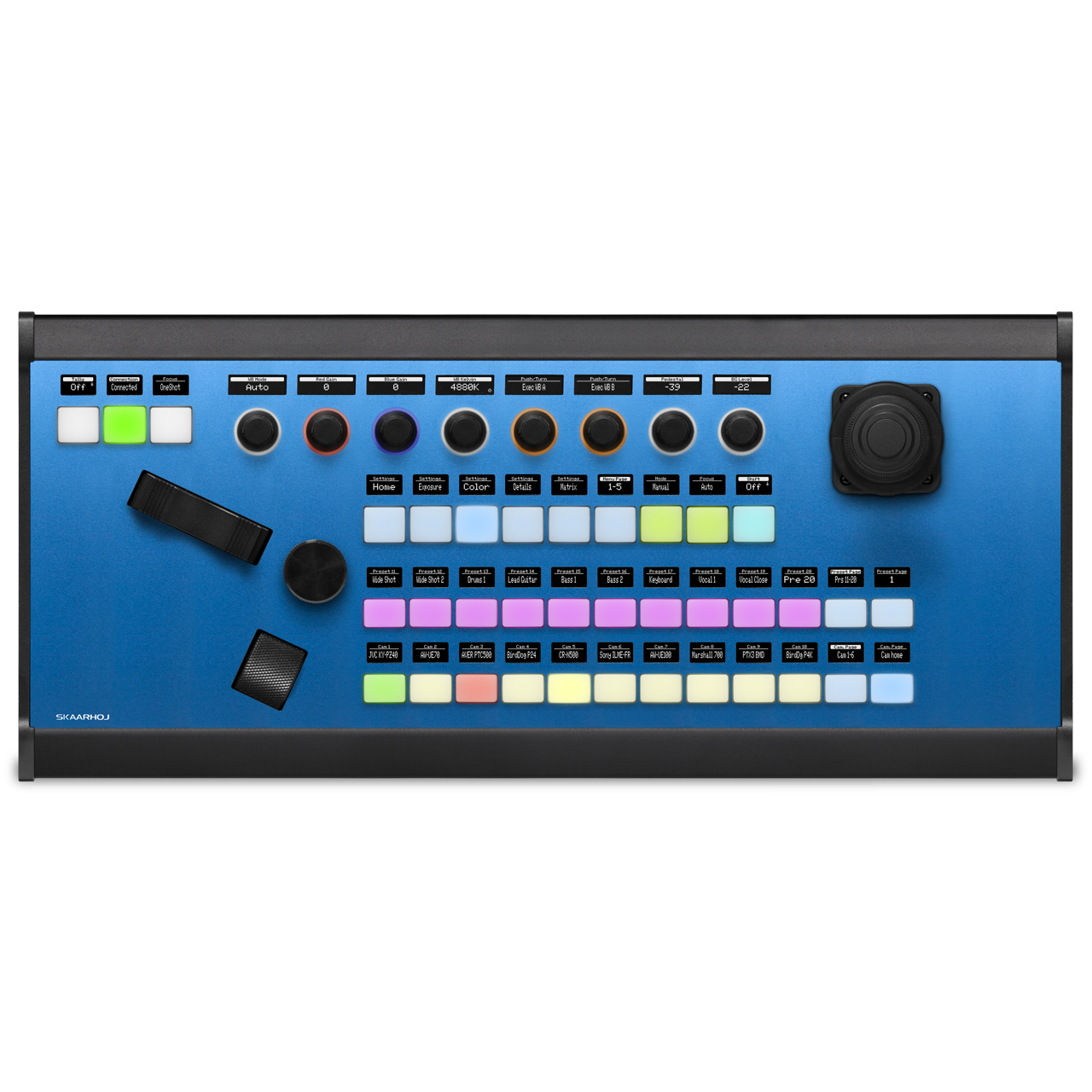

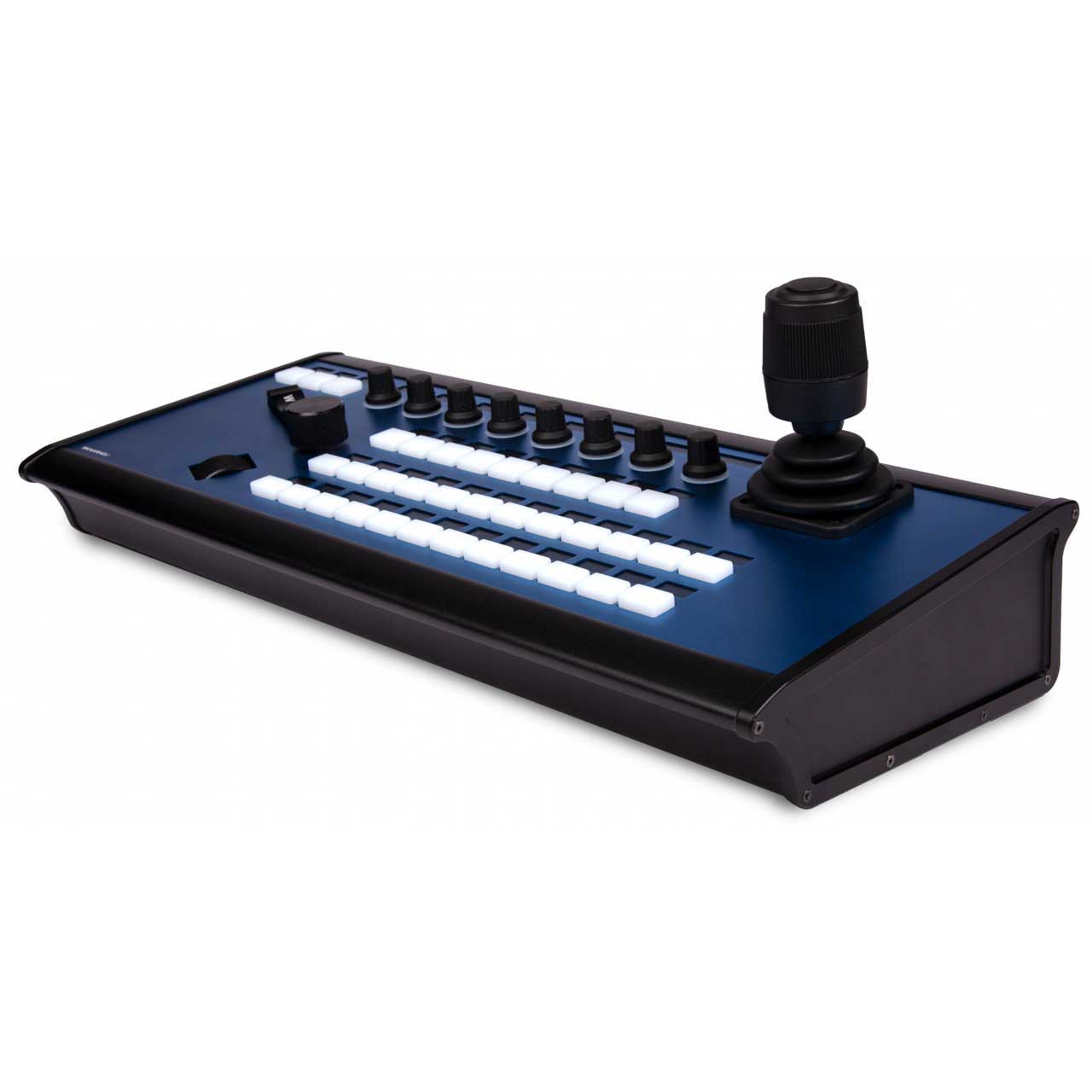

Skaarhoj PTZ-Extreme-V2B PTZ Extreme Camera Controller

PTZ-EXTREME-V2B - Overview

• Features:

  • Advanced Ergonomics: Custom controls designed for comfort and efficiency in long production hours.
  • Hall Effect Joystick: Delivers enhanced precision, reliability, and ergonomic design for extended professional use.
  • OLED Displays: Immediate visual feedback on labels and settings for precision adjustments and true flexibility.
  • Versatile Connectivity: Ethernet with PoE for streamlined setup and operation in any environment.
  • Absolute Freedom in Control: Tailor every aspect of your control surface to match your workflow perfectly.
  • Extensive Device Support: Control a wide range of cameras and devices, maximizing your system's capabilities.
  • Durable Build Quality: Engineered for reliability and longevity, ensuring consistent performance.
  • Innovative Design: Incorporates cutting-edge technology like the Blue Pill Platform for enhanced performance.
  • Time Tested: Adopted by professionals worldwide, signifying its effectiveness and reliability.
  • Extensive list of supported devices
  • Advanced ergonomics
  • Versatile connectivity via IP
  • Durable build quality
  • 3-axis precision Hall Effect joystick for PTZ movement
  • Custom designed aluminum zoom rocker
  • Stepless, friction balanced focus wheel
  • Large assignable iris knob for exposure control
  • 3 rows of buttons for camera selection, preset recall and menu navigation
  • 8 backlit encoders for parameter adjustments
  • Widescreen OLED displays for each button and knob
  • Universal control of multiple 3rd party devices
  • User customization with Reactor Web UI
  • 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
  • Designed and made in Denmark


• Specifications:

  Hardware Specifications
  • Component Highlights: Custom Aluminum Zoom Rocker Friction Balanced Focus Knob Detentless Iris Encoder 3-axis precision Hall Effect joystick
  • Buttons:
    - Elastomer Four-Way Button w/Display x36
    - 4-Axis Hall Effect Joystick, Top button x1
  • Encoders:
    - Encoder x8
    - Large encoder x1
    - Focus roller x1
  • Analog Components:
    - 4-Axis Hall Effect Joystick, Up-Down x1
    - 4-Axis Hall Effect Joystick, Rotate x1
    - Large Aluminum Zoom Rocker, no labels x1
    - 4-Axis Hall Effect Joystick, Left-Right x1
  • Programmable OLED Tiles:
    - 64x32 pixels x24
    - 64x32 pixels, gray x12
    - 112x32 pixels x8
  • Power Consumption: Typ. 3.4 Watt, Max 6.9 Watt (excl. USB-A)

    Connectivity
  • Networking: 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
  • Power Supply: 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
  • Service Port: Micro USB for setting manual IP
  • Peripherals: USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional networking adapters, frame grabbers etc.

    Software
  • Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux)
  • Licenses: Full Reactor and Device Core licenses included

    Physcial
  • Dimensions (LxWxH): 15.67 x 7 x 2.83" (398 x 178 x 72mm)
  • Weight: 4.12Lbs (1.868kg)
  • Shipping Dimensions (LxWxH): 17.12 x 8.66 x 5.70" (435 x 220 x 145mm)


• Item Includes:

  • 1x PTZ-Extreme V2B
  • 1x 12V Power Supply (1.5m)
  • 1x USB Programming Cable (1m)
  • 1x Networking Cable (2m)


• GTIN:

  5714074002710
