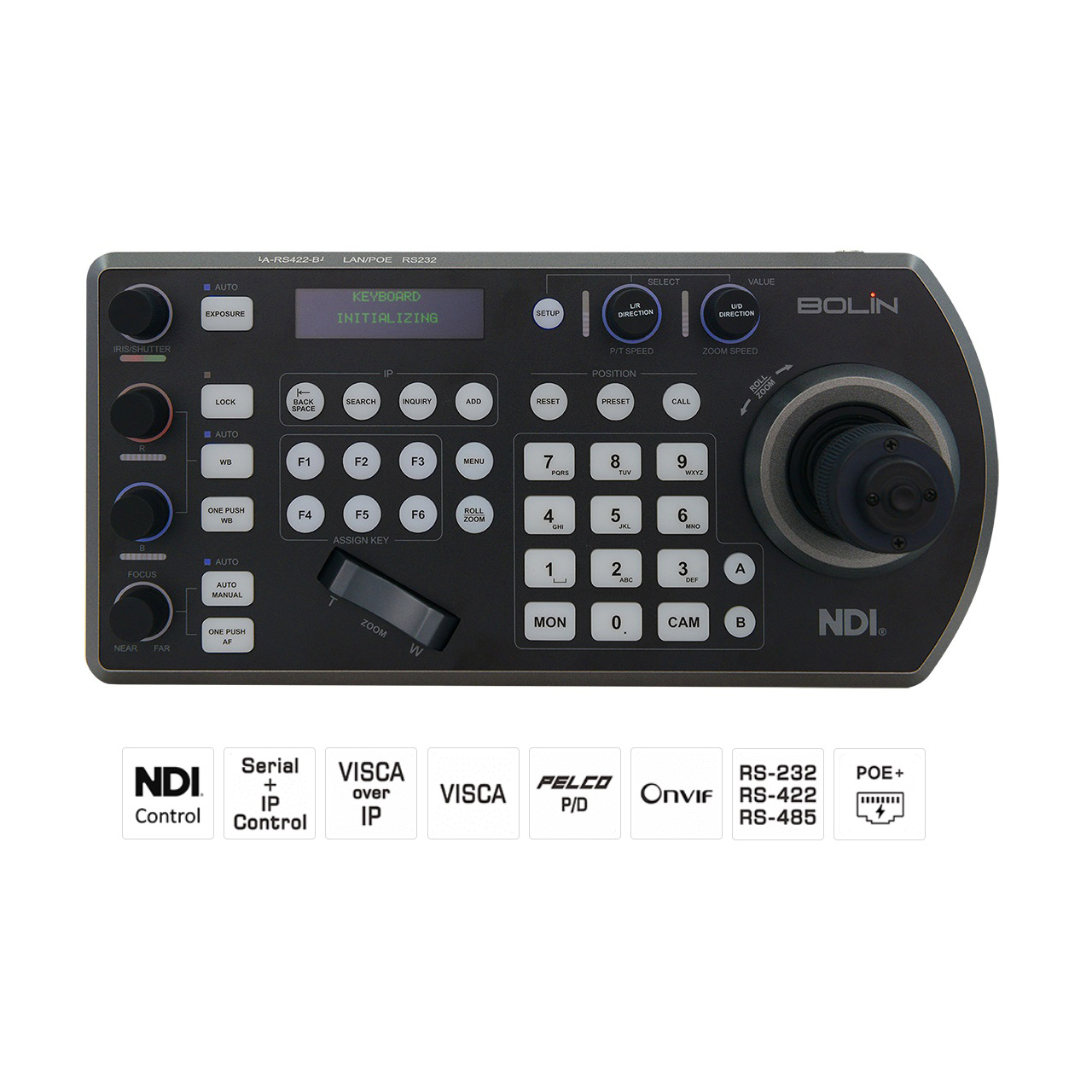

Bolin's KBD-1020N NDI-enabled controller is ergonomically designed to make critical PTZ camera functions easy to find and use. Details like dedicated knobs for PTZ variable speed control and for fine control over iris/shutter, red and blue adjustment, and focus, with auto/manual toggle. It has illuminated push buttons for camera selection and a three-axis joystick for smooth, precise camera movements.

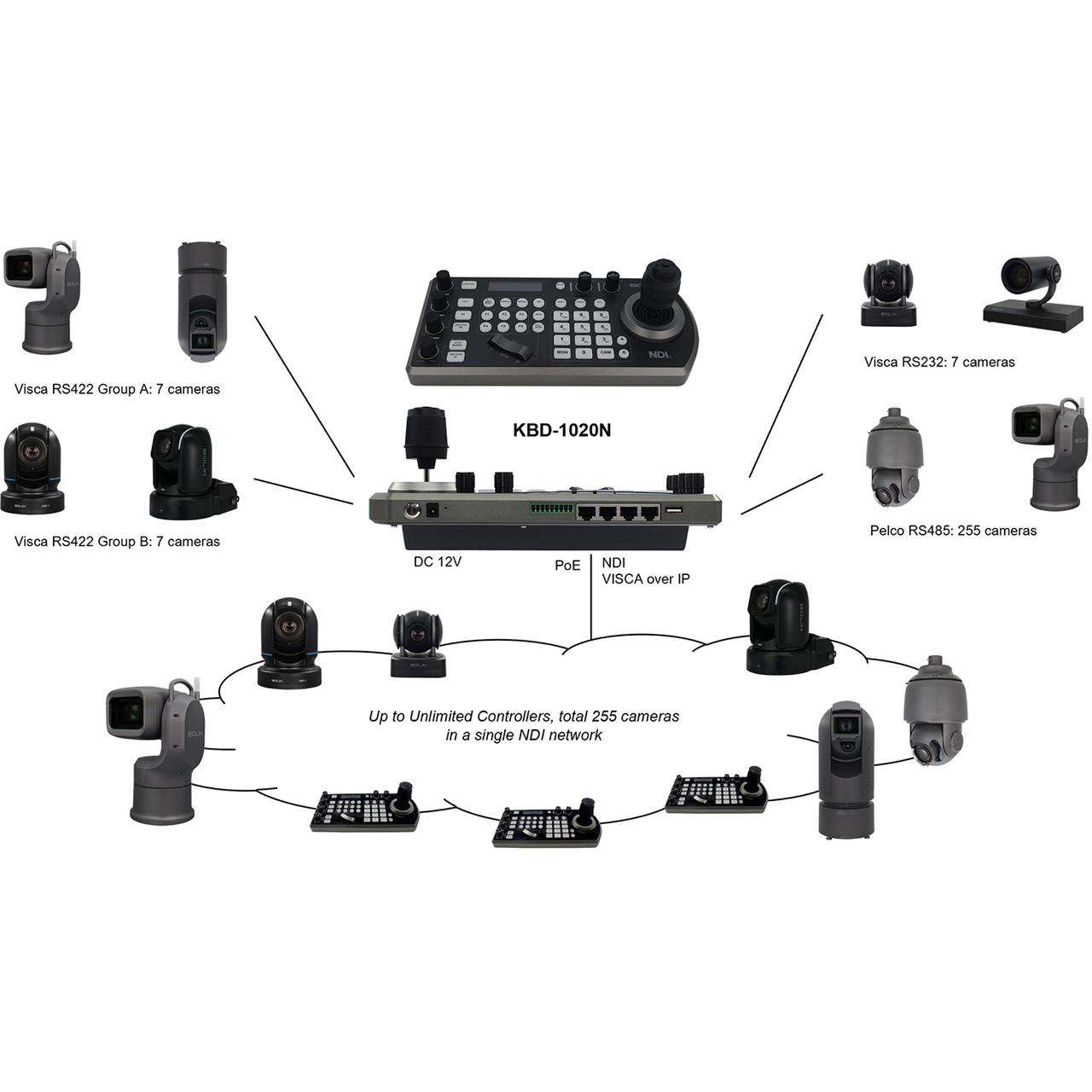

The KBD-1020N is a universal PTZ controller capable of camera discovery and transmitting serial and IP network control commands including serial Pelco P/D and VISCA as well as IP control protocols like VISCA over IP, ONVIF and NDI simultaneously within the same network.
The power, flexibility, and intuitive, precise camera controls of the KBD-1020N make it an ideal partner for multiple PTZ camera setups in live NDI production environments such as broadcast studios, education and video conferencing spaces, concerts, and Houses of Worship.
Quick Access Control
Delicate knobs for Quick Access features include the control of Exposure, Shutter Speed, Iris, Compensation, White Balance, Focus, PT Speed, Zoom Speed.
Selectable ASSIGN Items
ASSIGN item is selectable, additional functions can be assigned to ASSIGN keys to have One-Key quick action of the camera's Flicker, Status Display, AE level, SRZ, Tele Convert mode, Trace Memory, ND filter, Picture Profile settings, Rain wiper On/Off, Camera Power etc. Functionalities can be assigned. Available function depends on camera specification.
Keyboard and Camera Configuration Data Transferable via Software
Use IP software tool to modify and organize controller's configuration, export/import existing PTZ camera registration data via IP network makes KBD-1020N controller configuration a breeze when you have multiple controllers to work in one system.
Image Parameter Control
Via Visca protocol, either serial Visca or Visca Over IP, the KBD-1020N has image color and exposure related settings - including black levels, white balance, auto/manual exposure level, iris, gain and shutter speed - can be adjusted directly without using the camera menus.
Notes:
- Available functions/specifications depend on camera specification.
- Functions may differ based on different version of the firmware. * USB2.0 for firmware upgrade only.
