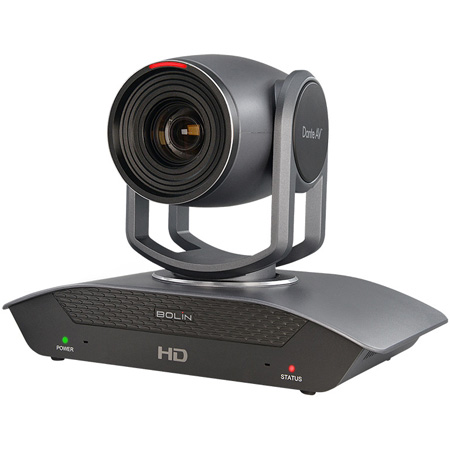

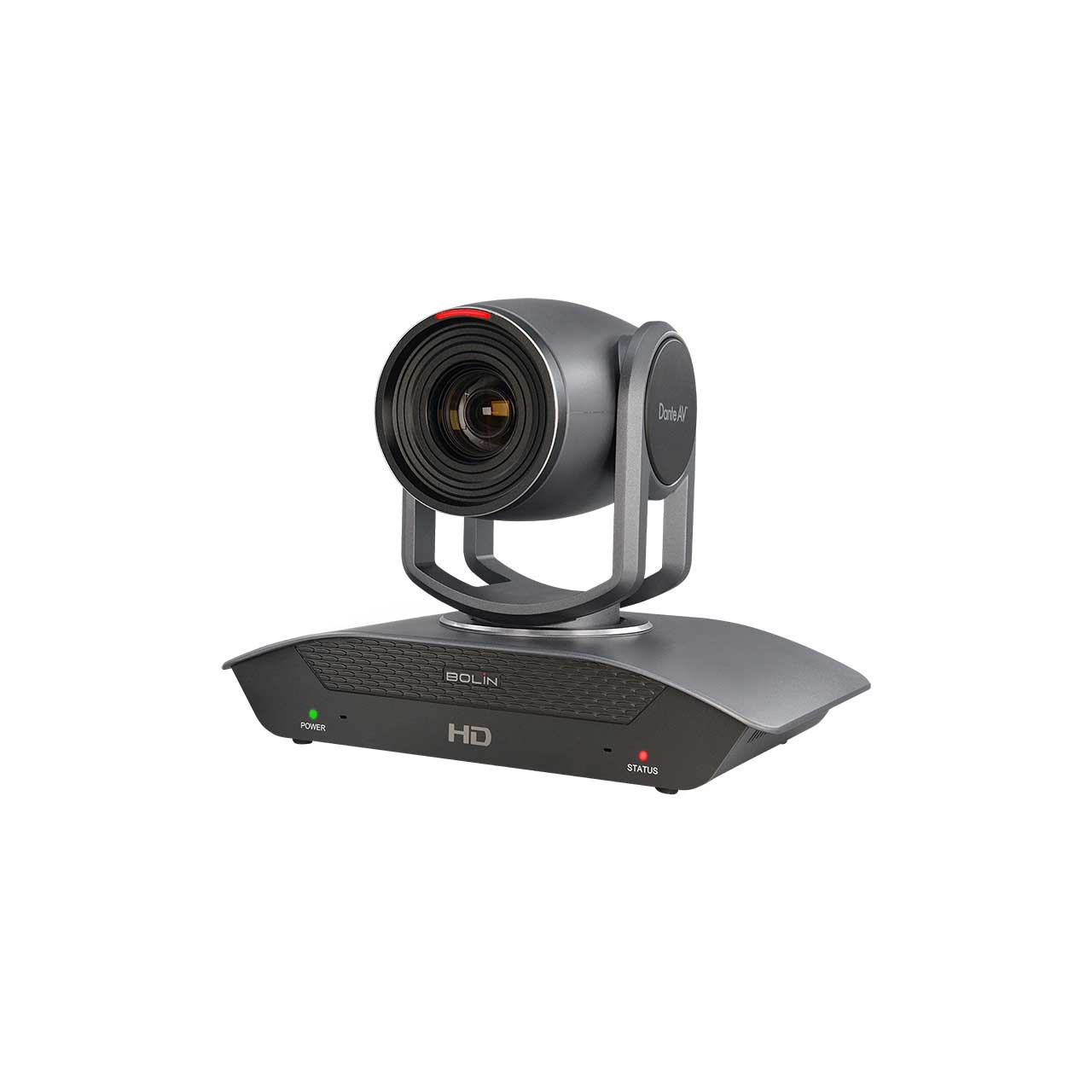

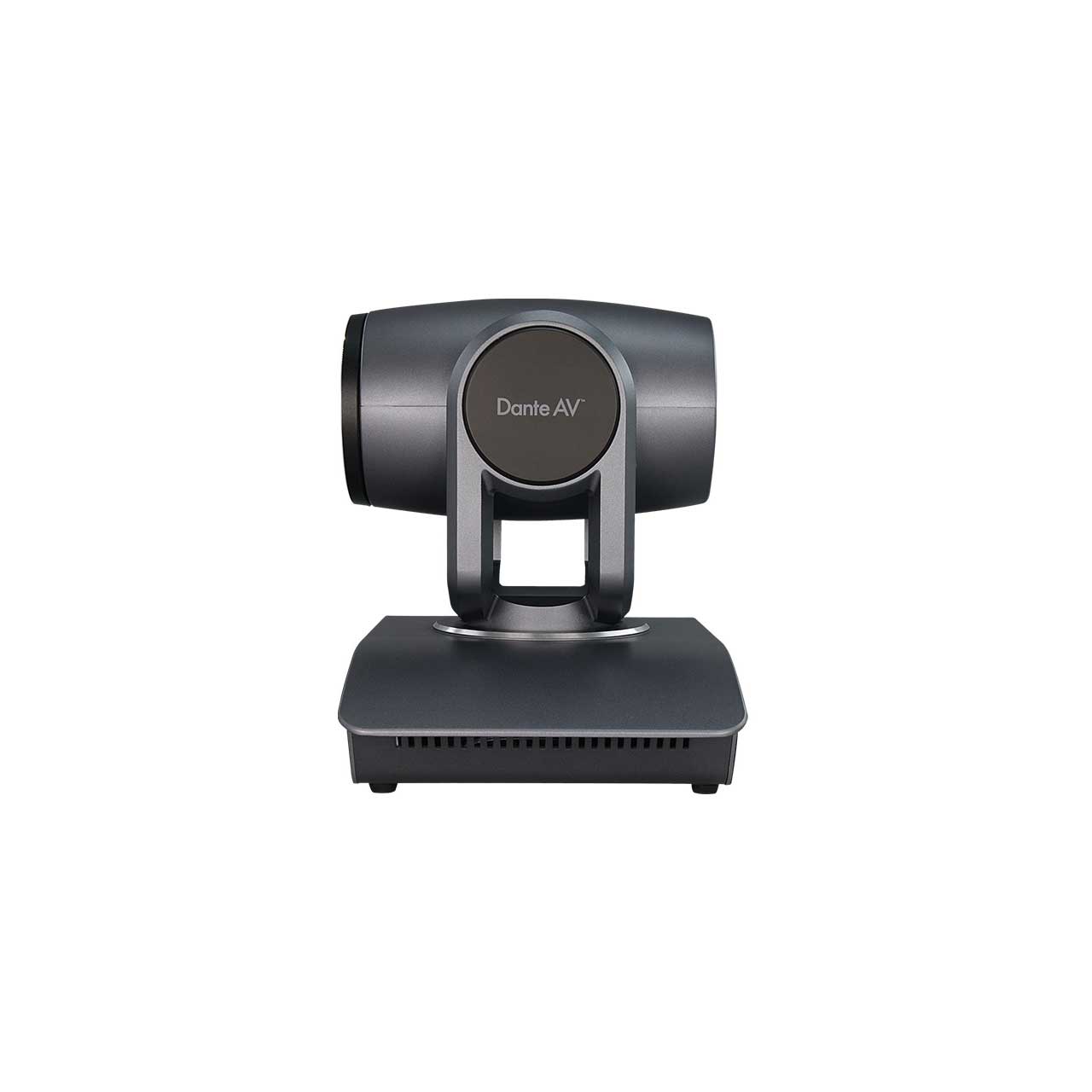

Bolin D220 Dante AV PTZ Camera - Supports up to FHD 1080p60 High Resolution with 20x Optical Zoom

D220 - Overview

• Features:

  • Multi-screen video display routing: Individually route video using familiar Dante Controller software, with no need for breakouts or matrix switches to display the camera video on any number of Dante AV-enabled screens.
  • Video Output: Deliver IP streaming video to Dante network and local HDMI 2.0 video output to conventional workflow in 4K60 or FHD. - Multicast Mode - Point to Multipoint and Point to Point Distribution - supports both unicast and multicast video distribution.
  • Audio: HDMI embedded high-quality audio and DanteAV video streaming embedded audio with support for mic and line-in audio input.
  • PTZ Movement: Extremely quiet and smooth operation for Pan/Tilt movements combined with enhanced adaptive, variable, and super slow speed control provides accurate and effective operation experiences. Picture Profile Preset- Image parameter setting restore with presets and quick access operation.


• Specifications:

  • Image Sensor: Sony IMX 307, 1/2.8" CMOS
  • Pixels: 1920x1080, 2 MP
  • Zoom: Optical Zoom 20X, Digital Zoom 2x
  • Focal Length: 5.2~98mm, F1.5 ~ F3.0
  • Aperture: F1.5(W)~F3.0(T)
  • Horizontal Angle of View: 55.8°(W)~3.2°(T)
  • Min. Object Distance: 1000mm(Wide), 1500mm(Tele)
  • Min. Illumination: 0.5Lux (Day), 0.1Lux (Night)
  • Shutter Speed: 1/1s~1/10000s
  • Focus: Auto, Manual, One Push
  • White Balance: AUTO, ATW, Indoor, Outdoor, USER, OPW
  • Exposure: Full Auto, Manual, Shutter Priority, Iris Priority, Bright
  • Image Adjustment: Brightness, Color(Saturation), Contrast, Sharpness, HUE
  • Back Light: On/Off
  • Flip: On/Off
  • WDR: On/Off, Level 1-6
  • Mirror: Horizontal
  • Gamma: 5 Steps
  • Noise Reduction: 2D/3D
  • S/N Ratio: =50db
  • OSD: Editable
  • Video Format - HDMI 2.0 -D220: 1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25
  • Color Format: HDMI, RGB 8bit 4:4:4 / YUV 12bit 4:2:2
  • Color Space: YUV(YCbCr), RGB
  • Dante AV: Powered By DanteAV Module
  • Network Interface: Standard 1Gbps Ethernet
  • Video Codec: ProAV optimized implementation of JPEG2000 codec in FPGA, Licensed By IntoPIX
  • Video Transport Format: Dante Video over IP
  • DanteAV IP Video Format: 1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25
  • Video Streaming: Unicast or Multicast
  • Latency - Codec: Encoder to Decoder < 8ms with Low Latency Mode
  • Bandwidth: 500-600Mbps at 4Kp60 10 bit 4:2:2; 150-250Mbps at 1080p60 10 bit 4:2:2
  • Control Protocol: Visca serial control over IP(Visca RS422), Visca-Over-IP
  • Video Output: HDMI 2.0X1, IP(Dante AV)
  • IP Video Stream: Up to 4K/60 and 1080p60

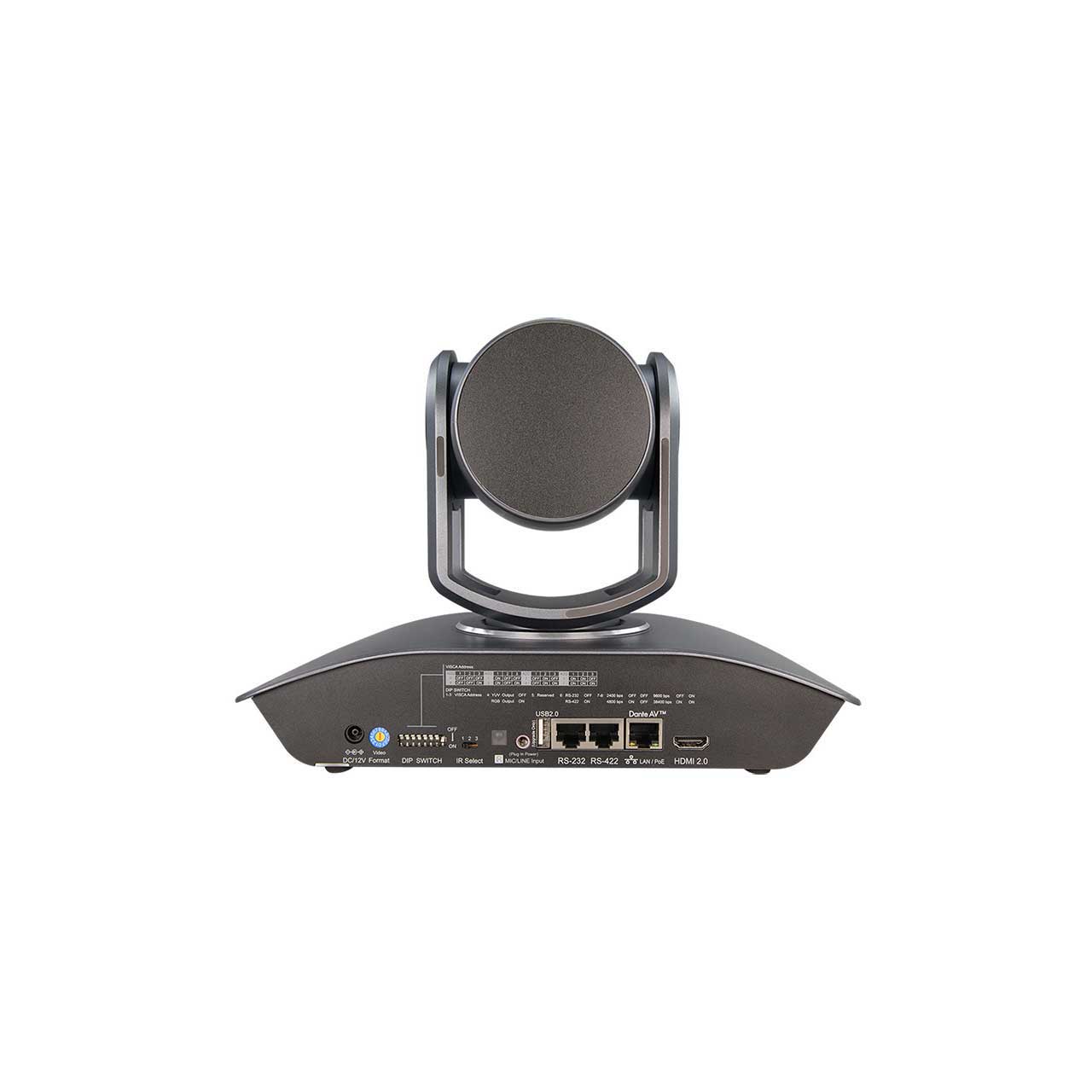

  • Camera Control Interface: RJ45X2-RS232/RS422, RJ45X1-IP Control, IR Remote Control
  • Control Protocol: VISCA. Serial Over IP (Dante AV), VISCA Over IP, PELCO_D, PELCO_P
  • LAN Port: RJ45X1(1000BASE-T Ethernet port)
  • Synchronization: Internal synchronization
  • Tally Light: Tally lamp in front, Red Color
  • Dip Switch: Back Panel: 8 PIN x 1 for system setting; Video Resolution Dip X1 for video format setting
  • Firmware Upgrade 1: Dante AV system upgrade via FUM; Back panel USB2.0 Type-A: Camera MCU firmware upgrade via USB
  • IR ID: ID selector for IR controller, total 3
  • Power Connector Type: IEC60130-10 (JEITA standard RC-5320A) TYPE4; RJ45: PoE++ (IEEE802.3bt)
  • Audio Input: MIC/LINE input: 3.5 mm stereo mini jack, Input impedance: High impedance During MIC input, Supported mic: Stereo mic (plug-in power) Supply voltage: 2.5 V ± 0.5 V During LINE input Input level: Approx. -10 dBV ±3 dBV
  • Audio Output: Embedded with HDMI, 24bit Stereo, Embedded with DanteAV IP signal. Sample rate: 44k1 to 192k, PCM24
  • Operating Temperature: 32 to 104°F
  • Operating Humidity: =80% Suitable for Use
  • Power Input: 12VDC, POE++, IEEE802.3bt Type 4 Class 6
  • Power Consumption: Min: 33W; Max: 37W
  • Heat Dissipation: Cooling fan speed adjustable, 3 Level
  • Acoustic Noise: NC35 or less

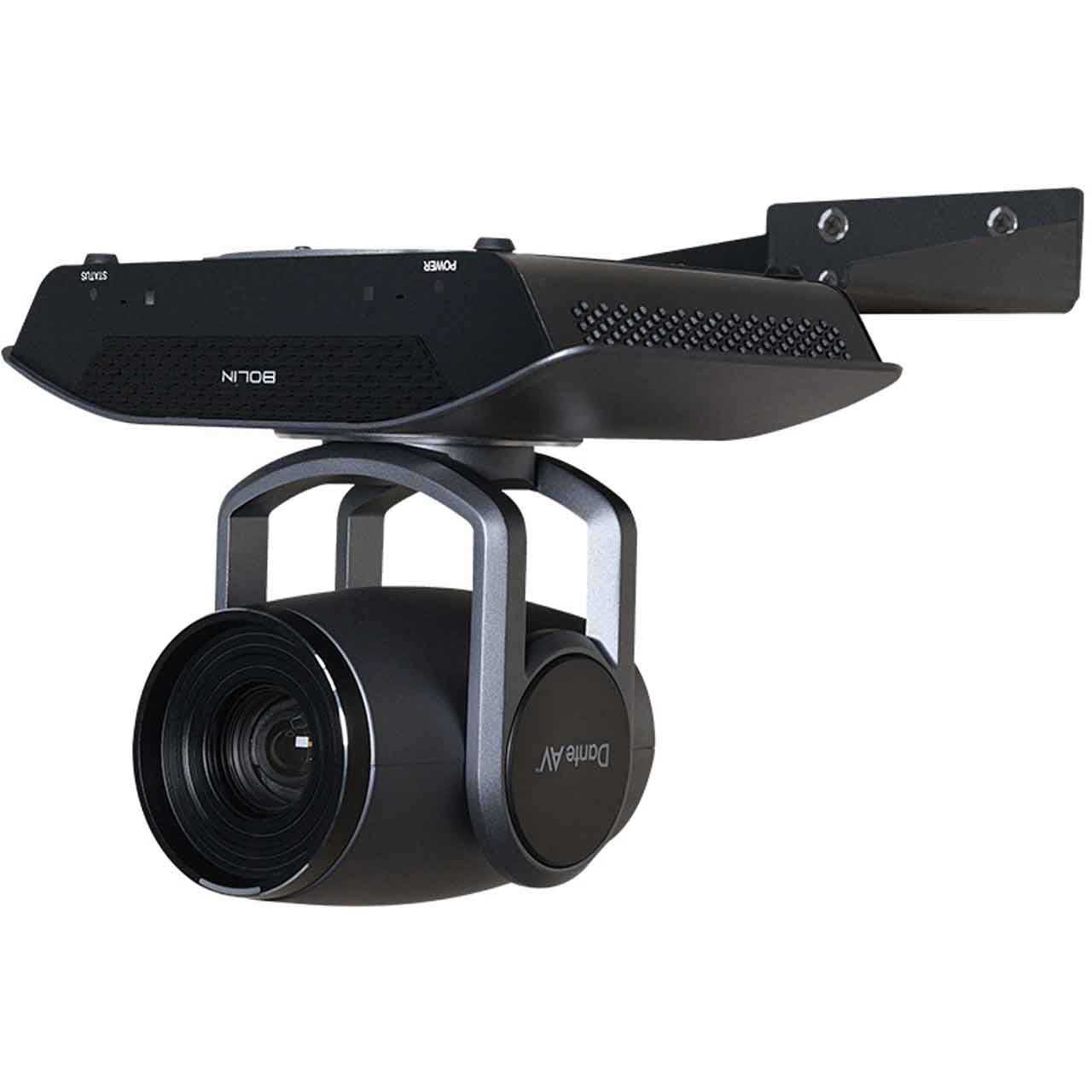

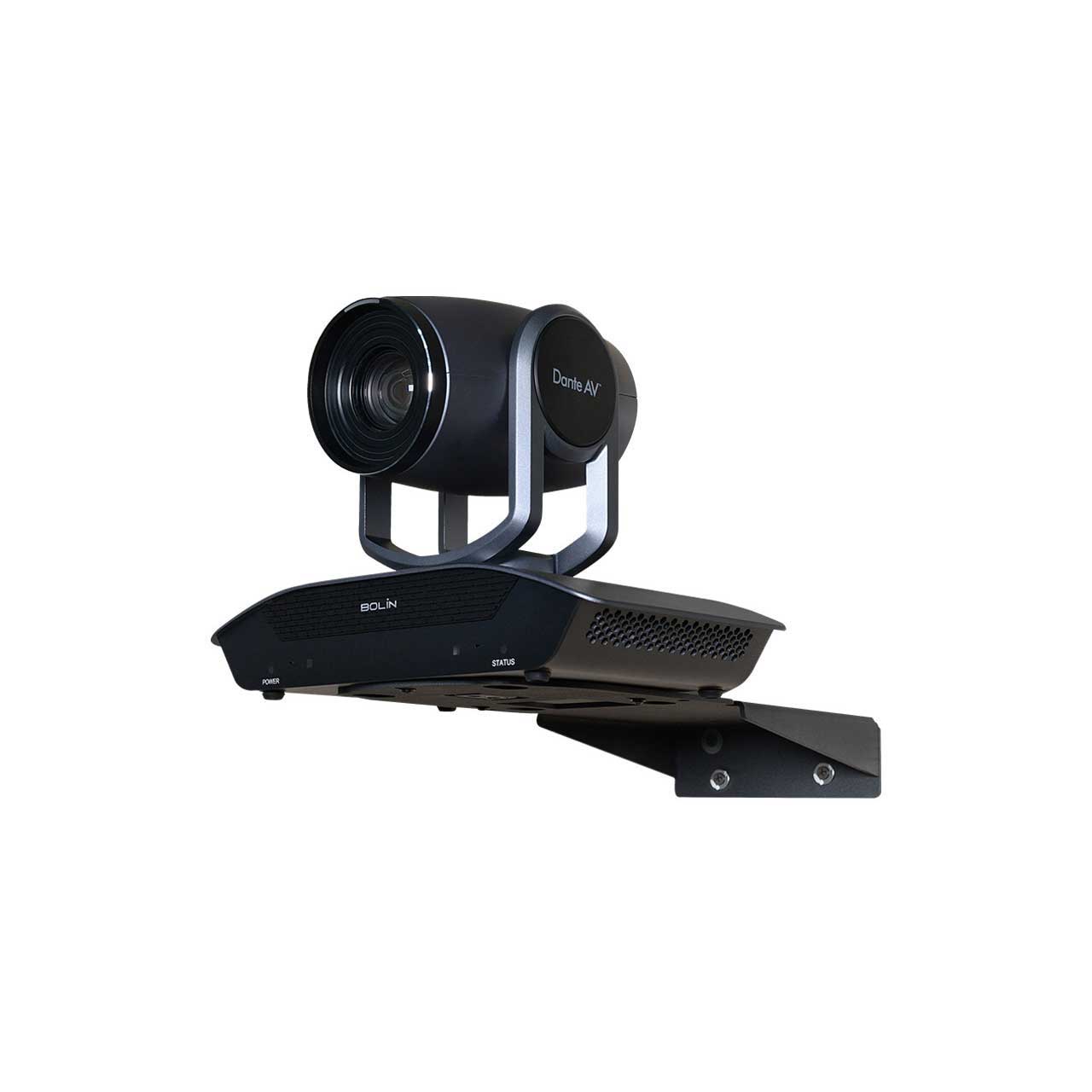

  • Mount: Ceiling mount, Wall mount, Tripod
  • Size of Tripod Screw Thread: 1/4-20UNC x2, 3/8
  • Dimension: 272 x 156.6 x 206.1mm
  • Weight: 2.8kg
  • Body Color: Metallic Gray
  • Gross Weight (Approximate): 12LBS


• Item Includes:

  • 1x Dante AV Camera
  • 1x Power Adaptor
  • 3x Power Cord
  • 1x IR Controller
  • 1x RJ45 to RS232 Control Cable
  • 1x RJ45 to RS422 Control Cable
  • 1x Safety Hook
  • 1x HDMI Cable Mount
  • 3x M4 Screws
  • 2x M2 Screws


• Warranty:

  • 2 Years


• GTIN:

  6973775120744
