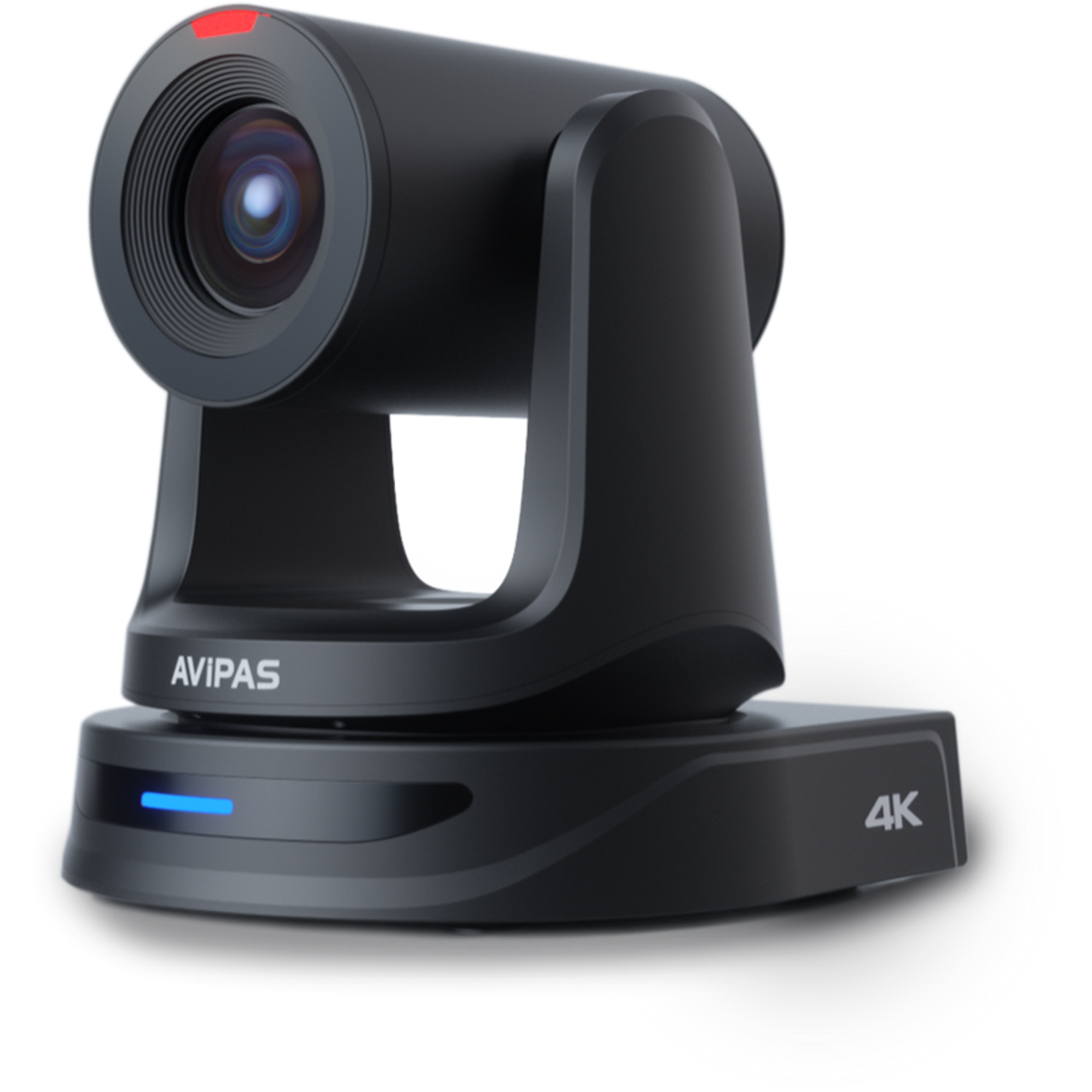

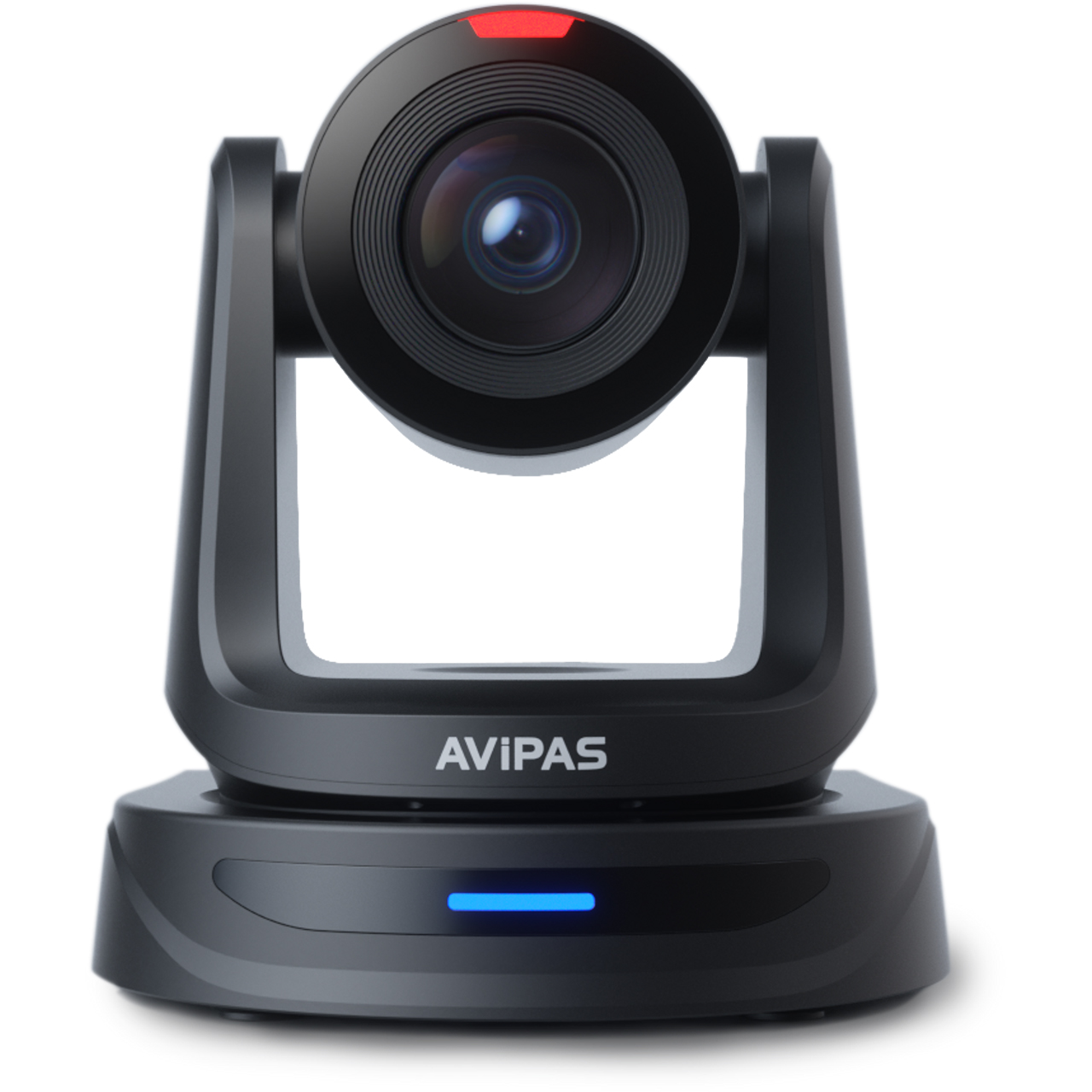

The AViPAS AV-2040 is a 20x optical zoom 4K auto-tracking PTZ camera with an integrated Tally light. Supports simultaneous 4K HDMI, 3G-SDI, USB, and IP video outputs, offering flexibility and compatibility with various devices and streaming platforms including video conferencing, medical training, educational fields, and houses of worship. Supports Multiple Network Streaming Protocols: SRT, RTSP, RTMP, ONVIF, and is compatible with most video conferencing/streaming software. It also features dual streaming outputs, allowing you to broadcast in different resolutions to meet diverse streaming requirements.
Equipped with a 1/1.8" high-quality Sony CMOS sensor, the AV-2040 captures stunning 4K video up to 60fps, ensuring every detail is crisp and clear. With the 20x optical zoom, f6.8mm~120mm, F1.61~F4.13 lens with advanced 2D/3D noise reduction & a minimum illumination of 0.5 Lux, this camera can provide more clarity and vivid image even in low-light conditions.
The built-in Auto Tracking function allows the flexibility to seamlessly transition between different subjects, customize the tracking zone, and adjust the subject's frame size to suit your filming needs.
Featuring an integrated Tally light system, this design provides an indication of the camera's live status, ideal for multi-camera setups to ensure seamless operation.
This camera has a 3.5mm TRS Line level input with AAC and LPCM audio encoding, perfect for embedding high-quality audio into HDMI, SDI, and IP stream outputs.
PoE + (Power over Ethernet) is supported, delivering power to the camera, control signal, and video out over a single Cat5/6 cable to simplify installation.

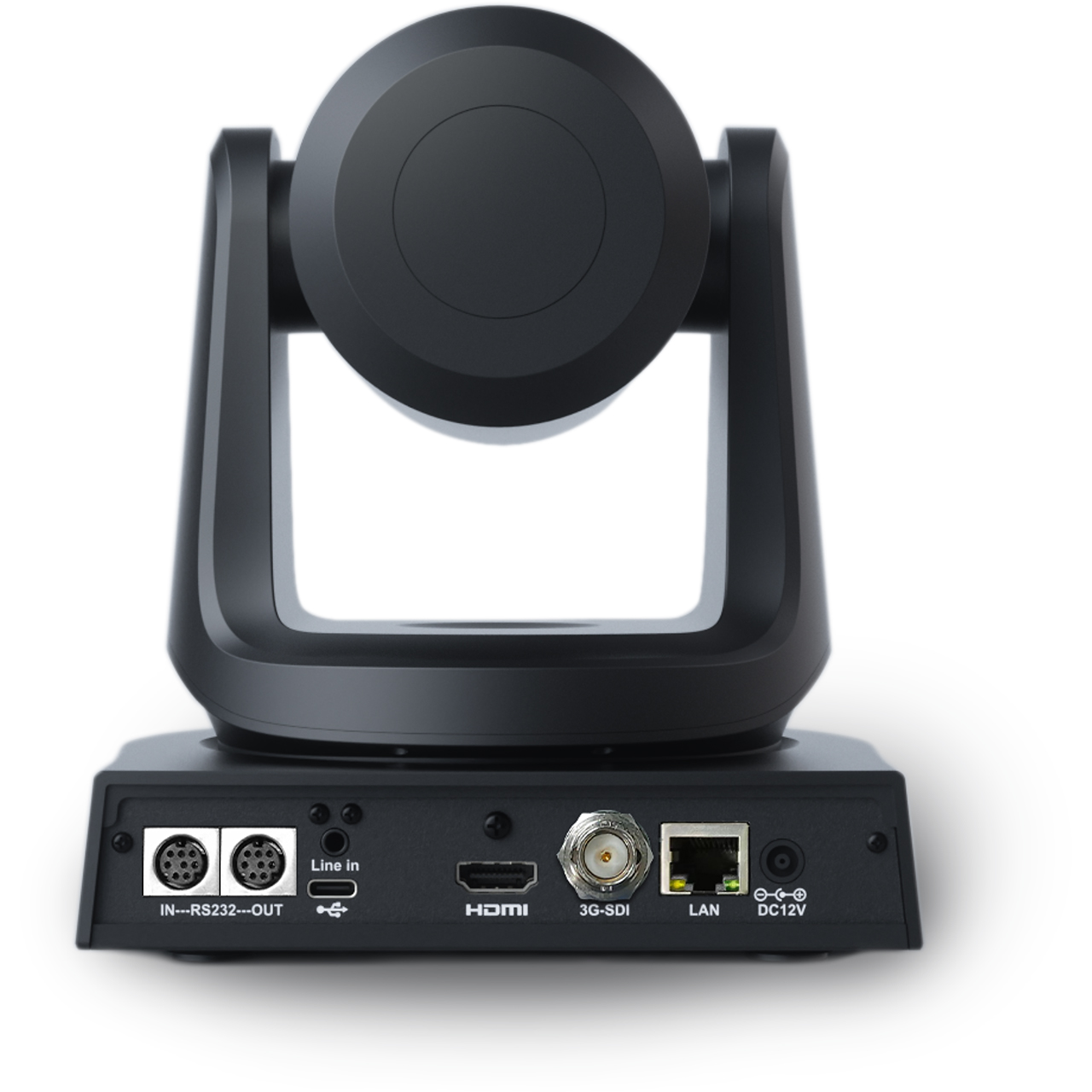

With RS232 in/out and RS485 communication interfaces, there is easy cascading and extended control of multiple cameras without distance limitations.
AV-2040 can be controlled by IR remote control, IP control(RJ45), or RS232/RS485 via serial commands. It is compatible with VISCA, VISCA over IP, Pecol-D/P, ONVIF, and UVC1.1 protocols.
The camera's design allows for wall, ceiling, or tripod mounting, featuring a 1/4"-20 thread on the bottom for secure placement.
