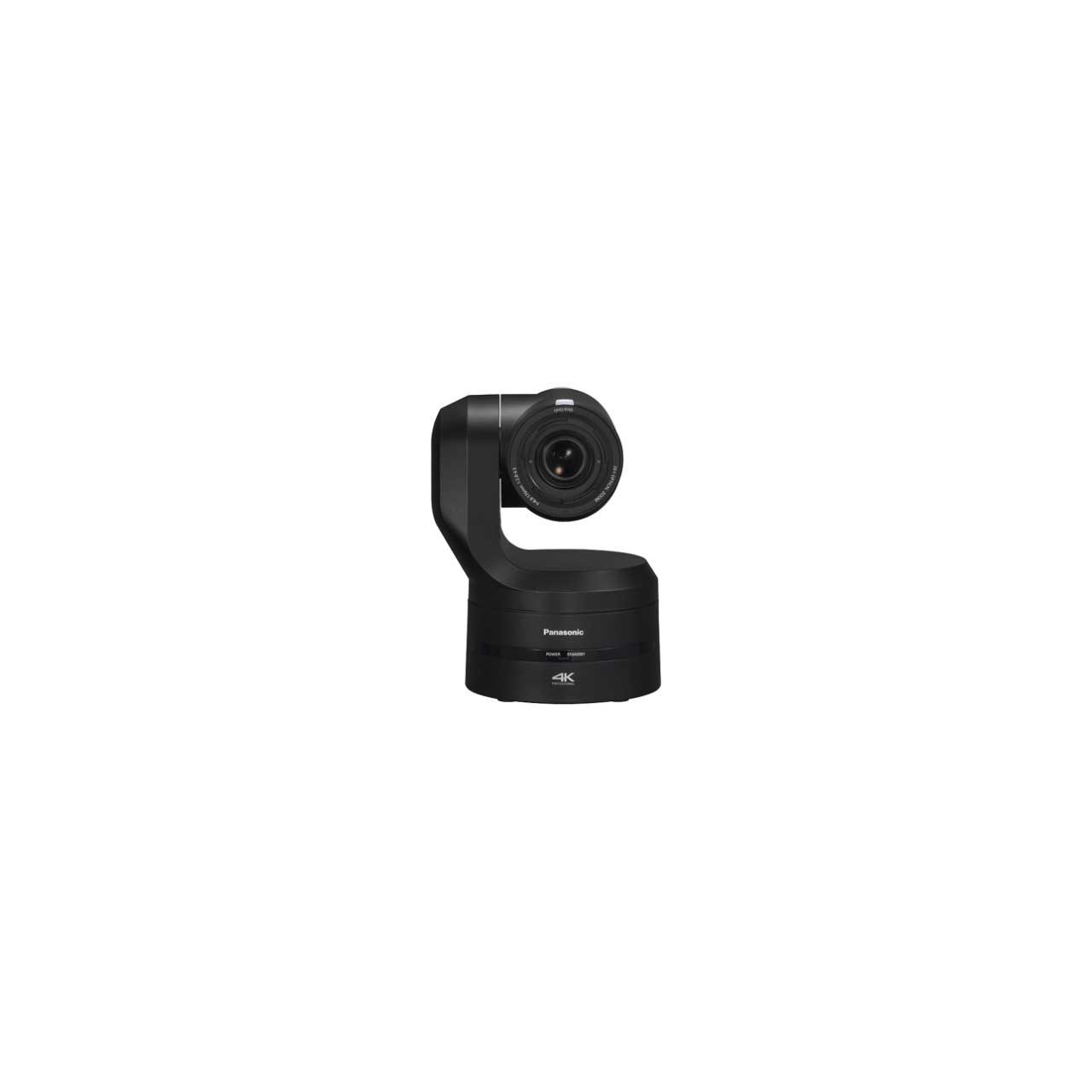

AW-UE160KPJ - Overview

4K 1 Inch MOS sensor that offers the highest sensitivity of Panasonic's entire PTZ lineup!

The AW-UE160 4K PTZ camera features a newly developed 4K 1" MOS sensor that offers the highest sensitivity of Panasonic's entire PTZ lineup. Production teams shooting in a concert venue or a church can easily capture clear images even in the most challenging lighting conditions. Meanwhile, the UE160's new optical low pass filter reduces the effect of moir‚ for clearer picture quality when shooting against an LED wall, which is especially important for rental and staging or worship environments. Its high-speed frame rate will help sports broadcasters capture slow motion shots in HD for replays, while seamless integration with the robotic camera system brings live broadcast-style movements to the PTZ, resulting in a dynamic and highly engaging video production.

Next Level PTZ Camera Performance
The AW-UE160 PTZ camera supports return input and high-speed shooting, which are indispensable for building a combined system with a system camera and is equipped with a tally lamp on the rear panel and two XLR channels for audio output. It is the first ever remote camera to support the SMPTE ST2110 standard1 and 5G router (USB tethering compatible), the standard for IP transmission in the broadcasting industry. The flexibility of the remote camera to freely set positions and angles and the specifications comparable to those of a system camera allow for the pursuit of unique and new video expression.

Advanced Connectivity
The AW-UE160 supports HDMI, 3G-SDI, and IP output as well as 12G-SDI output and optical fiber output. Also equipped with two XLR channels for audio input. The output method can be selected to suit the operation, making it easy to add to an existing imaging system or build a system tailored to the site.

Industry's First SMPTE ST2110 Standard Compatible PTZ Camera
The AW-UE160 is the first PTZ Camera3 to support the SMPTE ST2110 standard for video transmission over IP networks1. By constructing an IP-based studio system in combination with the IT/IP platform "KAIROS" or AK-UC4000/AK-UCU600/AK-NP600, it is possible to improve the efficiency of your video production workflow.

  • Features:

    • Uncompromising shooting performance and operability
    • Optical low-pass filter significantly reduces moir‚
    • Newly developed 4K Sensor offering superior sensitivity
    • Significantly improved Autofocus with advanced technology
    • SMPTE 2110 Support with purchase of additional software key


  • Specifications:

    • Comprehensive
    • Power Requirements: 12VDC±10% (10.8V to 13.2V)
    • PoE++: IEEE802.3bt standard: DC 42V to 57V (Camera Input) (Software authentication (LLDP) is supported)
    • Current Consumption: 5.0A (XLR Input), 1.5A (PoE++ power supply)
    • Weight: 10.14Lbs Approx. (4.6kg) (excluding mount bracket)
    • Dimensions (WxHxD): (8.39 x 10.91 x 9.45" (213 x 277 x 240mm) excluding protrusions, ceiling mount bracket

      Camera Unit
    • Image Sensors: 1-type (1") 4K MOSx1 (Effective type) Effective Pixels: Approx.9,620,000 pixels
    • Lens: Motorized 20x optical zoom F2.8 to F4.5 f=8.8mm (11/32") to 176mm (6-15/16"), 35mm (1-3/8") equivalent: 24.5mm (31/32") to 490.0 mm (19-9/32 inches) i.Zoom, D.Extender
    • Angle of View Range:
      Horizontal: 75.1°(wide) - 4.0°(tele)
      Vertical: 46.7°(wide) - 2.3°(tele)
      Diagonal: 82.8°(wide) - 4.6°(tele)
    • Horizontal Resolution: 1,600 TV Typ (center area, UHD Mode, Wide)
    • Output Format (UHD/FHD SDI and HDMI, Fiber (video only), ST2110): 4K: 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p(Native), 2160/23.98p (Native), HD: 1080/119.88p (SDI and HDMI only) 5, 1080/100p (SDI and HDMI only) 5, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98 p(Native), 1080/59.94i (SDI and Fiber, ST2110 only), 1080/50i (SDI and Fiber, ST2110 only), 720/59.94p, 720/50p

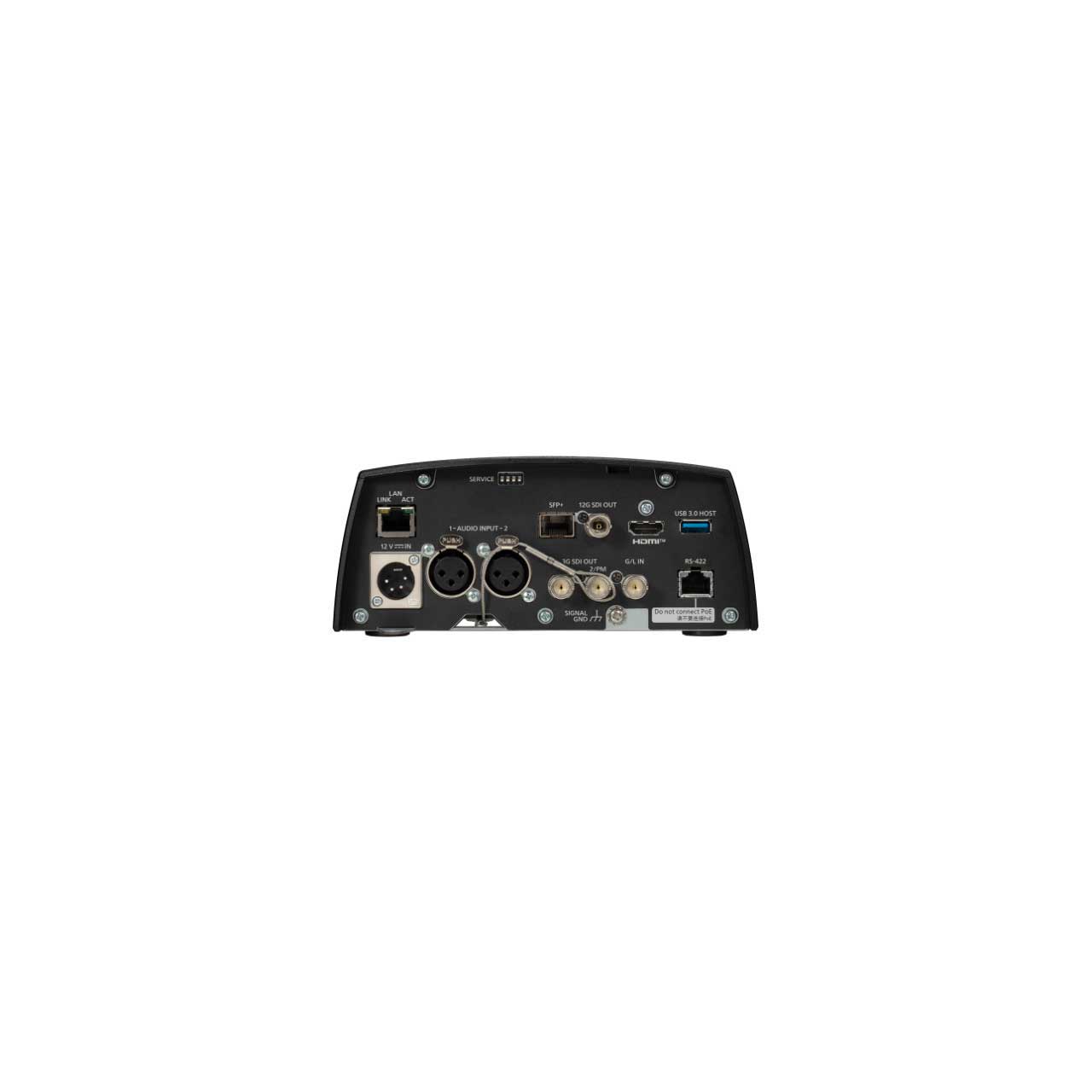

      Input Terminal
    • G/L In: BBS (Black Burst Sync) and 3-value synchronization compatible
    • Audio Input 1/2: XLR (2ch) or Mic/Line input compatible (SDI/HDMI/IP) AAC compatible (IP only)

      Output
    • 12G SDI Out: SMPTE2082-1, SMPTE424M/SMPTE292M/75Ω(BNCx1)
    • 3G SDI Out 1/2/PM: SMPTE424M/SMPTE292M/75Ω(BNCx1)
    • SFP+: SFP+ compliant (Single Fiber)
    • USB: USB3.0 HOST(5G mobile router (USB tethering support))

      Input/Output Terminal
    • LAN: LAN connector for IP control(RJ-45)
    • RS-422: CONTROL IN RS422A(RJ-45)
    • SFP+(ST2110):
      Compatible Protocol: -ST2110-10/-20/-21/-30, -PTP ST2059-2, -NMOS IS-04/IS-05
      Number of Outputs: Video x 3 (Main line, Crop, Monitor), audio x 2
      Number of Inputs: Video x1 (RETURN)
      Video Format: FHD

      JPEG (MJPEG), H.264, H.265
    • Image Resolution: 3840x2160, 1920x1080, 1280x720, 640x360
    • Frame Rate: 60(50)fps, 30(25)fps, 24fps
    • Distribution Settings: Unicast/Multicast

      NDI|HX Version 2?High Bandwidth NDI
    • Image Resolution: 3840x2160, 1920x1080, 1280x720
    • Frame Rate: 60(50)fps, 30(25)fps, 24fps
    • Distribution Settings: RUDP/UDP/TCP, Unicast/Multicast


  • Item Includes:

    • 1x AW-UE160 Camera Body
    • 1x Ceiling Mount Bracket
    • 1x Cable Cover
    • 1x Safety Wire with Screw


  • GTIN:

    0885170402409
