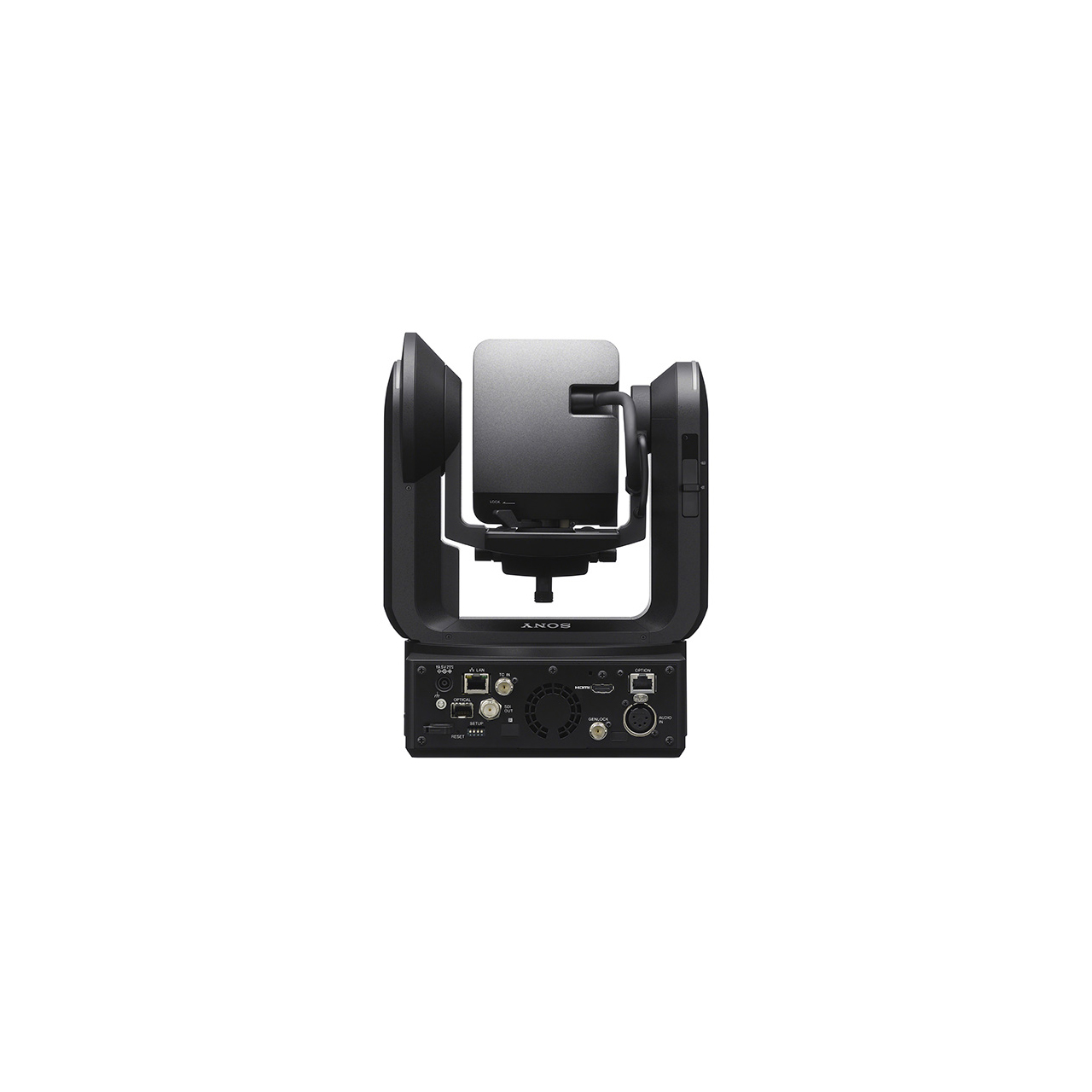

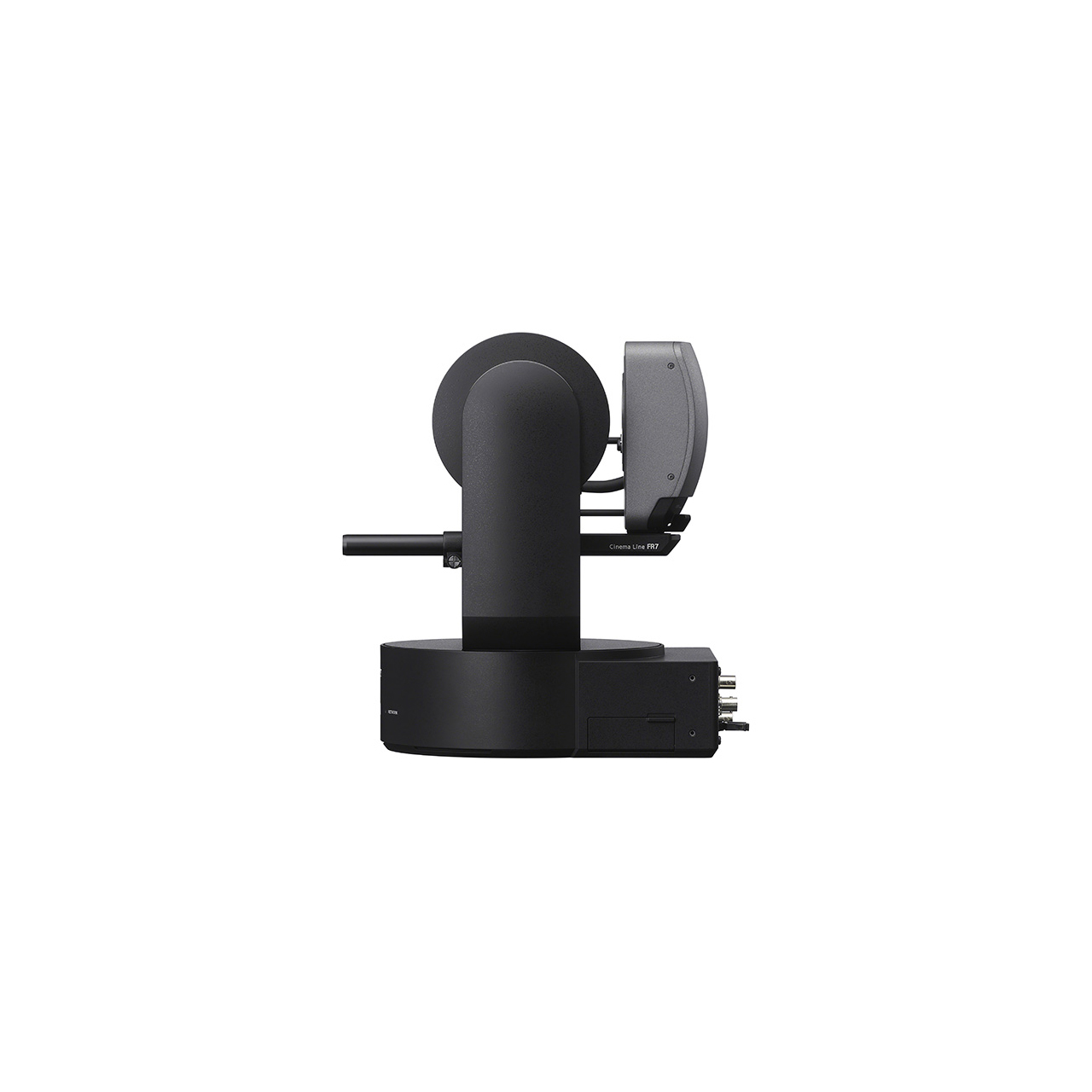

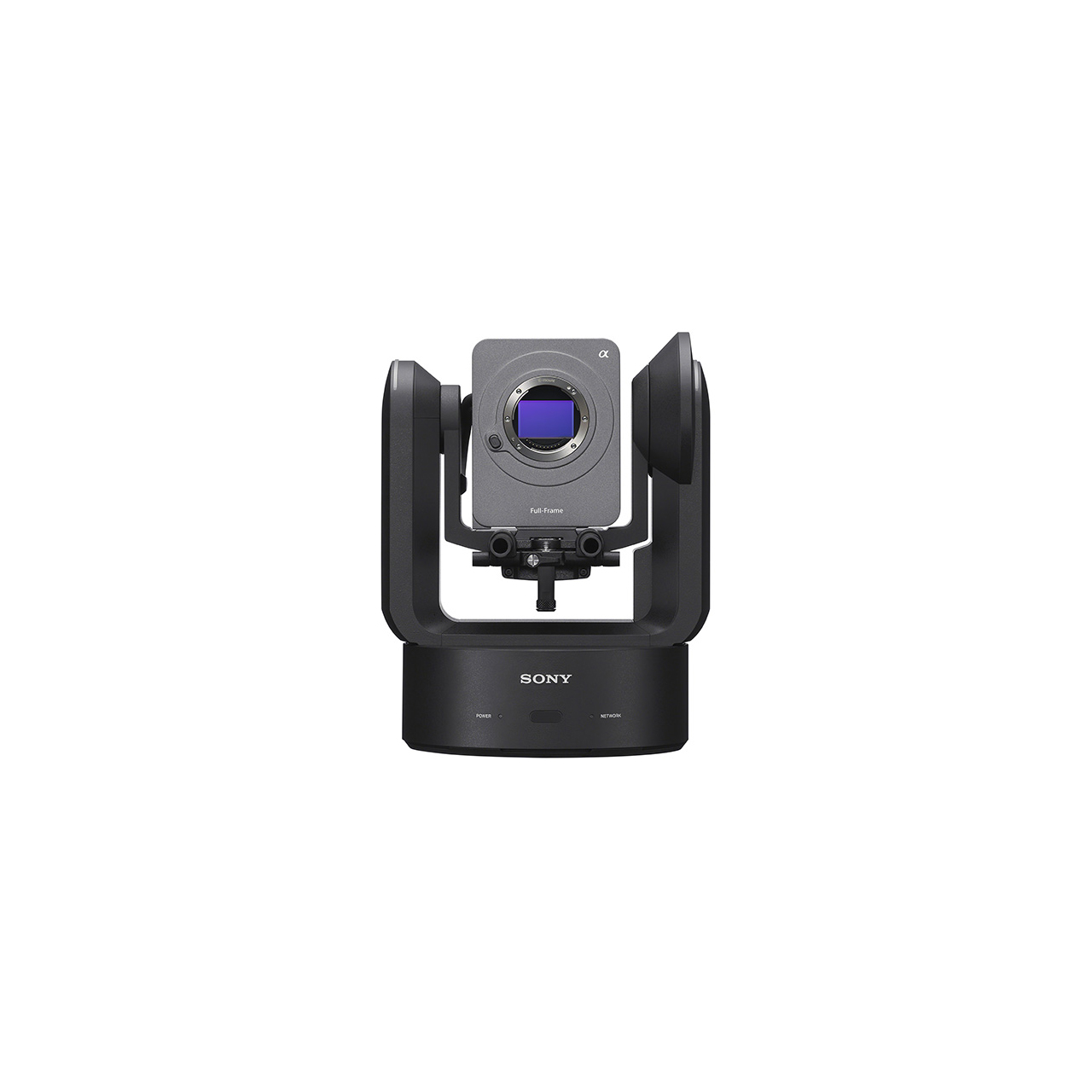

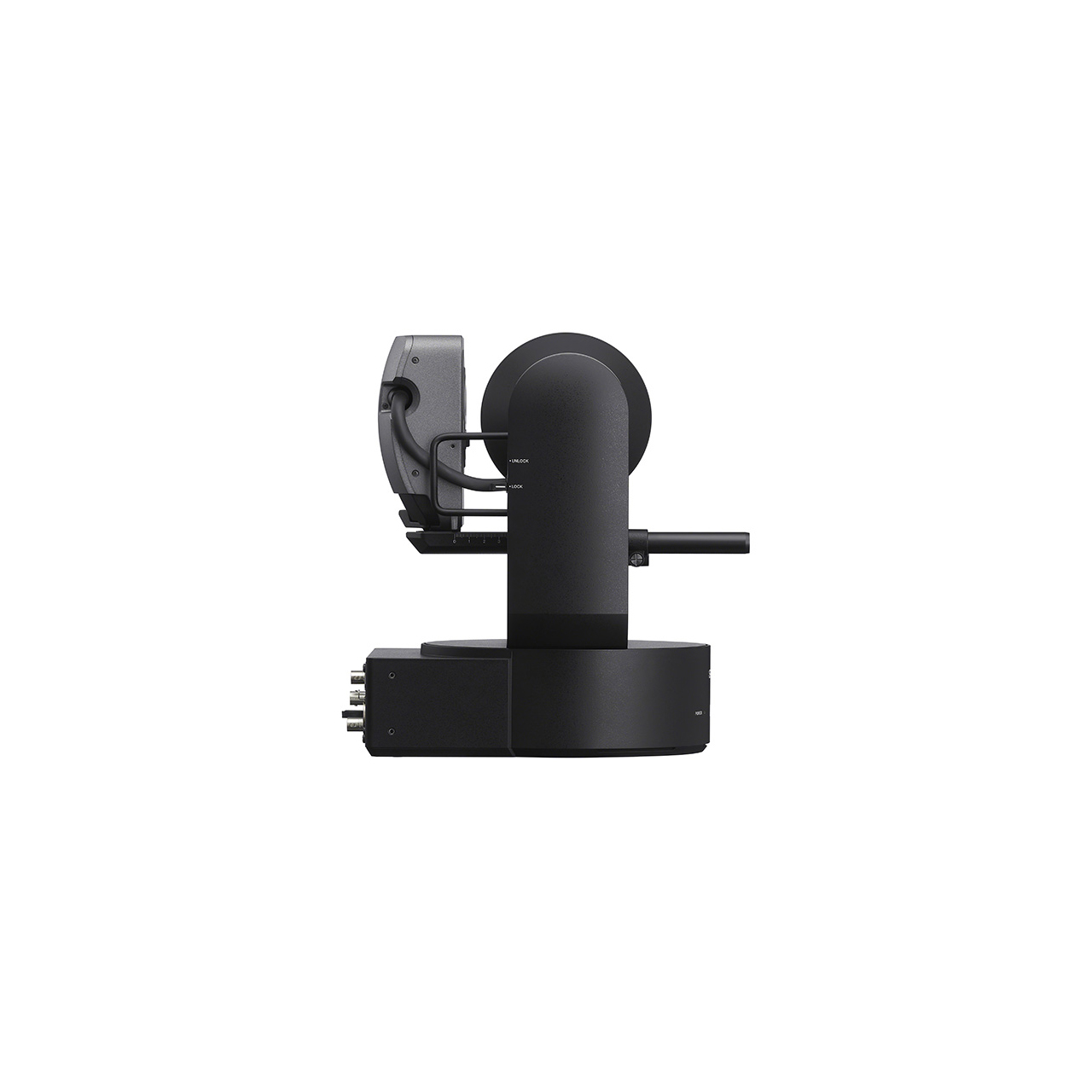

Sony ILME-FR7 Cinema Line Full-Frame 4K/120 FPS 12.9 MP PTZ Camera - Body Only

ILME-FR7 - Overview

• Features:

  • Smooth camera work with pan, tilt and zoom functions
  • Up to 100 preset positions
  • Supports a function to record/play back framing operations (PTZ trace)
  • Fast Hybrid AF that quickly captures the subject and tracks it tenaciously
  • Real-time eye AF úReal-time tracking that keeps the AF on the desired subject
  • Breathing compensation (*2) that suppresses fluctuations in the angle of view during focusing
  • Electronic variable ND filter that allows exposure to be adjusted in various shooting environments
  • Newly developed web application (Seperate PC/Tablet required)
  • Compatible with the highly functional remote controller RM-IP500 (sold separately)


• Specifications:

  • General
  • Mass: 10 lbs (4.6 kg)
  • Dimensions (WxHxD): 9" x 11.5" x 9.25" (227mm x 289mm x 233mm)
  • Power Requirements: DC 19.5 V/PoE++ (IEEE802.3bt Type 4 Class 8 compliant) 41.1 V~57.0 V
  • Power Consumption: ≤80 W (DC 19.5 V)/≤71.3 W(PoE++)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4 °F - 140°F (-20°C - 60°C)
  • Ceiling Mount: Yes (with Ceiling Bracket option)
  • Tally Ramp: 1x Left)/1x Right, Red/Green
  • Recording Format (Audio): LPCM 24 bits, 48 kHz, 4 channels
  • Recording Format (Proxy Audio): XAVC Proxy: AAC-LC, 128 kbps, 2 channels
  • Recording Format (Proxy Video): XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR 1920 x 1080, 9 Mbps
  • Lens Mount: E-Mount

    Camera
  • Imaging Device (Type): 35mm full frame (35.6mm x 23.8mm), Exmor R CMOS sensor
  • Number of Pixels (total): Approx. 12.9 megapixels
  • Number of pixels (effective): Approx. 10.3 megapixels
  • Built-In Optical Filters: Clear, linear variable ND (1/4ND to 1/128ND)
  • ISO Sensitivity: ISO 800/12800 (Cine EI mode, D55 Light source)
  • Focus Type: Fast Hybrid AF (phase-detection AF/contrast-detection AF)
  • Focus Point: 627 points
  • Focus Area: Wide/Zone/Flexible Spot
  • Other Focus Features:
    - Eye AF (Human)
    - AF Subj. Shift Sensitivity
    - AF Transition Speed
    - Face detection (Face/Eye Priority, Face/Eye Only AF)
    - Real-time Tracking AF
  • Output Format/SDI: 4096 x 2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 29.97PsF, 25PsF
  • Output Format/HDMI: 4096 x 2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p, 1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 720 x 480/59.94p, 720 x 576/50p
  • Clear Image Zoom: QFHD/4K: 1.5x, HD: 2x
  • Shutter Speed: 64 frame to 1/8000 sec
  • Slow and Quick Motion Function: XAVC-I/L 3840 x 2160 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98) 1920 x 1080 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98)
  • White Balance: Preset, Memory A(2000K-15000K)/ATW
  • Gain: -3 to 30 dB (every 1dB), AGC
  • Gamma Curve: SDR Mode :S-Cinetone, Standard, Still, ITU709 HDR mode: HLG_Live, HLG_Natural
  • Latitude: 15+ stop

    Pan/Tilt
  • Pan/Tilt Angle:
    - Pan: -170° - 170°
    - Tilt: -30° - 195°
  • Pan/Tilt Speed:
    - Pan: 0.02° - 60°/s
    - Tilt: 0.02° - 60°/s
  • Quietness: NC35 or less
  • Preset Position: 100

    Input/Output
  • Audio Input:
    - 1x XLR-type 5-pin (female), line/mic/mic +48 V selectable
    - Mic Reference: -30 to -80 dBu
  • SDI Output:
    - 1x BNC
    - 12G-SDI, 6G-SDI, 3G-SDI(Level A/B), HD-SDI
  • HDMI Output: 1x Type-A connector
  • Genlock Input: 1x BNC, 1.0 Vp-p, 75 O
  • Optical Output: SFP+ compliant video is same as SDI, video output only
  • DC Input: 1x DC jack
  • Network: 1x RJ-45 (LAN), 1000BASE-T
  • Remote Control:
    - 1x RJ-45 (OPTION)
    - Red Tally IO/Green Tally IO
  • IR Remote Control: Yes
  • TC Input/TC Output: 1x BNC, TC IN only

    Network/IP Streaming
  • Protocols IPv6: TCP, UDP, ICMPv6, HTTP, HTTPS, DHCPv6, DNS, mDNS, RTP/RTCP, RTSP, SRT, FTP, FTPS
  • Protocols IPv4: TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, mDNS, RTP/RTCP, RTSP, VISCA over IP, SRT, NDI|HX, FTP, FTPS
  • Video Resolution: 4096 x 2160, 3840 x 2160, 2048 x 1080, 1920 x 1080, 1280 x 720, 640 x 360
  • Compression Format:
    - H.264: High/Main/Baseline Profile
    - H.265: Main/Main10 Profile
  • Maximum Frame Rate:
    - H.264: 59.94fps
    - H.265: 59.94fps
  • Bitrate Control Mode: CBR/VBR
  • Range of Bitrate Setting: 512 Kbps~80 Mbps
  • NDI|HX Capability: Yes Option

    Web App
  • Supported Operation Systems: Windows 10 or Later, maxOS 10.15 or Later, iPadOS 15 or Later, Android 12 or Later
  • Supported Web Browsers: Google Chrome/Safari

    Media
  • Type: CFexpress Type A/ SD Card (2x)


• Item Includes:

  • 1x Body cap
  • 1x HDMI cable fixing plate
  • 1x REMOTE COMMANDER (RMT-RC1)
  • 1x AC Adapter
  • 1x Power cord
  • 1x Before Using This Unit
  • 1x Warranty booklet


• Warranty:

  • 1 Year Warranty


• GTIN:

  0027242925229
