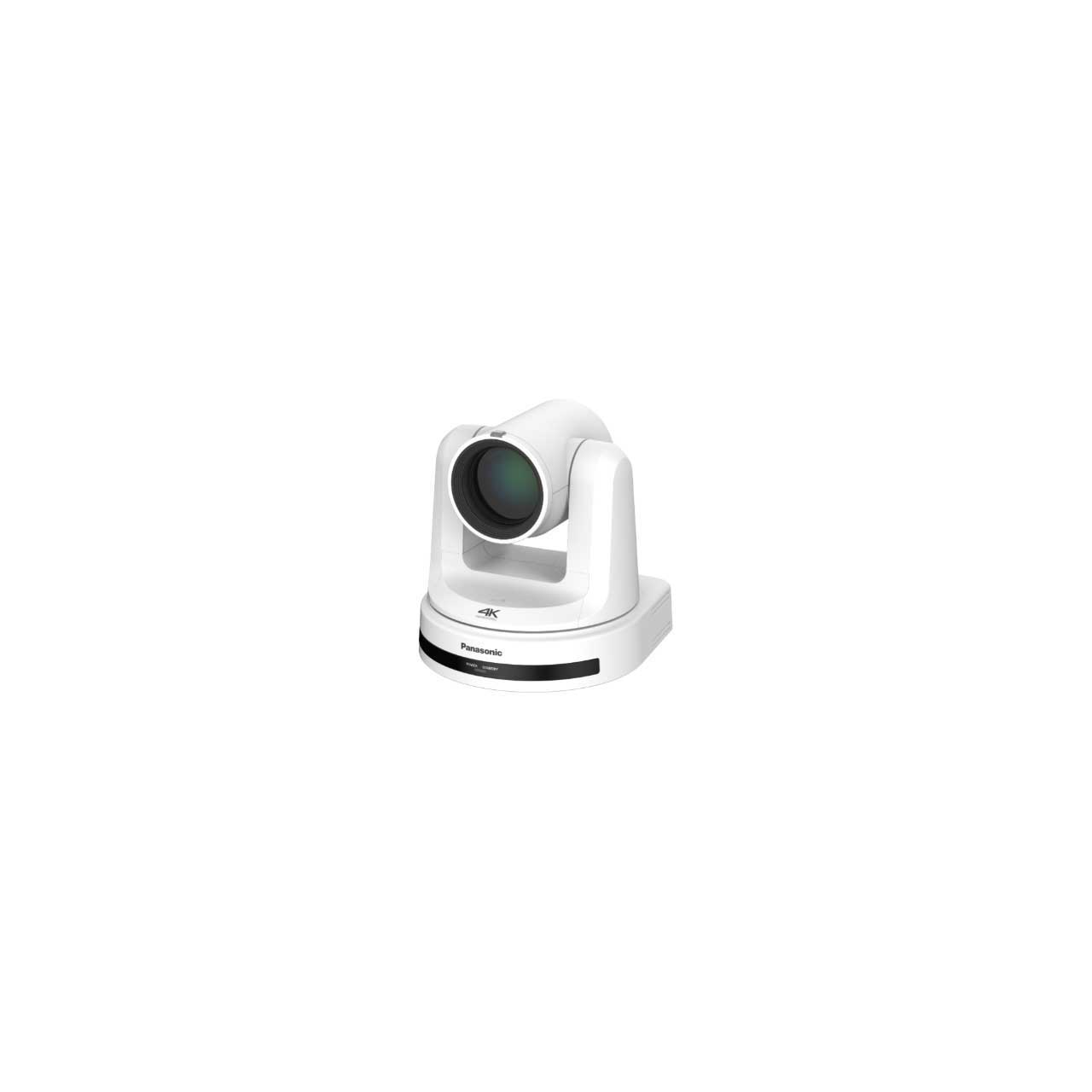

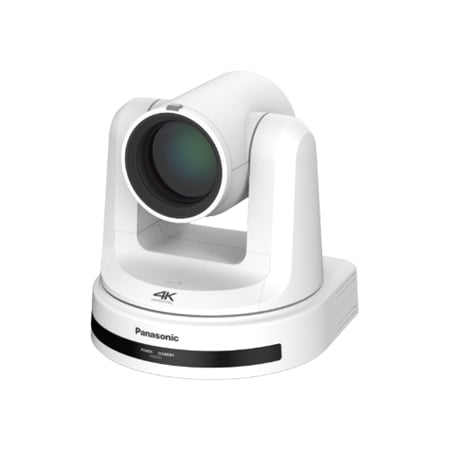

Panasonic AW-UE20 Electric Optical 12x Zoom 4K PTZ Camera - White

AW-UE20WP - Overview

• Features:

  • High-quality video streaming for more comfortable online communication
  • 4K resolution, wide angle and high-magnification zoom maintain "the ambience of hall" intact in streaming videos.
  • Auto Tracing Software accurately follows and captures the speaker.
  • Excellent system flexibility to achieve smart wiring and smooth operation
  • Easy installation/setup and compact system configuration.
  • Single PC or controller can manage and control multiple cameras.
  • Use as a USB camera.
  • Direct upload of videos to video livestreaming services.
  • Compact size and excellent functionality that do not disturb the existing video streaming environment
  • Compact design blends in with the surroundings. Light weight and small size for added installation flexibility.
  • Linkable with existing system.


• Specifications:

  • Comprehensive
  • Power Requirements: 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
  • PoE+: IEEE802.3at compliant
  • Current Consumption: TBD
  • Ambient Operating Temperature: 0° to 40°C (32° to 104°)
  • Allowable Humidity Ranges: 20 % to 90 % (no condensation)
  • Storage Temperature: -20° to 50°C (-4° to 122°F)
  • Mass: TBD
  • Finish:
    AW-UE20W: White
    AW-UE20K: Black
  • Compatible controllers: AW-RP150GJ, AW-RP60GJ, AW-RM50AG

    Camera Part
  • Image Sensors: 1/2.8-type MOS x 1
  • Lens: Motorized Optical 12x zoom, F1.6 to F2.8 (f=3.9 mm to 46.8 mm)
  • Zoom: Optical zoom: 12x
  • Conversion Lens: Not supported
  • Angle of View Range: Horizontal angle of view: 71.0° (wide) to 6.0° (tele)
  • Vertical angle of view: 43.0° (wide) to 3.0° (tele)
  • Diagonal angle of view: 79.0° (wide) to 7.0° (tele)
  • Minimum Illumination: TBD
  • Horizontal Resolution: TBD
  • Output Format:
    HDMI: HD: 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p,1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p
    SDI: HD: 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p
    4K: 2160/30p, 2160/29.97p, 2160/25p

    Output
  • Video Output: HDMI, 3G-SDI OUT

    Input/Output
  • Input/Output Connector: LAN, RS-422, AUDIO IN, USB, RS-232C IN, RS-232C OUT

    Pan-Tilt Head Unit
  • Installation Method: Stand-alone (Desktop) or suspended (Hanging)*1
  • Panning Range: ±170°
  • Tilting range: -30°to 90°*2 (TBD)
  • Quietness: TBD

    Supported Operating Systems and Web Browsers:
  • Windows*3:
    Windows 10
    Windows® Internet Explorer® 11 (32 bit / 64 bit)
    Microsoft Edge
    Google Chrome
  • Mac*3:
    Mac OS v10.15
    Mac OS v10.14
    Mac OS v10.13
    Mac OS v10.12
    Safari
    Google Chrome

    IP Streaming
  • Image Streaming Mode: JPEG (MJPEG), H.264, H.265
  • Image resolution: 1920x1080, 1280x720, 640x360

    *1: To ensure safety, the unit must be secured using the mount bracket supplied.
  • *2: The main unit may appear in the video depending on the pan/tilt position.
  • *3: Supported OS indicated are for browsers current as of September 2021. See Panasonics "Service and Support / PASS" for the latest information on browser support.


• GTIN:

  0885170399570
