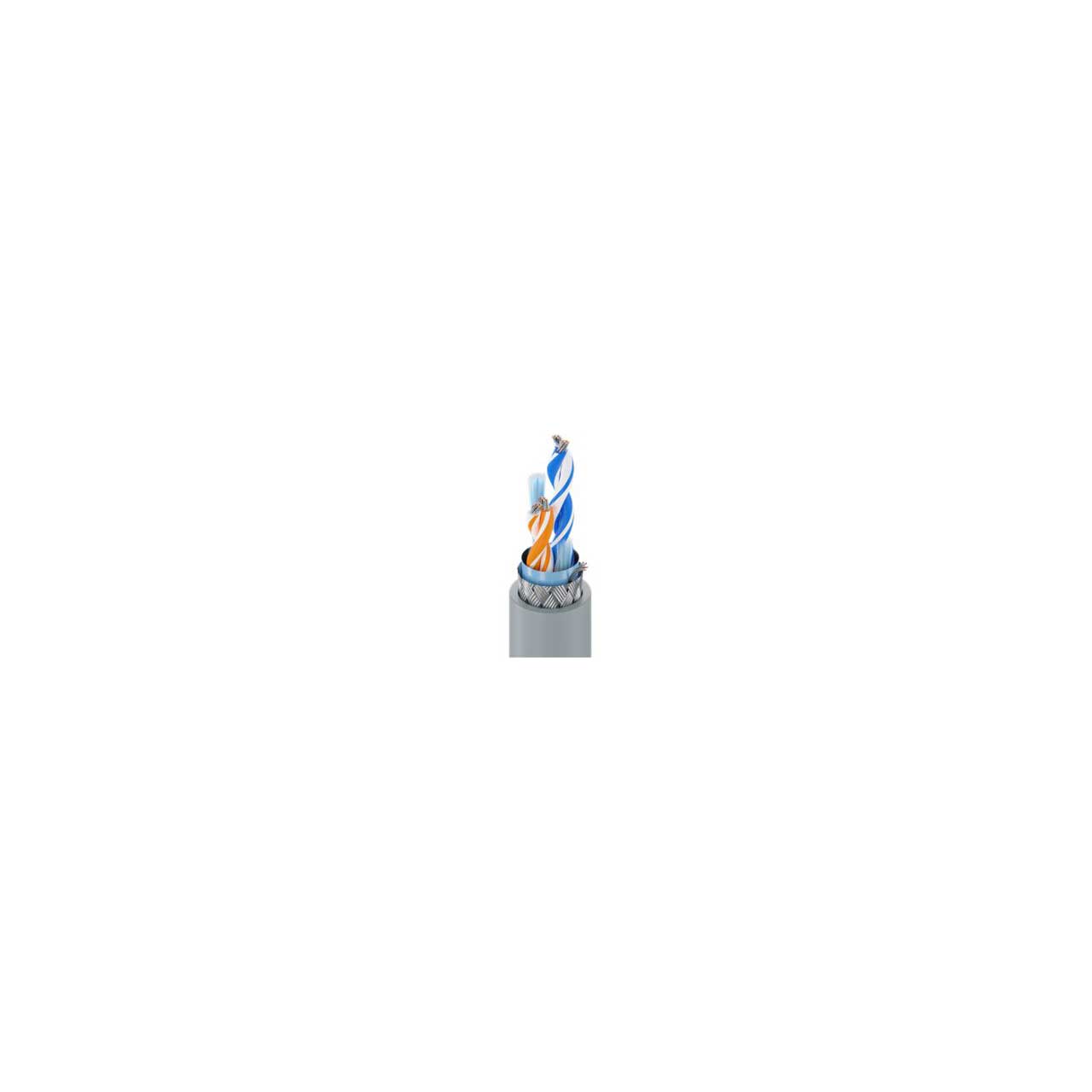

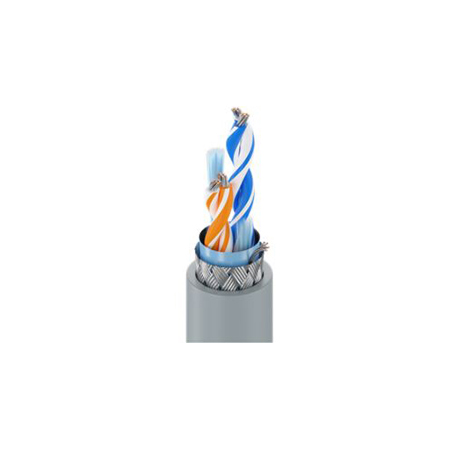

Belden 9829 CM Multiconductor 100 Ohm Low Capacitance 24AWG Computer Cable RS-232/422 - 2-Pair - 1000 Foot Roll

9829 0601000 - Overview

• Features:

  • Eliminate Noise Interference: Best-in-class patented Beldfoil® shield technology delivers 100% coverage to protect signals
  • Consistent Signal Transmission: Superior physical toughness maintains performance in extreme environmental conditions
  • Lower Capacitance: Strong signal transmission over extended distances
  • Increased Flexibility: Finely stranded conductors offer easier installation


• Specifications:

  • Number of Pairs: 2
  • Total Number of Conductors: 4
  • Conductor AWG: 24
  • Conductor Stranding: 7x32
  • Conductor Material: TC - Tinned Copper
  • Insulation Material: PE - Polyethylene
  • Insulation Nom. Thickness: 0.011 in (0.28 mm)
  • Insulation Nom. Insulation Diameter: 0.054 in (1.4 mm)
  • Insulation Color Code: Western Electric Standard
  • Outer Shield Material Trade Name: Beldfoil (Z-Fold)
  • Outer Shield Material: Aluminum Foil-Polyester Tape/TC - Tinned Copper
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Diameter: 0.291 in (7.39 mm)
  • Outer Jacket Nom. Thickness: 0.035 in (0.89 mm)
  • Plenum (Y/N): N
  • Overall Cable Diameter (Nominal): 0.291 in (7.39 mm)
  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2


• Item Includes:

  • 9829 Computer Cable RS-232/422 - 2-Pair - 1000 Foot Roll


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825259213
