Canare DA202AT 110 Ohm AES/EBU Digital Audio Cable - Blue - Per Foot

ITEM #: DA202AT MFG #: DA202AT FT

Primary Image
Canare
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$0.27

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DA202AT FT - Overview

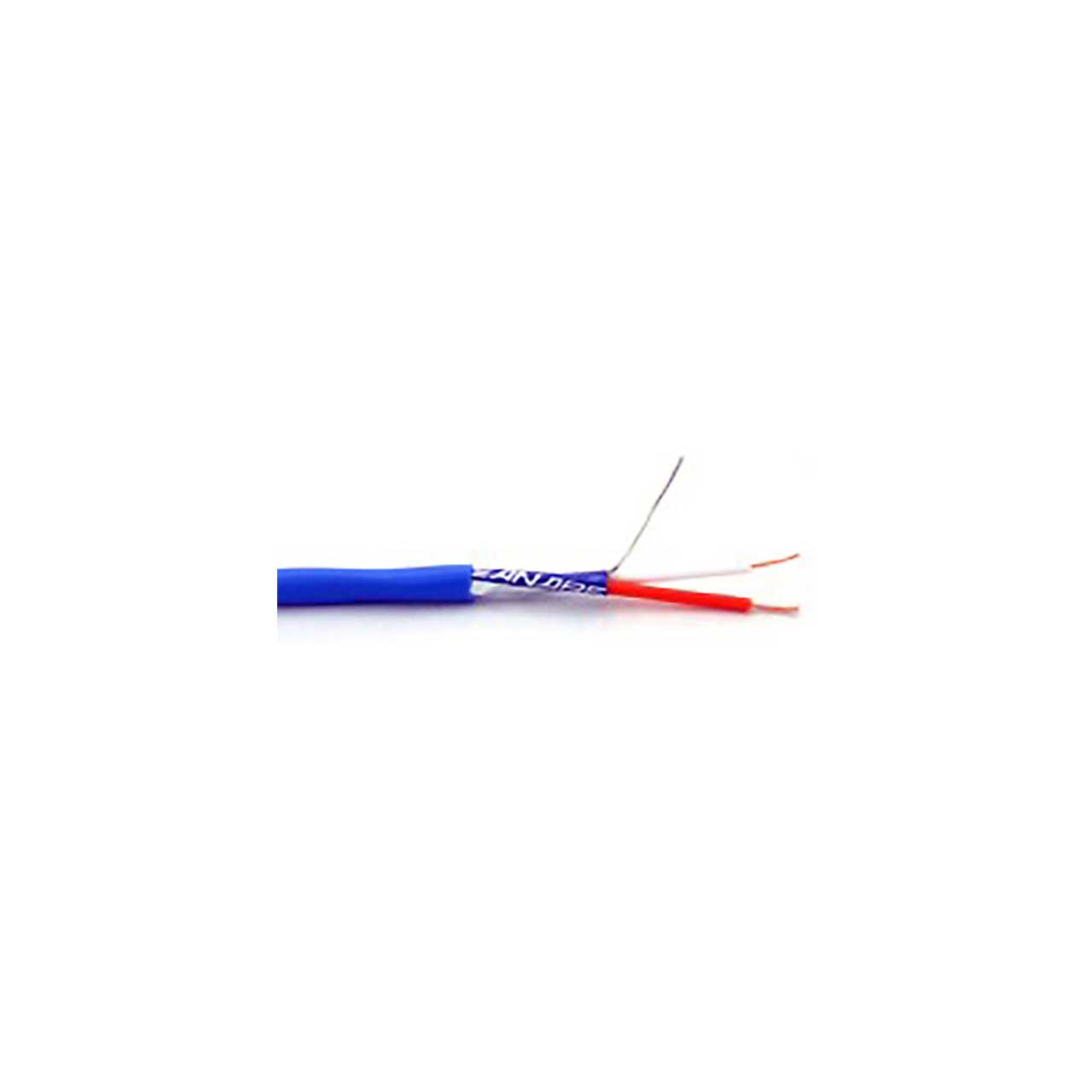

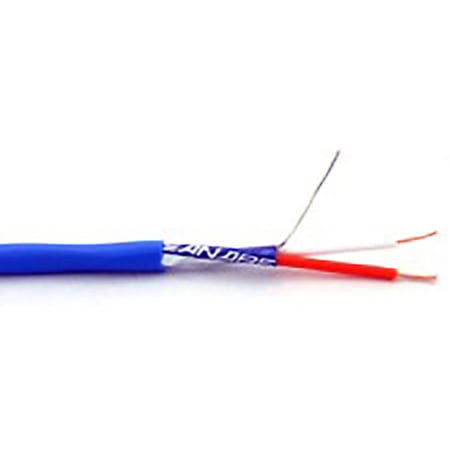

The Canare DA202AT is a good choice for short cable runs. 25 AWG conductors suitable for all Rack Wiring applications, especially IDC Punch Down Block Digital Audio "110 ohm Type" Patchbays. Foil Shield with Drain Wire allows easy strip, prep and ground wire termination.

Maximum recommended AES/EBU Length: 426ft (130meters). Jacket color: Blue.

Applications:
- Audio rack wiring
- Post production

  • Features:

    • AES/EBU Digital Audio
    • Twisted pairs with braid shield
    • Special PE Filter Rods maintain constant 110Ω impedance
    • Shield Coverage 100% Aluminum foil.


  • Specifications:

    • Length: Per foot
    • Cond DCR (Ω100m): 10.6
    • Twist Pitch: 32mm
    • Nom. Cap - pF/m: 45
    • Nominal O.D.: .157 inch
    • PVC jack nom: .012 inch
