Belden 9271 CM Rated 124 Ohm Twinax Computer & Instrumentation Cable - Blue - Per Foot

ITEM #: BL-9271 MFG #: 9271 006U1000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.62

Our Price:

$1.47

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

9271 006U1000 - Overview

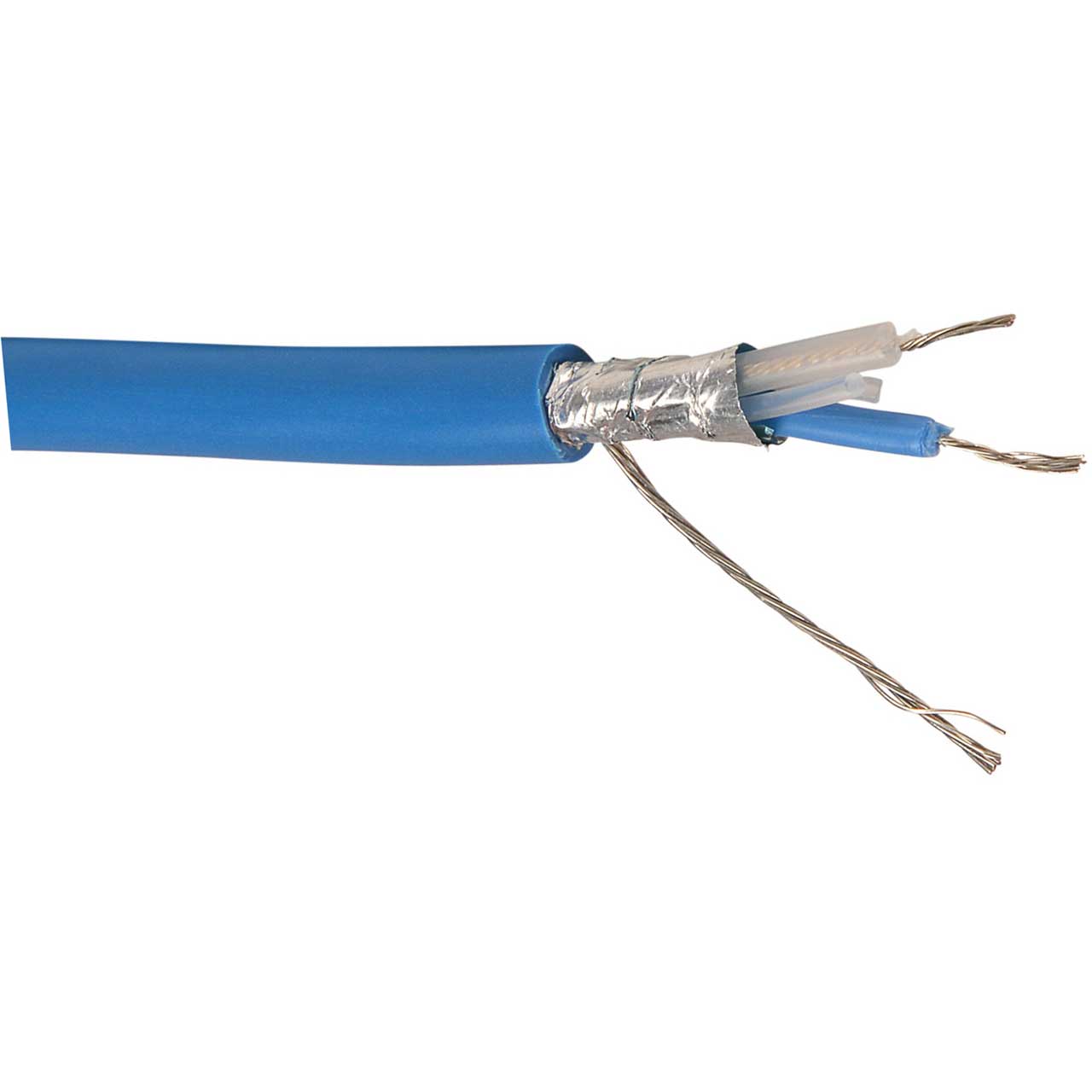

Belden 9271 is a 124 Ohm Twinax Computer & Instrumentation Cable. It features 25 AWG stranded (7x33) tinned copper conductors, with polyethylene insulation, a Beldfoil® shield (100% coverage), stranded tinned copper drain wire in a PVC jacket.

  • Specifications:

    • Conductor AWG: 25
    • Conductor Stranding: 7x33
    • Conductor Material: TC - Tinned Copper
    • Conductor Nominal Diameter: 0.021 in
    • Conductor No. of Pairs: 1
    • Insulation Material: PE - Polyethylene
    • Insulation Nominal Wall Thickness: 0.031 in
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nominal Diameter: 0.24 in
    • Outer Jacket Nominal Wall Thickness: 0.035 in
    • Stranding Diameter: 0.17 mm
    • UL Flammability: UL1685 UL Loading
    • IEC Flammability: IEC 60332-1-2
    • UL voltage rating: 300 V RMS


  • Item Includes:

    • 9271 CM Rated 124 Ohm Twinax Computer & Instrumentation Cable - Blue - Per Foot


  • Warranty:

    • 10 Year Limited Warranty


  • GTIN:

    0612825226208
