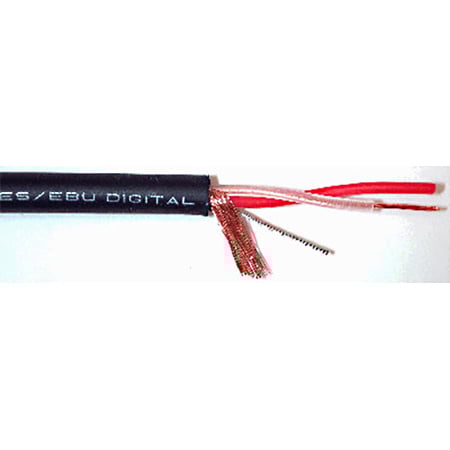

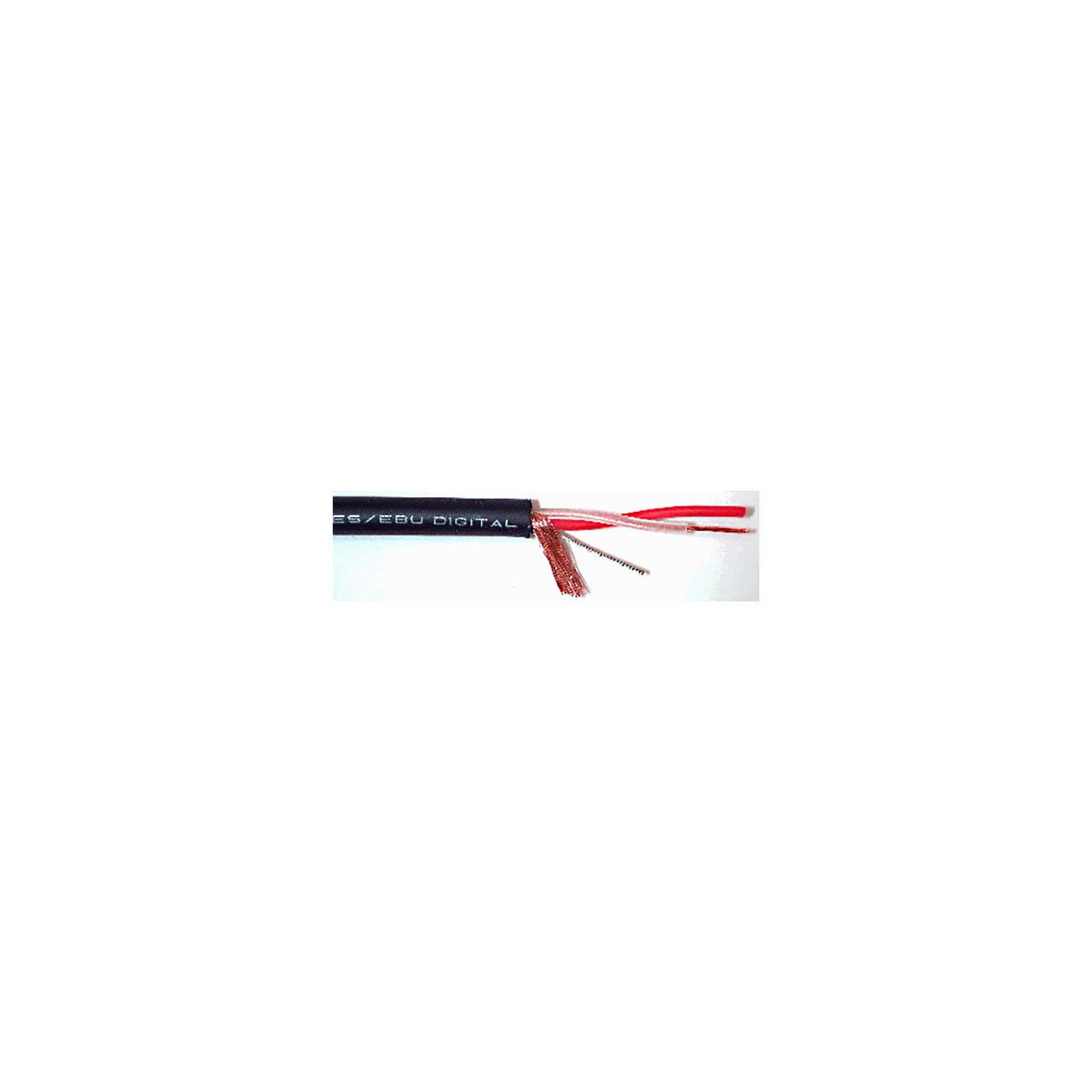

Mogami W3080 2-Conductor 110 Ohm AES/EBU Digital Audio Cable - Per Foot - Black

MG-3080 - Overview

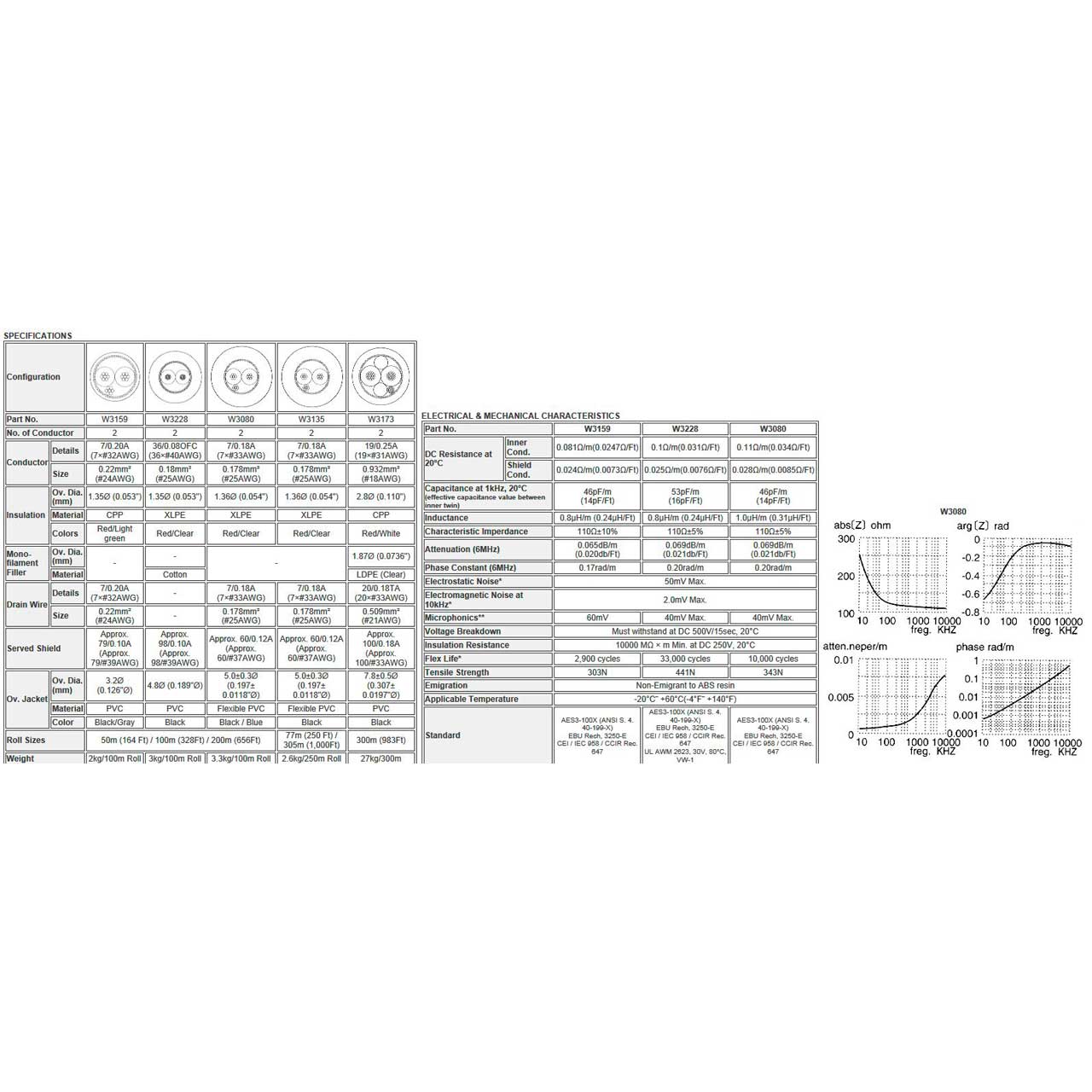

• Specifications:

  • Cable
  • No. of Conductors: 2
  • Conductor:
    - Details: 7/0.18A (7x #33AWG)
    - Size: 0.178mm² (#25AWG)
  • Insulation:
    - Ov. Dia. (mm): 1.36∅ (0.054")
    - Material: XLPE
  • Drain Wire:
    - Details: 7/0.18A (7x #33AWG)
    - Size: 0.178mm² (#25AWG)
  • Served Shield: Approx. 60/0.12A (Approx. 60/#37AWG)
  • Ov. Jacket:
    - Ov. Dia. (mm): 5.0 ±0.3∅ (0.197 ±0.0118"∅)
    - Material: Flexible PVC

    Electrical & Mechanical
  • DC Resistance at 68°F (20°C):
    - Inner Cond.: 0.11Ω/m (0.034Ω/ft)
    - Shield Cond.: 0.028Ω/m (0.0085Ω/ft)
  • Capacitance at 1kHz, 68°F (20°C): 46pF/m (14pF/ft)
  • Inductance: 1.0µH/m (0.31µH/ft)
  • Characteristic Imperdance: 110Ω ±5%
  • Attenuation (6MHz): 0.069dB/m (0.021db/ft)
  • Phase Constant (6MHz): 0.20rad/m
  • Electrostatic Noise: 50mV Max
  • Electromagnetic Noise at 10kHz: 2.0mV Max
  • Microphonics: 40mV Max
  • Voltage Breakdown: Must withstand at DC 500V/15 sec, 68°F (20°C)
  • Insulation Resistance: 10000MΩ x m Min. at DC 250V, 68°F (20°C)
  • Flex Life: 10,000 cycles
  • Tensile Strength: 343N
  • Emigration: Non-Emigrant to ABS resin
  • Applicable Temperature: -4°F - 140°F (-20°C - 60°C)
