Panasonic AK-HRP250GJ Remote Operation Panel (ROP)

AK-HRP250GJ - Overview

• Features:

  • Camera serial control and IP control are possible.

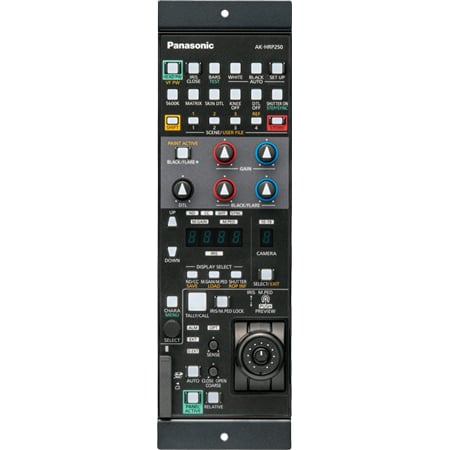

  • Equipped with joystick control lever. IRIS/PEDESTAL operation is possible.
  • Equipped with scene file function.
  • Equipped with SD memory card slot. Saving of and firmware version updates are supported.

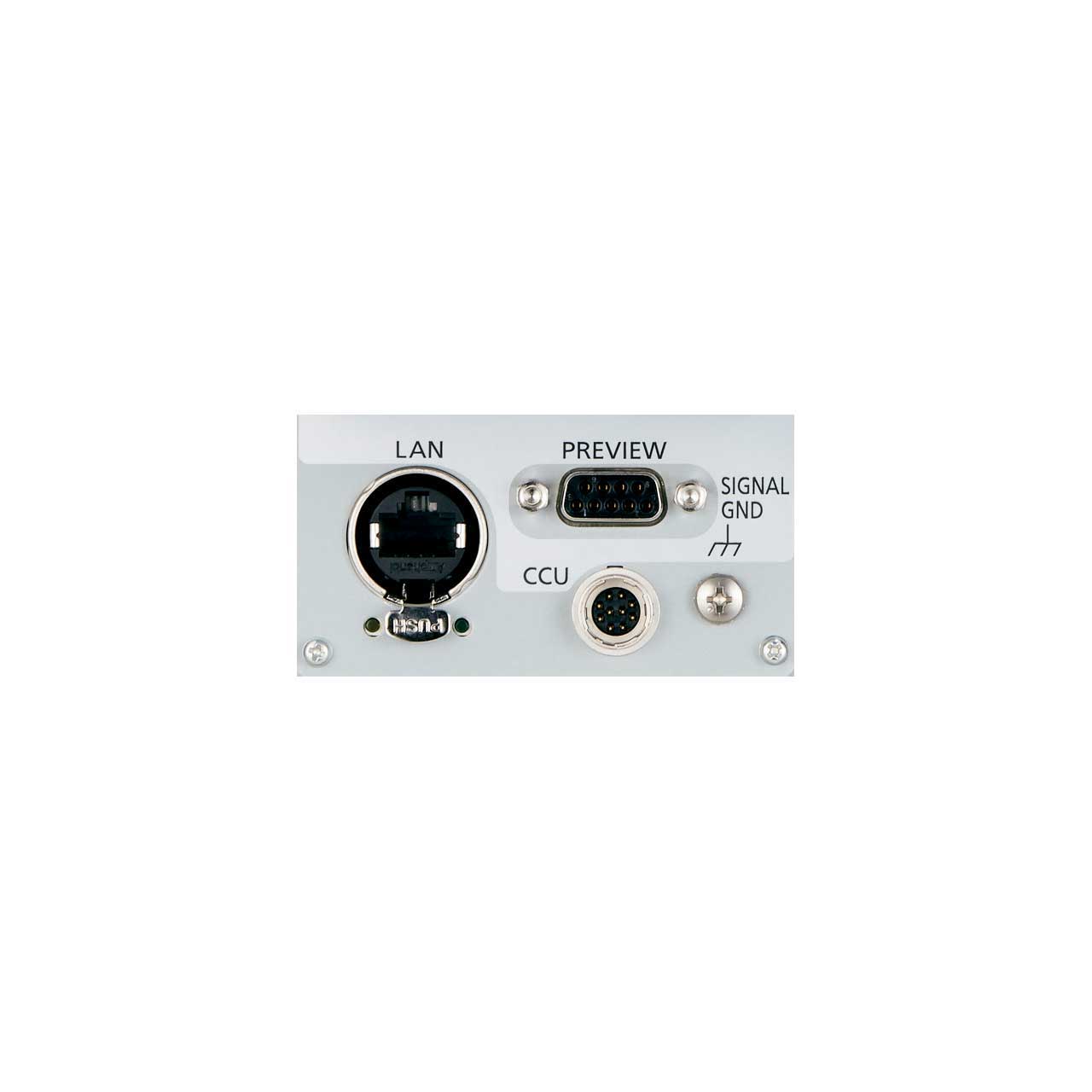

  • IP connection and PoE*1 power supply are supported. The AK-HRP250GJ is equipped with a robust LAN terminal connector.


• Specifications:

  • Power Supply: 12 V DC (Power supply from camera: 10 V - 16 V DC) 42 V - 57 V DC (PoE power supply)
  • Power Consumption: 0.51 A (Power supply from camera: 10 V - 16 V DC) 0.15 A (PoE power supply)
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Humidity: 90% or less
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Weight: Approx. 1.4 kg (3.08 lb)
  • Dimensions (W x H x D): 92 mm x 308 mm x 67 mm (3-5/8 inches x 12-1/8 inches x 2-5/8 inches)
  • Camera/CCU Control: Control signals (camera, CCU control) Power supply 16 V DC (when CCU connected) 12 V DC (when camera connected)
  • Maximum Cable Length: When camera connected: 20 m (65.7 ft)
  • When CCU connected: 50 m (164 ft)


• GTIN:

  0885170428270
