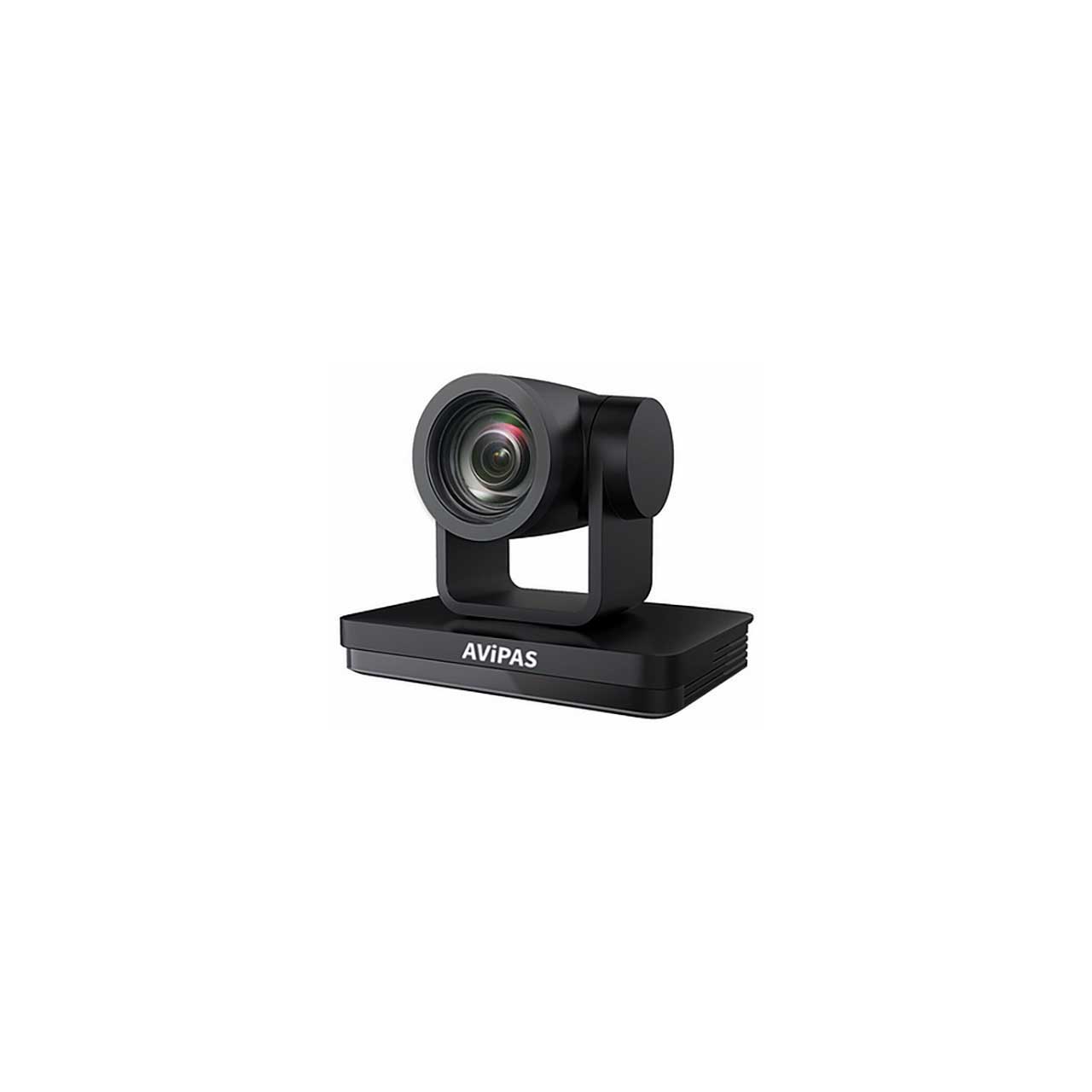

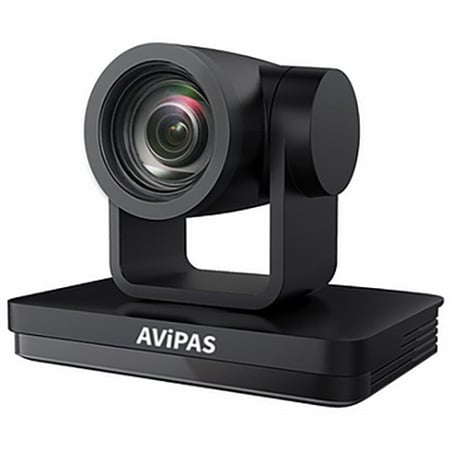

AViPAS AV-1563 30x Optical Zoom SDI/HDMI/USB PTZ Camera with PoE - H.265/H.264 Encoding

AV-1563 - Overview

• Features:

  • Advanced ISP, 1/2.8 inch CMOS sensor, providing full HD video.
  • 30x optical zoom lens, 10x digital zoom with 65° FOV.
  • IP (PoE), HDMI, 3G-SDI, USB3.0 video output interface.
  • White Balance/ Exposure/ Focus/ Iris can be adjusted manually.
  • Support PoE: one single CAT5/6 for video, control, and power.
  • Support line-in audio function: through IP stream, SDI and HDMI output. AAC, MP3 and G.711A audio encoding.
  • Control options: RS232/RS422/485/UVC1.5; Control protocol options: VISCA, PELCO-P, PELCO-D, VISCA over IP and ONVIF.
  • Support daisy chain.


• Specifications:

  • Camera Parameters
  • Optical Zoom: 30x f4.3-129mm
  • Sensor: 1/2.8-inch high quality HD CMOS sensor
  • Effective Pixels: 16: 9, 2.07 megapixel
  • Video Formats:
    HDMI/SDI: 1920*1080P60/50/30/25/59.94/29.97, 1920*1080I60/50/59.94, 1280*720P60/50/59.94/29.97
    Main Stream (YUY2/MJPEG/NV12/H.264/H.265): 1080P30, 720P30, 1024*576P30, 960*540P30, 800*448P30, 720*480P30, 640*360P30, 640*480P30, 320*176P30
    Sub Stream (YUY2/NV12): 640*360P30, 640*480P30, 320*176P30; (MJPEG/H.264/H.265): 1920*1080P30, 1280*720P30, 1024*576P30, 960*540P30, 800*448P30, 720*480P30, 640*360P30, 640*480P30, 320*176P30
  • View Angle: 65° (W)~2.34° (T)
  • AV: F1.6~F4.7
  • Digital Zoom: 10X
  • Minimum Illumination: 0.5Lux
  • DNR: 2D & 3D DNR
  • White Balance: Auto / Manual/ One Push/ Specify color temperature (2400k-7100k)
  • Focus/Aperture/Electronic Shutter: Auto/Manual/One Push Focus
  • Iris: Auto/Manual
  • Shutter: Auto/Manual
  • BLC: On/Off
  • WDR: OFF/ Dynamic level adjustment
  • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR: >50dB
  • Pan/Tilt Rotation: ±170°, -30°~+90°
  • Pan Control Speed: 0.1 - 100°/sec
  • Tilt Control Speed: 0.1- 45°/sec
  • Preset Speed Pan: 100°/sec, Tilt: 45°/sec
  • Preset Number: 255 presets (10 presets via remote control)

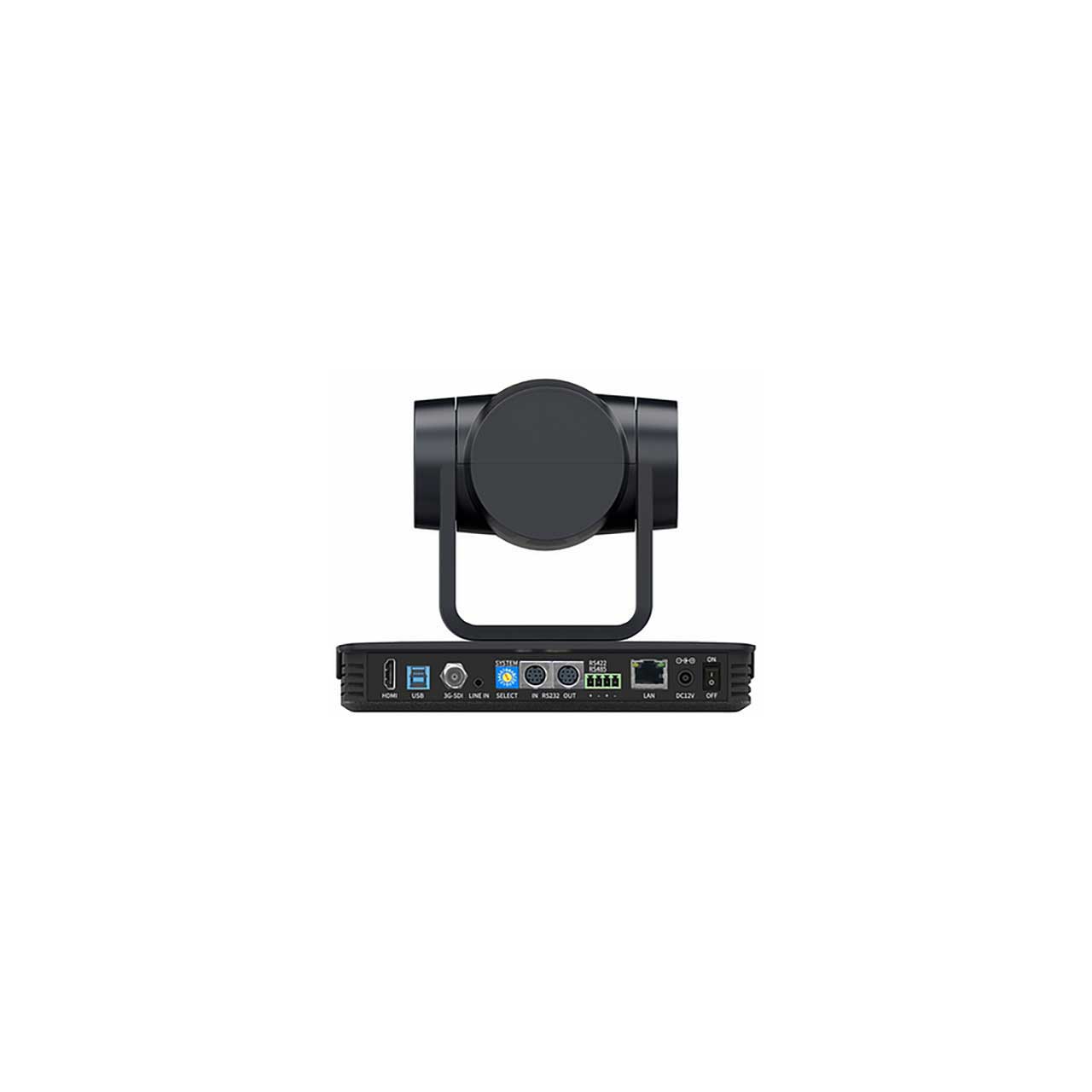

    Input/Output Interface
  • Video Interfaces: HDMI, SDI, LAN(POE), USB3.0(type B compatible with USB2.0)
  • Video Output: HDMI, SDI, LAN, USB3.0
  • Video Stream: Dual stream output
  • Video Compression Format: LAN Interface: H.265, H.264, Dual stream output, USB3.0 Interface: YUY2, MJPEG, H.264, NV12, H.265
  • Audio Input Interface: Double track 3.5mm linear input
  • Audio Output Interface: HDMI, SDI, LAN, USB3.0
  • Audio Compression: AAC/MP3/G.711A
  • Control Interface: RS232-IN, RS232-OUT, RS422 (compatible with RS485)
  • Control Protocol: VISCA/ Pelco-D/ Pelco-P/ IP VISCA/ ONVIF, Baud Rate: 115200/38400/9600/4800/2400bps
  • Power Interface: HEC3800 outlet (DC12V)
  • Input Voltage: DC12V±10%
  • Input Electric Current: Maximum: 1A
  • Power Consumption Maximum: 12W
  • Network Protocols: RTSP, RTMP, RTMPS, ONVIF, GB/T28181; IP VISCA control protocol
  • USB Communication: UVC (Video), UAC (Audio)

    General Parameters
  • Stored Temperature: -10°C~+70°C
  • Storage Humidity: 20%~95%
  • Working Temperature: -10°C~+50°C
  • Working Humidity: 20%~80%
  • Dimension: 7.1*4.5*5.9inch (181*115*149mm)
  • Weight: 2.5lbs (1.15kg)


• Item Includes:

  • 1x Camera
  • 1x Power Adapter
  • 1x Power Cable
  • 1x RS232 Control Cable
  • 1x USB Cable
  • 1x Remote Controller
  • 1x User Manual
