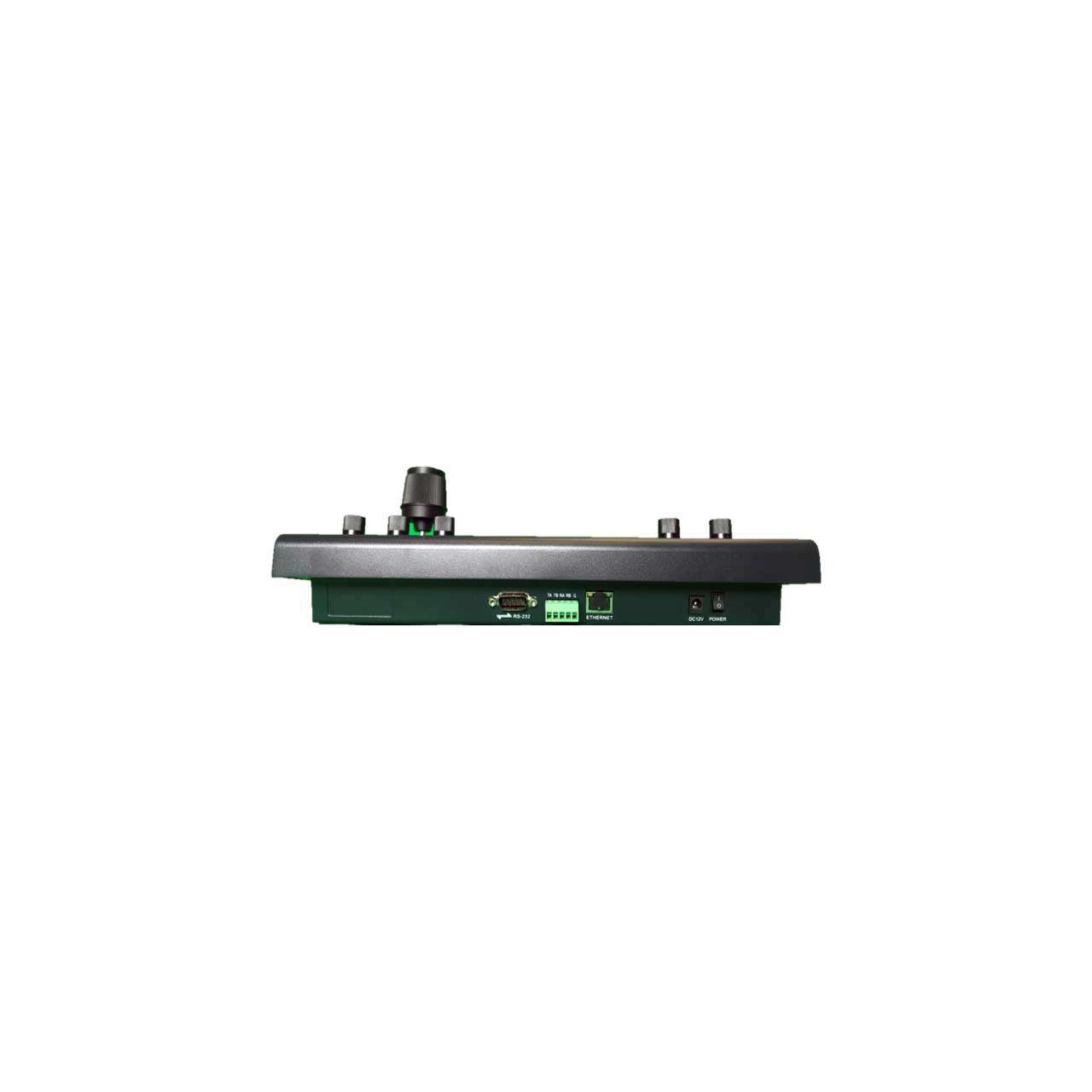

AViPAS AV-3104IP 4D VISCA Over IP Joystick PTZ Controller with PoE

AV-3104IP - Overview

• Features:

  • Precise P/T/Z control, adjustable speed
  • Advance focus, iris, red gain, blue gain control with button/knob
  • 4D joystick offers simultaneous pan, tilt, zoom, and focus control
  • Support PELCO, VISCA, VISCA-over-IP and ONVIF protocols
  • 4 control modes: 2 x IP control (IP VISCA & ONVIF); 2 x serial control (RS422 & RS232).
  • Baud rate: 1200/ 2400/ 4800/ 9600 bps
  • User-defined hot keys
  • LED status and menu display


• Specifications:

  • Joystick: 4-dimension joystick (pan, tilt, zoom, lock) control
  • Connection: RS232, RS422, LAN
  • Display: LCD screen
  • Power supply: DC 12V1A ±10%
  • Power Consumption: 0.6W Max
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Storage Temperature: -4° to 158°F (-20° to 70°C)
  • Dimensions: 12.6 x 7 x 3.9" (320 x 180 x 100mm)


• Item Includes:

  • 1x AV-3104IP joystick controller
  • 1x DC12V power supply
  • 1x User manual


• GTIN:

  0858738005565
