Lilliput TM-1018/S 10.1 inch 16:9 LED monitor with 3G-SDI HDMI Component and Composite Video

ITEM #: LIL-TM-1018S MFG #: TM-1018/S

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$529.00

Our Price:

$519.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TM-1018/S - Overview

The Lilliput TM-1018/S 10.1 inch Touch 3G-SDI Field Monitor with HDMI, 3G-SDI ,composite, VGA and Tally.

The Lilliput TM-1018/S is a 10.1 inch Touch 3G-SDI Field Monitor with HDMI, 3G-SDI ,composite, VGA and Tally inputs. The slim and portable 3G-SDI TM-1018/s has all the features a Pro Broadcaster needs! Integrated advanced functions like touch control, Color, RGB and Luminence histogram, waveform, vectorscope, a video analyzer, on screen audio level metering, and an HDMI pass-through. Perfect for DSLR cameras the 10.1 inch, 1280 x 800 IPS LED screen is rich and clear thanks to the super high 800:1 contrast ratio and 16:9 widescreen panel. Ready for anything the Lilliput TM-1018/S has 3G-SDI, HDMI, Composite and Component, Tally and VGA inputs and 3G-SDI and HDMI out.

  • Features:

    • High resolution: 1024x600
    • 10.1 inch bigger display
    • High contrast: 500:1
    • Wide voltage: DC 6-24V
    • Multi mounts methods & angles

  • Specifications:

    • DISPLAY
    • Panel 10.1 inch LED IPS
      Physical Resolution
    • 1280X800, support up to 1920x1080
      Aspect Ratio
    • 16:9
      Brightness
    • 350cd/m2
      Contrast
    • 800:1
      Viewing Angle
    • 170°/170°(H/V)
      INPUT
    • HDMI
    • Composite
    • Tally
    • VGA
    • 3G- SDI
      OUTPUT
    • 3G-SDI
    • HDMI
      AUDIO in
    • VIDEO 1
    • Speaker
    • Ear Phone Slot
      Current
    • 1200mA
    • Input Voltage
    • DC 7-24V

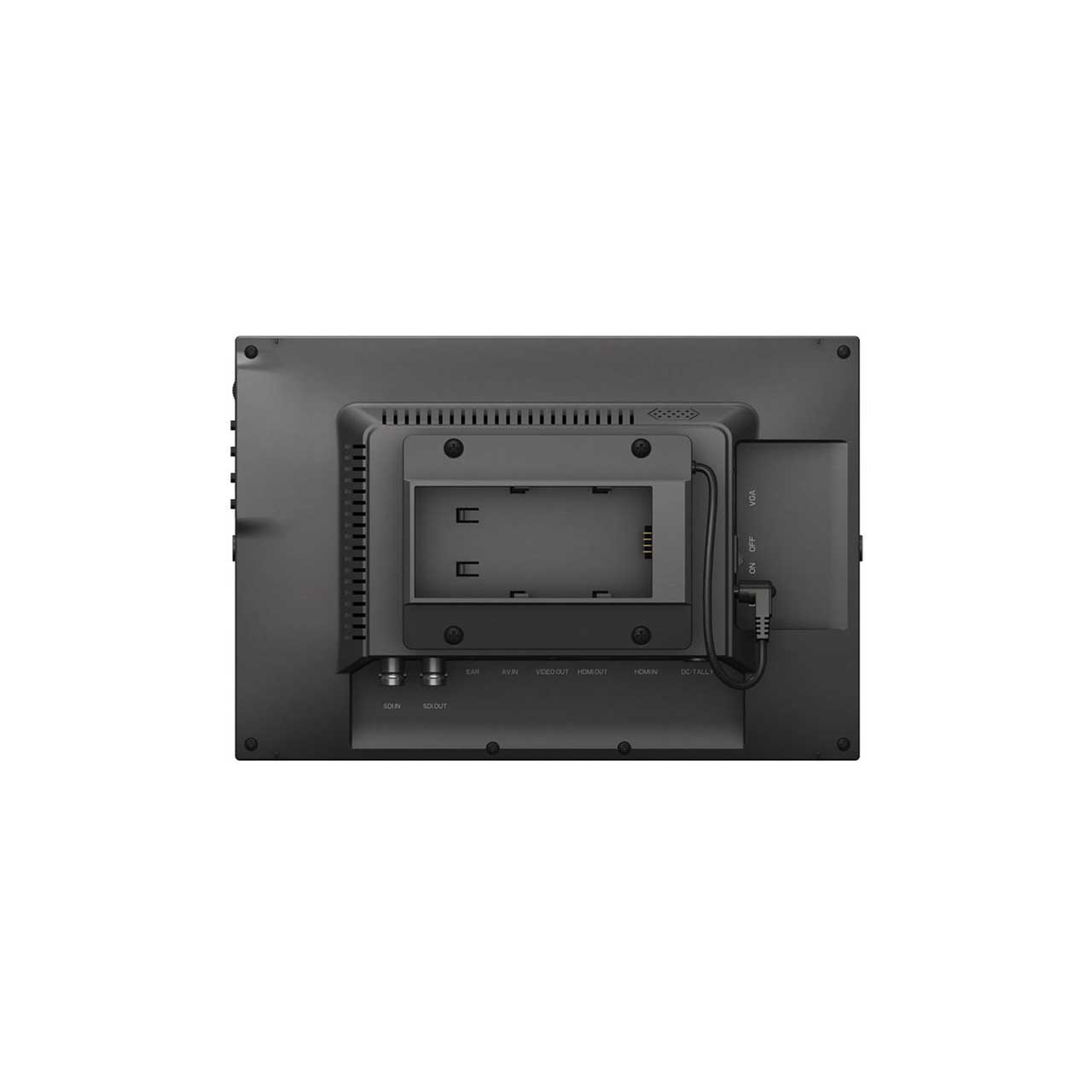

      Battery Plate
    • V-mount/Anton Bauer mount/
    • F970/QM91D/DU21/LP-E6

  • Item Includes:

    • Monitor x1
    • Battery Plates
    • V-mount/Anton Bauer mount/
    • F970/QM91D/DU21/LP-E6
    • Mounting Plate
    • VESA bracket
    • Shoe Mount

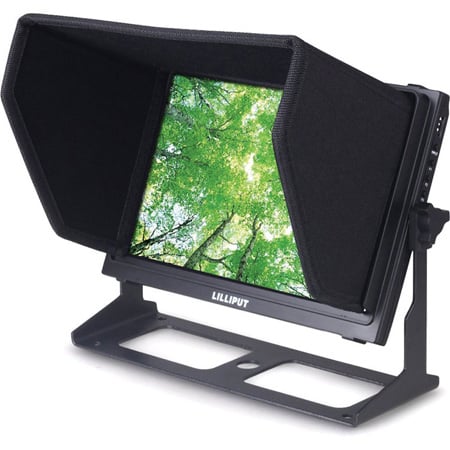

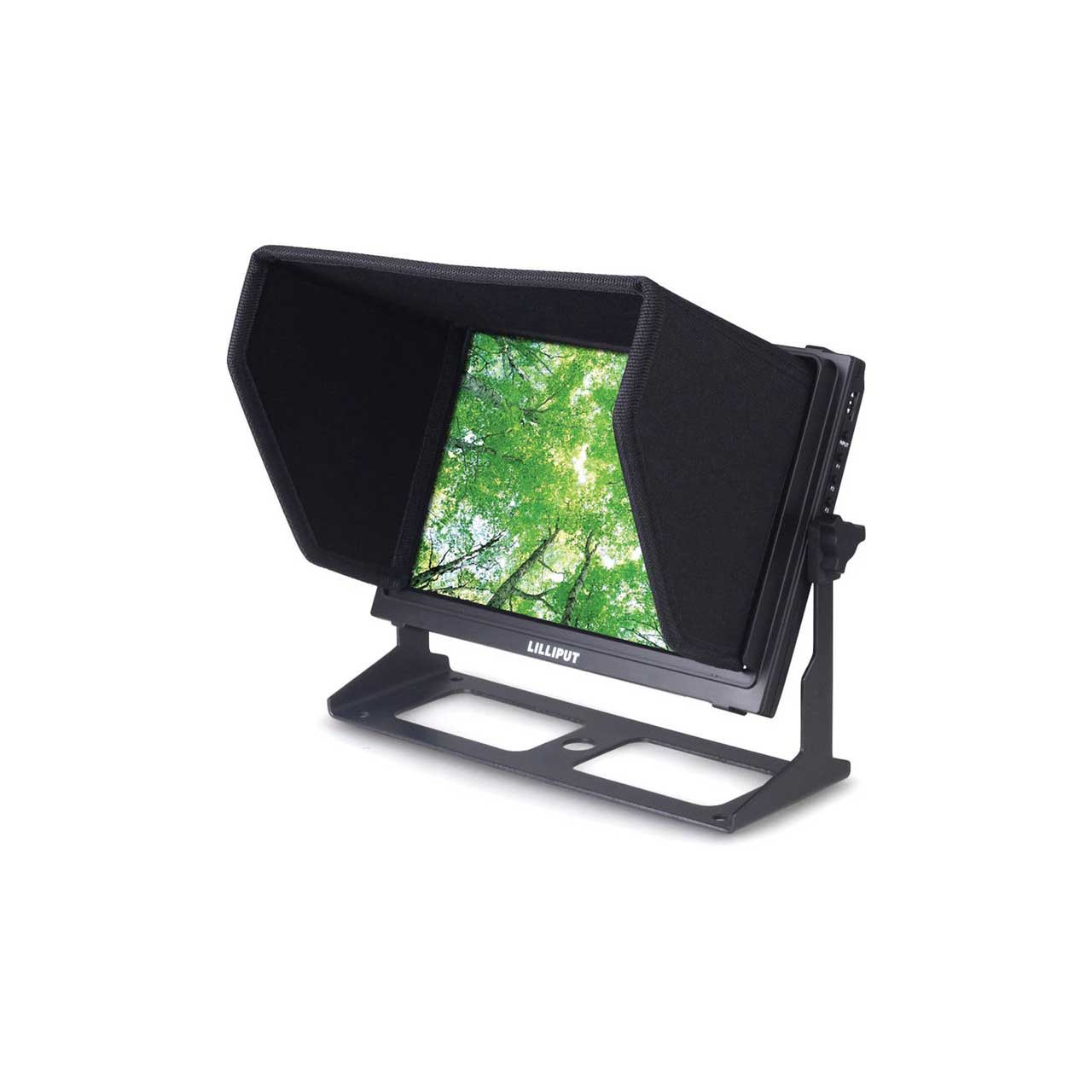

    • Folding Sun Shade
    • Composite cable
    • HDMI AC Cable
    • Gimbal bracket
    • 12v dc adapter

  • GTIN:

    6950821600856
