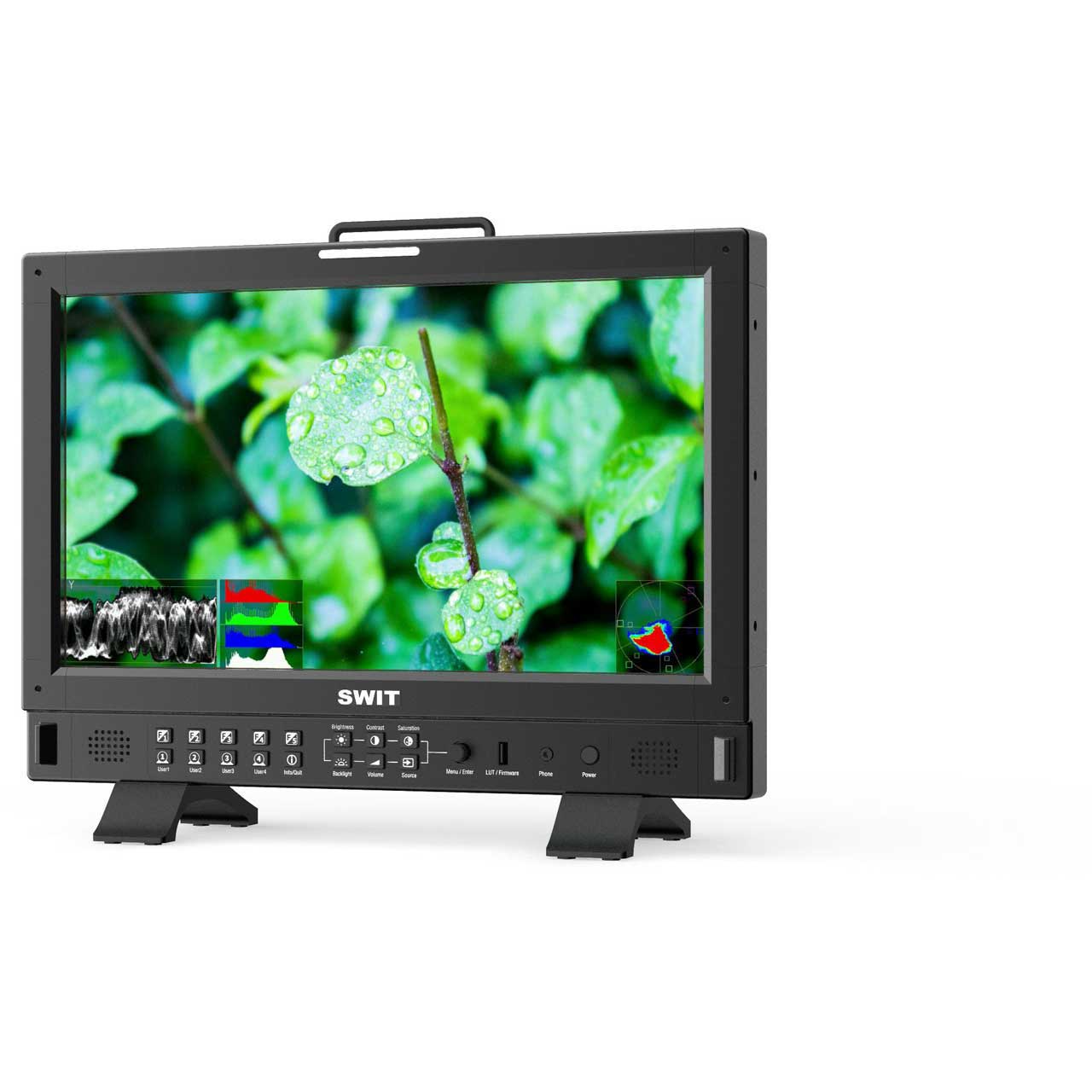

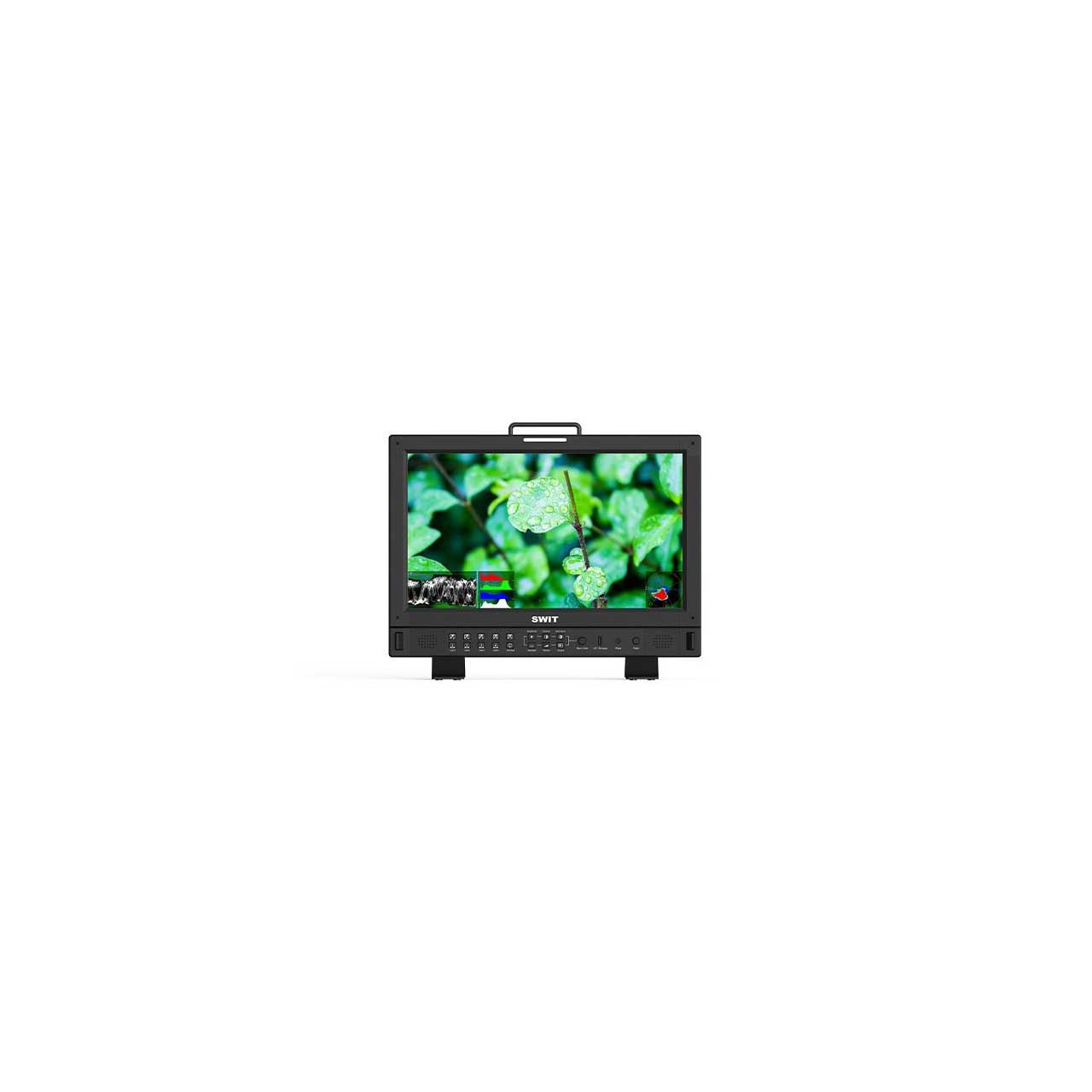

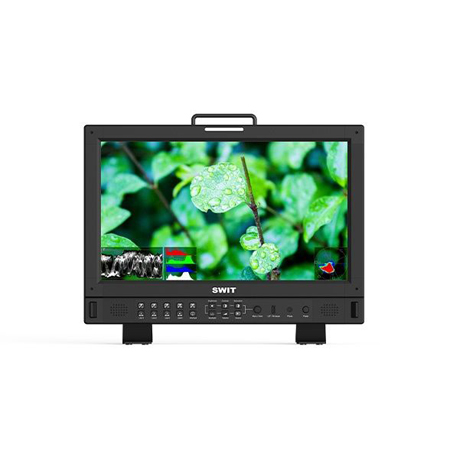

SWIT BM-U175 17.3-Inch UHD 4K 12G-SDI Reference Monitor - Gold Mount

BM-U175 GOLD MOUNT - Overview

• Features:

  • 17.3-inch LCD Panel, 3840x2160 resolution
  • 12G-SDI 4-in 4-out, 8K input ready, HDMI2.0 input
  • 12G-SDI via SFP Fiber input (Optional)
  • ST2110 IP via SFP Fiber input (Optional)
  • 3DLUT Auto Self-calibration without PC
  • Audio/Video 0 latency for lip-sync> HLG/PQ/S-log3 HDR EOTF
  • Built-in Multi camera Delog LUTs
  • User 3DLUTs upload via USB
  • Waveform / Vector / Histogram
  • Focus assist / False color / Zebra
  • 16-ch audio meters / Lissajous
  • IP webserver remote control
  • TSL UMD and text TALLY display
  • USB firmware upgrade
  • 19-inch rack mountable, 7U height


• Specifications:

  • LCD Performance
  • Size: 17.3 inches
  • Display Area: 381.88x214.82mm
  • Resolution: 3840x2160
  • Aspect ratio: 16:9
  • Brightness: 300nits
  • Contrast: 800:1
  • Color Depth: 16.77M colors, 8-bit
  • Signal Process: 18-bit
  • Viewing Angle: 178°(H) /178°(V)

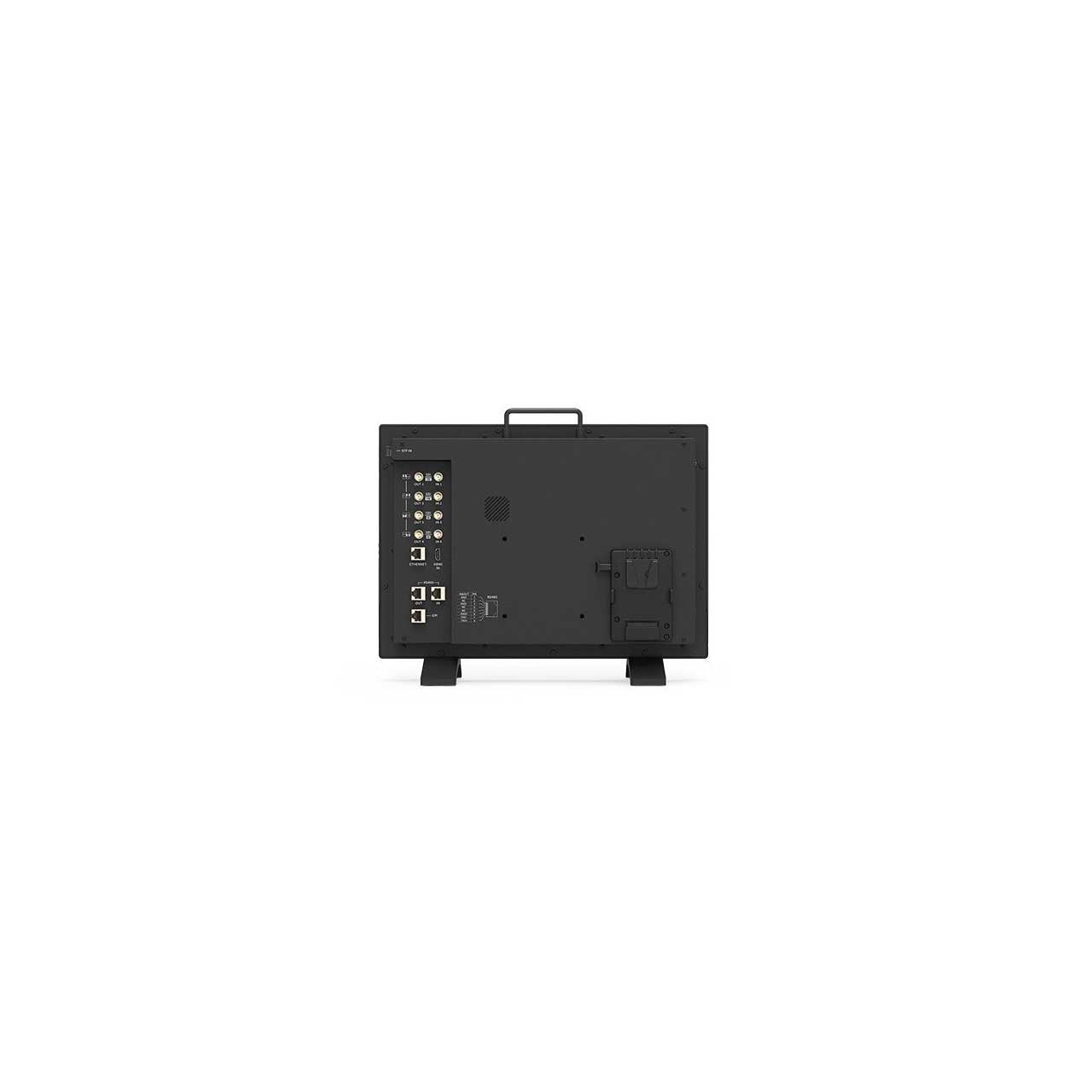

    Input
  • BNC x4: 12G/6G/3G/HD/SD-SDI input
  • HDMI x1: HDMI 2.0 input
  • SFP x1: Optical Fiber input (By optional SFP adapter)
  • RS485 x1: TSL 3.1/4.0 UMD input
  • RS485 x1: GPI (Tally) input
  • RJ45 x1: 1000M Ethernet input for Webserver IP control

    Output
  • BNC x4: 12G/6G/3G/HD/SD-SDI loop output
  • RS485 x1: TSL 3.1/4.0 UMD output
  • Analog Audio: 3.5mm headphone and speaker

    Video Format
  • SDI 1/2/3/4
    4096x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    3840x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    2048x1080i (50 / 59.94 / 60)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50)
    1080psf (30 / 29.97 / 25 / 24 / 23.98)
    720p (60 / 59.94 / 50)
    480i (59.94), 576I (50)
  • Quad Link 4K (Each channel)
    2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • Quad Link 8K (Each channel)
    4096x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    3840x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • HDMI
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    4096x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    3840x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)

    General
  • Input voltage: DC 12V-17V, AC 100-240V, 50/60Hz
  • Power consumption: 60W
  • Working temperature: 32° to 122°F (0° to 50°C)
  • Working Humidity: 10 to 90%
  • Storage Temperature: 5° to 140°F (-15° to 60°C)
  • Storage Humidity: 10 to 90%
  • Dimensions: 17.16 x 12.23 x 3.50" (436 x 310.8 x 88.8mm)
  • Net Weight (Main Body): 13Lbs (5.9kg)


• Item Includes:

  • 1x Monitor
  • 1x Gould Mount Battery plate
  • 2x Tabletop stand
  • 1x Power cord
  • 2x Left, Right side rack


• Warranty:

  • 2 years conditional


• GTIN:

  6948193507873
