SWIT S-8113A 160Wh Lithium Ion Gold Mount Battery

ITEM #: SWIT-S-8113A MFG #: S-8113A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$370.00

Our Price:

$355.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.


S-8113A - Overview

Adopt High-Load Li-ion Cells
Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there're monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely. Using S-8113A high-load battery, you can get MAX 150W/12A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won't reduce battery life during long time high power output.

160Wh / 11.1Ah High Capacity
Consists of 16pcs 18650 battery cells, and reaches 160Wh/11.1Ah high capacity. Run approx 5 hours for normal 30W ENG cameras.

6A Fast Charging
S-8113A supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

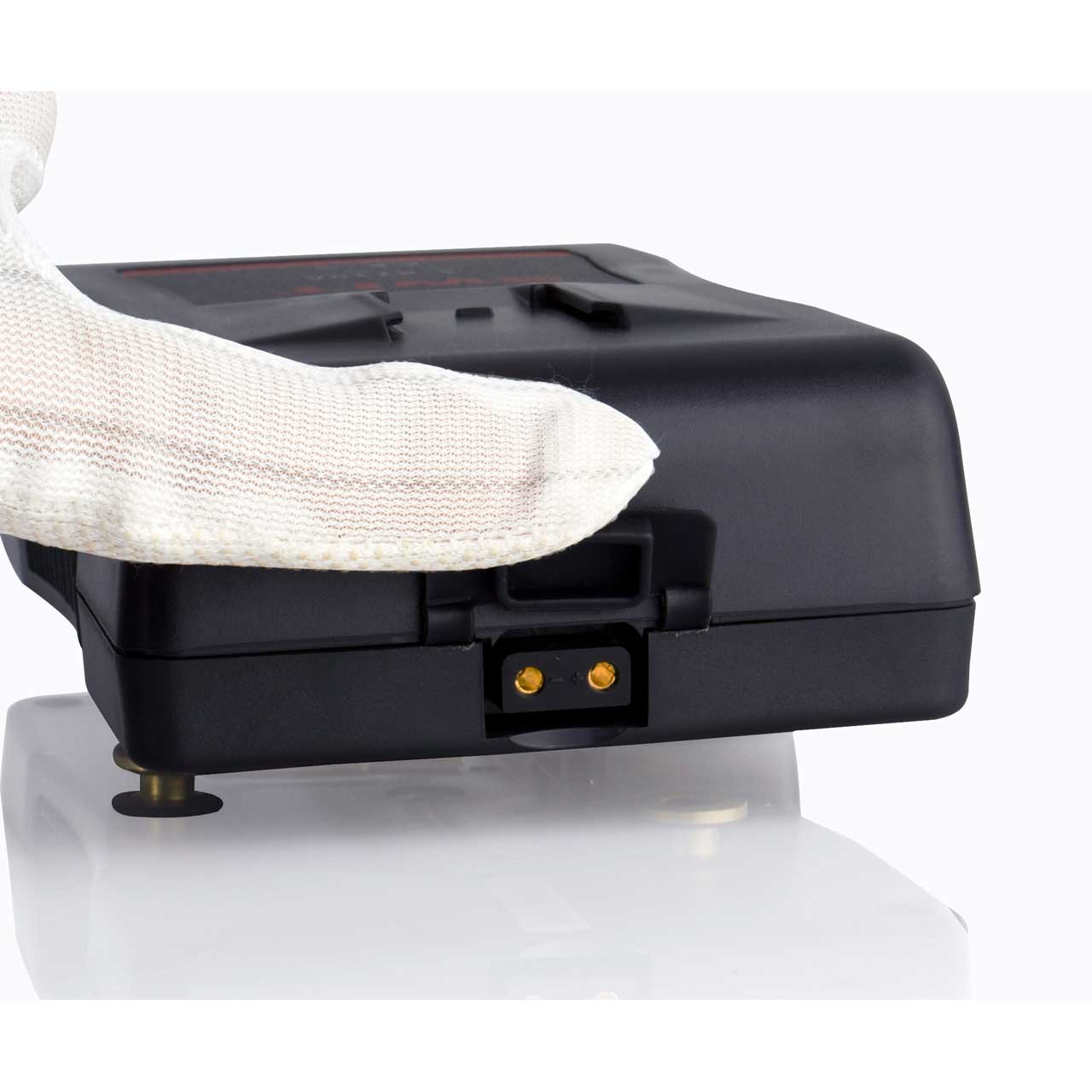

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8113A battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc..
The Max Power from D-tap is 120W, 10A.

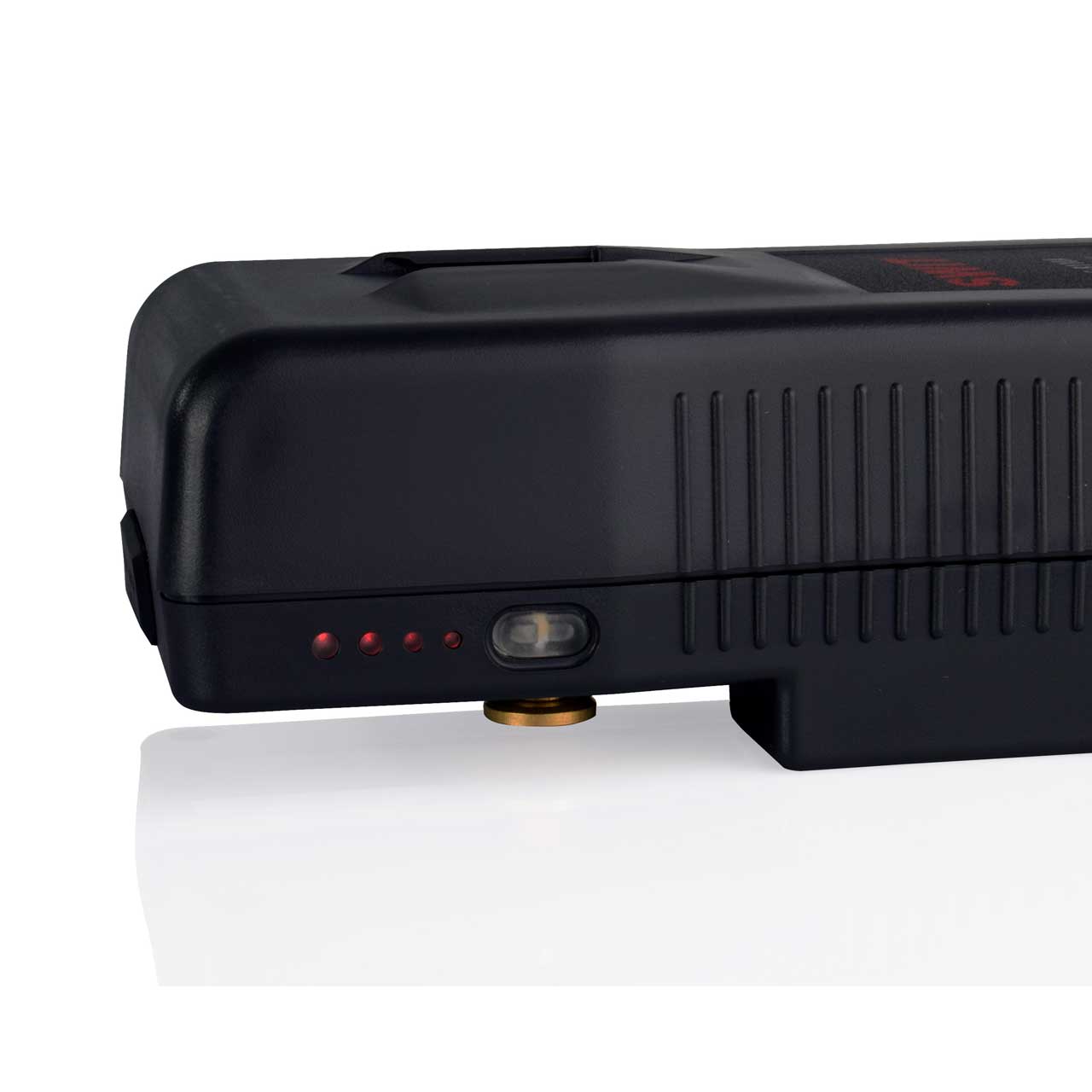

4-level LED Power Indicator
On the side of the battery, there're 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Li-ion, 14.4V, 160Wh large capacity
    • Max 150W, 12A constant output
    • D-tap output socket
    • 4-level LED power indicator

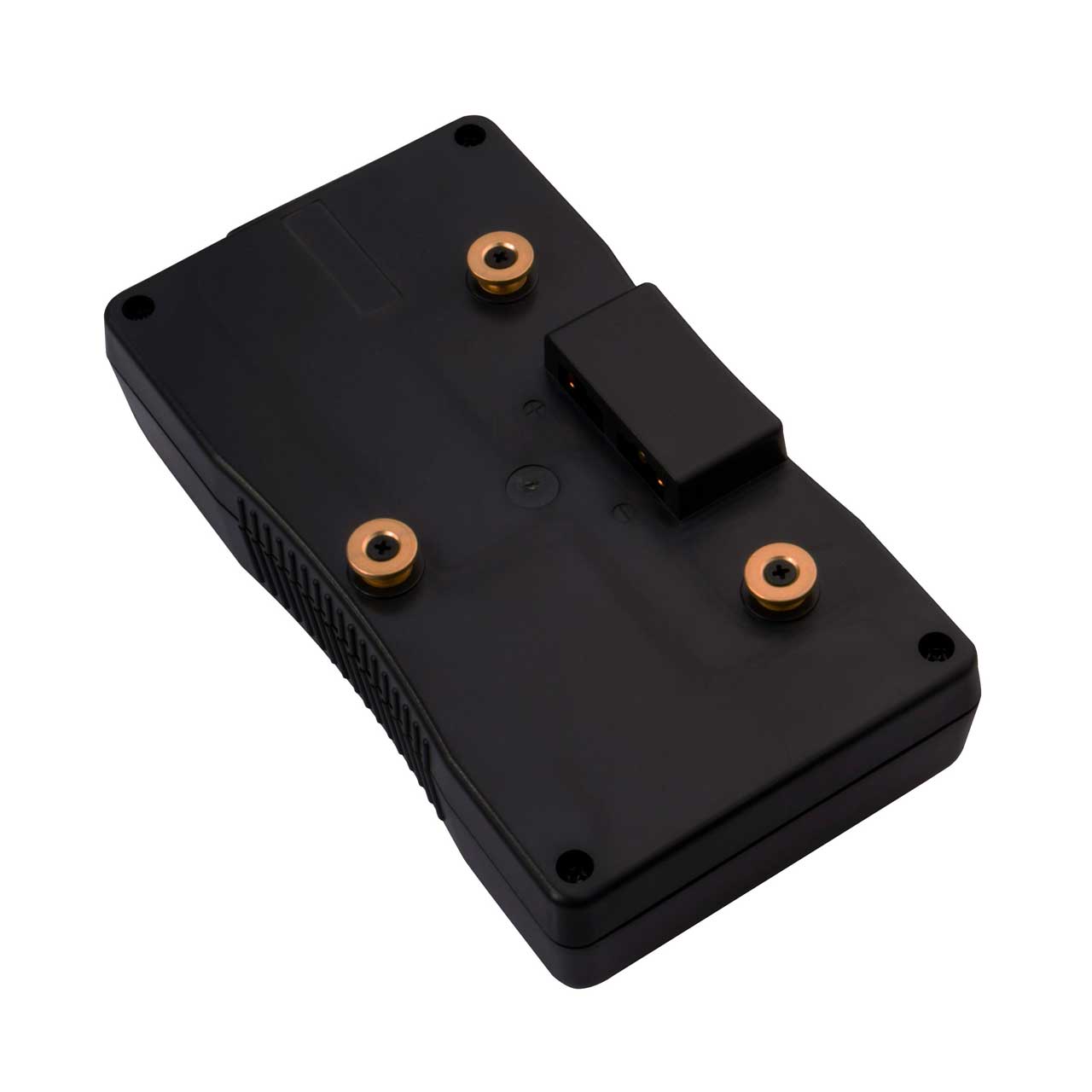

    • Gold mount connection
    • Multiple circuit protections

  • Specifications:

    • Normal Voltage: 14.4V
    • Capacity: 160Wh/11.1Ah
    • Max output power: 150W
    • Max output current: 12A
    • Mount type: Gold mount
    • Operation temperature: 0-40°C
    • Net Weight: Approx. 0.9kg
    • Dimension: 165mm x 90mm x 51mm

  • Warranty:

    • 2 years

  • GTIN:

    6948193502403
