Belden 9538 CMG Rated EIA RS-232 Computer Control Cable Str TC/Shielded 8x24AWG - Chrome -1000 Ft/UnReel Box

ITEM #: BL-9538-U1000 MFG #: 9538 060U1000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,737.60

Our Price:

$2,179.66

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    9538 060U1000 - Overview

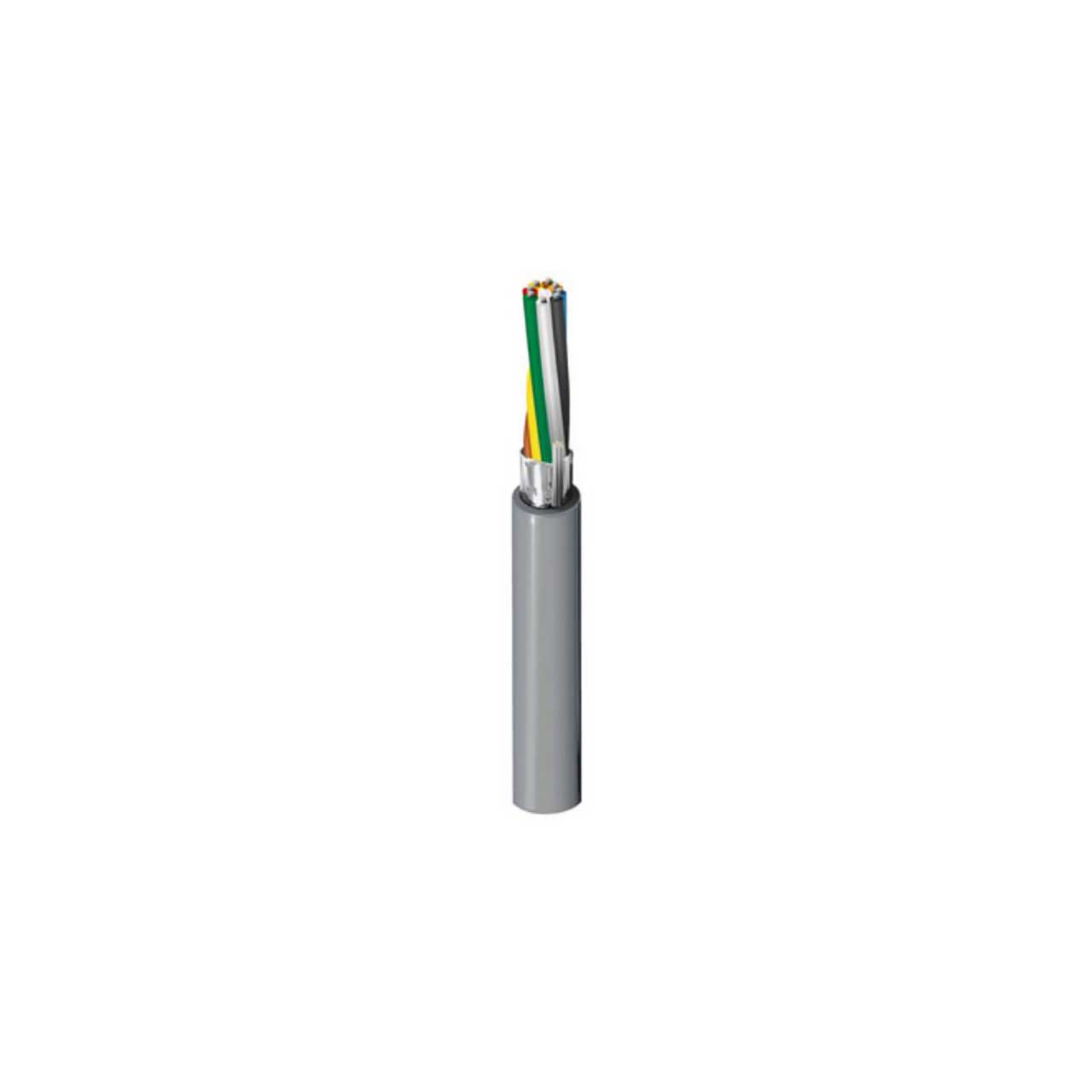

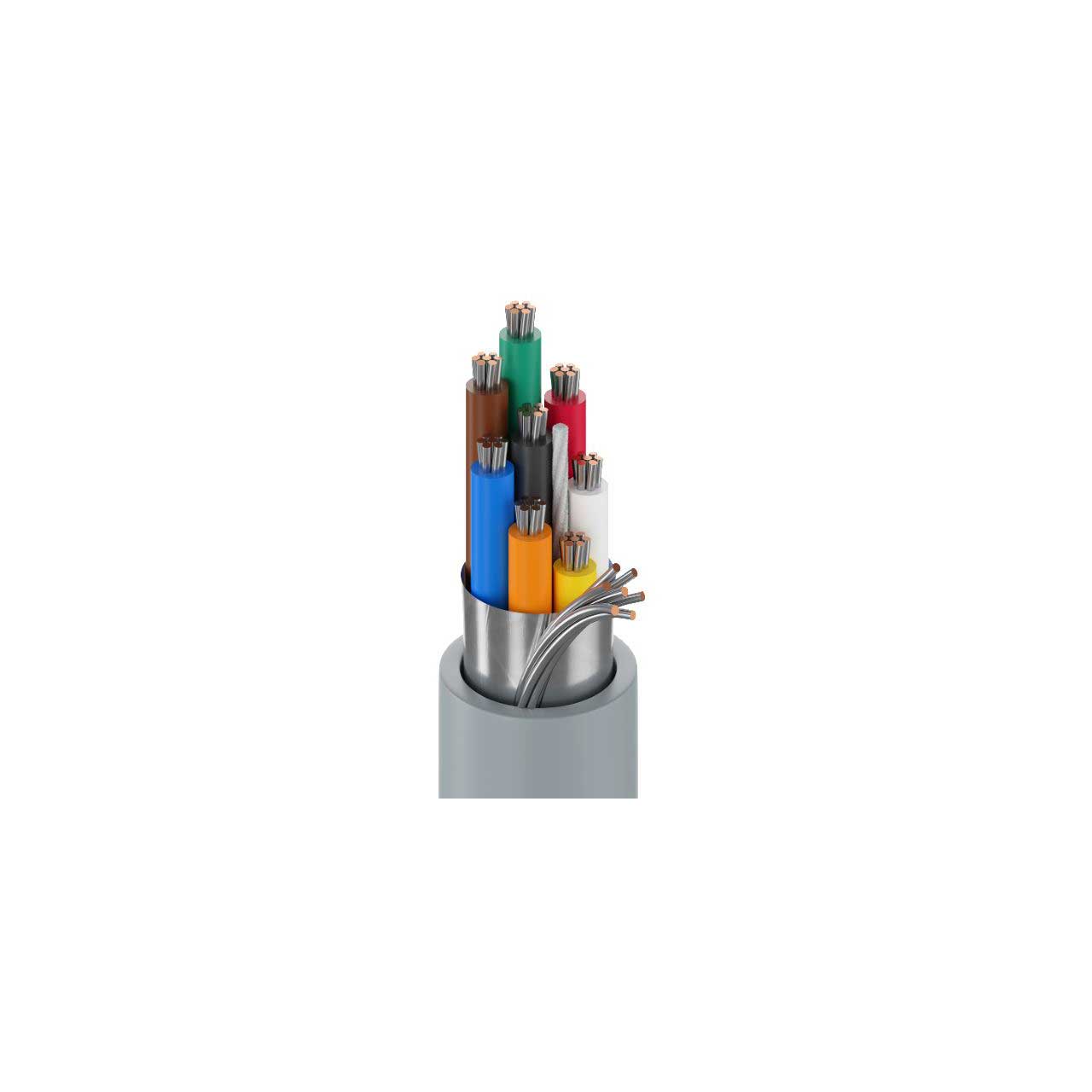

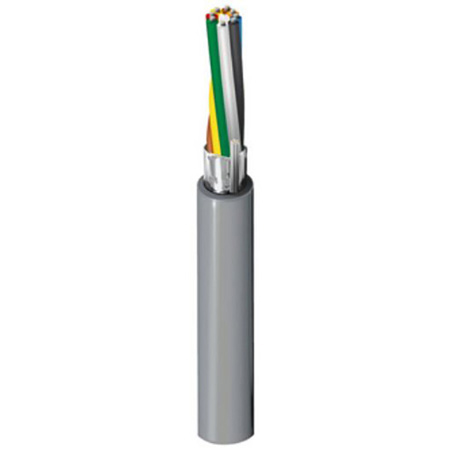

    Belden 9538 is a CMG rated, EIA RS-232 Computer Control Cable. It features Eight 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, an overall Beldfoil® shield (100% coverage), with a 24 AWG stranded tinned copper drain wire in a PVC jacket.

    With proven reliability and performance backed by a 10-year no-cost warranty, these utility-grade essentials will outlast alternative options-even in the most demanding environments. This cable ships in Belden's unique installer UnReel Box.

    Reimagining Unreel Packaging for Enhanced Sustainability

    Unreel packaging has been in use by Belden for more than 40 years and has served the industry well in terms of portability and ease of use. Unreel consists of a coil of wire or cable that is wound using patented Reelex technology. The cable is then placed into a cardboard box and smoothly dispensed from the center of the coil via a tube for easy access. Until now, that tube (called a "payout tube") was made of plastic. Today, through the work of Belden packaging engineers, a new tube design, made with recycled paper pulp, is being implemented to replace the plastic component. This allows the entire package to be placed in the paper recycling stream!

    The shift towards a fully paper-based, recyclable generation of Unreel packaging is important, as there is a great deal of evidence pointing to plastic's harm on the environment. Everything from single-use plastic water bottles and grocery bags to food containers and packaging is finding its way to our oceans and piling up in landfills. Excessive use of plastic simply isn't sustainable for the planet. Therefore, it's important that we all do our part to reduce our use of plastic. Eliminating the plastic components in Unreel packaging is just one way that Belden can be part of the solution.

    Applications
    RS-232 Applications
    Computer Communications
    Low Voltage Analog Signals (4-20mA, 0-10V, ...)
    Low Voltage Digital Control (24V, .)
    Line Level Audio; Panel Wiring

    • Features:

      • Eliminate Noise Interference: Best-in-class patented Beldfoil® shield technology delivers 100% coverage to protect signals
      • Consistent Signal Transmission: Superior physical toughness maintains performance in extreme environmental conditions
      • Lower Capacitance: Strong signal transmission over extended distances
      • Increased Flexibility: Finely stranded conductors offer easier installation

    • Specifications:

      • Conductor: 8 Conductor, 24 AWG, 7x32 stranding Tinned Copper
      • Insulation Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
      • Insulation Nom. Thickness: 0.011 in (0.28 mm)
      • Insulation Nom. Insulation Diameter: 0.044 in (1.1 mm)
      • Insulation Color Code: Black, White, Red, Green, Brown, Blue, Orange, Yellow
      • Outer Shield Material: Bi-Laminate (Alum+Poly) Tape - 100%
      • Outer Shield Drainwire Type: 24 AWG (7x32) TC
      • Outer Jacket Material: Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.032 in (0.81 mm)
      • Outer Jacket Nom. Diameter: 0.224 in (5.69 mm)
      • Overall Cable Diameter (Nominal): 0.224 in (5.69 mm)
      • Operating Temperature Range: -30°C To +80°C
      • UL Temperature Rating: 80°C (UL AWM Style 2464)
      • Bulk Cable Weight: 31 lbs/1000 ft.
      • Max. Recommended Pulling Tension: 44 lbs.
      • Min. Bend Radius/Minor Axis: 2.250 in.
      • NEC/(UL) Specification: CMG
      • NEC Articles: 800
      • CEC/C(UL) Specification: CMG
      • AWM Specification: UL Style 2464 (300 V 80°C)
      • CA Prop 65 (CJ for Wire & Cable): Yes
      • MII Order #39 (China RoHS): Yes
      • UL Flame Test: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
      • CSA Flame Test: FT4
      • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
      • Plenum (Y/N): No
      • Capacitance: 33 pF/ft
      • DC Resistance @ 20°C: 25 Ohm/1000 ft
      • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

    • Item Includes:

      • 9538 CMG Rated EIA RS-232 Computer Control Cable - Chrome - 1000 Foot UnReel Box

    • Warranty:

      • 10 Year Limitred Warranty

    • GTIN:

      0612825255321
