    N7-220X - Overview

    Bolin's N-Series PTZ cameras support NDI HX3 and are fully compatible with NDI-enabled hardware and software. They are built on the Blue Line platform, which provides gold-standard features at an affordable price. Bolin's PTZ camera manufacturing principles never compromise image quality, industrial video standards, or PTZ control operation. So, these budget-friendly cameras are made with Bolin care and quality.

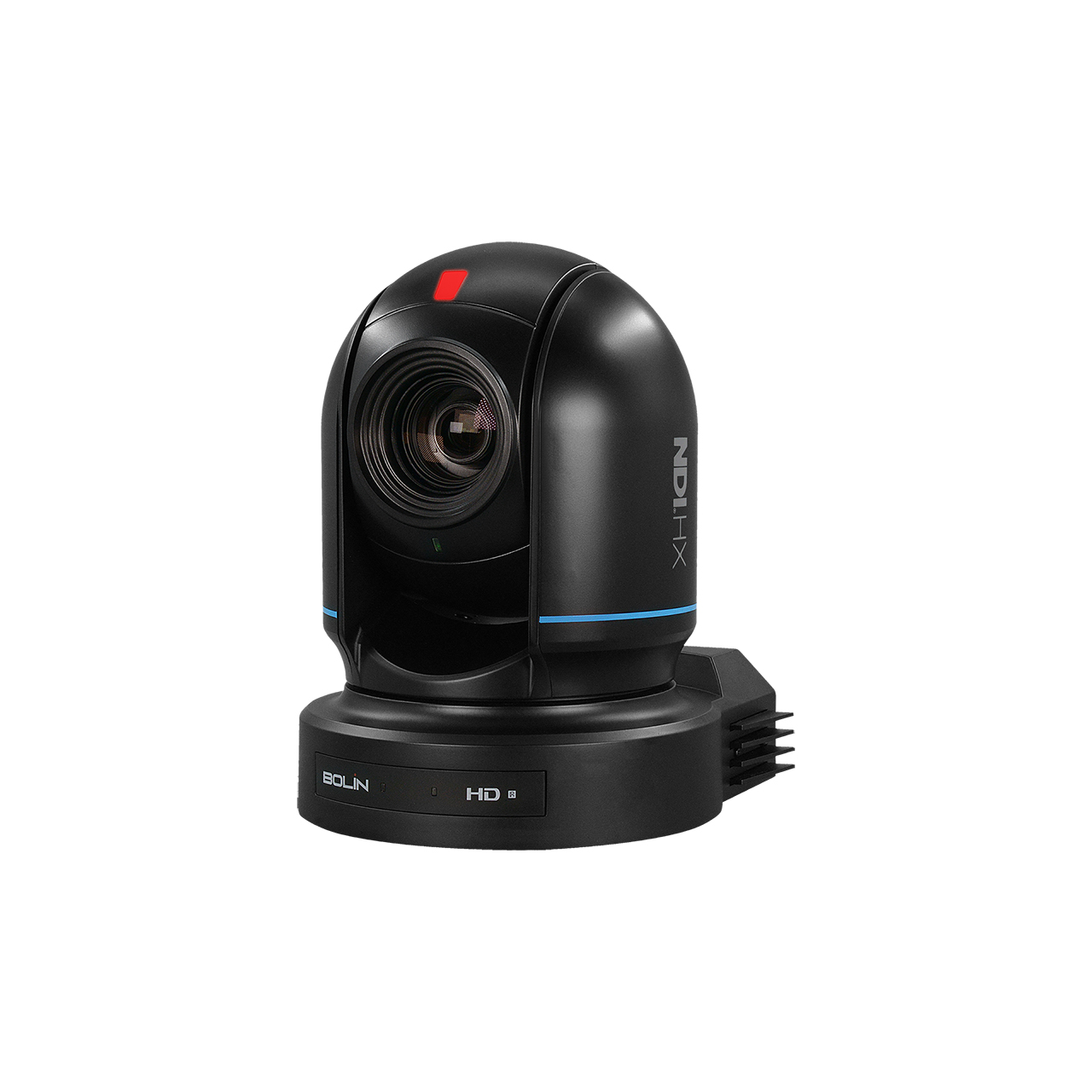

    The N7 NDI HX3 FHD PTZ camera N7-220X features a 20x zoom range, with a high-quality Full HD image output over NDI, HDMI, 3G-SDI, USB, and IP video streams. They are perfect for studio, live production, and ProAV use.

    Color Matrix
    -Convenient access to image Color Matrix via WebUI
    -Easy adjustments to Gain and Hue for RGBCMY
    -Results instantly visible in the WebUI preview

    Another Gold Standard feature of the Blue Line is the Color Matrix. With it, you can easily make subtle and specific corrections to the colors in your camera's image.

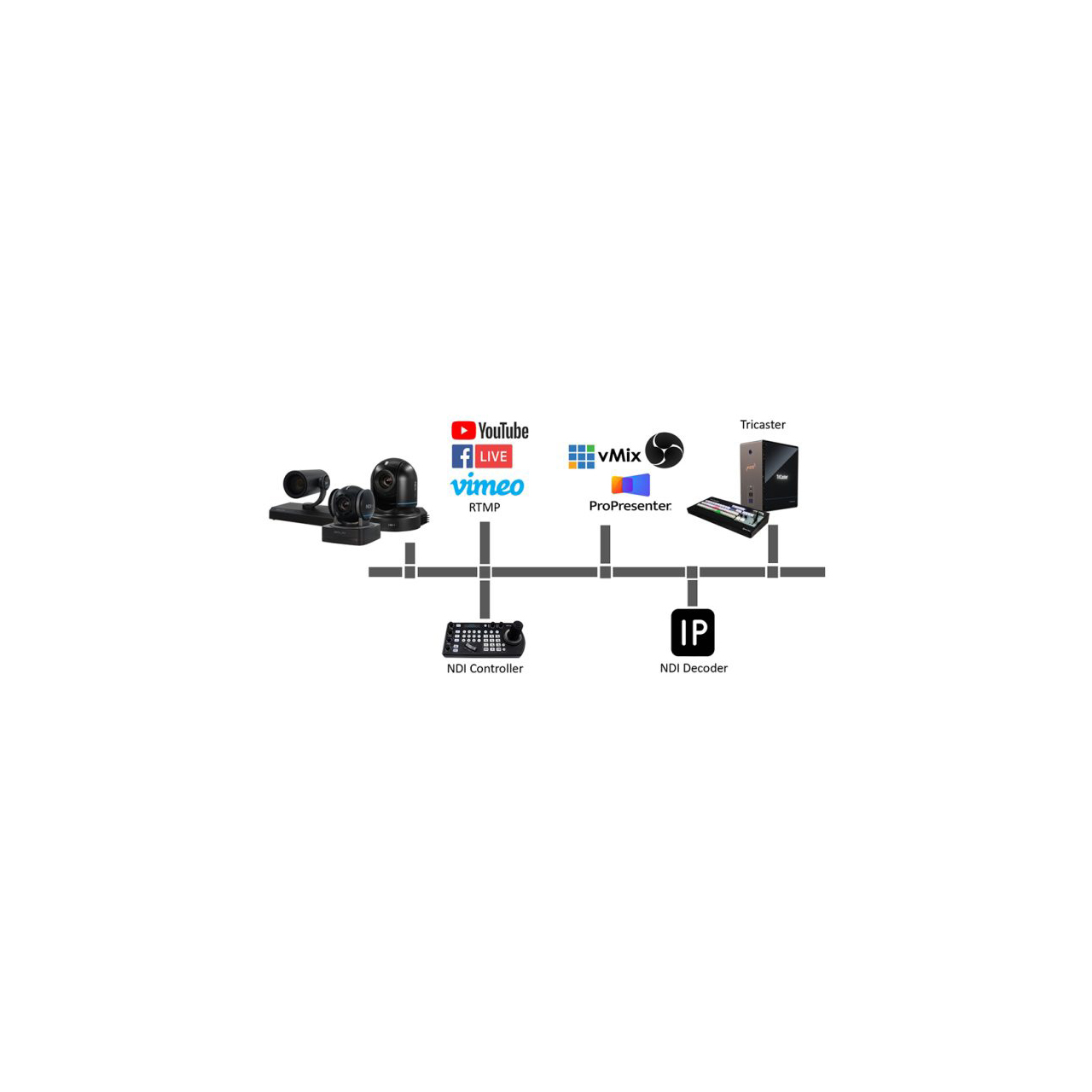

    NDI IP Streaming
    -Bolin's N-Series PTZ cameras support NDI HX3 and are fully compatible with NDI-enabled hardware and software.
    -Remotely view smooth and stable video streaming (up to 1080p60) plus audio over an IP network via web browser and video decoder.
    -Supports RTSP, RTMP for online video and live streaming.
    -Cross Browser Compatibility - HTML5 support for Edge, Chrome, Firefox, and Safari browsers without plugin.
    -Full function PTZ camera IP control via Visca Over IP protocol.
    -Integration with popular VMS - ONVIF for IP video control, record and management.

    SRT Ready
    Delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over unstable networks.
    -High quality video image
    -Low latency
    -Secure end-to-end transmission
    -Leveraging the internet
    -Open source

    • Features:

      • Full HD High-Resolution
      • 20X Zoom Range, 59° HOV
      • HDMI, 3G-SDI, USB, IP

    • Specifications:

      • Camera
      • Image Sensor: Sony Progressive scan CMOS image sensor 1/2.8 type
      • Number of effective pixels: 1920X1080, 2.13 MP
      • Zoom: Optical Zoom 20X, Digital Zoom 16X
      • Focal Length: f= 5.2 mm (Wide) to 104 mm (Tele)
      • Aperture: F1.6 (Wide) to F3.0 (Tele)
      • Horizontal Angle of View: 55.8° (W)~3.2° (T)
      • Min. object distance: 10mm (Wide)
      • Min. Illumination: 0.5lux (color),0.1lux (black)
      • Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
      • Focus: Auto, Manual, One Push
      • White Balance: Auto, Indoor, Outdoor,OPW,ATW, Manual
      • Exposure: Auto, Manual, Shutter /Iris /Brightness priority
      • Image Adjustment: Brightness, Color(Saturation), Contrast, Sharpness, HUE

        HDMI
      • Video Format - HDMI: 1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25
      • Color Format: 10bit(HDMI), YCbCr
      • Color Space: YUV, RGB
      • OSD Menu Display: Yes

        SDI
      • SDI Video Format: 1080p:60/59.94/50/30/29.97/25; 720p:60/59.94/50/30/25
      • Color Precision: 10bit(SDI), YCbCr, 4:2:2
      • Color Space: YUV
      • Standard: 3G-SDI, SMPTE424/SMPTE292,TE 425-A standard / 75 Ω, With SMPTE352 SDI Metadata Supported
      • True Dual Output: SDI and HDMI has same video format when HDMI outputs FHD and lower.
      • OSD Menu Display: YES

        USB
      • USB Port: USB2.0,Type C
      • Encoder: H.264/YUV2
      • USB Video Format: 1920x1080p60/50/30/25fps, 1280X720p60/50/30/25fps
      • Compatible Integration: UVC, UAC
      • Video Conference Compatibility: Most video conference platform in the market

        Network-IP
      • Video Codec: NDI HX3, AVC/HEVC-H.264/265 by SoC
      • Network Interface: RJ45 port-Standard 1Gbps Ethernet
      • IP Video - 1st Stream: 1920x1080,1280x720; Frame Rate: P60/50/30/25
      • IP Video - 2nd Stream: 704x576, 640x480, 640x360, 576x480, 352x228, 320x240, 320x180; P60/50/30/25; Frame Rate P60/50/30/25
      • True Dual Output: Video resolution and framerate: IP and HDMI can be output with different format
      • IP Protocols: TCP/IP, ICMP, ARP, RTP, SIP, UDP, HTTP, HTTPS, DNS, DHCP, FTP, NTP, NDI HX3
      • Application Protocols: RTP, RTSP, RTMP,RTMPS, SRT,NDI
      • Multi-stream: 2 Streams

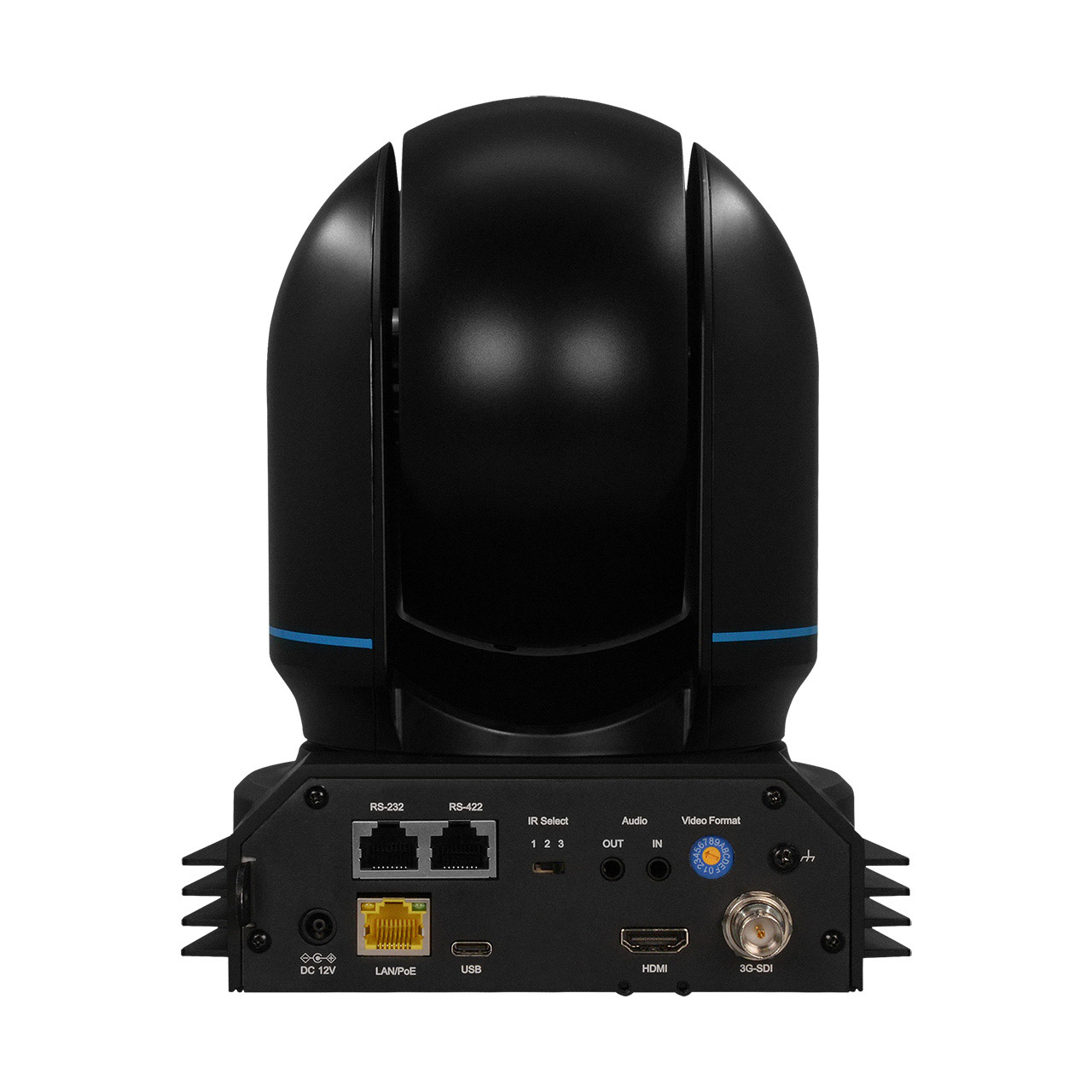

        Interface
      • HDMI Video Output: HDMI 1.4X1 Type A
      • IP Video Stream: Up to 1080p60
      • SDI Video Output: 3G-SDI, SMPTE424/SMPTE292,TE 425-A standard / 75 Ω, With SMPTE352 SDI Metadata Supported
      • Camera Control Interface: RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
      • Control Protocol: VISCA. VISCA Over IP, Pelco P/D
      • LAN Port: RJ45X1
      • USB Port: USB2.0 Type C
      • USB Protocol: UVC, UAC
      • Synchronization: Internal synchronization
      • Tally Light: Tally lamp in front, Red and Green Color
      • Dip Switch: Camera bottom panel: 8 PIN x 2
      • Audio Compression: AAC-LC,G.711,G.726 Broadband Audio Encoding

        General
      • Body: Partial Magnesium Alloy
      • Mount: Ceiling mount, Wall mount, Tripod
      • Size of Tripod Screw Hole: 1/4"-20UNC with safety joint
      • Operating Temperature: 32 to 130 °F
      • Operating Humidity: ≤80% Suitable for Use
      • Power Input: DCÝ12V, PoE+
      • Power Consumption: Min:15W; Max:19W
      • Dimension: 178.75x159x211mm
      • Weight: 2kg
      • Body Color: Black/White

    • Item Includes:

      • 1x N7-220X FHD PTZ Camera
      • 1x IR Remote Controller
      • 1x 12V, 2A Power Supply with International Plugs
      • 1x RS422 RJ45 Adaptor
      • 1x Lens Cap

    • Warranty:

      • 2-Year Limited Warranty

    • GTIN:

      6973775121864
