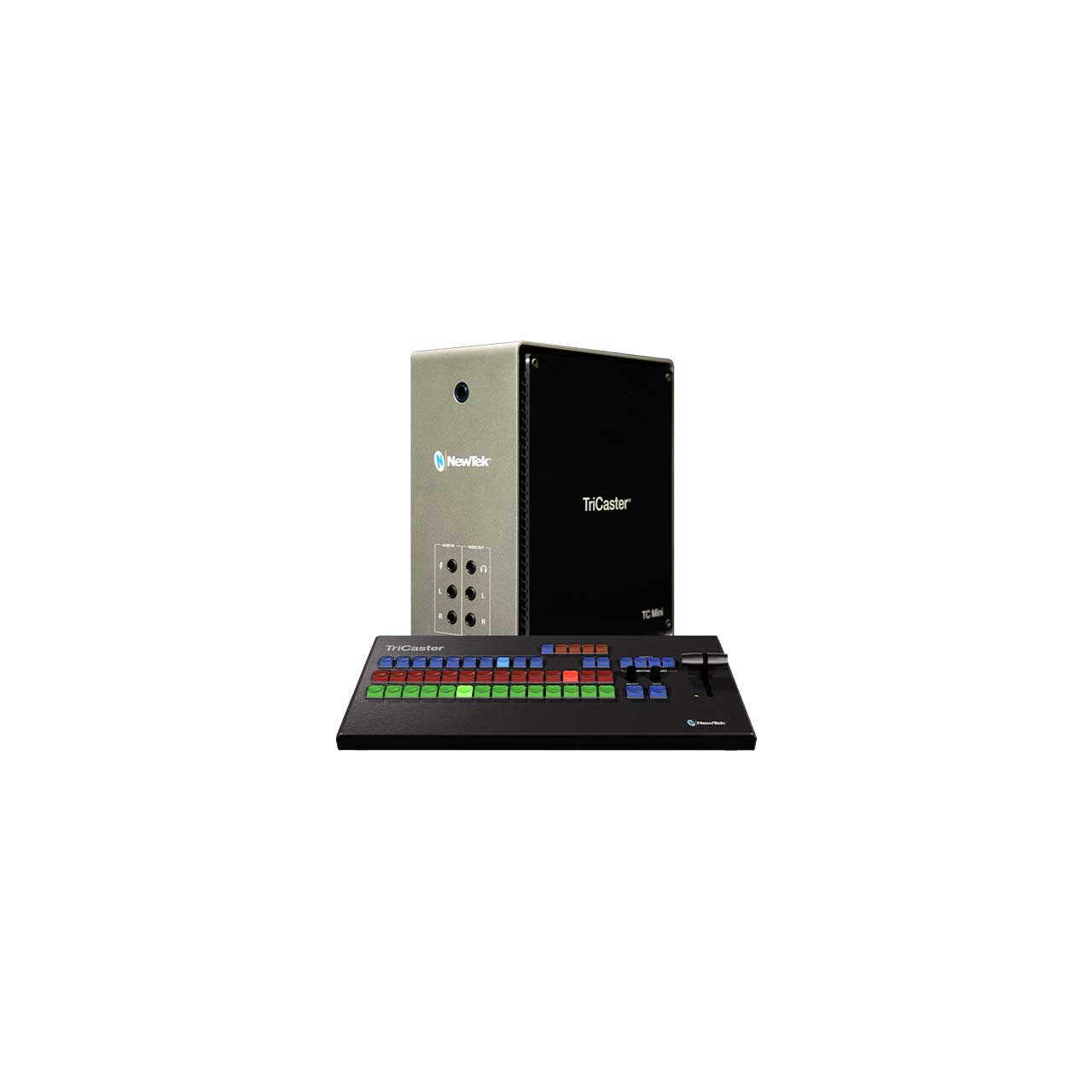

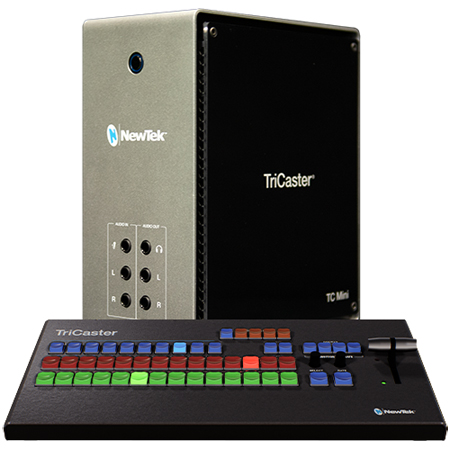

VIZRT TriCaster TCMXHDMIB Mini X HDMI Bundle - includes TriCaster Mini X HDMI - TriCaster Mini CS and Custom Case

TCMXHDMIB - Overview

• Features:

  • Tricaster Mini X HDMI Switcher
  • HD switching, streaming, and recording up to 4Kp30
  • 8 external video inputs and 4 mix outputs
  • Connect to compatible IP devices via NDI
  • Compatible with all major streaming platforms
  • Real-time social media publishing
  • Multi-channel recording, audio mixing, and internal storage
  • Video playback without additional hardware
  • Built-in live titling and motion graphics

    TriCaster Mini 4K Control Surface
  • Intuitive layout mapped to the TriCaster Mini live desktop
  • Large, backlit buttons and premium T-Bar for confident, comfortable performance
  • Faster, more accurate interaction than point and click
  • Attractive, compact design and simple, plug-and-play setup


• Specifications:

  • Network Video Input: 8x IP video inputs via NDI®, resolution-independent
  • Digital Video Input: 4x HDMI video connections supporting video input in any combination of standard formats, resolutions, and frame rates.
  • 2160p: 29.97, 25
  • 1080p: 29.97, 25
  • 1080i: 59.94, 50
  • 720p: 59.94, 50, 29.97, 25
  • SD: 59.94, 50, 25
  • Note: Available frame rates determined by session video standard (NTSC or PAL)
  • PTZ: Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
  • Note:Requires USB to serial adapter - sold separately
  • Skype TX: Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
  • Network Video Output: IP video output via NDI, optionally configurable for: 4x independent video mix outputs, 1x UHD video mix output
  • Stream Output: 2x streaming video output, independently configurable, with simultaneous stream archive
  • Monitor Outputs: 4x mini display port with output adapters, 3x of the outputs support multiviewers using standard display resolutions
  • Mix/Effect Buses: (M/E): 4x M/E buses supporting video re-entry, 1x Mix/Effect channel per bus with support for up to 2 sources, 2x KEY layers per bus
  • DSK Channels: 2x DSK channels
  • Media: 5x Media Players (2x DDR, 2x GFX, 1x Sound), 15x Media Buffers (5x Live Link or Animation Buffers, 10x Graphic Buffers)
  • Keyers: Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses. 8x input keyers, 2x media player keyers, 4x M/E keyers, 15x buffer keyers
  • Virtual Sets: Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
  • Recording: 4x recording channels from either NDI® inputs or Mix outputs - Records and retains alpha channel data - 4x QuickTime® archival video recorders (Native NDI Codec for recording)
  • Note: QuickTime Player not required for playback in common NLE applications
  • Storage: Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0
  • Grab: Grab full-resolution, deinterlaced still images from external video sources and outputs
  • Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
  • Audio Mixing: Integrated multi-channel audio mixer with support for stereo audio, and DSP's
  • Local AUdio Input: 2x embedded digital audio inputs through HDMI conversion, 1x 1/4" (6.35 mm) balanced mic, 2 x 1/4" (6.35 mm) balanced line
  • Local Audio Output: 2x embedded digital audio outputs through HDMI conversion, 2x 1/4" (6.35 mm) balanced line, 1x 1/4" (6.35 mm) stereo headphones jack
  • Network Audio: Native support for network audio input and output via NDI® ú Embedded audio supported for all NDIr input and output video signals ú Integrated support3 for Dante™ networking protocol from Audinater
  • Note: Requires Dante Virtual Soundcard license from Audinate (sold separately)
  • Supported Media File Formats:
  • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
  • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
  • Audio: AIFF, MP3, WAV, and more
  • NIC: 2x 1 Gigabit NIC
  • System Dimensions: 4.23 x 9.08 x 7.89 in (10.74 x 23.1 x 20.1 cm)
  • Weight: 8.4 lbs (3.8 kg)


• Item Includes:

  • 1x TriCaster Mini X HDMI Switcher
  • 1x Tricaster Mini 4K Control Surface
  • 1x Travel Case
