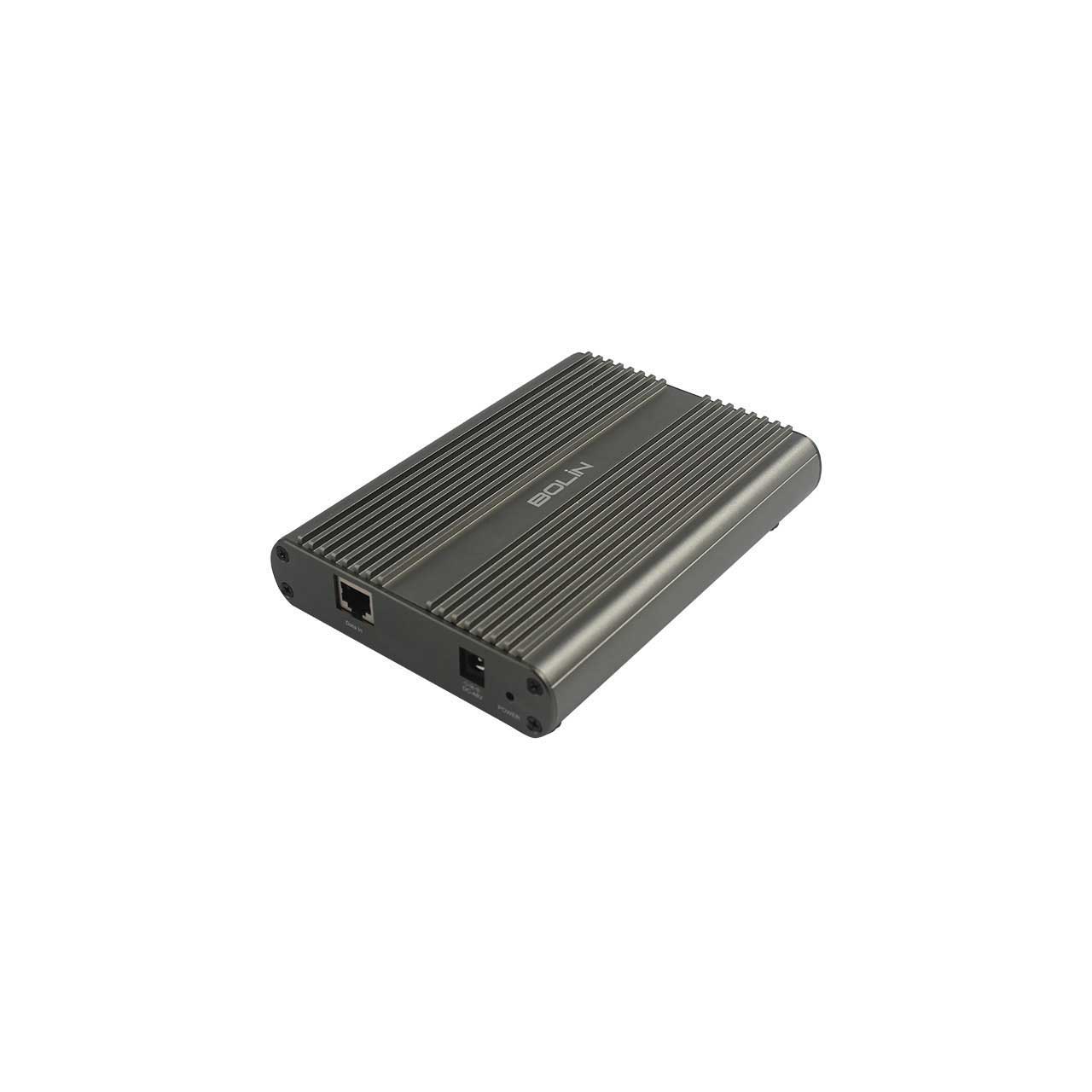

Bolin BL-PP97 High Power POE Injector

BL-PP97 - Overview

• Features:

  • POE standard: IEEE802.3at Type1(af) , IEEE802.3at Type 2, IEEE802.3bt Type 3 , IEEE802.3bt Type 4.
  • Compatible with POH(Power Over HDBaseT)
  • Data Rate: 100/1000Mbps
  • Cable: Cat 5e/Cat6/Cat6e/Cat7
  • Power Input: External 54VDC 2,77A power adapter; Power Output: Auto-determine the necessary power requirements up to 97W (80-90% efficiency may apply).
  • Power Efficiency: 90 %

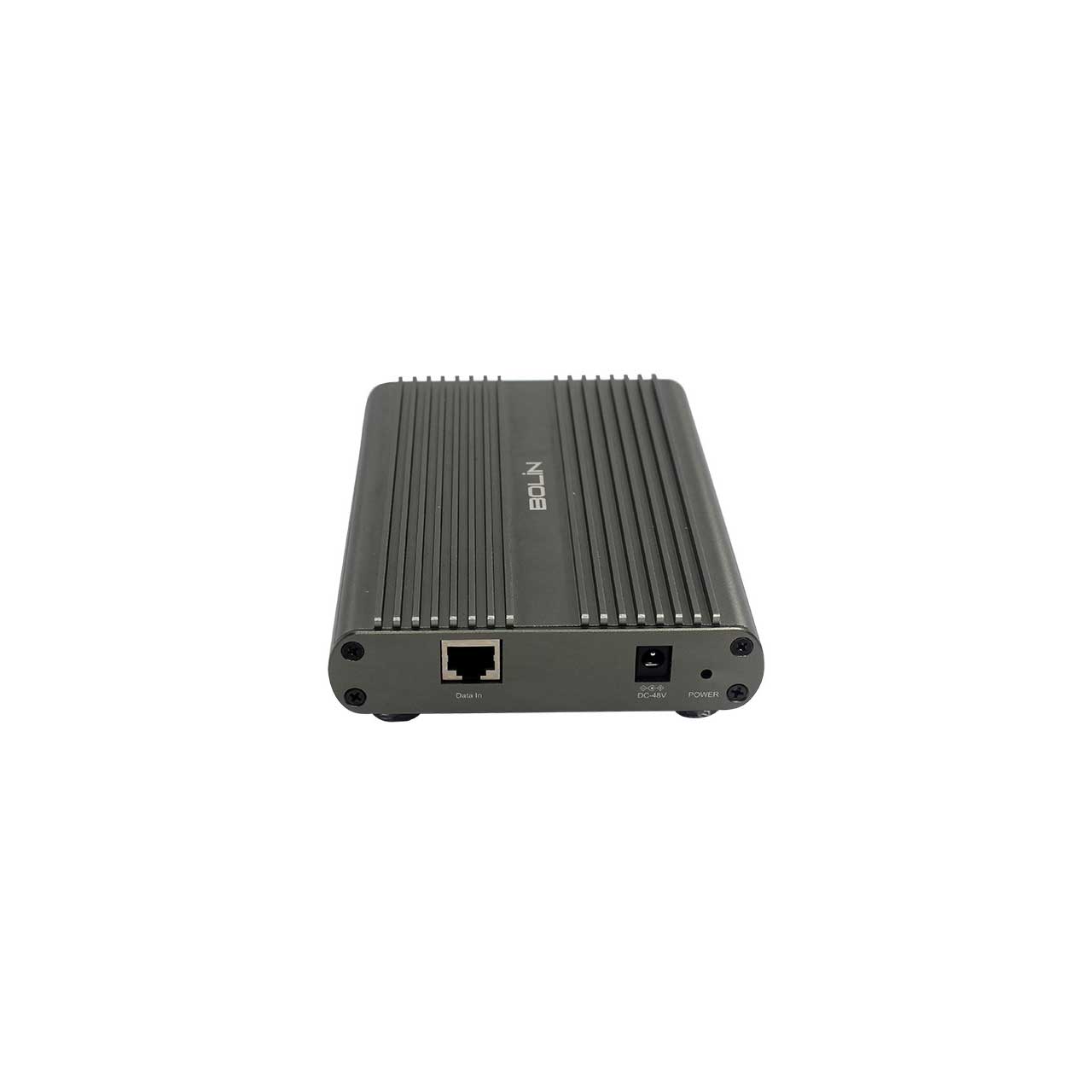

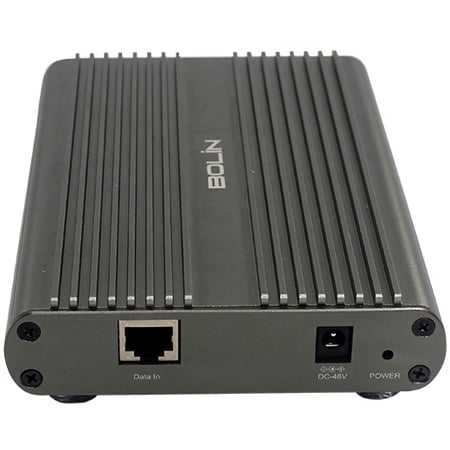

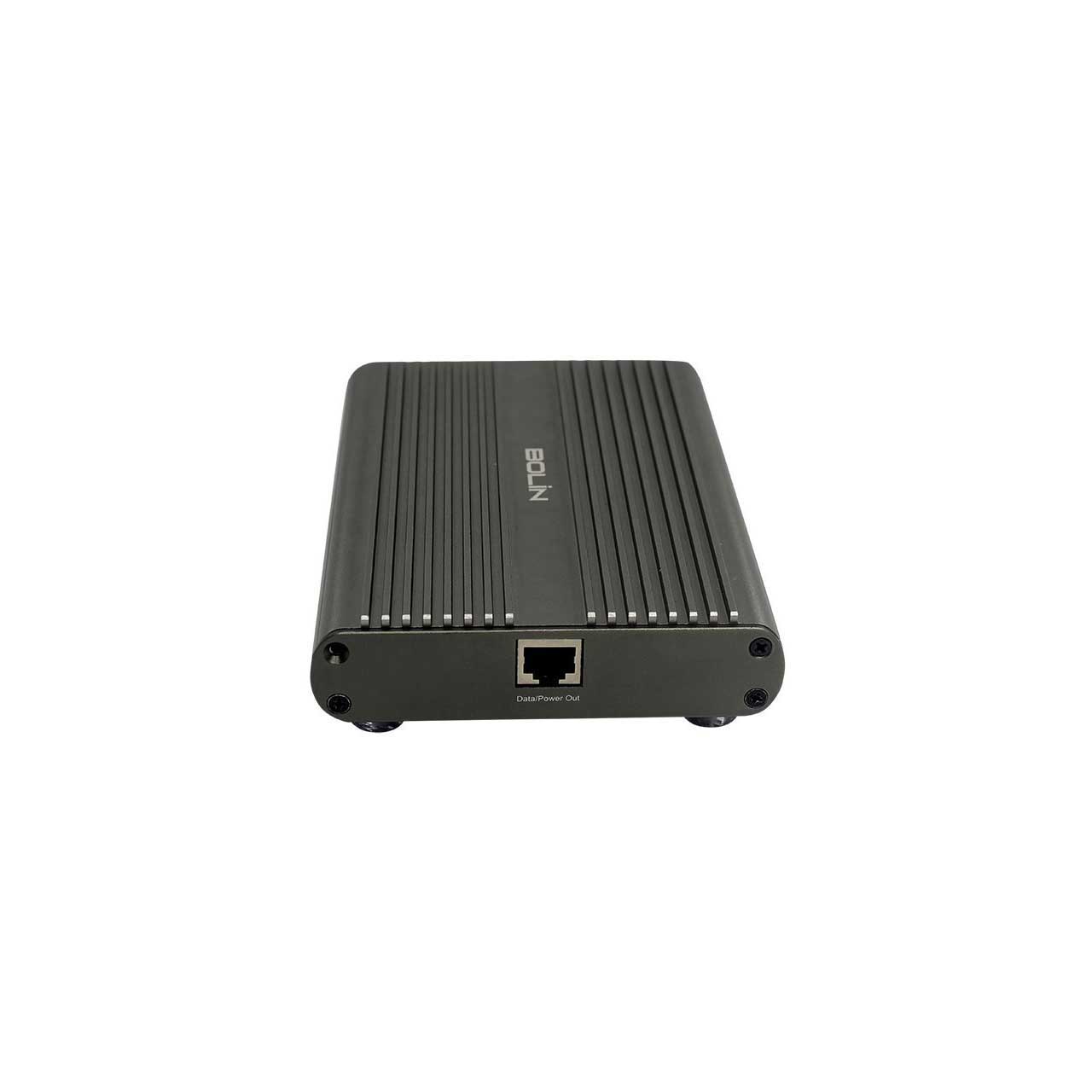

  • 1XRJ45 LAN port(LAN IN) 100/1000Mbps Auto-Negotiation; 1XRJ45 PoE port(Power+Data Out) 100/1000Mbps Auto-Negotiation; 1XPower socket(DC IN)
  • Installation is simple as the POE power injector includes desk top pads and wall mounts, and optional DIN-Rail mount is available to be ordered.
  • This PoE power injector is not included with camera product. Sold separately.
  • High Power PoE Injector for heavy duty EX1000 and SD500 Series PTZ systems and BC-7/BC-9 series indoor PTZ cameras.
  • Order Information(Part Number):B102E001


• Specifications:

  • PoE Standards: IEEE802.3at Type1(af) , IEEE802.3at Type 2, IEEE802.3bt Type 3, IEEE802.3bt Type 4 Compatibale with POH (Power Over HDBaseT)
  • Interface Ports: 1XRJ45 LAN port(LAN IN) 100/1000Mbps Auto-Negotiation, 1XRJ45 PoE port(Power+Data Out) 100/1000Mbps Auto-Negotiation, 1XPower socket(DC IN)
  • Network Media: 100/1000BASE-T: UTP CAT5e (Max 70m), CAT6 (Max 100m)
  • Basic Function: Auto-Sensing Algorithm enables providing power with 802.3af/ 802.3at PD, Delivers power and data over the same cable up to 100 meters, Auto-determine the necessary power requirements, Plug-and-Play
  • Power: Input: External 54VDC power adapter, Output: Auto-determine the necessary power requirements up to 97W (80% efficiency may apply).
  • LED Indicator: Power On(Red)
  • Operating Temperature: -40°C~60°C
  • Operating Humidity: 10%~90% non-condensing
  • Protection Function: Overload Protection, Short Circuit Protection

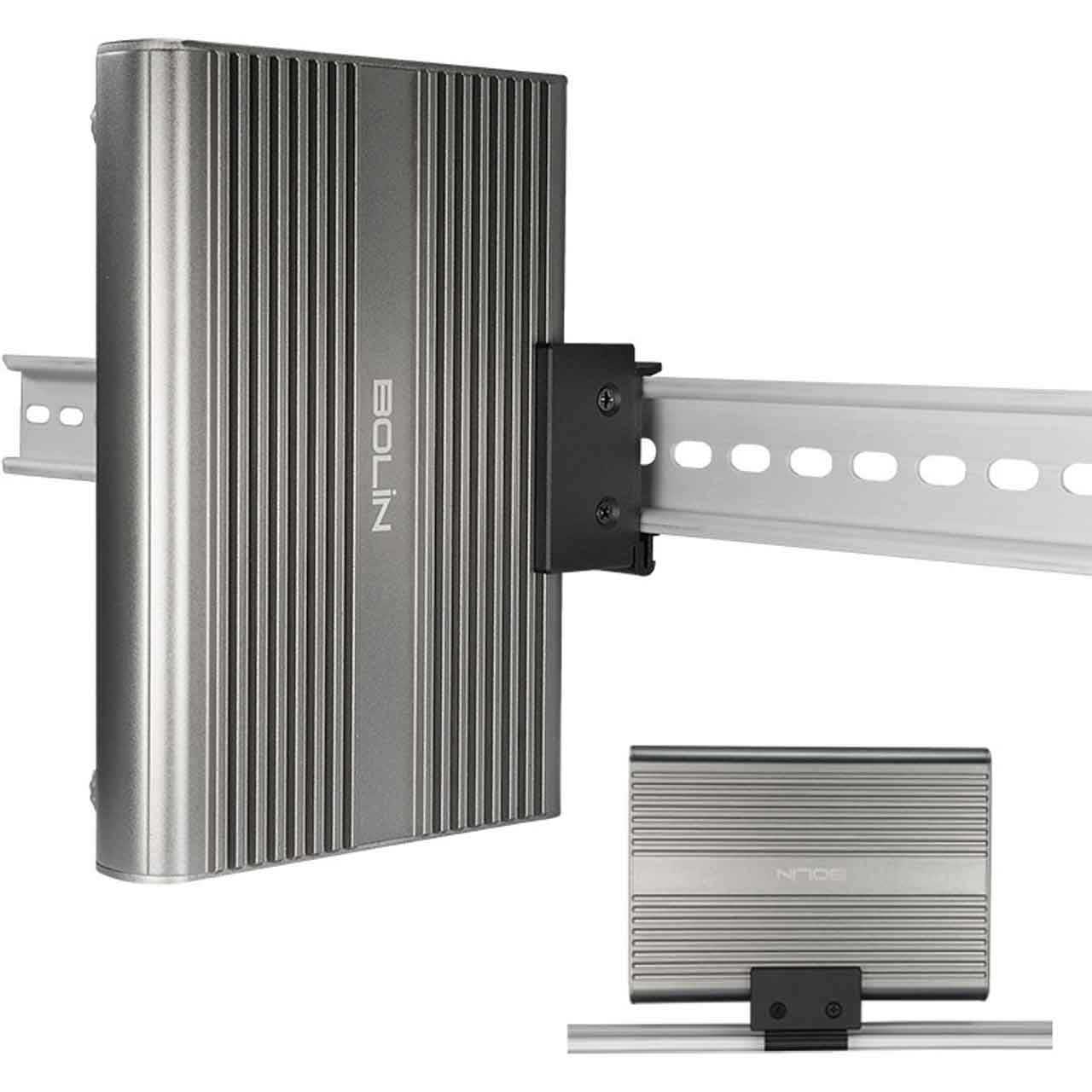

  • Mount: Desk top padsx4 and Wall mountx1 are included, Din-Rail mount optiona
  • Dimension: 164 x 118 x 33mm
  • Weight: 0.52KG


• Item Includes:

  • 1x Bolin Technology BL-PP97 High Power POE Injector
  • 1x Wall Mount
  • 1x Desktop mount paps
