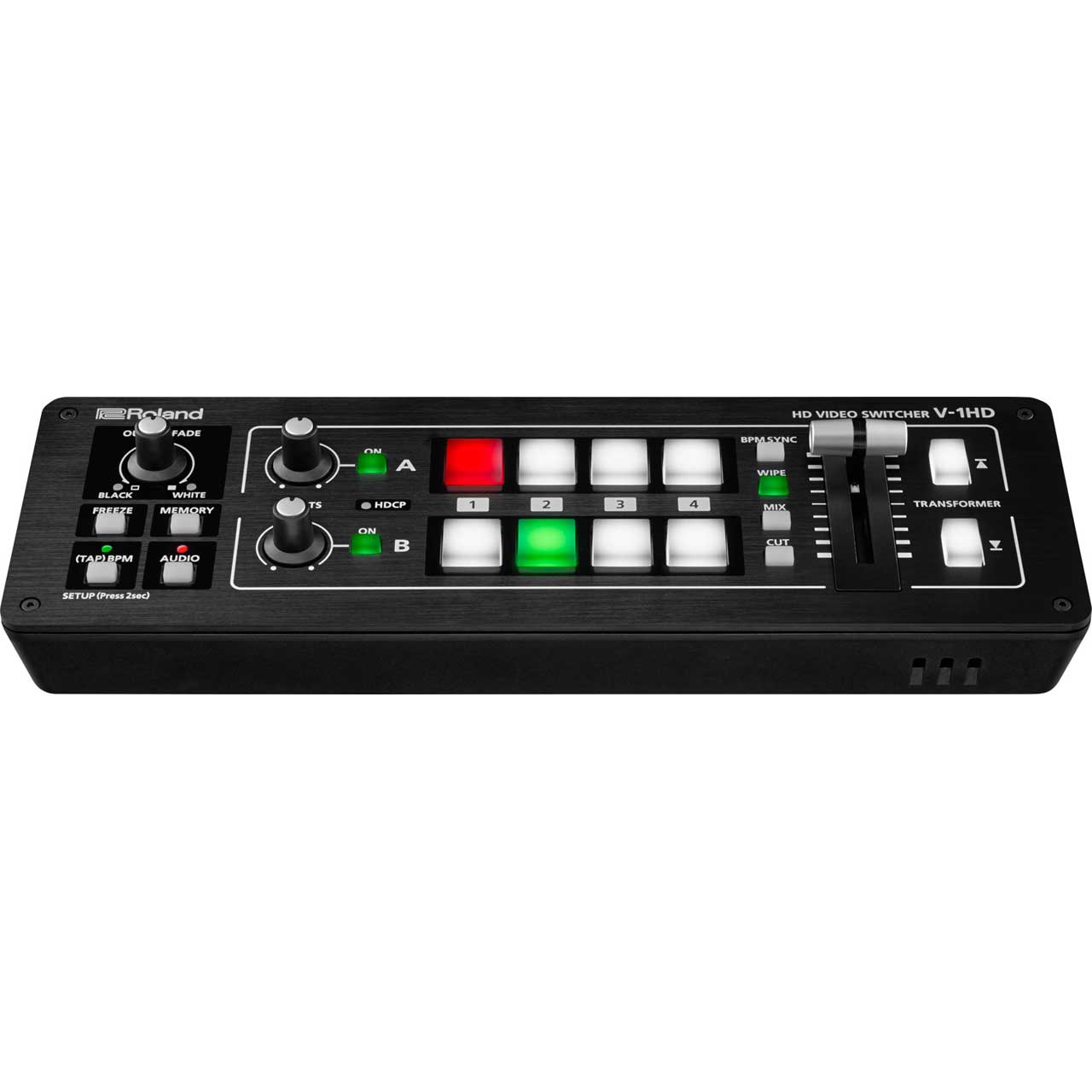

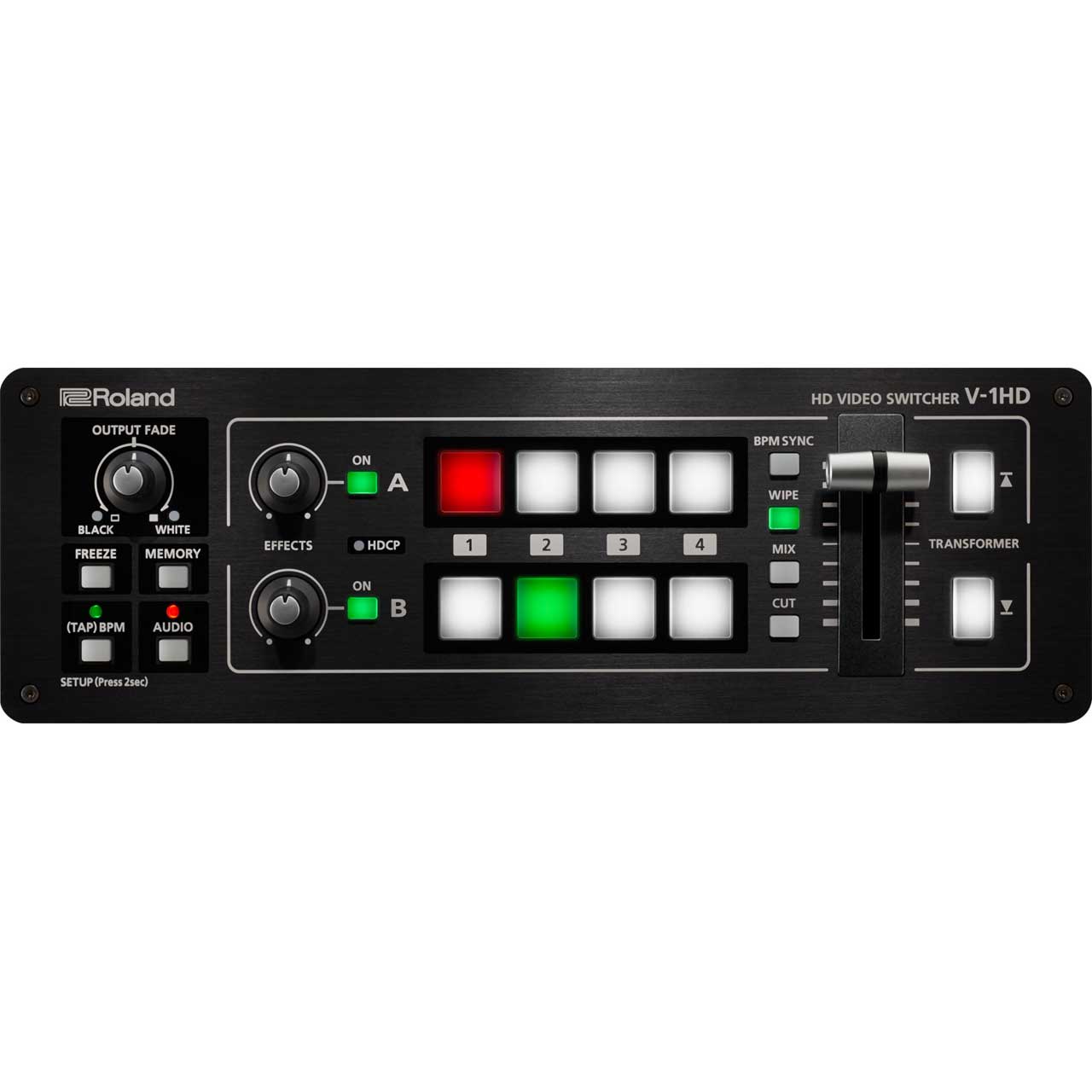

Roland V-1HD Portable Compact Live HD Video Mixer & HDMI Production Switcher

ITEM #: ROL-V-1HD MFG #: V-1HD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$599.99

Availability: In Stock
iAvailability Description Popup


    V-1HD - Overview

    So Compact And Portable, You Can Bring The V-1HD And Use It Anywhere!

    The Roland V-1HD makes it easy to connect and switch video cameras, smart phones, computers, tablets, Blu-ray players and other HDMI video sources with a simple push of a button or slide of the T-Fader. It supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even "green screen" ideal for news broadcast or corporate training productions.

    4 HDMI Inputs
    The V-1HD has 4 HDMI input connectors compatible with a variety of equipment. The V-1HD supports 1080p/1080i/720p video resolutions. Devices outputting the same resolution can be input regardless of what type of device they are. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. Video signals input from a PC are accurately displayed thanks to progressive signal processing. HDCP is supported for input of copy protected content from devices such as Blu-ray disc players.

    Audio Mixing
    Included is a 12 channel digital audio mixer. The V-1HD can mix 4 stereo audio inputs from the HDMI ports, the stereo line level input and a mic level input. Every channel is equipped with a delay function* to synchronize the video and the audio. Audio follow function enables the audio to transition along with the video. Reverb function and mastering function used for adjusting sound quality and volume are also supported. The final audio mix is both embedded in the HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device. *The maximum delay time is 500ms.

    Remote Control via USB or MIDI Connection
    Remote control is possible with the dedicated V-1HD RCS application on a PC, Mac or an iPad connected via a USB cable. The application offers a detailed view of the connected V-1HD and can be used to switch video, mix audio or change settings. You can control the unit from a music instrument or a sequencer via the MIDI input connector via MIDI. The V-1HD also transmits MIDI over USB and its controls can be mapped to popular visual performance software applications.


    PLEASE NOTE: V-1HD Remote is a FREE application for remotely controlling the Roland V-1HD video switcher. Instead of making settings on the unit or taking up the preview monitor, you can control most of the functions in real-time with the V-1HD Remote from your iPad. Go to the Roland site to download your free V-1HD Remote app.

    • Features:

      • Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
      • Supports up to Full HD 1080p
      • Easy to Use Interface
      • Picture-in-picture and split functions
      • Two EFFECTS knobs deliver genuine visual performance
      • Easy to Operate with Hardware Controls
      • Two HDMI Outputs

    • Specifications:

      • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
      • Input Connectors:
        4x HDMI
        1x RCA pair (L/R)

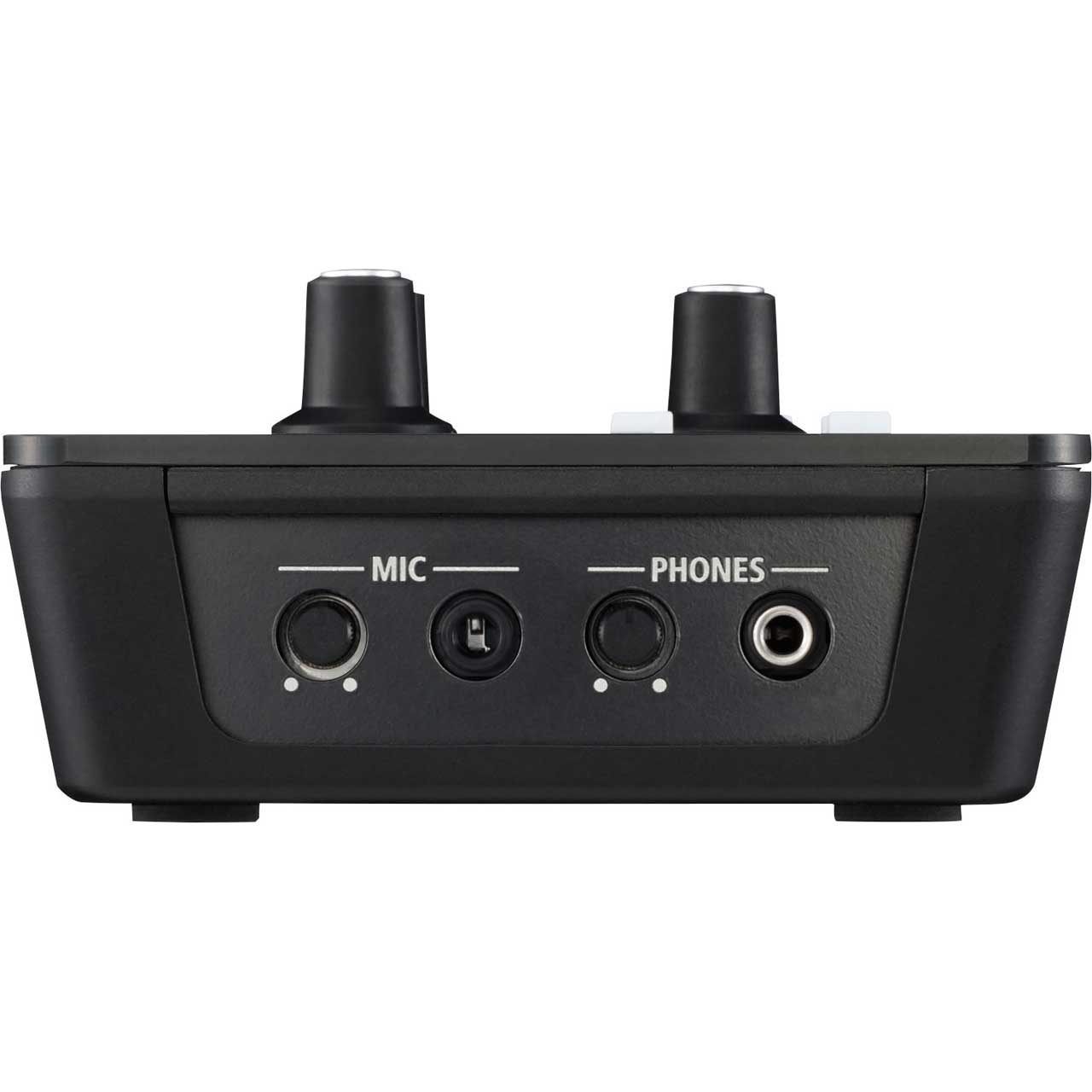

        1x 3.5mm stereo jack (MIC)
        1x MIDI

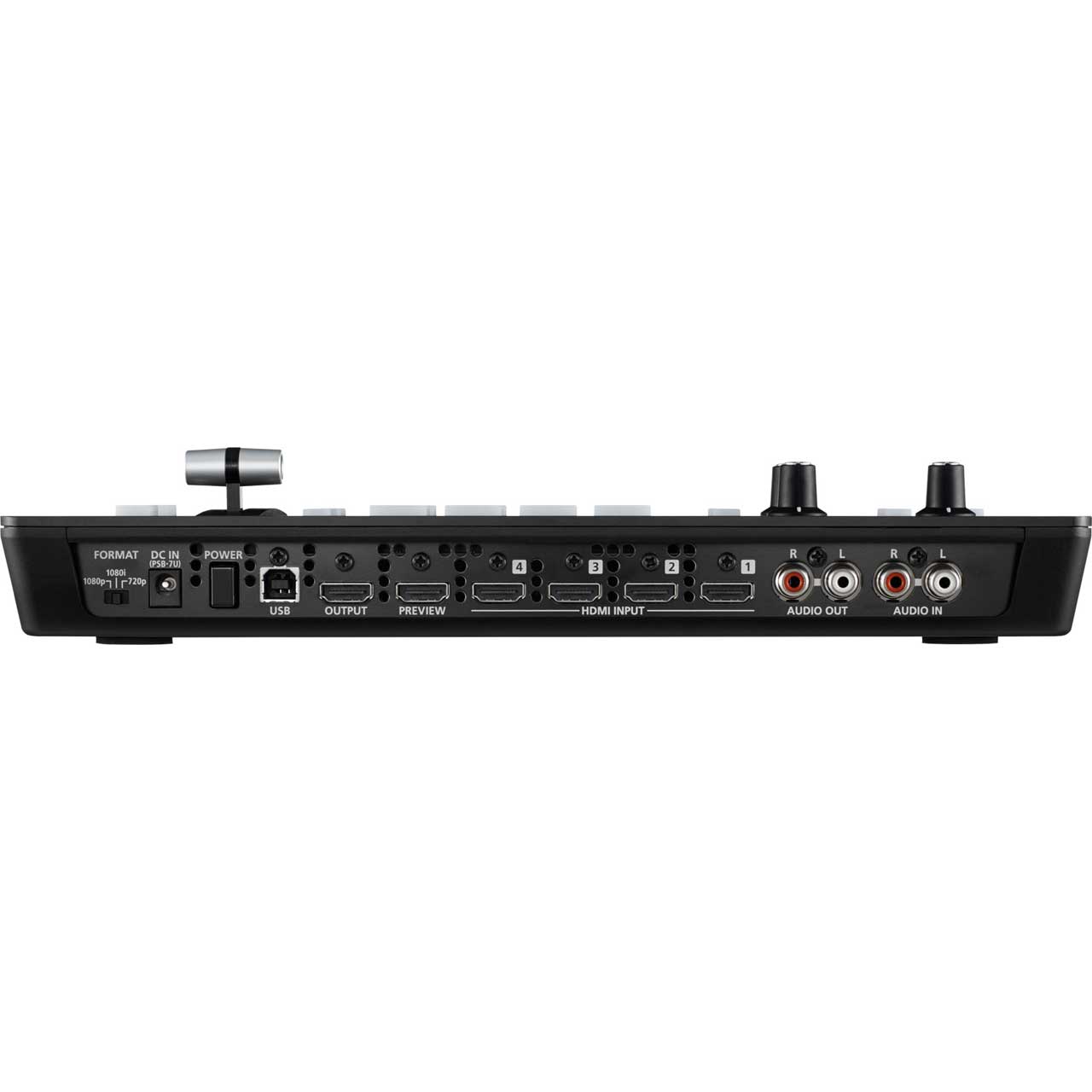

      • Output Connectors:
        2x HDMI (OUTPUT/PREVIEW)
        1x RCA pair (L/R)
        1x 3.5mm stereo jack (PHONES)
        1x MIDI
        1x USB Type B
      • Input Formats:
        HDMI: 720/59.94p,720/50p (FORMAT switch = 720p)
        HDMI: 1080/59.94i,1080/50i,1080/59.94p, 1080/50p (FORMAT switch = 1080i or 1080p)
        *The input interlaced video signal is converted to progressive video signal by internal processing.
        *The video signal frame rate is selected by SETUP parameters (59.94 or 50).
      • Output Formats:
        HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
        HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i)
        HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p)
        *The video signal frame rate is selected by SETUP parameters (59.94 or 50).
      • Video Transition:
        CUT
        MIX (DISSOLVE/FAM/NAM/MOSAIC)
        WIPE (30 types)
        TRANSFORMER (11 types)
      • Video Effects:
        NEGATIVE
        EMBOSS
        COLORIZE
        COLORPASS
        POSTERIZE
        SILHOUETTE
        MONOCOLOR
        FINDEDGE
        FLIP
        WH-LUMIKEY*
        BK-LUMIKEY*
        GR-CHROMAKEY*
        BL-CHROMAKEY*
        PinP(1/4)*
        PinP(1/2)*
        SPLIT(H-STRETCH)*
        SPLIT(H-CENTER)*
        SPLIT(V-STRETCH)*
        SPLIT(V-CENTER)*
        *Marked Effects are effected common to A-BUS and B-BUS.
      • Audio Processing: Sampling rate: 24bit/48kHz
      • Input Level: AUDIO IN: -10dBu (Max.: 8dBu), MIC: -41 - -13dBu (Max.: -1dBu)
      • Input Impedance: AUDIO IN: 15kΩ, MIC: 10kΩ
      • Output Level: AUDIO OUT: -10dBu (Max.: +8dBu), PHONES: 72mW + 72mW (32Ω)
      • Output Impedance: AUDIO OUT: 1kΩ, PHONES: 10Ω
      • Audio Effects:
        EQ
        Delay
        Compressor
        HPF
        Gate
        Reverb
        Mastering Effect
      • Other Functions: MEMORY (8 types), FREEZE (Input video captured), BPM SYNC, OUTPUT FADE (WHITE/BLACK)
      • Power Supply: AC adaptor
      • Current Draw: 1.5A
      • Power Consumption: 18W
      • Dimensions (HxWxD): 2.32" x 12.32" x 4" (59mm x 313mm x 102mm)
      • Weight: 2.65lbs (1.2kg)(excluding AC adaptor)

    • Item Includes:

      • Roland V-1HD
      • Owner's Manual
      • AC Adapter
      • Power Cord
      • Cord Hook

    • GTIN:

      0761294507209
