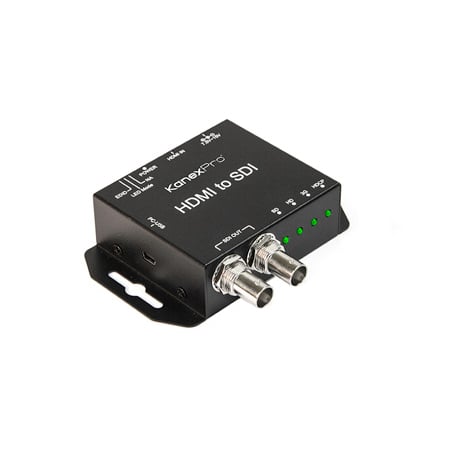

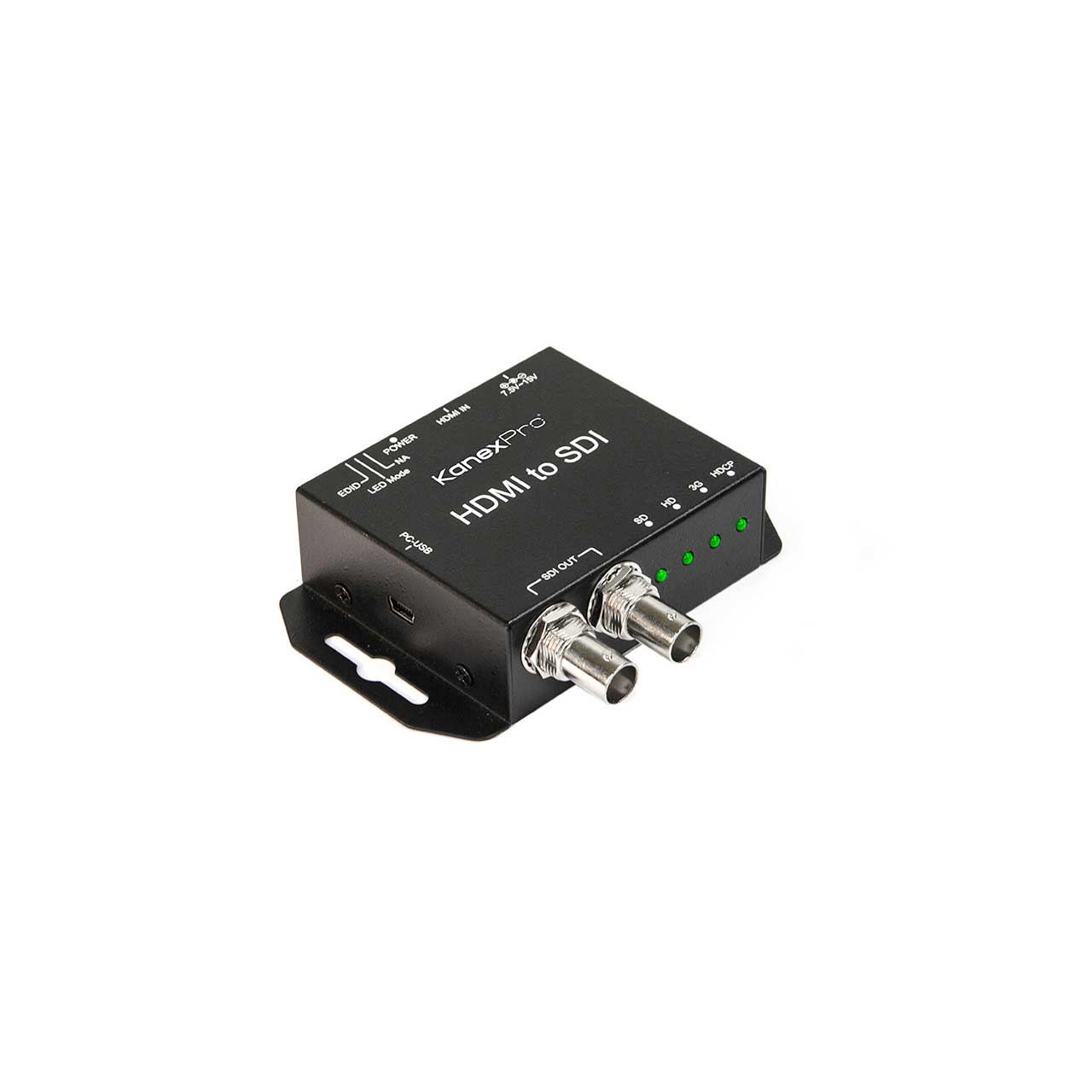

KanexPro SDI-HDSDXPRO HDMI to SDI Converter

SDI-HDSDXPRO - Overview

• Features:

  • Get the supreme quality HDMI conversion to HD-SDI
  • SDI loop output for duplication or broadcasting
  • Built-in re-clocking & equalization
  • Integrated Audio de-embedder for 2-channel / 48KHz audio
  • Supports multiple video resolutions:
  • SDI 525i, 625i, HD: 720p 24, 25,30,50 & 60 Hz
  • HD: 1080i 50 & 60 Hz.
  • HD: 1080p 24, 25,30, 50 & 60 Hz
  • 3G mode length up to 130m
  • HD mode length up to: 170m
  • SD mode length up to 300m
  • Supports conversion to SMPTE 425M Level A 1080p 50/59.94/60 4:2:2 10-bit
  • Supports cascading of multiple SDI's in application
  • Automatically switches between SD, HD and 3G-SDI standards
  • Compact & ruggedized size makes perfect mobile broadcasting hardware
  • Micro-USB Port for firmware update
  • Locking power supply & mounting ears


• Specifications:

  • Video Input
  • Input: 1 x HDMI
  • Input Connector: 1 x HDMI female
  • Input Video Signal: DVI/ HDMI

    Video Output
  • Output: 2 X SDI BNC
  • Output connector: BNC
  • Output Video Signal: SD/HD/3G SDI

    Resolutions (HDTV)
  • 1080p,1920 x 1080
  • 720p; 1280 x 720
  • 1280 x 720, 480i (NTSC mode) 576i Standard PAL mode

    Enviromental
  • Operating Temperature: 0°C to +70°C
  • Operating Humidity: 10% to 85 % RH (no condensation)
  • Storage Temperature: -10°C to +80°C
  • Storage Humidity: 5% to 90 % RH (no condensation)
  • Regulatory Approvals Converter: FCC, CE, UL
  • Regulatory Approvals Power Supply: FCC, CE, UL

    Mechanical
  • Size: (LWH): 3.14"x1.61"x0.98"
  • Weight (net): 0.33 lbs (150g)
  • External power supply: 7.5V -15V


• Item Includes:

  • HDMI to SDI converter
  • DC power supply
  • Operation manual


• Warranty:

  • 3 Years


• GTIN:

  0813982020924
