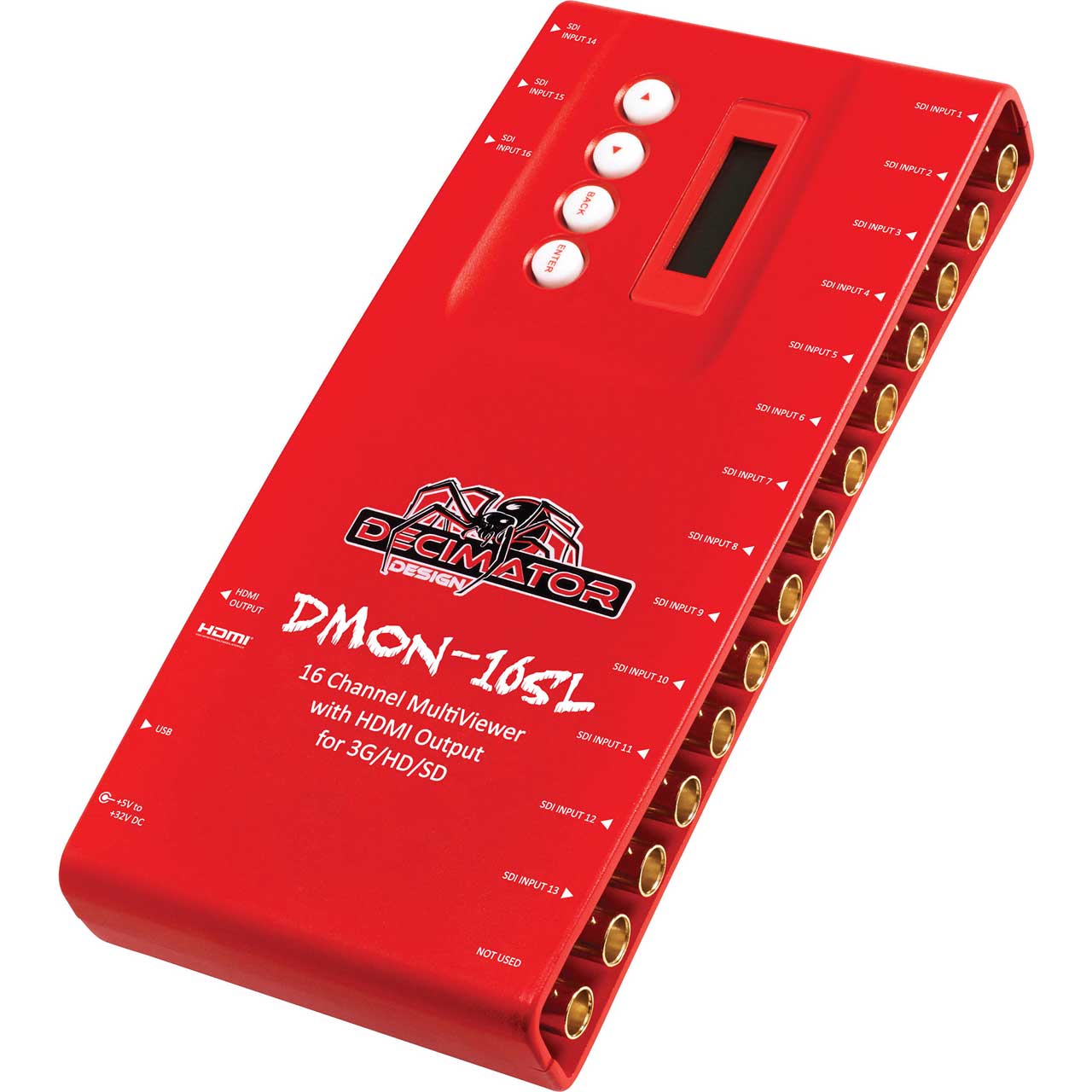

Decimator Designs DMON-16SL 16 Channel Multi-Viewer with HDMI Output for 3G/HD/SD

DMON-16SL - Overview

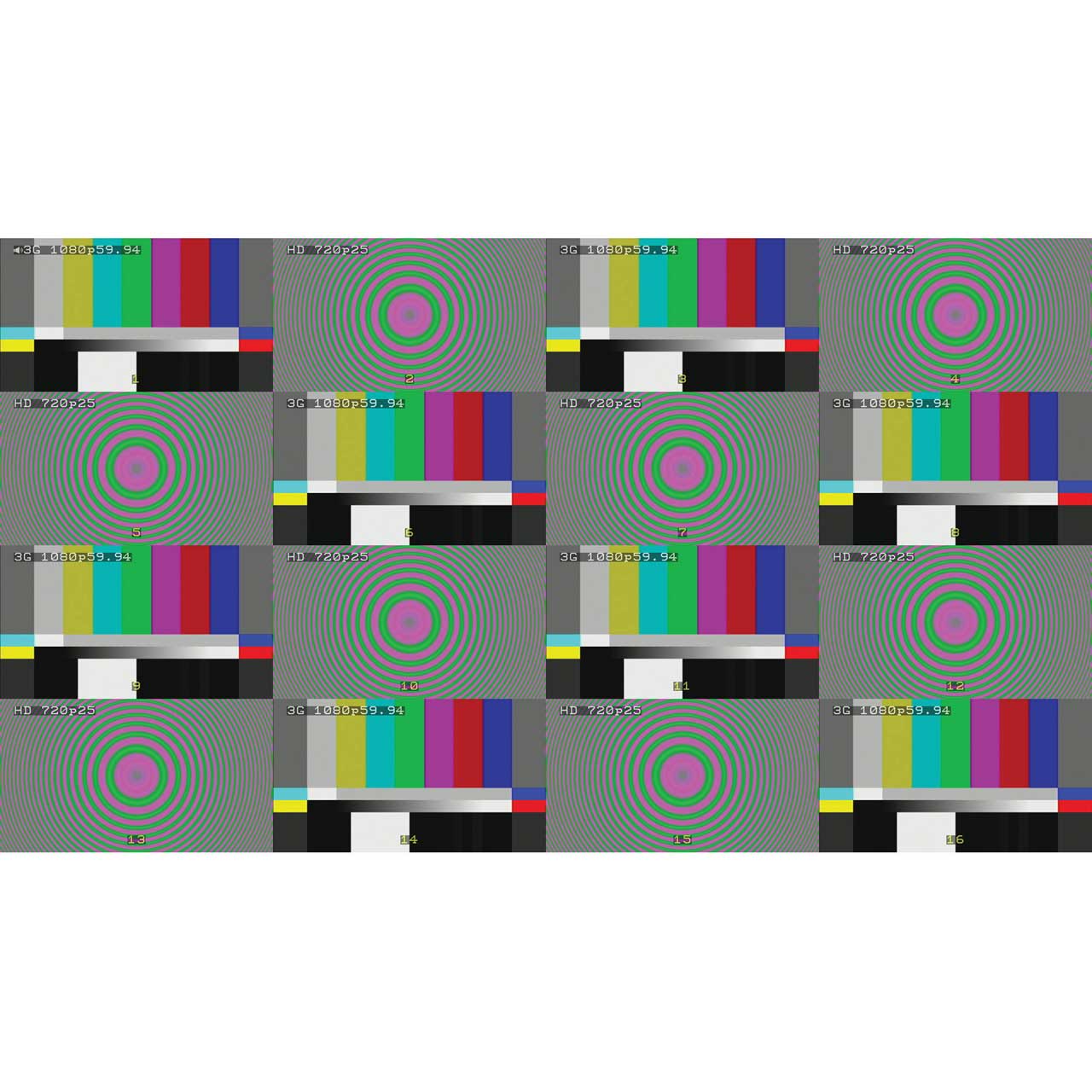

Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer!

• Features:

  • Support for both 3G level A and B on the inputs.
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • Audio ID overlay
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • Pass-Through mode allowing any of the 16 inputs to be selected and routed to the the HDMI output
  • In Pass-Through mode the selected input is passed through to the HDMI output


• Specifications:

  SDI Input Formats
  • 3G:
    - SMPTE [email protected] and 2.967Gb/s
    - 1080p@60/59.94/50Hz
  • HD:
    - SMPTE 292M/274M/[email protected] and 1.435Gb/s
    - 1080i@60/59.94/50Hz
    - 1080p/psf@30/29.97/25/24/23.98Hz
    - 720p@60/59.94/50/30/29.97/25/24/23.98Hz
  • SD:
    - SMPTE 259M@270Mb/s
    - 625i50
    - 525i59.94


  • HDMI Output Formats:
    - 1080p@60/59.94/50Hz
    - 1080i@60/59.94/50Hz
    - 1080p@30/29.97/25/24/23.98Hz
    - 720p@60/59.94/50/30/29.97/25
    - 625i50
    - 525i59.94

    LCD/Button Menu Options
  • HDMI output type
  • Output Select
  • Multi-Viewer Output Format
  • Multi-Viewer Number of Windows
  • Multi-Viewer Layout
  • Multi-Viewer Audio Source
  • Multi-Viewer Reference
  • Full Screen is Scaled
  • Input Routing
  • Setup


  • Inputs:
    - 16x (3G/HD/SD)-SDI
    - Input Equalization > 100M using Belden 1694A
    - USB for control and updates
  • Output: 1x HDMI Type A
  • Power:
    - +5V to +32V DC
    - Positive Center Pin
  • Dimensions: 8.7" x 4.1" x 1.2" (220mm x 103.7mm x 29.5mm)


• Item Includes:

  • 1x DECIMATOR DMON-16SL 16-Channel SDI Multiviewer with HDMI Output
  • 1x Universal Power Supply
  • 1x HDMI Cable
  • 1x USB Cable


• GTIN:

  5060417390137
