Datapath FX4/H 4-Output 4K60Hz Display Controller with HDCP & Loop Through - HDMI Outputs

ITEM #: FX4-H MFG #: FX4-H

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,635.00

Our Price:

$2,265.86

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FX4-H - Overview

The Datapath Fx4/H is an amazing stand-alone display controller that features multiple inputs, high-bandwidth loop-through as well as 4 genlocked HDMI 1.4 outputs. The DATAPATH FX4/H is a high-performance Display Wall Controller that is a part of Datapath's next-generation video wall controllers.

Filling the gap in digital signage type requirements, Datapath designed this display wall controller to meet customers demands for further flexibility in creation and deployment for small, medium, to large scale signage solutions. This device contains a DisplayPort 1.2 main input alongside two HDMI 1.4 inputs that will support up to 4K/60 resolutions or UHD 2160p at 30 fps respectively, with an intuitive user interface that allows users to determine which input is used.

Inside, the Datapath FX4/H is a brilliantly designed hardware system that allows each output monitor to take its input from any region of the input image, as well all of the required cropping, scaling, rotation, and frame-rate conversions. These regions can then overlap to allow any output to replicate another or can be configured to support any creative splice of the source material. This allows the support of many non-rectangular screen arrangements with uneven gaps, including any mix of monitor orientations. For example, high quality downscaling allows the display of a 4k source on a single output, while other outputs can crop and upscale to create an almost unlimited multi-screen canvas. As an added bonus, when using the display wall controller in a digital signage type application users can pre-load an image for immediate display situations when the media source or cables malfunction and no signal is being received.

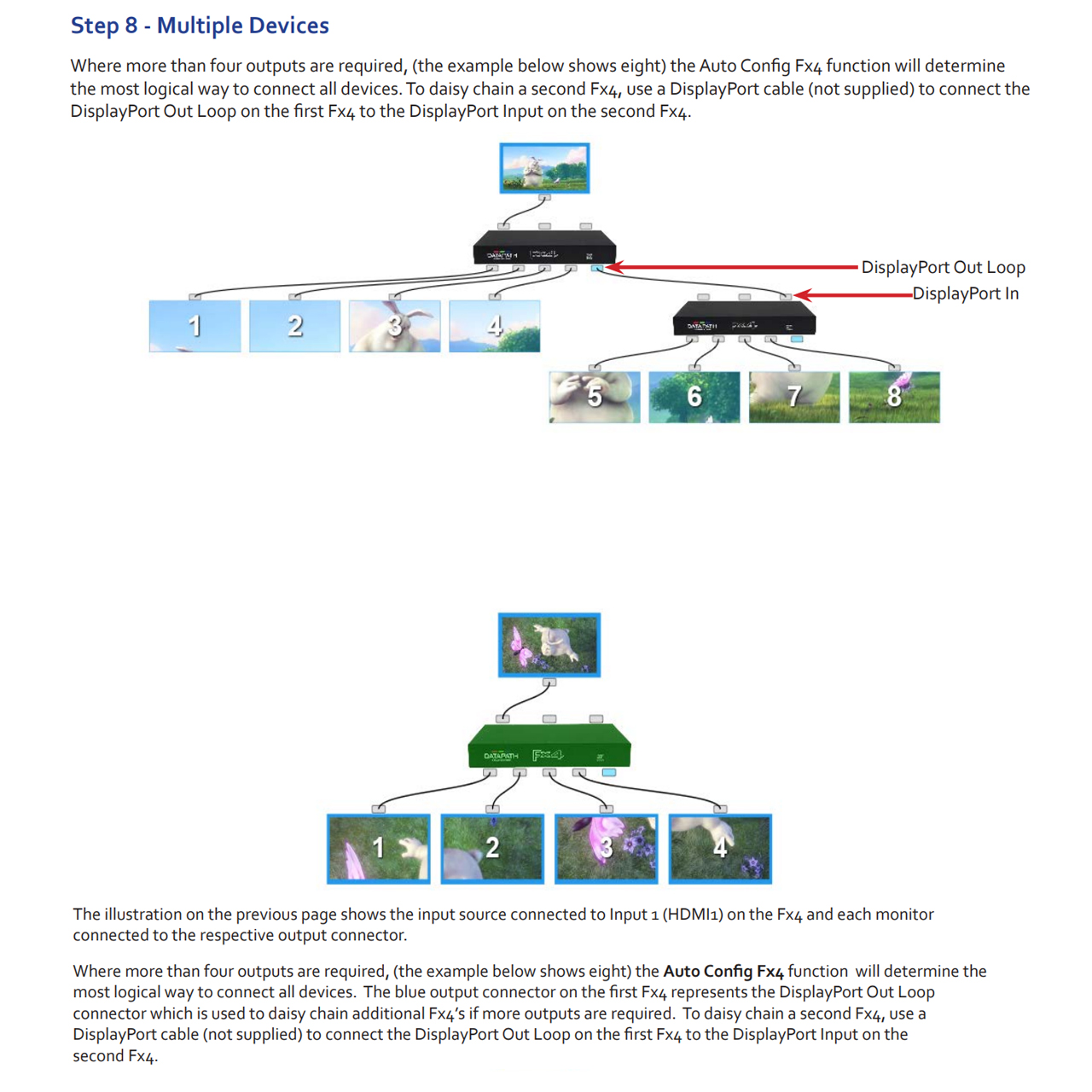

Another enhancement that has been built into the Datapath FX4/H is featured in its network connectivity abilities and Wall Designer multi-screen design tool. The device has dual Ethernet ports which allow users to add the device to their networks. With that, only one Datapath FX4/H in the chain requires connection to the physical LAN as the Ethernet loop-through is supported on the second port, meaning multiple devices can be connected (daisy chained). With an updated version of Wall Designer users can now add displays from the ever-expanding database of monitors, visualize their content by adding inputs and adjusting display regions and now instantly program all Datapath FX4/H's either via USB or the network ports, adding another layer of digital signage flexibility.

Any business, from restaurants, bars, to high-end studios, showrooms, or retail outlets, will instantly notice the amazing difference of using a quality made display wall controller for their digital signage type applications. The Datapath FX4/H, a powerhouse in display wall controllers, at a very cost-effective price, that supports industry-leading standards in high-quality 4K resolutions, and comes backed by a 3 Year warranty from Datapath.

  • Features:

    • Infinite creative configurations
    • UHD / 4K60 input, four HD 1080p outputs
    • Rotates, crops, scales, mirrors and bezel corrects
    • Multiple inputs for flexible connectivity (Dual HDMI1.4 or single
    • DisplayPort1.2 inputs)
    • HDCP1.4 support on all inputs and outputs
    • True stand-alone operation: Fx4 can adapt to changes in inputs by adjusting all scale factors
    • Network or USB interfaces allow platform independent control (MAC OSX 10.13 & later)
    • Pre-load an image for use when signal is not detected

  • Specifications:

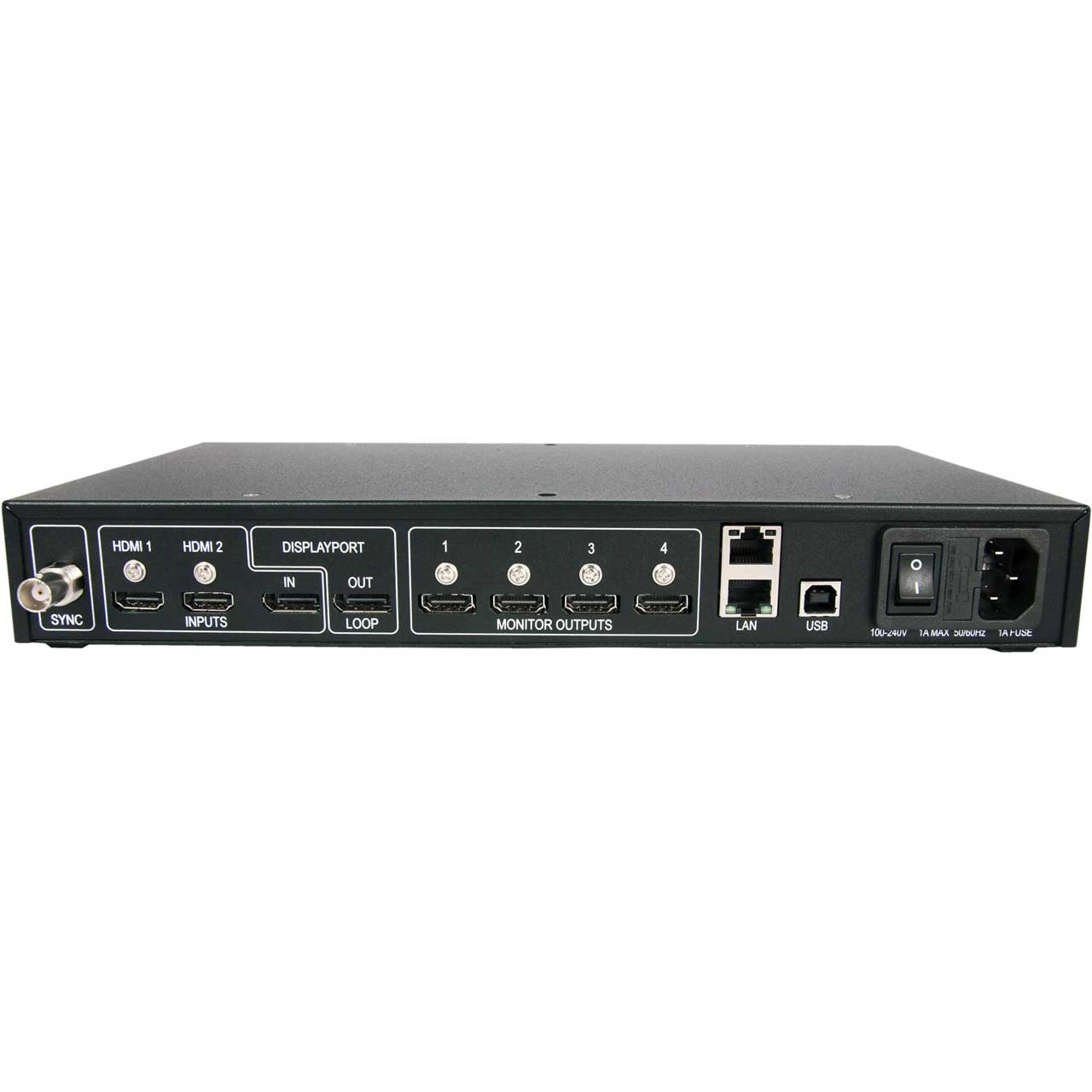

    • Video Input Connections
    • 1x DisplayPort1.2 (2160p60 or equivalent up to 616MP/s)
    • 2x HDMI1.4 (2160p60 (4:2:0) 2160p30 or equivalent up to 297MP/s)

      Video Output Connections
    • HDMI version: 4x HDMI1.3 (1080p60, 1200p60 or equivalent up to 165MP/s)*
    • DisplayPort version: 4x DP1.1 (1080p60,1200p60 or equivalent up to 165MP/s)*
      * Outputs within 165MP/s but taller/wider than 2048 require testing
    • Loop-through (both versions): DisplayPort1.2 (locked to selected video input resolution)

      Input Surface
    • 8K x 8K maximum

      Genlock Input
    • Analog HD tri-level sync on dedicated BNC connector.
    • Embedded sync in any video input (SDI, HDMI1, HDMI2, DisplayPort) Progressive syncs only

      Control Interfaces
    • Dual 100Base-T Ethernet ports with inbuilt managed switch.
    • USB 2.0 Type B connector (full speed operation)

      Power Requirements
    • IEC switched and fused mains connector 100-240V, 50/60Hz / 35W

      Operating Temperature
    • 0 °C to 35°C / 32°F to 96°F

      Storage
    • -20°C to 70°C / -4°F to 158 °F

      Relative Humidity
    • 5%-90% non-condensing

      Firmware Support
    • Updates supported via USB and
    • Ethernet connection

  • Item Includes:

    • 1x Fx4 Multi Display Controller
    • 1x Mains power cable
    • 1x USB 2.0 cable Type A to Type B
    • 1x Quick Start Guide
    • HDMI Locks:
      2x with the DisplayPort model
      6x with the HDMI model
    • 2x Rack mount attachments
    • 6x Rack mount screws
    • 1x Datapath CD containing Wall Designer Software Application
    • 1x Fx4 User Guide

  • Warranty:

    • 3 years
