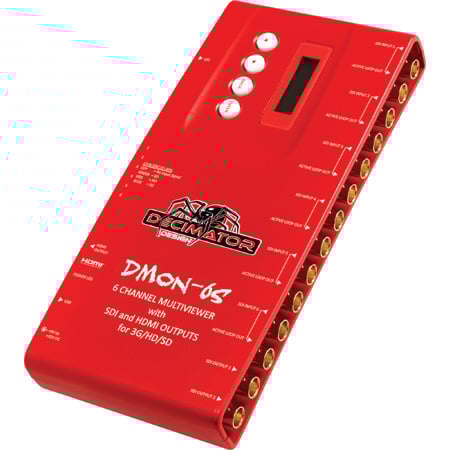

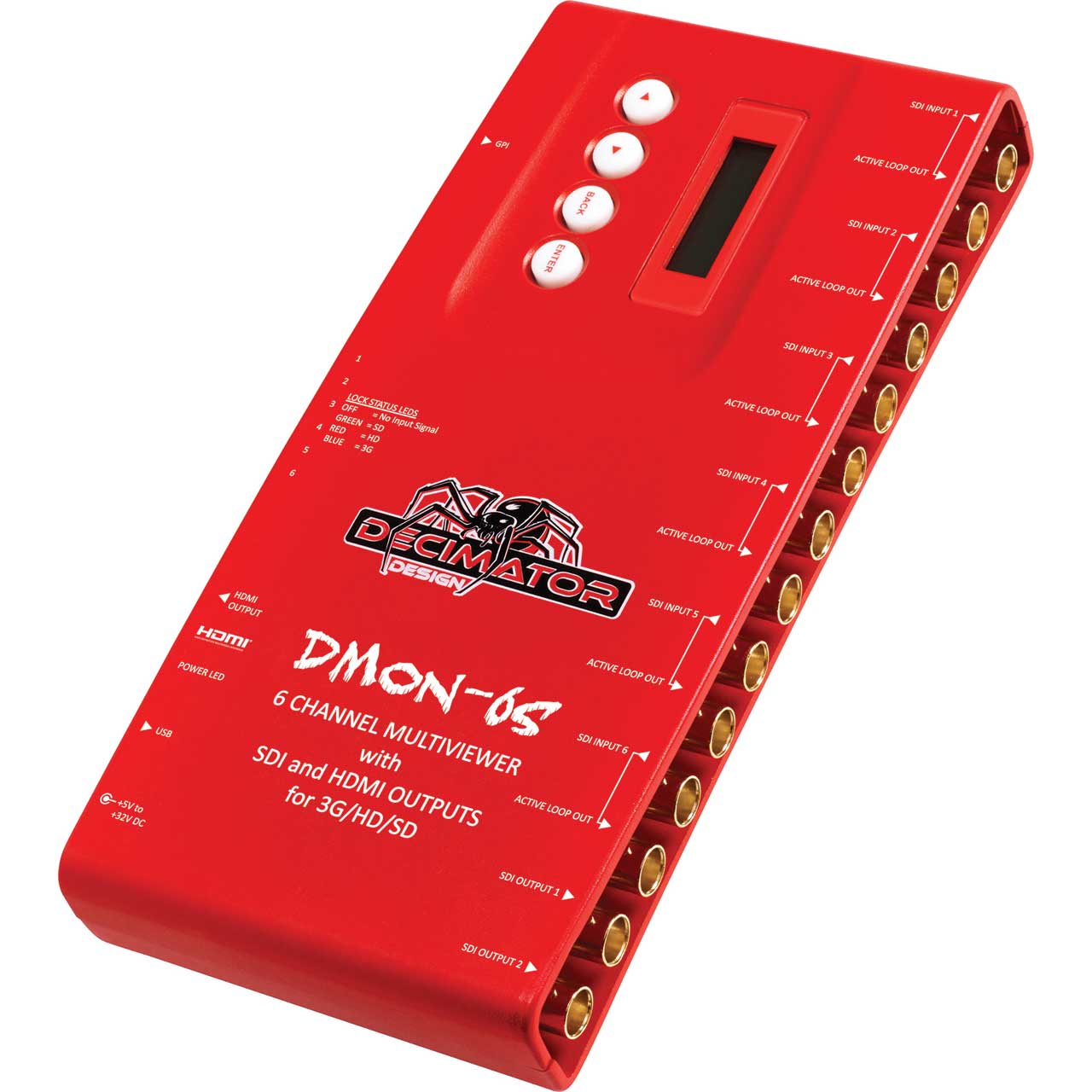

Decimator Design DMON-6S 6 Channel Multi-Viewer with HDMI & SDI Outputs for 3G/HD/SD

DMON-6S - Overview

• Features:

  • Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
  • Low cost miniature (3G/HD/SD)-SDI 1 to 6 channel Multi-Viewer or 6 to 1 input multiplexer
  • 6 x (3G/HD/SD)-SDI active loop copies of each input

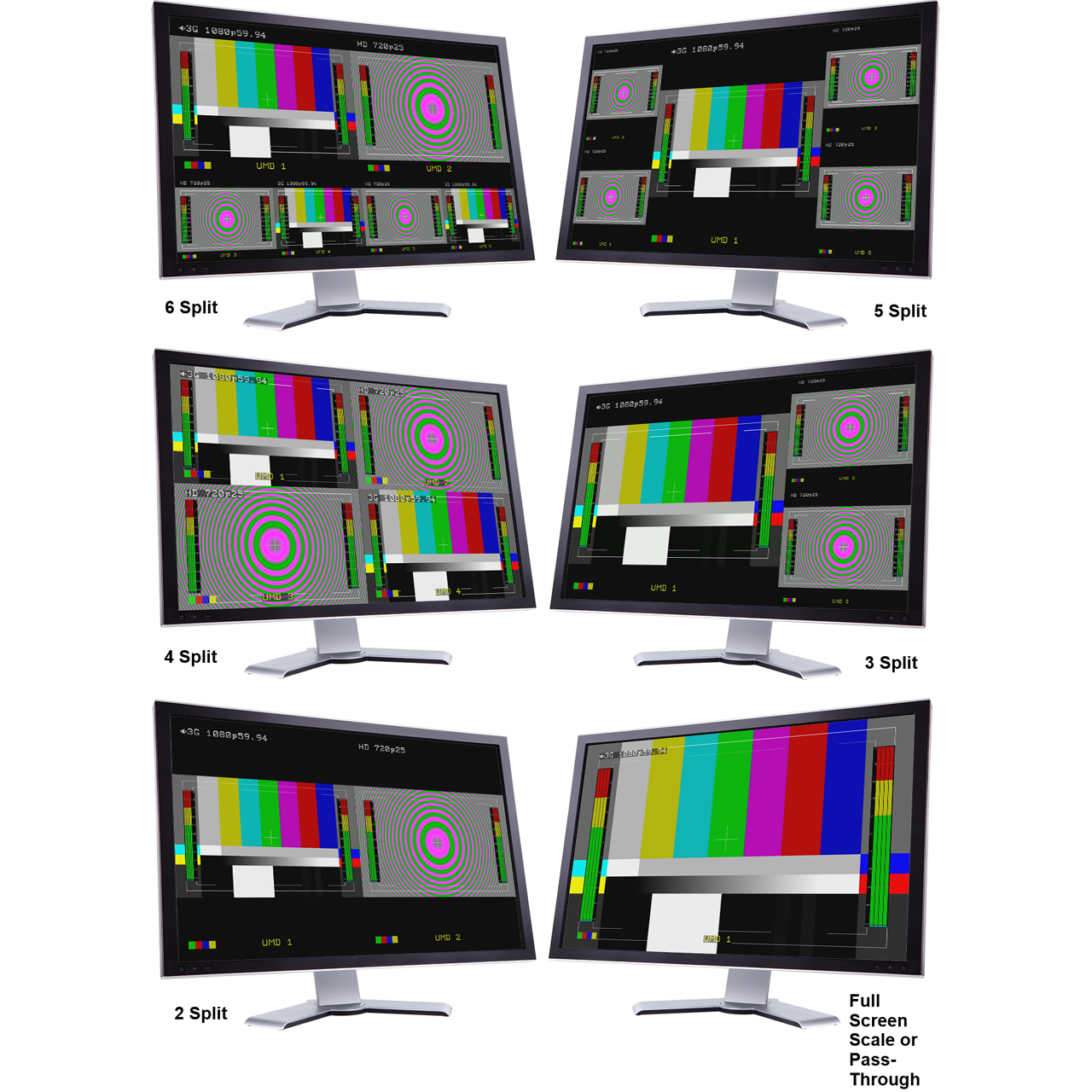

  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Safe Action and Safe Title overlay per window with individual enables and adjustment
  • Center Cross overlay per window with individual enable
  • Audio ID overlay
  • Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
  • Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 6 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • Pass-Through mode allowing any of the 6 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs


• Specifications:

  • SDI INPUT & OUTPUT FORMATS
  • 3G: SMPTE [email protected] and 2.967Gb/s - 1080p@60/59.94/50Hz
  • HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s - 1080i@60/59.94/50Hz - 1080p/psf@30/29.97/25/24/23.98Hz - 720p@60/59.94/50/30/29.97/25/24/23.98Hz
  • SD:SMPTE 259M@270Mb/s - 625i50 - 525i59.94

    HDMI OUTPUT FORMATS
  • 1080p@60/59.94/50Hz
  • 1080i@60/59.94/50Hz
  • 1080p@30/29.97/25/24/23.98Hz
  • 720p@60/59.94/50/30/29.97/25
  • 625i50
  • 525i59.94

    LED STATUS
  • Power
  • 12 x Signal lock and rate

    POWER
  • +5V to +32V DC
  • Positive Center Pin

    INPUTS
  • 6 x (3G/HD/SD)-SDI
  • Input Equalization > 100M using Belden 1694A
  • USB for control and updates

    OUTPUTS
  • HDMI Type A
  • 2 x SDI (3G/HD/SD)-SDI

    LCD / BUTTON MENU OPTIONS
  • HDMI output type
  • Output Select
  • Multi-Viewer Output Format
  • Multi-Viewer Number of Windows
  • Multi-Viewer Layout
  • Multi-Viewer Audio Source
  • Multi-Viewer Reference
  • Full Screen is Scaled
  • Input Routing
  • GPI mode
  • Setup


• Item Includes:

  • Decimator DMON-6S
  • Power Supply
  • HDMI Cable
  • USB Cable


• Warranty:

  • 3 Month


• GTIN:

  5060417390083
