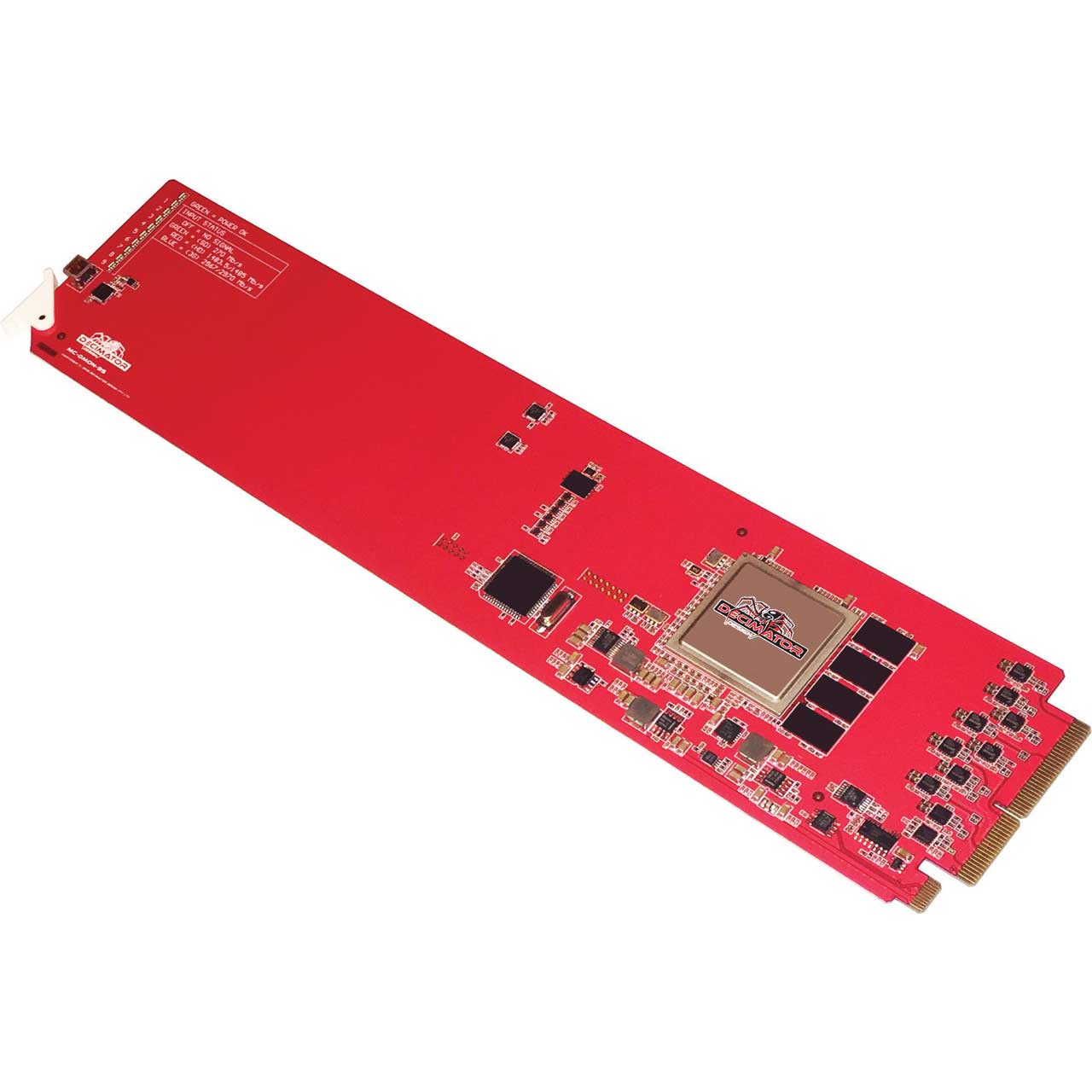

Primary Image
Decimator Design
Free Shipping with $49 Minimum Order

Our Price:

$1,095.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MC-DMON-9S - Overview

The Decimator MC-DMON-9S is an openGear, 3G/HD/SD-SDI, 1-9 channel multiviewer or 9-1 input multiplexer card with custom and standard layouts. It supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B.

openGear is an open-architecture, modular frame system supported by a diverse range of terminal equipment manufacturers. The platform offers the freedom to choose technology from a wide range of products to meet the needs of a broadcast, production, or distribution facility while maintaining a compatible openGear frame infrastructure.

Please Note: The DEC-MC-DMON-9SRM(DR1-10B1G) rear module is REQUIRED but is sold separately.

  • Features:

    • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
    • Low cost miniature (3G/HD/SD)-SDI 1 to 9 MultiViewer or 9 to 1 input multiplexer
    • Custom Layouts with various standard layouts
    • 16 Character UMD overlay per window with individual enables, custom positioning and size
    • 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
    • Safe Action and Safe Title overlay per window with individual enables and adjustment
    • Centre Cross overlay per window with individual enable
    • Audio ID overlay
    • 3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol
    • Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
    • Tally boxes allows for up to 4 Tallies per window
    • Fast switching between inputs using Full-Screen scaling
    • Selectable output format in both Full-Screen MultiViewer mode
    • Low latency buffering for each input allowing non-synchronous inputs
    • 9 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)
    • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
    • Variable aspect ratios per quadrant
    • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs
    • USB Mini B port for control and firmware updates
    • Supports openGear DashBoard for control


  • Specifications:

      SDI Input & Output Formats
    • 3G:
      -SMPTE [email protected] and 2.967Gb/s
      - 1080p@60/59.94/50Hz
    • HD:
      - SMPTE 292M/274M/[email protected] and 1.435Gb/s
      - 1080i@60/59.94/50Hz
      - 1080p/psf@30/29.97/25/24/23.98Hz
      - 720p@60/59.94/50/30/29.97/25/24/23.98Hz
    • SD:
      - SMPTE 259M@270Mb/s
      - 625i50 (PAL)
      - 525i59.94 (NTSC)

    • Inputs:
      - 9x (3G/HD/SD)-SDI
      - USB Mini B for control and updates
      - 3-pin connector for UMD and Tallies via RS422/485
    • Outputs: 1x SDI (3G/HD/SD)-SDI
    • LED Status:
      - Power/Update
      - 9 times Signal Lock and Rate


  • Item Includes:

    • 1x MC-DMON-9S Opengear 9-Channel Multi Viewer


  • GTIN:

    0642892803378
