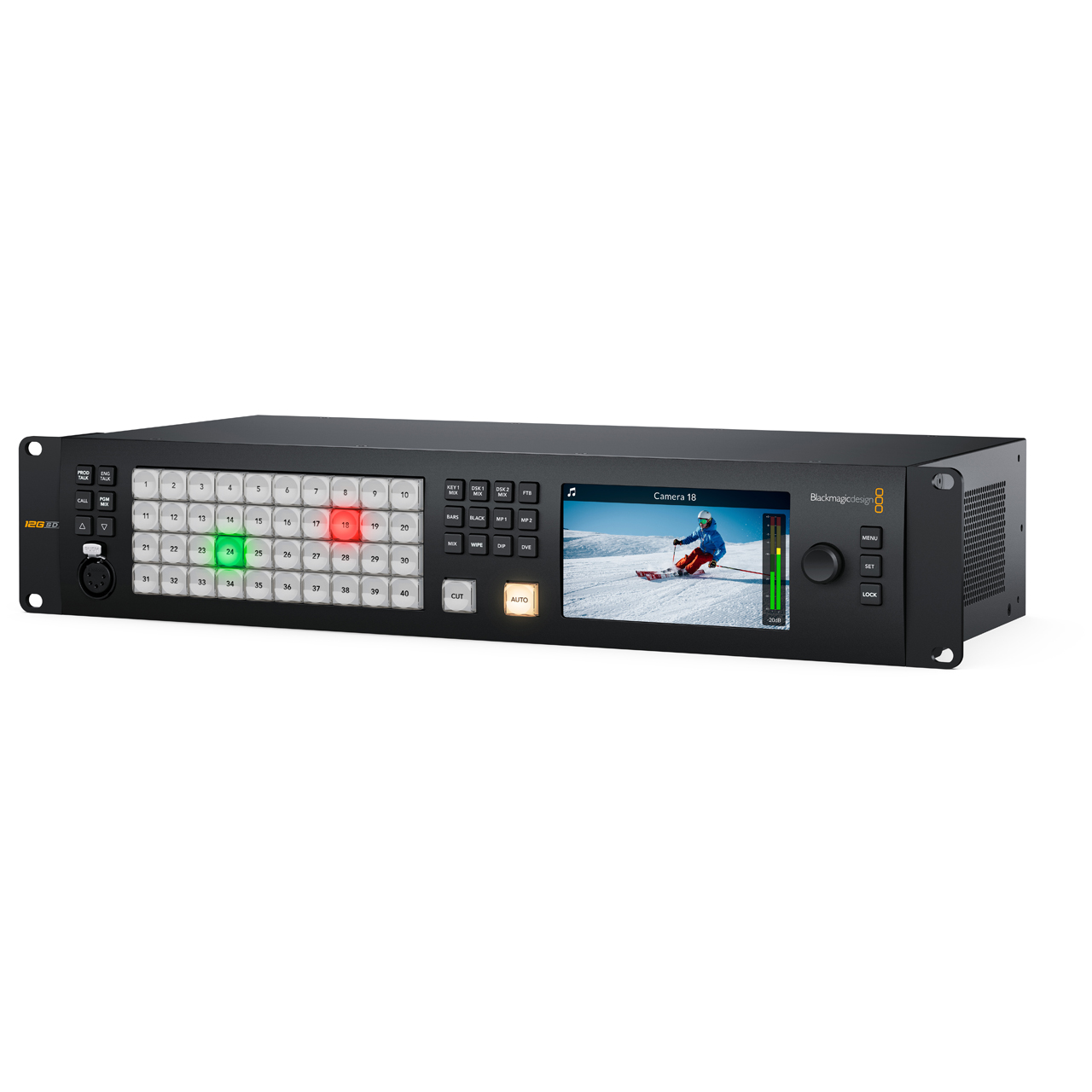

Blackmagic Design SWATEMSCN2/2ME4/4K ATEM 4 M/E Constellation 4K 2RU Ultra HD Live Production Switcher

SWATEMSCN2/2ME4/4K - Overview

• Features:

  • Advanced design with built in front panel controls.
  • 40 standards converted 12G-SDI inputs.
  • 24 customizable 12G-SDI outputs.
  • USB output operates as a webcam and supports all video software.
  • 4 independent multiviews with multiple layout options.
  • 4 independent DVEs.
  • Professional talkback compatible with ClearCom and RTS.
  • Internal media for stills and motion graphics.
  • Includes 16 ATEM Advanced Chroma Keyers.


• Specifications:

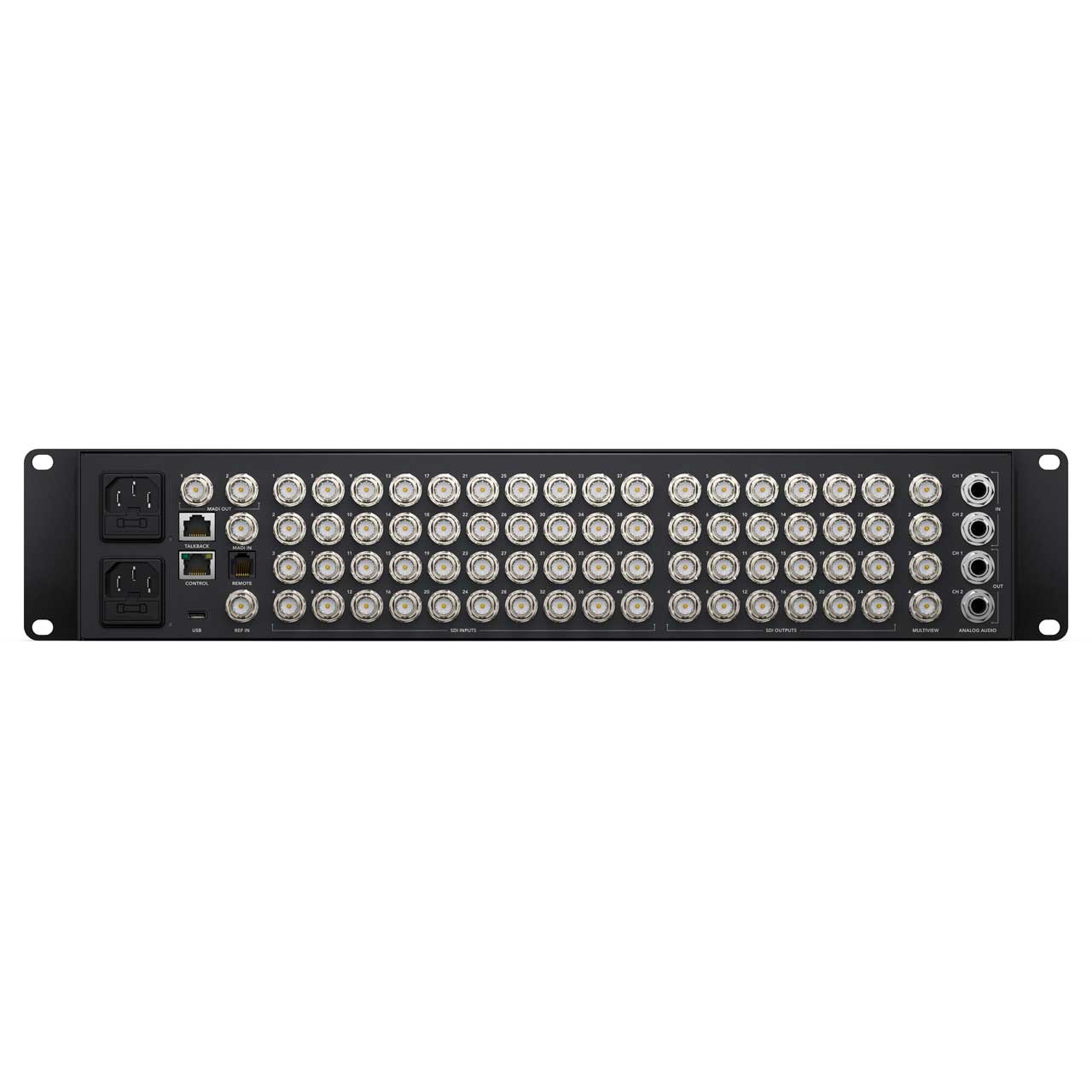

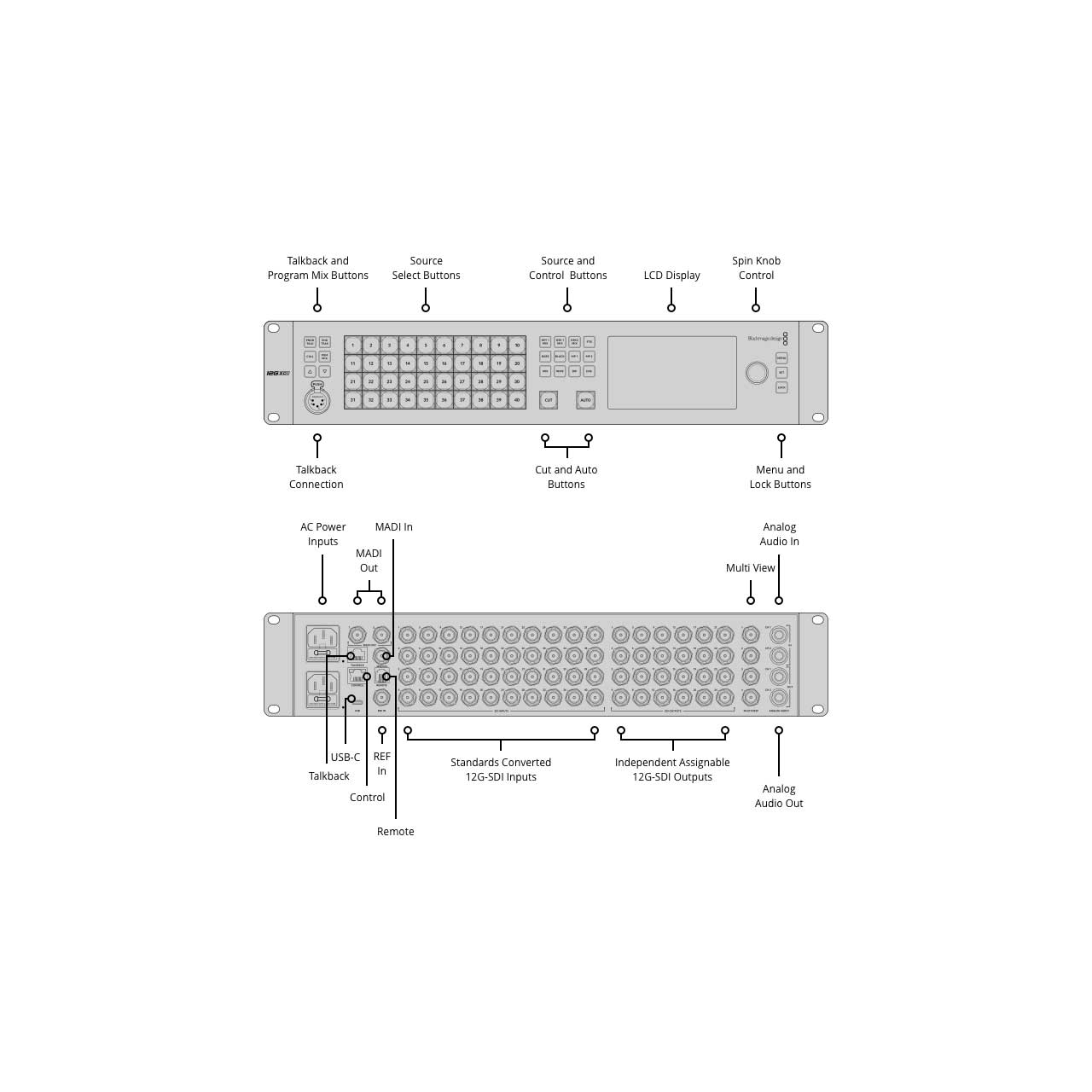

  • Connections
  • Total Video Inputs: 40
  • Total Video Outputs: 28
  • Total Aux Outputs: 24
  • SDI Rates: 1.5G, 3G, 6G, 12G.
  • Total Audio Inputs: 2x balanced 1/4 inch Jack, 1x 32 stereo channel BNC MADI in, 1x 5 pin XLR Talkback
  • Total Audio Outputs: 2x balanced 1/4 inch Jack, 2x 32 stereo channel BNC MADI out,1x 5 pin XLR Talkback.
  • Reference Input: Tri-Sync or Black Burst
  • Video Input Re-Sync: On all 40 inputs
  • Frame Rate and Format Converters: On all 40 inputs
  • SDI Video Inputs: 40 x 10-bit 720p, 1080i, 1080p, 2160p
  • SDI Audio Inputs: 2 Ch embedded audio on all SDI inputs
  • Extra Audio Inputs: 1x 5 pin XLR Talkback
  • SDI Video Outputs: 28 x 10-bit 720p, 1080i, 1080p, 2160p
  • SDI Audio Outputs: 2 Ch embedded into SDI output on all outputs
  • Extra Audio Outputs: 1x 5 pin XLR Talkback
  • SDI Program Outputs: Any of the 24 SDI outputs
  • SDI Preview Outputs: Any of the 24 SDI outputs
  • SDI Multi View Outputs: 4
  • Webcam Output: 1x USB-C supporting 720p or 1080p at PGM frame rate
  • Remote: RJ12 supports RS-422
  • Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network
  • Internal Timecode Generator: Yes
  • Talkback: RJ45 for 3rd party talkback systems
  • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
  • Computer Interface: 1x USB-C port

    Standards
  • SD Video Standards: None
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
  • SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, SMPTE 2082-12.
  • Video Sampling: 4:2:2
  • Color Precision: 10-bit
  • Color Space: REC 709, REC 2020
  • SDI Auto Switching: Automatically detects between 1.5G-SDI, level A and level B 3G-SDI, 6G-SDI and 12G-SDI

    Product Specifics
  • Upstream Keyers: 16
  • Downstream Keyers: 4
  • Advanced Chroma Keyers: 16
  • SuperSource: 2
  • Talkback Support: Yes
  • Mix Minus Support: Yes
  • Linear/Luma Keyers: 21
  • Transition Keyer (Stinger/DVE): 4 Stinger, 4 DVE
  • Total Number of Layers: 28
  • Pattern Generators: 21
  • Color Generators: 2
  • DVEs: 4
  • Control Panel: Front fascia emergency switching, software or optional hardware panel
  • Routable Windows: 64
  • Tally: Red for program and green for preview indication
  • Windows Source Labels: Yes

    Multi View Monitoring
  • Multi View Monitoring: 4x 16 Multi View pattern options for up to 64 total views
  • Multi View Video Standard: Select HD or Ultra HD

    Media Player
  • Media Players: 4
  • Channels: Fill and key for each media player.
  • Media Pool Still Image Capacity: 40
  • Media Pool Clip Capacity: 4
  • Media Player Clip Length in 720 HD: 3200 frames
  • Media Player Clip Length in 1080 HD: 1600 frames
  • Media Player Clip Length in Ultra HD: 400 frames
  • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
  • Media Pool Video File Format: TGA Sequence
  • Media Pool Audio File Format: WAV, MP3 and AIFF

    Display
  • Interface: Minimum monitor resolution of 1366 x 768

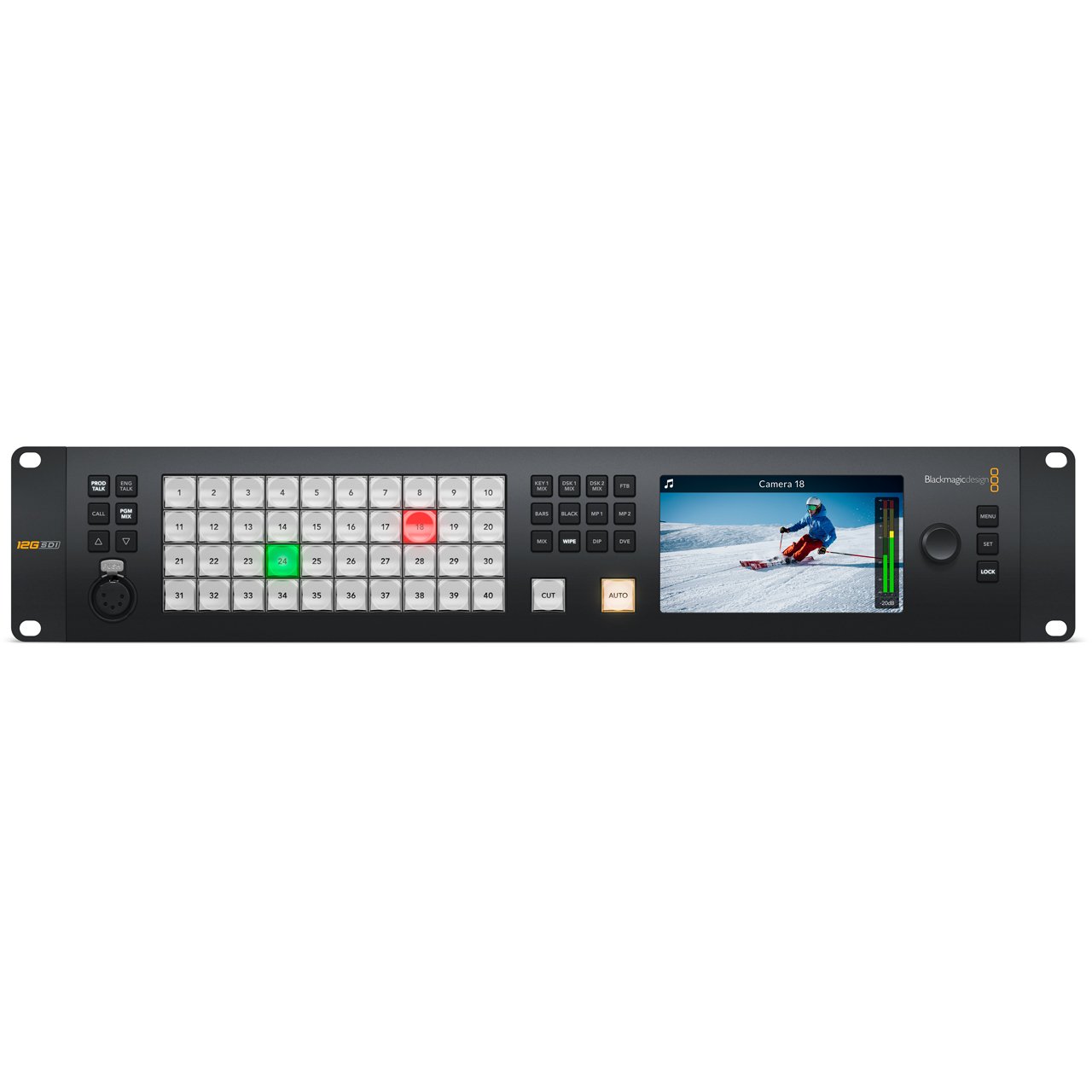

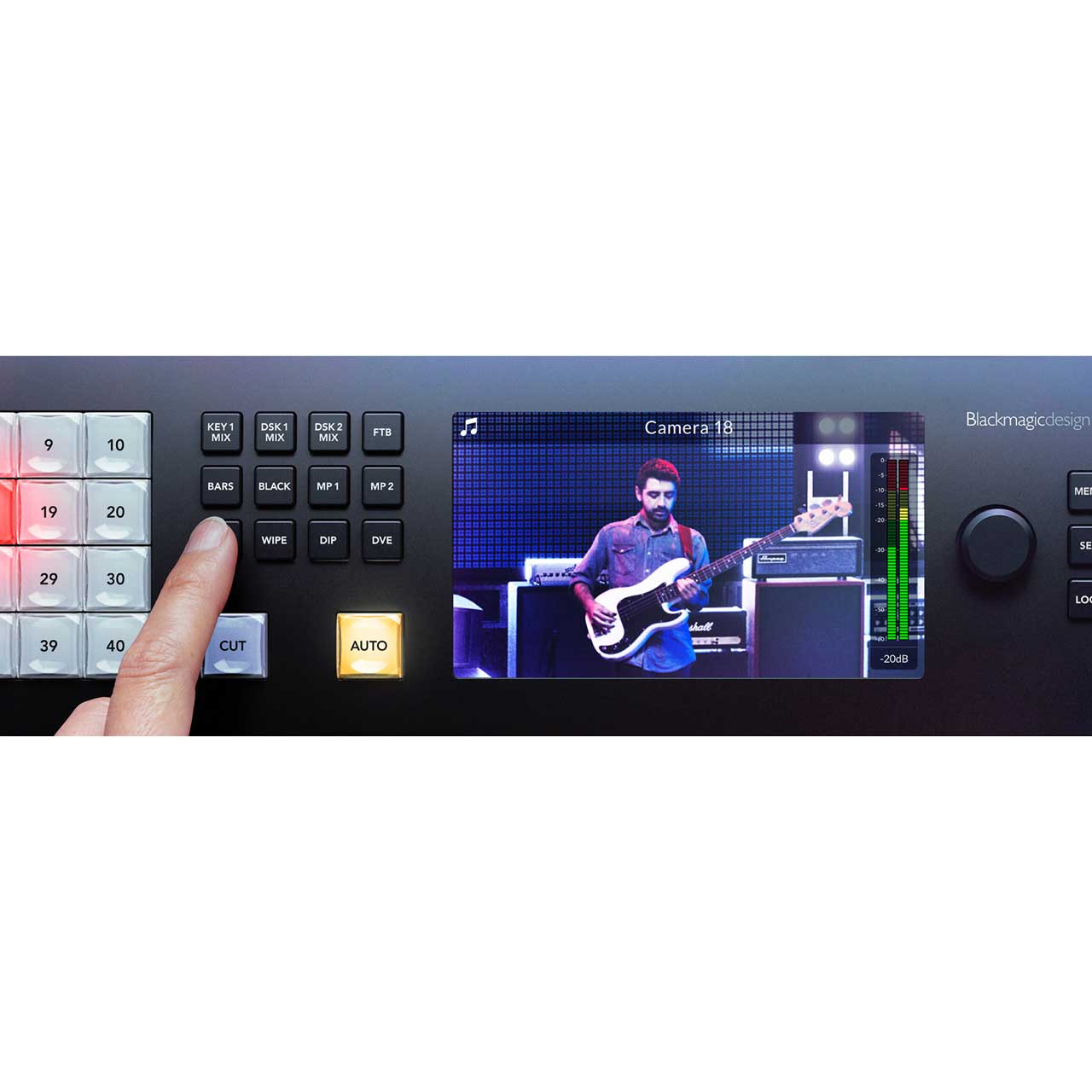

  • Front panel: Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button

    Processing
  • Audio Mixer: 156 Channel mixer, Selectable On/Off/Audio-Follow-Video, Level and Peak metering, Master gain control, 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter

    Operating Systems
  • Mac 10.15 Catalina, Mac 11.1 Big Sur or later
  • Windows 10, 64-bit

    Power Requirements
  • Power Supply: 2x Internal 100 - 240 AC 50/60Hz

    Environmental
  • Operating Temperature: 32° to 104° F
  • Storage Temperature: -4° to 140° F
  • Relative Humidity: 0% to 90% non-condensing


• Item Includes:

  • 1x ATEM 4 M/E Constellation 4K


• Warranty:

  • 12 Month Limited


• GTIN:

  9338716008425
