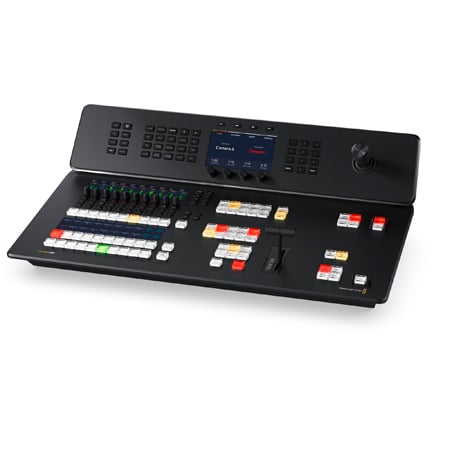

Blackmagic Design SWATEMTVSTC/K4K8 ATEM Television Studio 4K8 Ultra HD Production Switcher with Control Panel

SWATEMTVSTC/K4K8 - Overview

• Specifications:

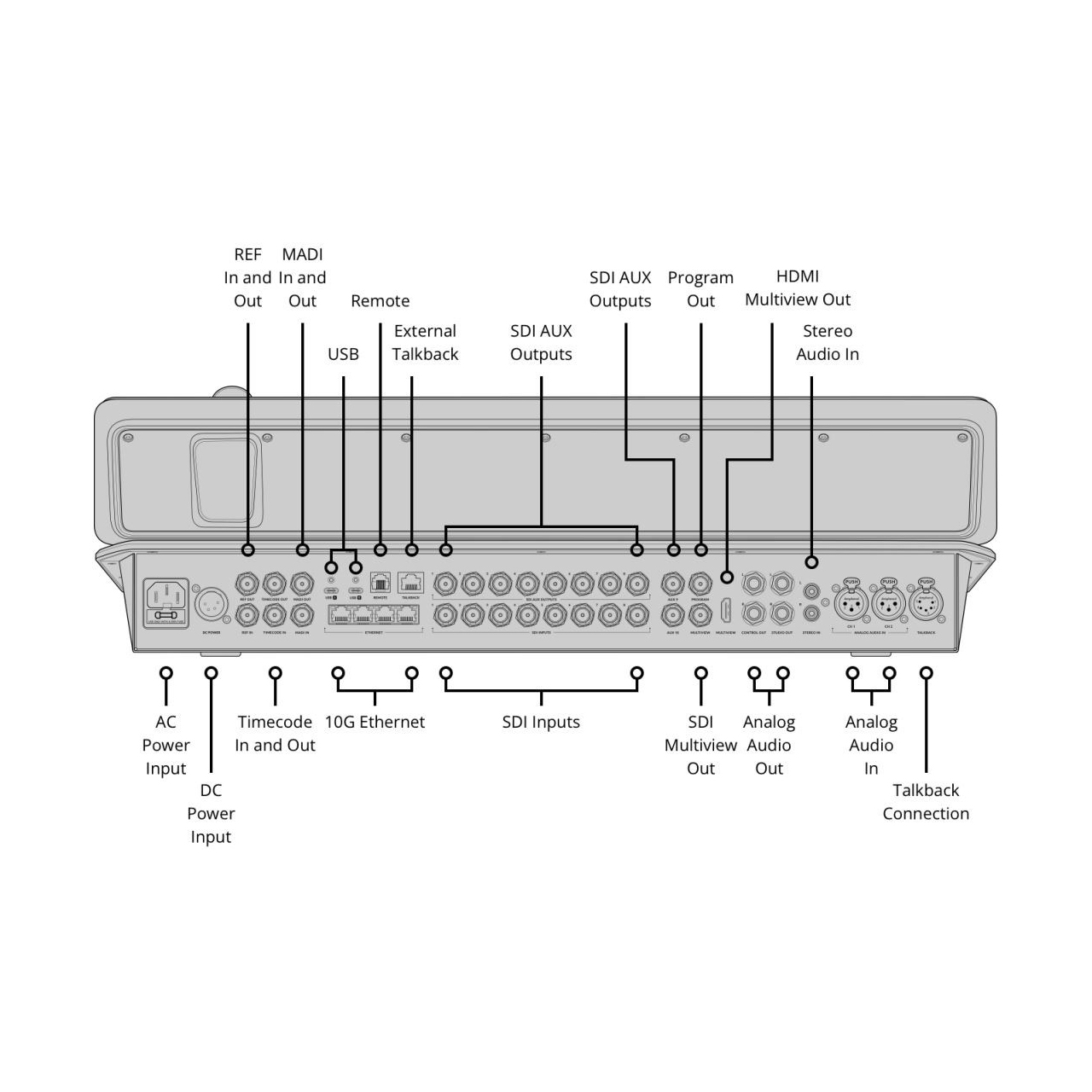

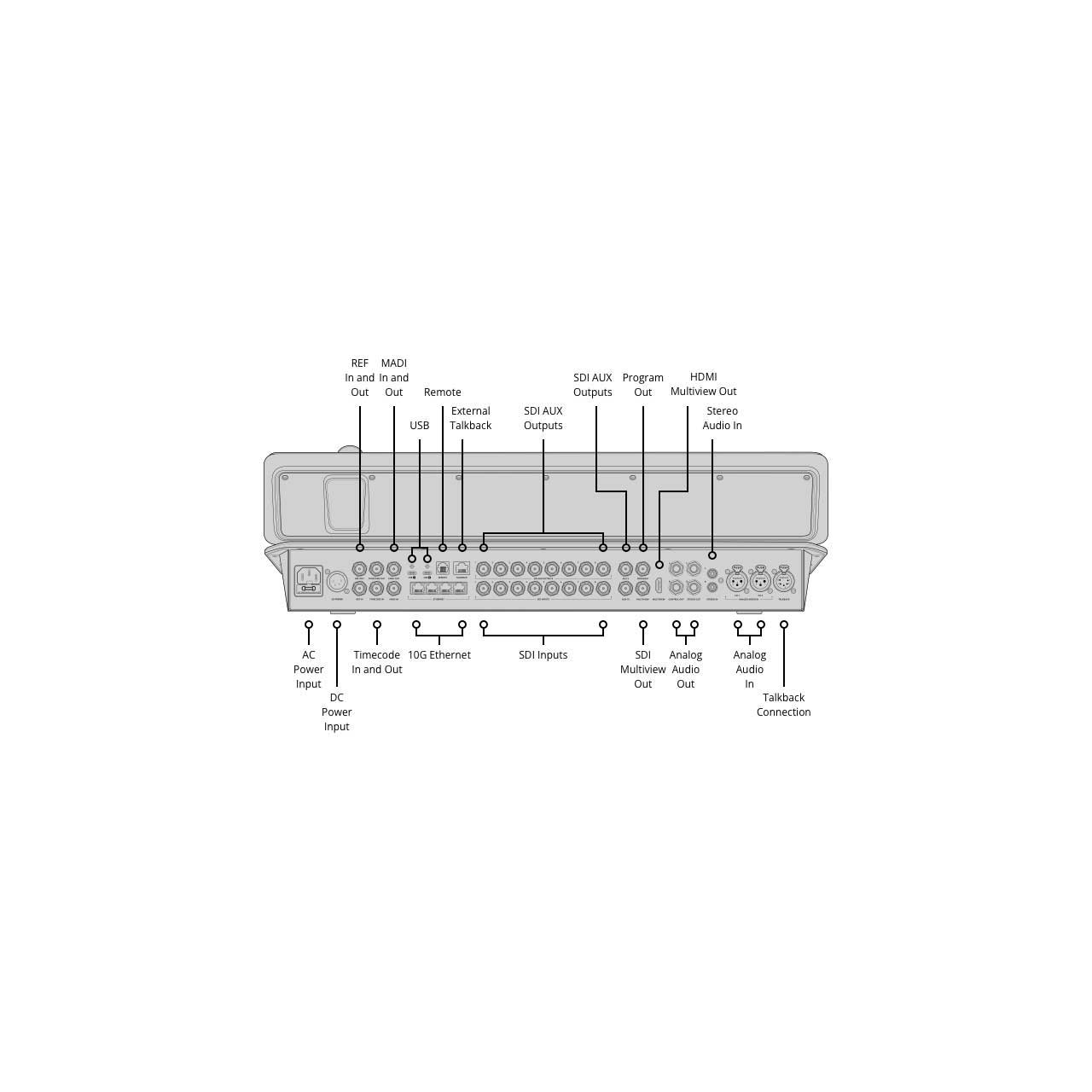

  • Connections
  • SDI Video Inputs: 8
  • SDI Video Outputs: 12
  • SDI Rates: 1.5G, 3G, 6G, 12G
  • HDMI Video Outputs: 1
  • Total Audio Inputs: 2x XLR balanced analog audio, 1x BNC 32 Ch MADI digital audio, 2x RCA stereo analog audio, 1x 5 pin XLR Talkback
  • Total Audio Outputs: 4x 1/4 inch Jack analog audio, 1x BNC 64 Ch MADI digital audio, up to 50 active, 1x 5 pin XLR Talkback
  • SDI Audio Inputs: 4 Ch embedded audio on all SDI inputs
  • SDI Audio Outputs: 16 assignable channels
  • Timecode Connections: 1x BNC In, 1x BNC Out
  • Reference Input: 1x BNC In, 1x BNC Out. Tri-Sync or Black Burst
  • Video Input Re-Sync: On all 8 inputs
  • Frame Rate and Format Converters: On all 8 inputs
  • SDI Aux Outputs: 10
  • SDI Program Outputs: 1
  • Webcam Output: 2x USB-C supporting 720p or 1080p at PGM frame rate
  • Total Multi Views: 1x 12G-SDI, 1x HDMI 2.0
  • Remote: RJ12 supports RS-422
  • Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network
  • Internal Timecode Generator: Yes
  • Talkback: RJ45 for 3rd party talkback systems
  • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
  • Ethernet: 4x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T
  • Computer Interface: 2x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection

    Standards
  • SD Video Standards: None
  • HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • Ultra HD Video Input Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
  • Video Sampling: 4:2:2
  • Color Precision: 10-bit
  • Color Space: REC 709, REC 2020
  • SDI Auto Switching: Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI

    Product Specifics
  • Number of Mix Effects Rows: 1
  • Direct Cross Points: 10
  • Shifted Cross Points: 20
  • Crosspoint Button Type: Tri-Color LED
  • Crosspoint Label: 6 rows 24 character LCD
  • Preview Transition: 1
  • Source Select Bus: 1
  • Dedicated Macro Buttons: 10 plus shift 10
  • Transition Type Buttons: 5
  • Transition Rate: Set via system LCD menu display
  • Key Buttons: 8
  • AUX Buttons: 12
  • Fader Bar: 1
  • Record Buttons: 2
  • Stream Buttons: 2
  • DSK Transition Selectors: 6
  • Fade to Black Buttons: 1
  • System LCD Displays: 1
  • Numeric Keypad: 1
  • 3 Axis Joystick: 1
  • Upstream Keyers: 4
  • Downstream Keyers: 2
  • Advanced Chroma Keyers: 4
  • SuperSource: 1
  • DVEs: 2
  • Linear/Luma Keyers: 7
  • Transition Keyer (Stinger/DVE): 1 Stinger, 1 DVE
  • Total Number of Layers: 8
  • Pattern Generators: 7
  • Color Generators: 2
  • Control Panel: Integrated panel with full control of switching and settings
  • Routable Windows: 16
  • Windows Source Labels: Yes
  • Tally: Red for program and green for preview indication

    Operating Systems
  • Mac 12.0 Monterey, Mac 13.0 Ventura or later
  • Windows 10, 64-bit. Windows 11
  • Linux

    Power Requirements
  • Power Supply: 1x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1x 4 pin XLR 12V DC In for external power supply or battery use

    Environmental
  • Operating Temperature: 32° to 104° F
  • Storage Temperature: -4° to 140° F
  • Relative Humidity: 0% to 90% non-condensing


• Item Includes:

  • 1x ATEM Television Studio 4K8


• Warranty:

  • 12 Months Limited


• GTIN:

  0933871600843
