Belden 4855RX16 CMR 12G-SDI 16 Ch Video Coax 4K UHD Mini RG-59 75 Ohm Solid SC/Foil Shield - 23 AWG - Per Foot - Black

ITEM #: BL-4855RX16BK-FT MFG #: 4855R16 B591000

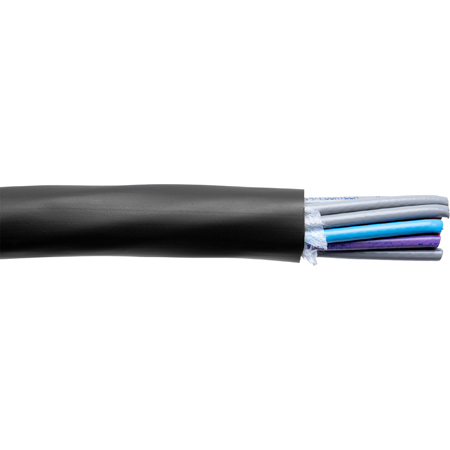

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$27.41

Our Price:

$25.68

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

4855R16 B591000 - Overview

Belden 4855R16 is a 12 GHz, 4K UHD Precision Video Cable, Mini RG-59, 75 Ohm 16 Channel Coax. It's 23 AWG with a solid 0.023 inch silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil® bonded to the core + tinned copper braid shield (95% coverage), in CMR rated PVC inner and outer jackets.

Belden has set the worldwide broadcast cable standard for decades, getting its start with the award-winning digital precision video coax line in 1995. Belden 75 Ohm Coax Cables handle frequencies from 12 GHz to 3 GHz, ensuring reliable signal integrity and exceptional broadcast quality in high-resolution applications. Designed to carry audio and video signals through the cable in the most efficient way possible, they lose very little signal strength along the way.

Applications
Ultra-High Definition Digital Video
4K Single-link 12 Gb/s UHDTV
4K D-Cinema
8K Quad-link UHDTV
HD-SDI 1080p

  • Features:

    • Crush Resistant: Made of a specially formulated, gas-injected, high-density foam polyethylene that is tougher than standard polyethylene
    • Easy Stripping and Improved Reliability: High-end, skin-foam insulation technology process provides the right amount of conductor adhesion
    • Low Loss for High Performance: Significant return loss headroom accounts for potential loss elsewhere in the transmission line
    • Tolerates Rough Installation: Resists deformation and maintains impedance and return loss


  • Specifications:

    • Conductor AWG: 23
    • Conductor Stranding: Solid
    • Conductor Nom. Diameter: 0.023 Inch
    • Conductor Material: SC - Silvered Copper
    • Insulation Material: PE - Polyethylene Foam
    • Insulation Nom. Diameter: 0.102 Inch
    • Inner Jacket Material: PVC - Polyvinyl Chloride
    • Inner Jacket Nom. Diameter: 0.159 Inch
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Nom. Diameter: 0.917 in (23.3 mm)
    • Electrical Nom. Conductor DCR: 19.7 Ohm/1000ft
    • Electrical Nom. Inner Shield DCR: 3.8 Ohm/1000ft
    • Electrical Nom. Capacitance Cond-to-Shield: 16.3 pF/ft
    • Electrical Nom. Characteristic Impedance: 75 Ohm
    • Electrical Nom. Velocity: 82%
    • Environmental Suitability: Indoor - Riser, Indoor
    • Sustainability: CA Prop 65
    • Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4
    • NEC / UL Compliance: CMR
    • CEC / C(UL) Compliance: CMG
    • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
    • APAC Compliance: China RoHS II (GB/T 26572-2011)


  • Item Includes:

    • 4855R16 CMR 12G-SDI 16 Ch Video Coax RG-59 75 Ohm - 23 AWG - Per Foot - Black


  • Warranty:

    • Limited 10 Year Warranty
