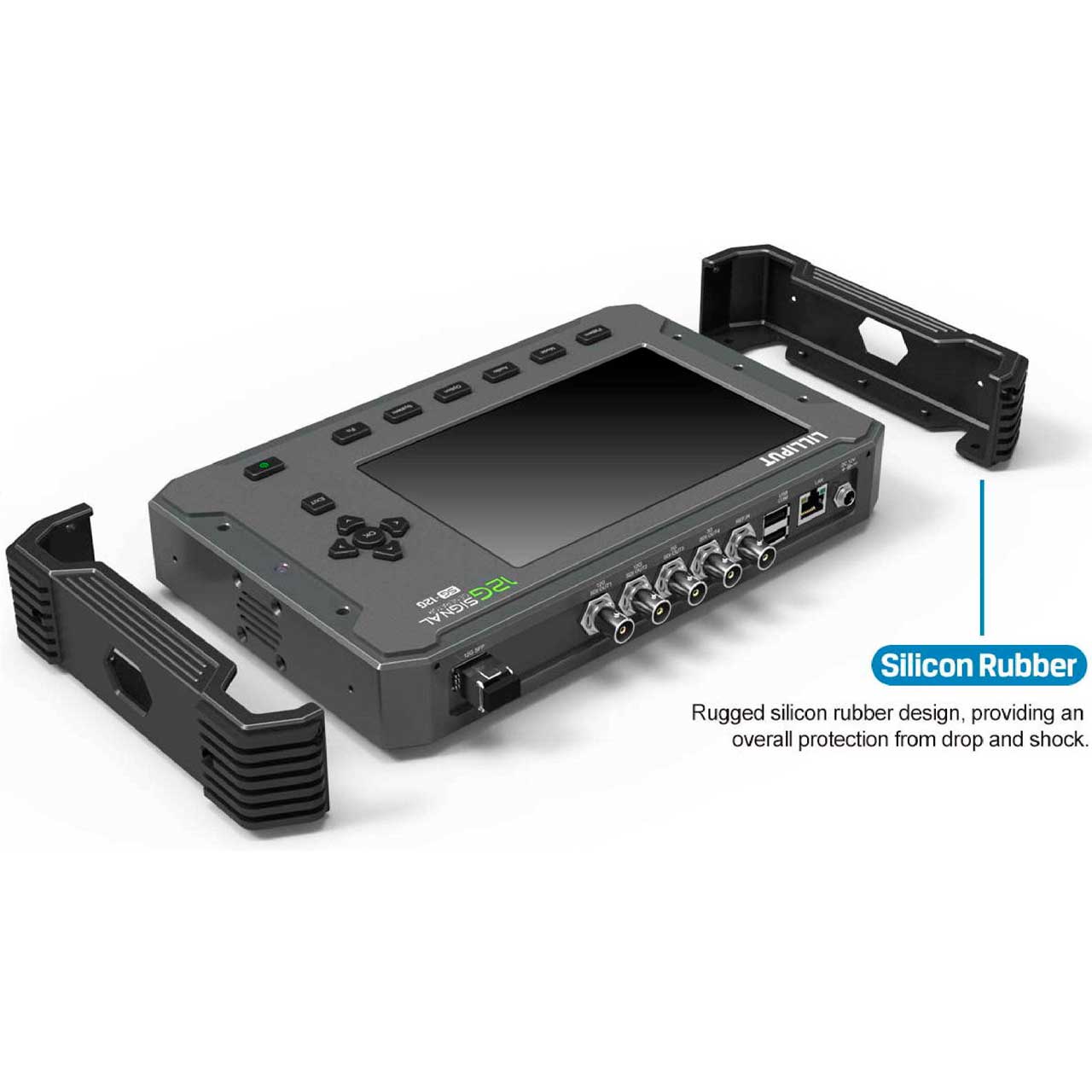

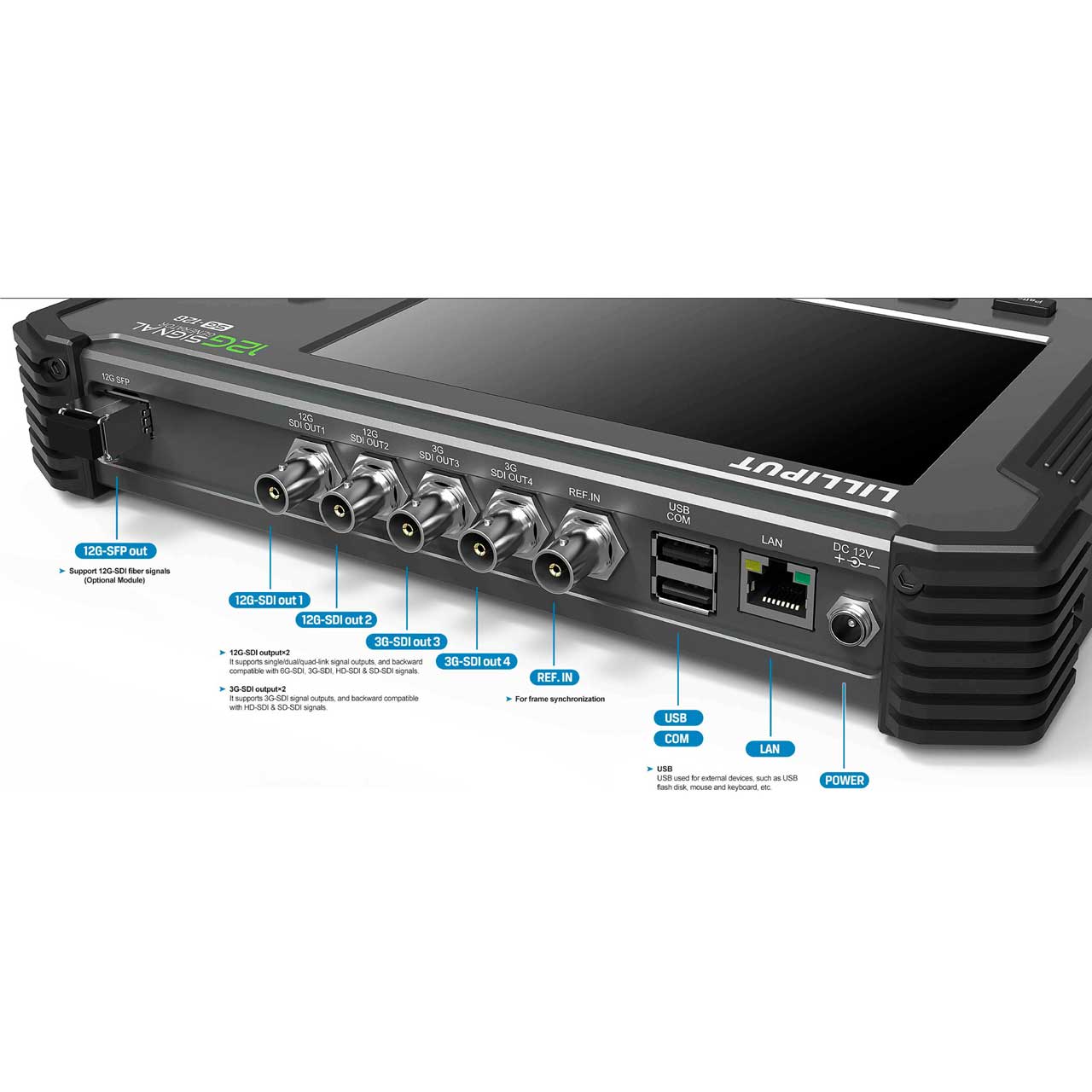

The Lilliput SG-12G is a multi-format advanced SDI pattern generator with Metal housing , Silicon Rubber and built-in battery. It support 12G-SDI and 12G-SFP output.Also have pattren measurement, signal compatibility, audio monitoring, overlay, timecode, ref in functions.
Pattern Measurement
To test color temperature and grayscale of monitor with various types of patterns, such as color bar, monochrome display, and customized pictures.
Preset & importable patterns
Custom: Free to create any color picture, based on two different color space -- RGB or YCbCr.
Picture: Built-in plenty of preset patterns, and user-definable pictures imported to the generator to meet various test requirements.
Signal Compatibility

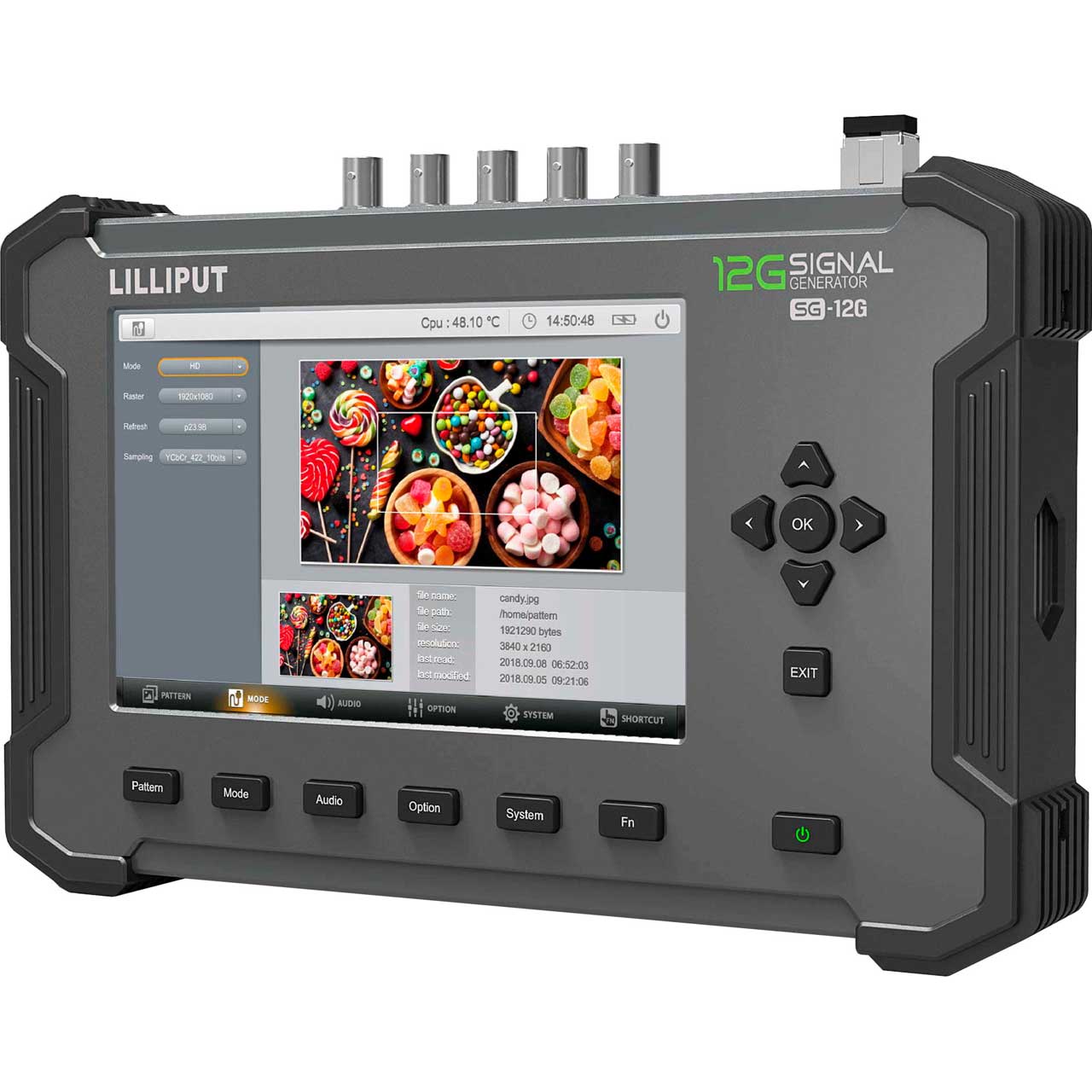

Supports SD, HD, 3G, 6G and 12G-SDI signals; SDI and Fiber signals up to 4K 60Hz. SDI conversion among of different link structures, SQ and 2SI.
-Mode Options: Selection among 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SD-SDI signal formats.
-Raster Options: Different resolutions options corresponding to different Modes.
-Refresh Options: Different Raster rates corresponding to different Modes & Raster.
-Sampling Options: Different GBR & YCbCr sampling rates based on the above options.
Audio Monitoring
A comprehensive audio monitoring tool supports up to 16 channels embedded AES/EBU audio, with -60dB to 0dB range. And a 20 to 20000 frequency.
-Channel Options: 16-channel SDI audio ranges from CH0 to CH15 for optional.
-Switch Options: Off, On, All Off and All On are optional for the 16-channel audio switch.
-Phase Options: Options among of 0, 90, 180 and 270 for phase.
-Frequency Options: Freq options can be customized from 20 to 20000 by users.
-DB(-) Options : Freq options can be customized from -60bB to 0dB by users.
