The Murideo MU-STIX-A is a thumb drive-sized HDMI pattern analyzer designed for Murideo's STIX Ecosystem large-deployment evaluation platform. It may also be used for light-duty in-field pass/fail signal transmission verification.

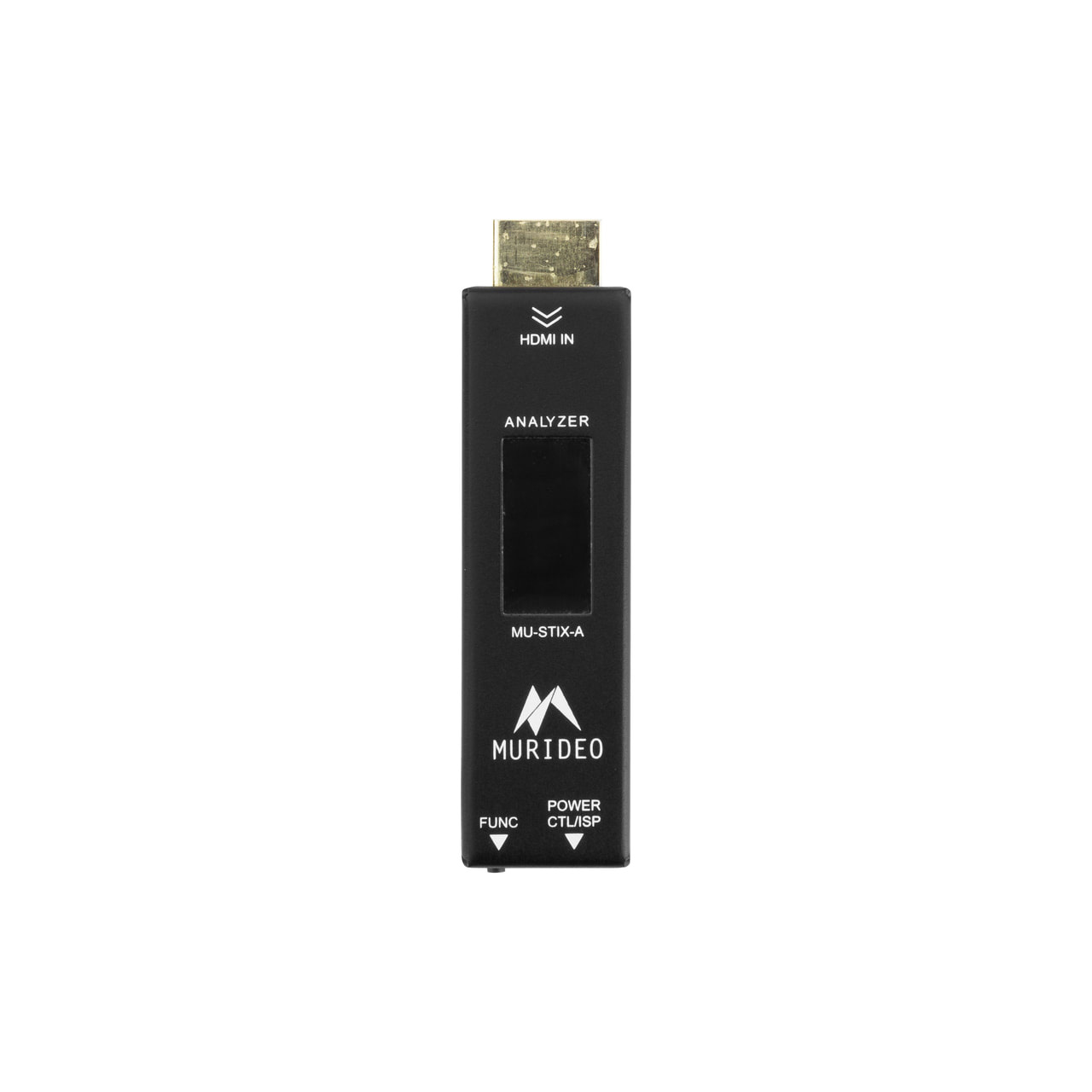

The MU-STIX-A analyzes video test patterns at resolutions from 720p/ 60 fps through 8K/ 60 fps, including 4K/120 fps High Frame Rate. When used in stand-alone applications, a mini OLED screen displays the source selected, resolution, bit rate, color space, and FRL version of TDMS.

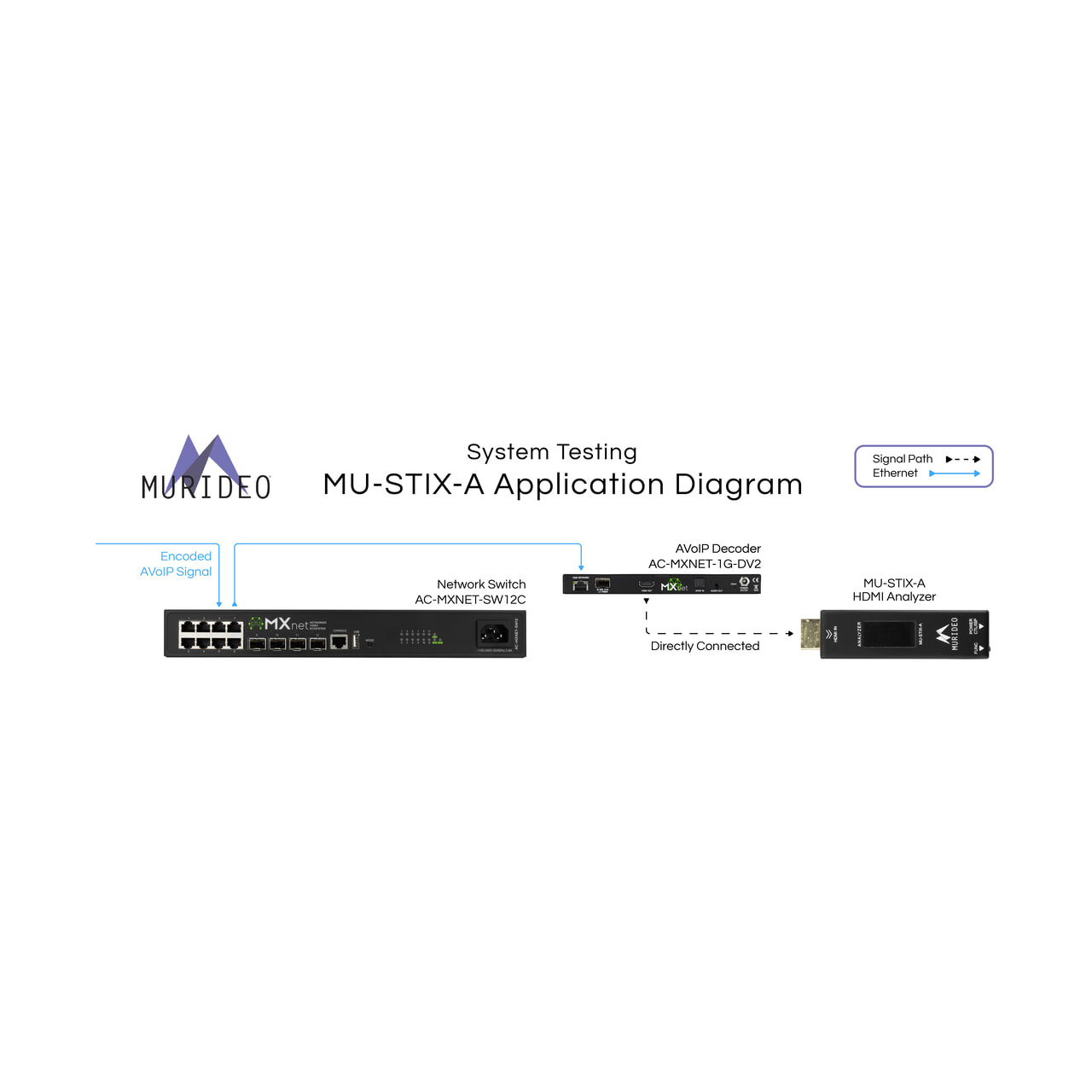

The STIX Ecosystem enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters. The Murideo MU-STIX-A onboard display physically corroborates source information parameters when connected to the HDMI output of a receiving device.
For stand-alone use, the MU-STIX-A is a convenient, cost-effective multi-resolution format analyzer for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required. Equipped with one or more MU-STIX-As enables system signal throughput confirmation for display supporting electronics that are installed inside cable and device management in-wall storage enclosures, eliminating potential duplicate labor before the display is mounted.
Applications:
- Residential
- Hospitality & Retail
- Enterprise
- Education (12K)
- Government
- Houses of Worship
- Medical
- Commercial
