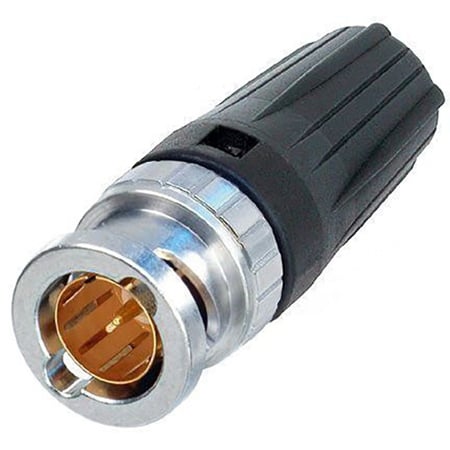

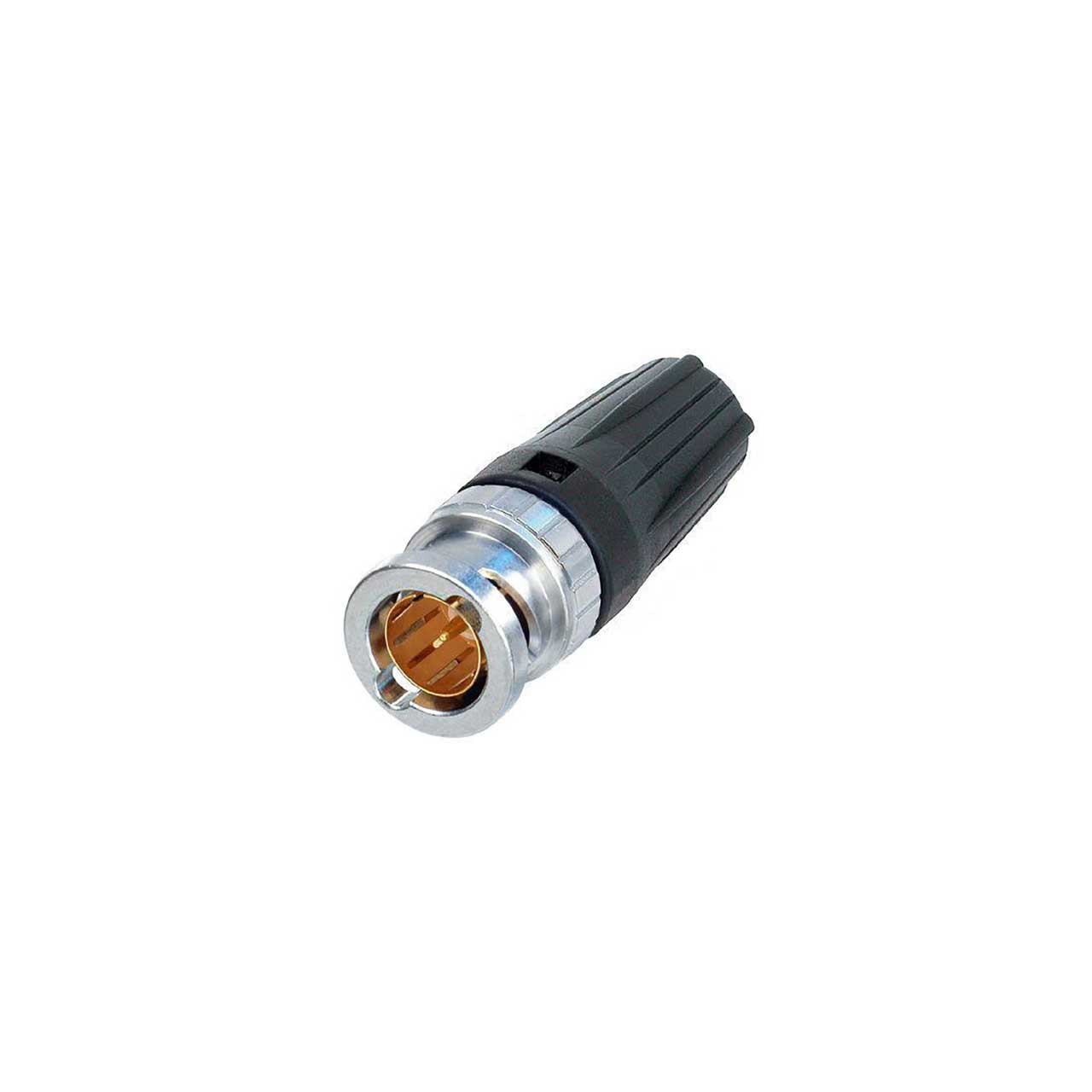

Neutrik NBNC75BDD6 Rear Twist True 75 Ohm Male BNC Crimp Connector For Belden 1855A Mini Coax - w/ 1 Blk rearTWIST Boot

ITEM #: NBNC75BDD6 MFG #: NBNC75BDD6

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$3.77

Our Price:

$3.23

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NBNC75BDD6 - Overview

Hi-Def Rear Twist BNC for Belden 1855A Mini Coax

The Neutrik NBNC75BDD6 rearTWIST BNC cable connector offers a true 75 Ohm design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Black rearTWIST boot included. Other boot colors are available.

Crimp size:
Pin: 1.6 mm (square)
Shield: 4.53 mm (hex)

  • Features:

    • "RearTwist® Principe" locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507).
    • Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
    • True 75 Ohm design meets the stringent HD requirements.
    • Snug-fit center pin assembly provides tactile feedback.
    • Excellent cable protection and retention.
    • Precise machined brass parts for outstanding durability.
    • Accessories include color coded boots in 10 standard colors, crimp tool and dies.


  • Specifications:

    • Suitable cables:
    • Belden 1855A
    • CommScope 7538
      Crimp size:
    • Pin: 1.6 mm (square)
    • Shield: 4.53 mm (hex)


  • GTIN:

    7613187002427
