Amphenol 031-70537-12G Straight Crimp Plug 12G BNC Connector for Belden 4855R/1855A Cable - 75 Ohm

ITEM #: AMPH-0317053712G MFG #: 031-70537-12G

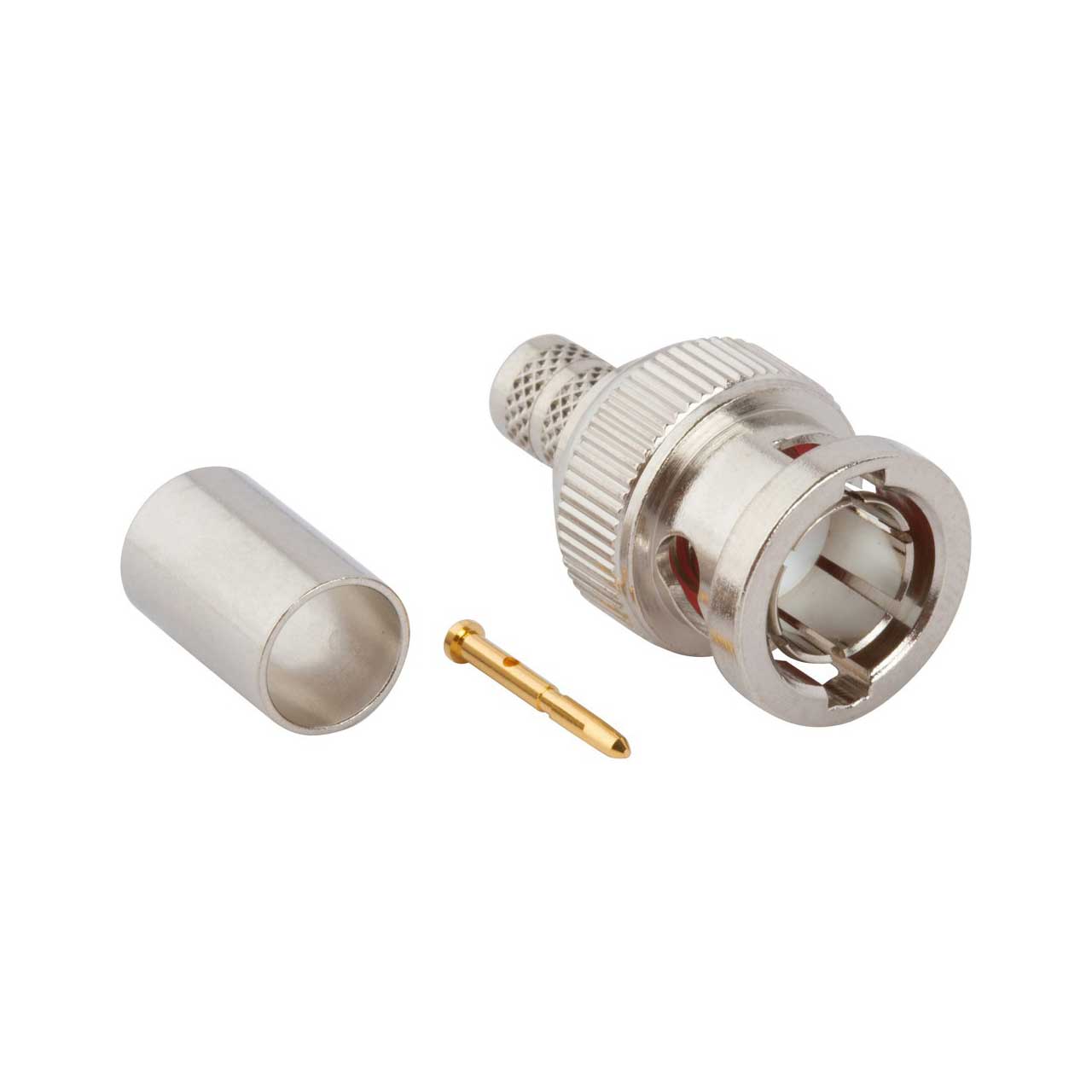

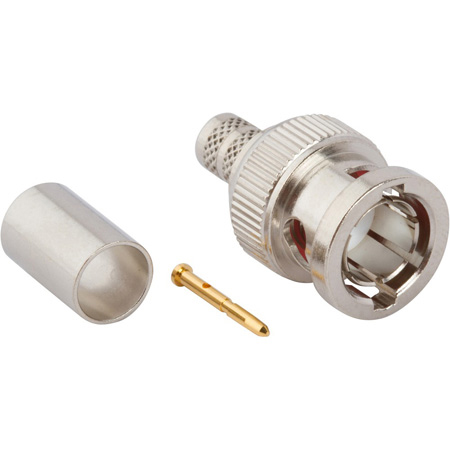

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$10.00

Our Price:

$9.43

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

031-70537-12G - Overview

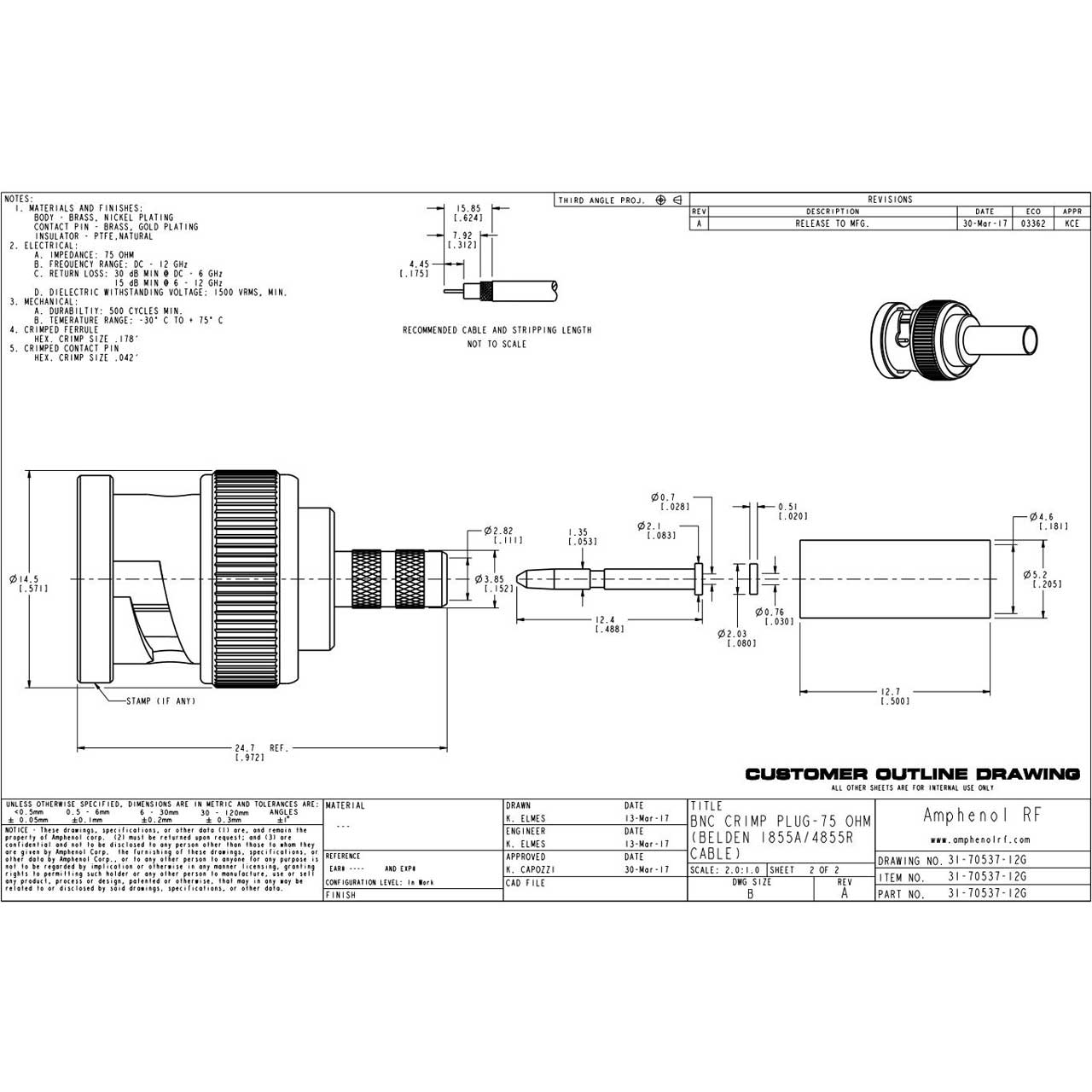

The 031-70537-12G is a 12G Optimized, 75 Ohm RF Connector, BNC Straight Crimp Plug for the Belden 4855R and 1855A Cables,

  • Specifications:

    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Brass
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: K3
    • Cable Type: Belden 1855A, Belden 4855P, Belden 4855R
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 12
    • Polarity: Standard
    • Min. Temp. (Celsius): -30
    • Max. Temp. (Celsius): 75
    • Mating Cycles: 500
    • Crimped Center Contact Pin Hex Size: 0.042"
    • Crimped Ferrule Hex Size: 0.178"
