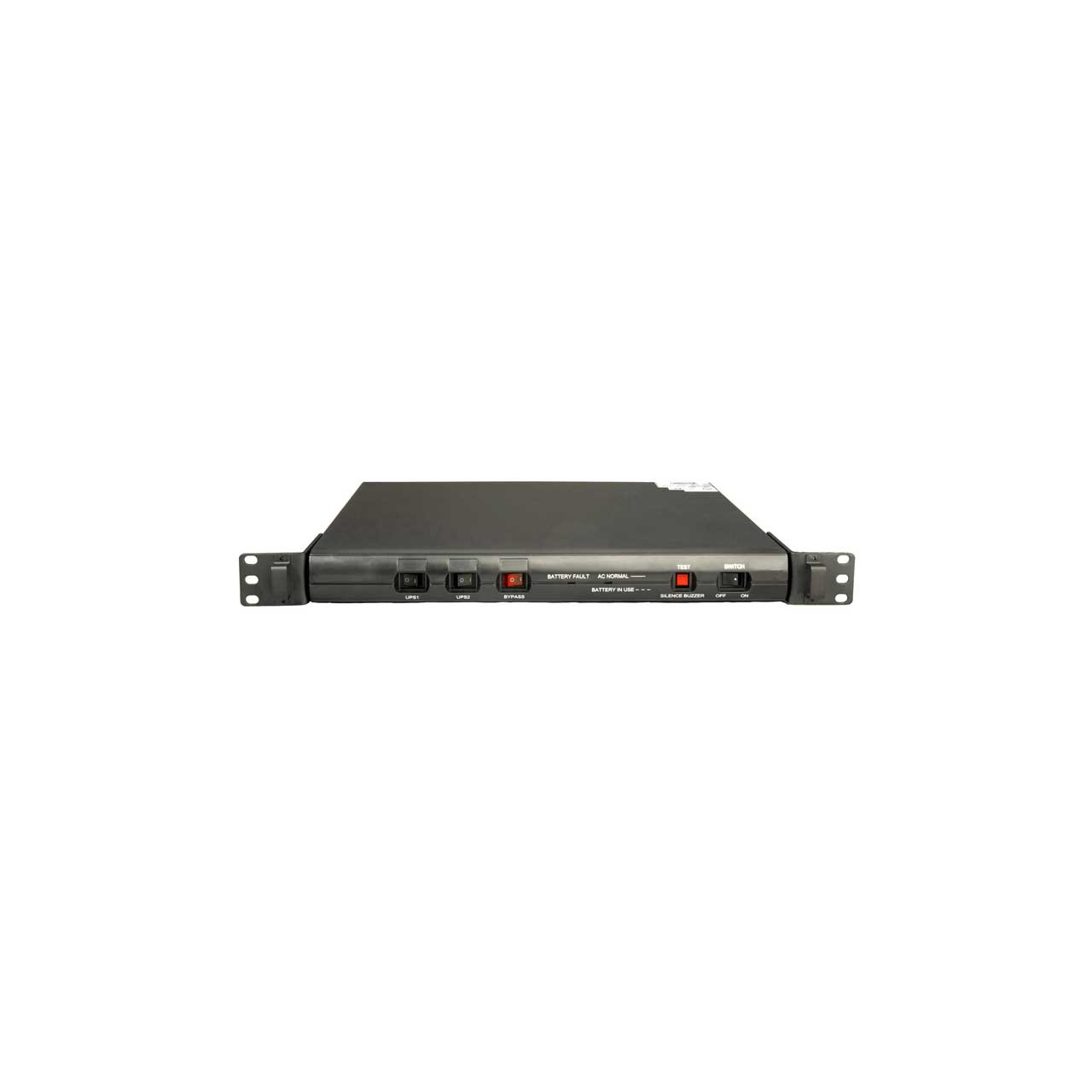

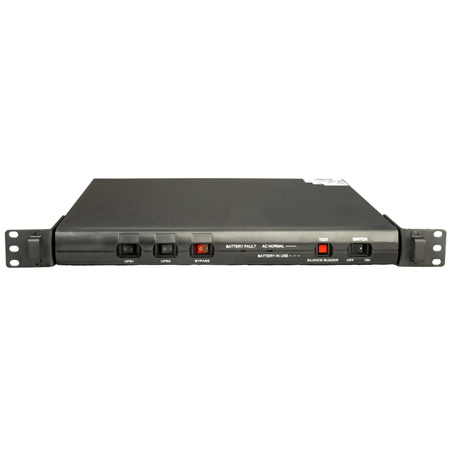

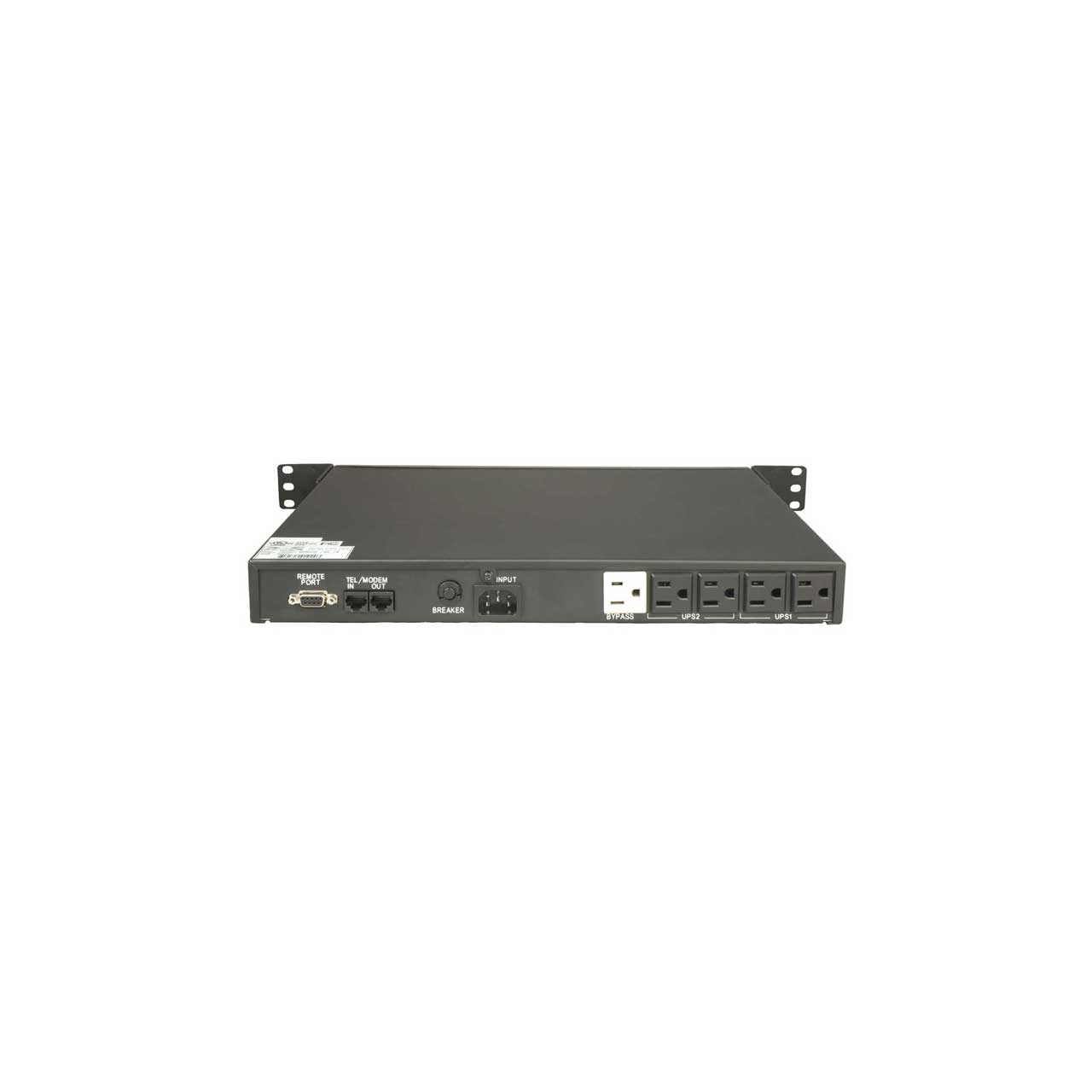

Juice Goose KIN-1000RM 1U Line Interactive Rackmount 600 Watt 1000VA UPS

KIN-1000RM - Overview

• Specifications:

  • Power Capacity (VA): 1,000
  • Power Capacity (Watts): 600
  • Bypass Output Capacity: 500VA
  • Rack Height: 1U
  • Weight (Net, Lbs): 25.3
  • Run Time, Full Load (Min): 2
  • Run Time, Half Load (Min): 11
  • Voltage: +/-25% at line input
  • Frequency: 50 or 60 Hz +/-10% (auto sensing)
  • Voltage (on battery): Simulated sine wave at 100V or 110V/115V/120Vor 220V/230V/240V +/- 5%
  • Frequency (on battery): 50 or 60 Hz +/- 0.5%
  • Voltage Regulation (AVR): AVR automatically increase output voltage 15% above input voltage if -9% to -25% of nominal. AVR decrease output voltage 13% below input voltage if +9% to +25% of nominal
  • Transfer Time: 2/4 milliseconds, including detection time
  • EMI/RFI filter: 10dB at 0.15MHz,50dB at 30MHz
  • Overload Protection: UPS automatic shutdown if overload exceeds 110% of nominal at 60 seconds and 130% at 3 seconds

    Battery
  • Type: Sealed, Maintenance-free lead acid
  • Typical Recharge Time: 8 hours (to 90% of full capacity)
  • Protection: Automatic self-test & discharge protection,
  • Replace battery indicator: Back-up Time 3- 180 min (depending on computer load)

    RS-232C port Interface
  • RS-232C Bi-directional communication port

    Ambient Operation
  • 3,500 meters max. elevation, 0-95%
  • Humidity non-condensing, 0-40 deg C
  • Audible Noise: < 40dBA (1 meter from surface)
  • Storage Condition: 15000 meter max.


• GTIN:

  0097652783696
