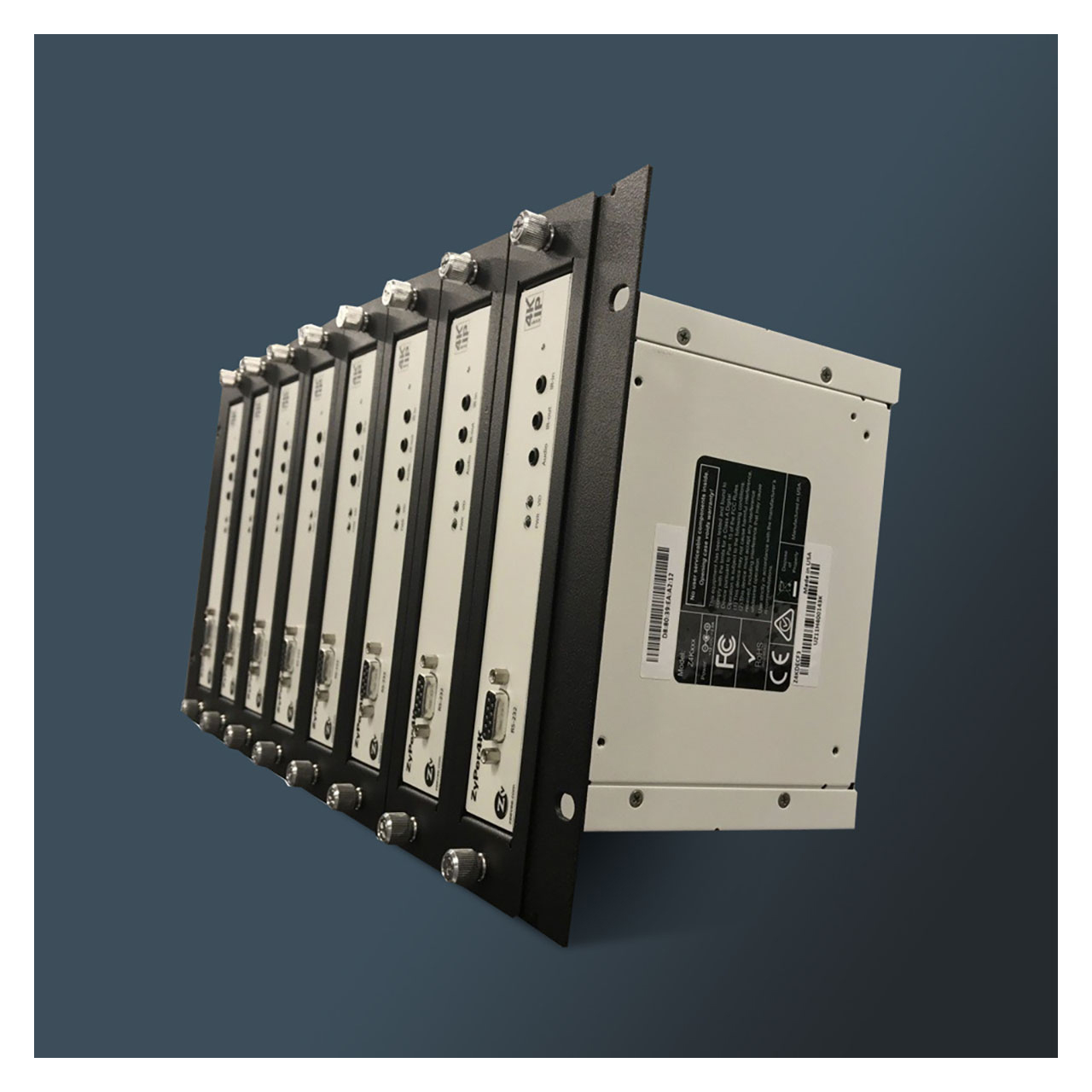

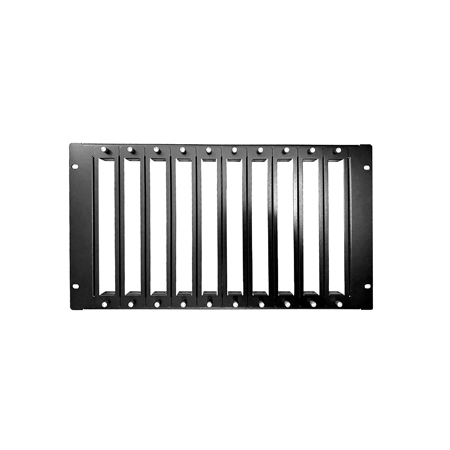

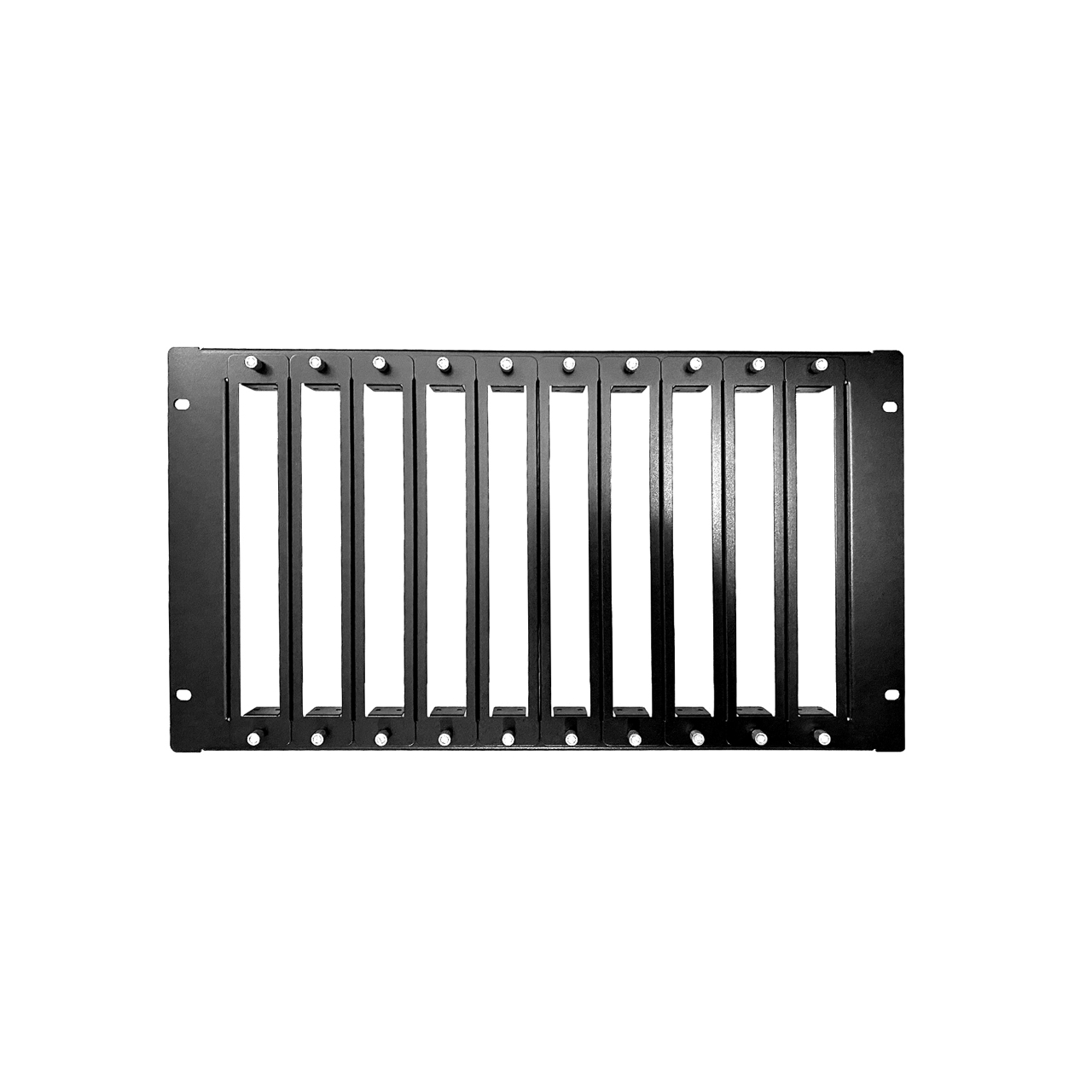

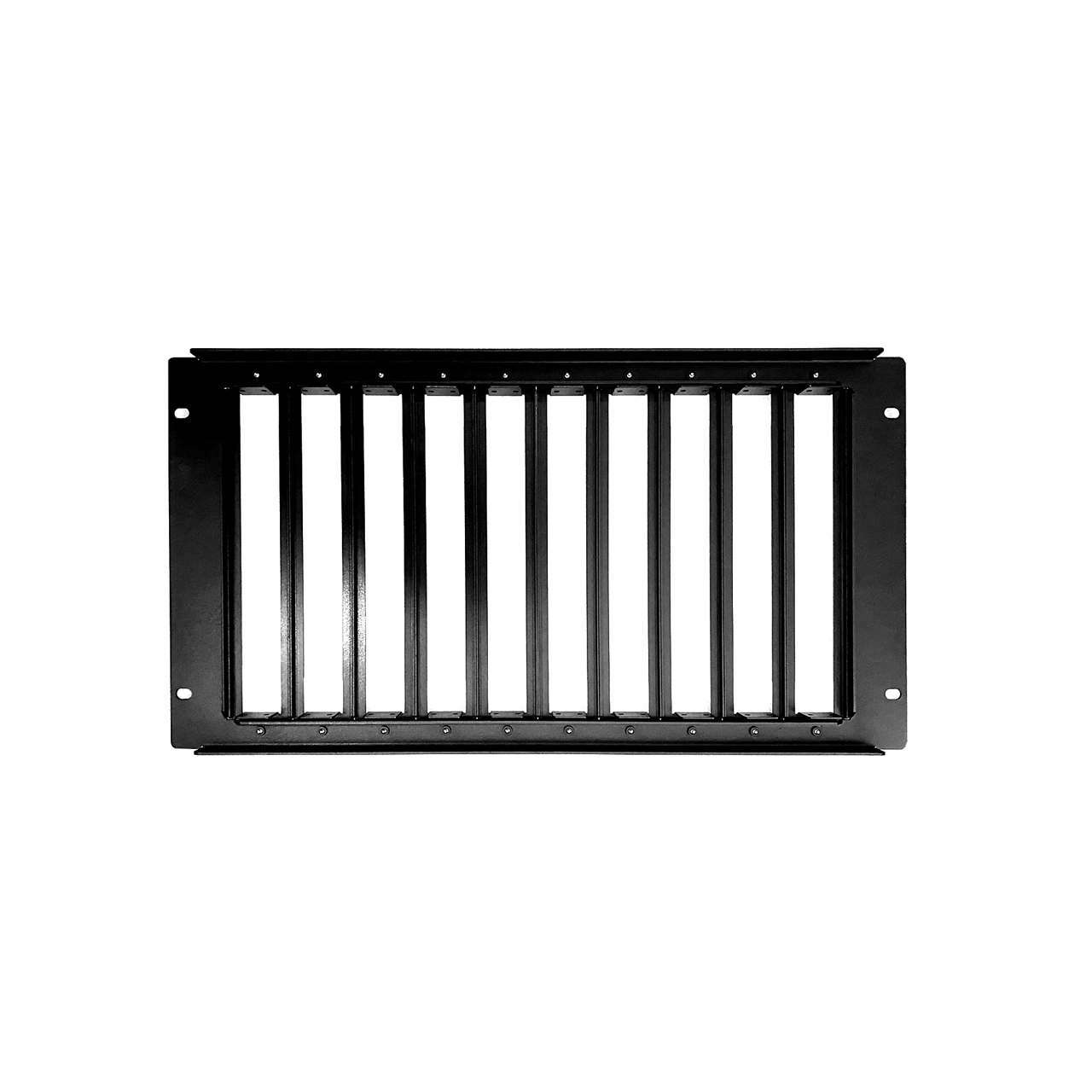

ZeeVee ZyPerUHD60 6RU Rack Mount - Holds up to 10 ZyPerUHD60 Encoders/Decoders

ZUHD60RACK - Overview

• Features:

  • Holds up to eight ZyPer4K encoders or decoders within a 6U rack space.
  • Standard ZyPer4K units require 5U rack space.
  • Extended ZyPer4K encoders and ZyPer4K-XS units require 6U rack space
  • Holds up to ten ZyPerUHD or ZyPerUHD60 encoders in 6U rack space.
  • Fits standard 19" rack assemblies
  • Allows units to be mounted forward or backward

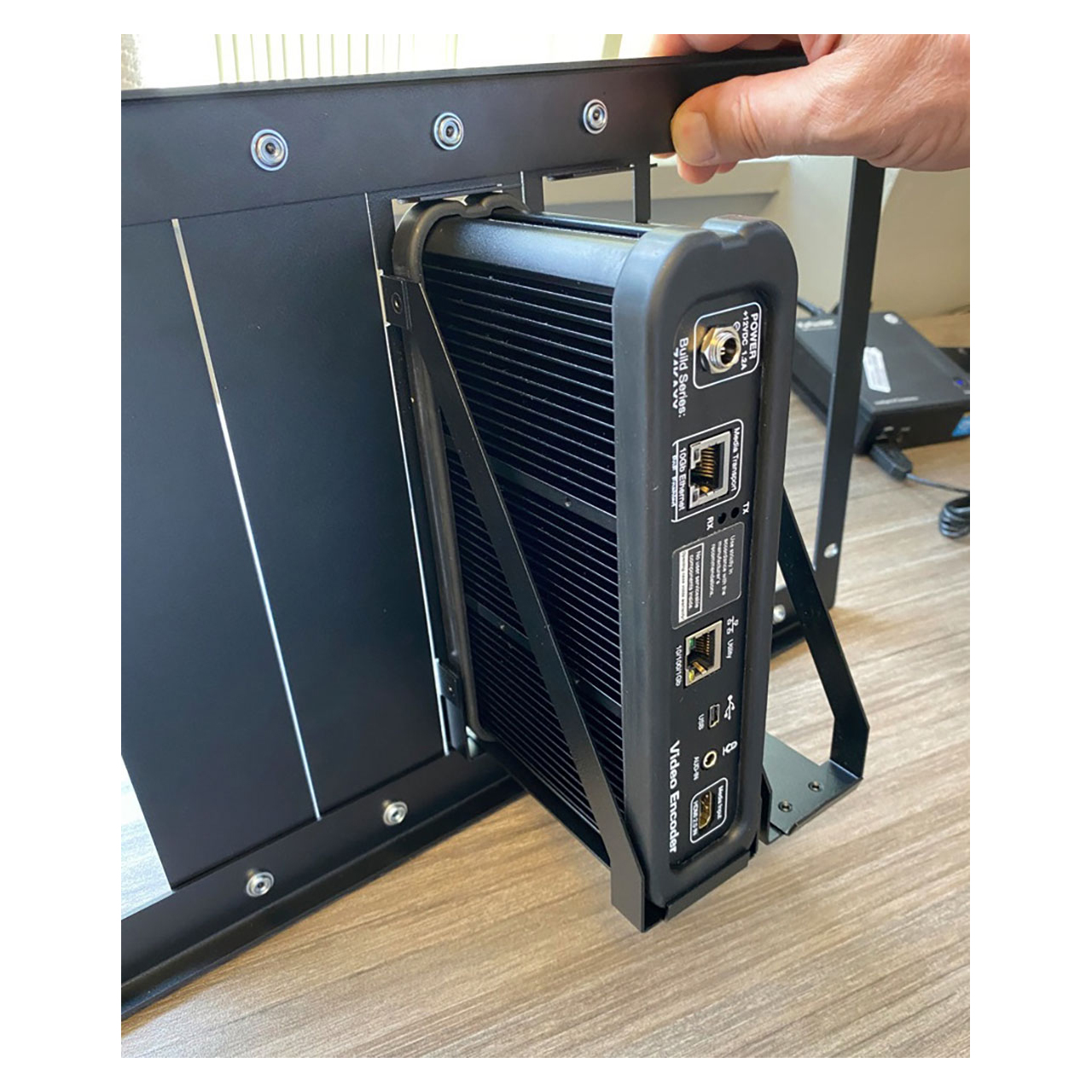

  • L-bracket on each carrier unit provides secure mounting (ZyPerUHD60 does not use L-bracket)
  • RoHS-compliant; built using environmentally safe materials and construction


• Specifications:

  • Dimensions ZyPer4K Standard Box (including carrier units): 19.0" x 8.72" x 5.49" (483 mm x 221 mm x 139 mm)
  • Dimensions ZyPer4K Extended Box ZyPer4KXS, ZyPerUHD and ZyPerUHD60 (including carrier units): 19.0" x 10.46" x 5.51" (483 mm x 266 mm x 140 mm)


• Item Includes:

  • 1x ZUHD60RACK ZyPer Rack Assembly
  • 10x Carrier Units
  • 24x 4-40 Countersink Screws (ZyPer4K)
  • 2x Filler plates (ZyPerUHD) Used to cover unused slots
  • 4x Filler plates (ZyPerUHD60) Used to cover unused slots in ZyPerUHD60 Rack Mount Kit


• Warranty:

  • 1-Year Limited Warranty
