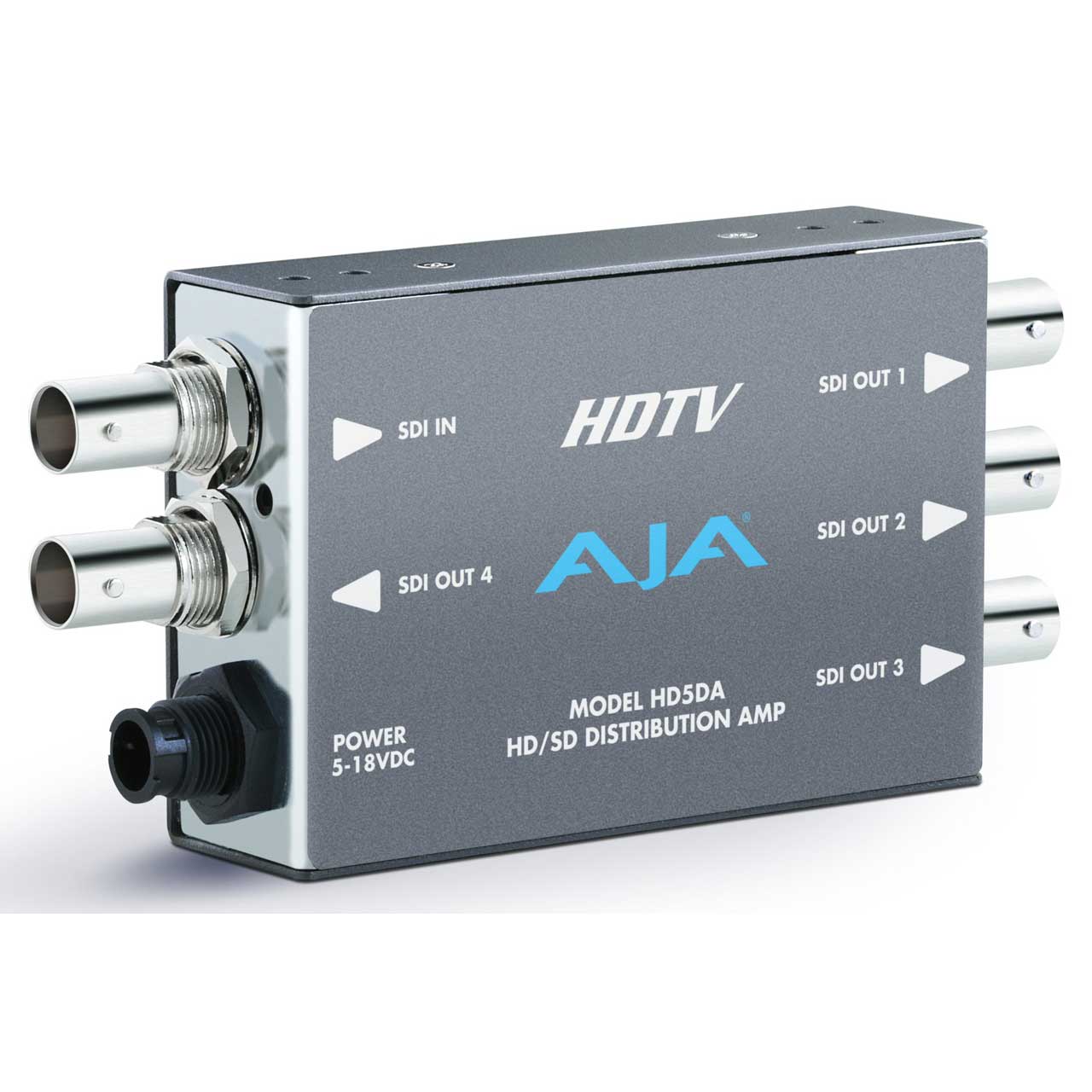

AJA HD5DA 1x4 HD-SDI/SDI Splitter Distribution Amplifier

HD5DA - Overview

• Features:

  • Compact HD-SDI/SDI Distribution
  • Four Separately Buffered Serial HD-SDI/SDI Outputs
  • Auto Equalization
  • Acts as a Low Cost Repeater
  • Automatic multi-standard
  • Miniature Size
  • Universal Power Supply


• Specifications:

  • Formats:
  • 1.5 Gb, 143, 177, 270, 360 Mb, Auto Select


  • Inputs:
  • 1 HD-SDI, SDI (SMPTE 292/296), 1 x BNC


  • Outputs:
  • 4 HD-SDI, SDI, 4 x BNC; Equalizing


  • Return Loss:
  • >15dB - 270 Mhz (Input and Output)

    Environment
  • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
  • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

    Dimensions (WxDxH): 5.8 x 2.4 x 1.0" (131 x 61 x 25mm)
  • Power: 5VDC Regulated, 2.5 watts, power supply required, included with purchase


• GTIN:

  0892448000397
