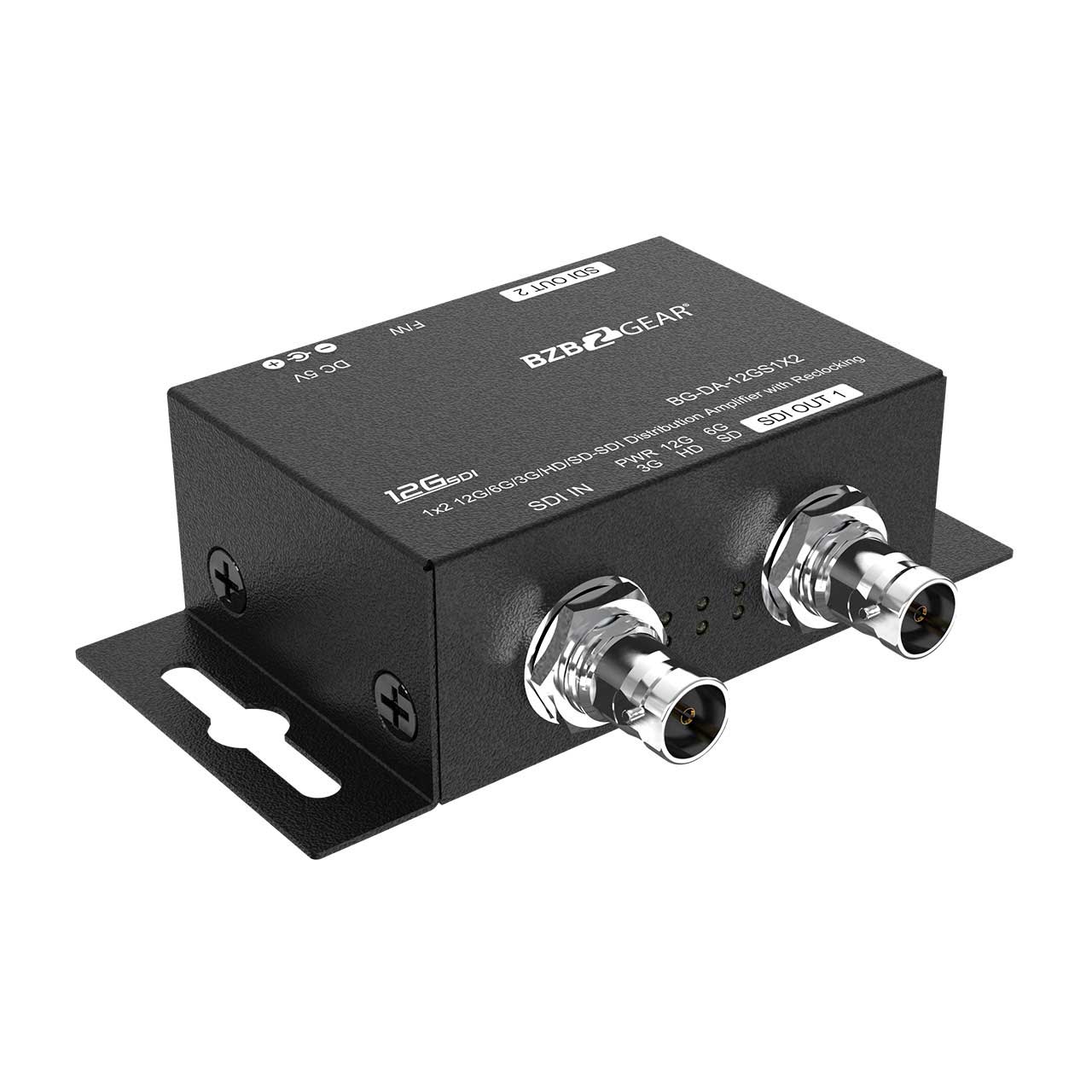

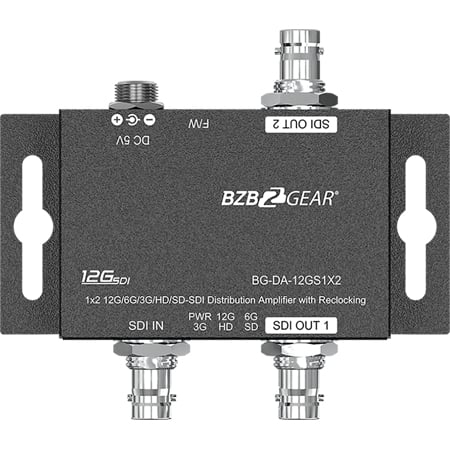

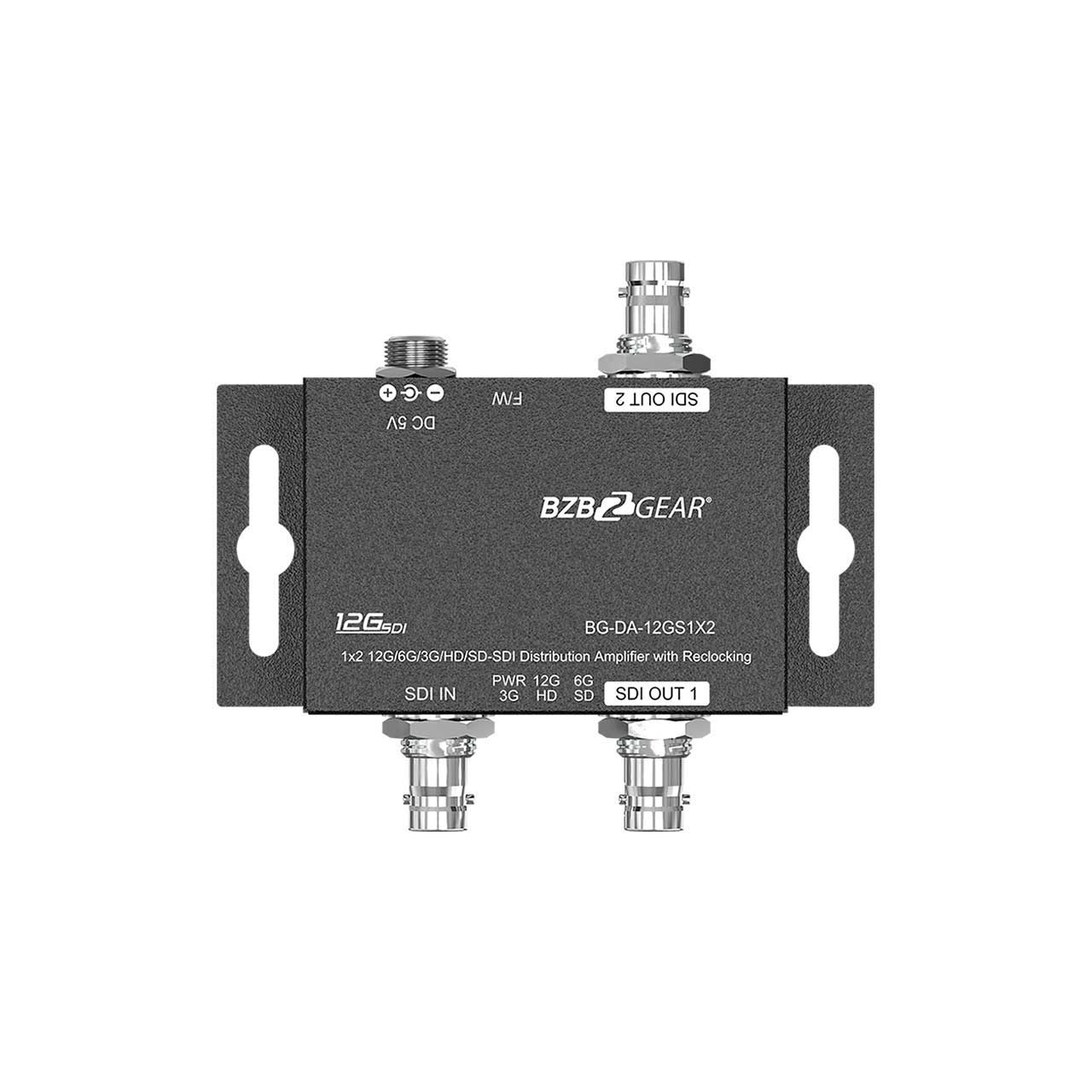

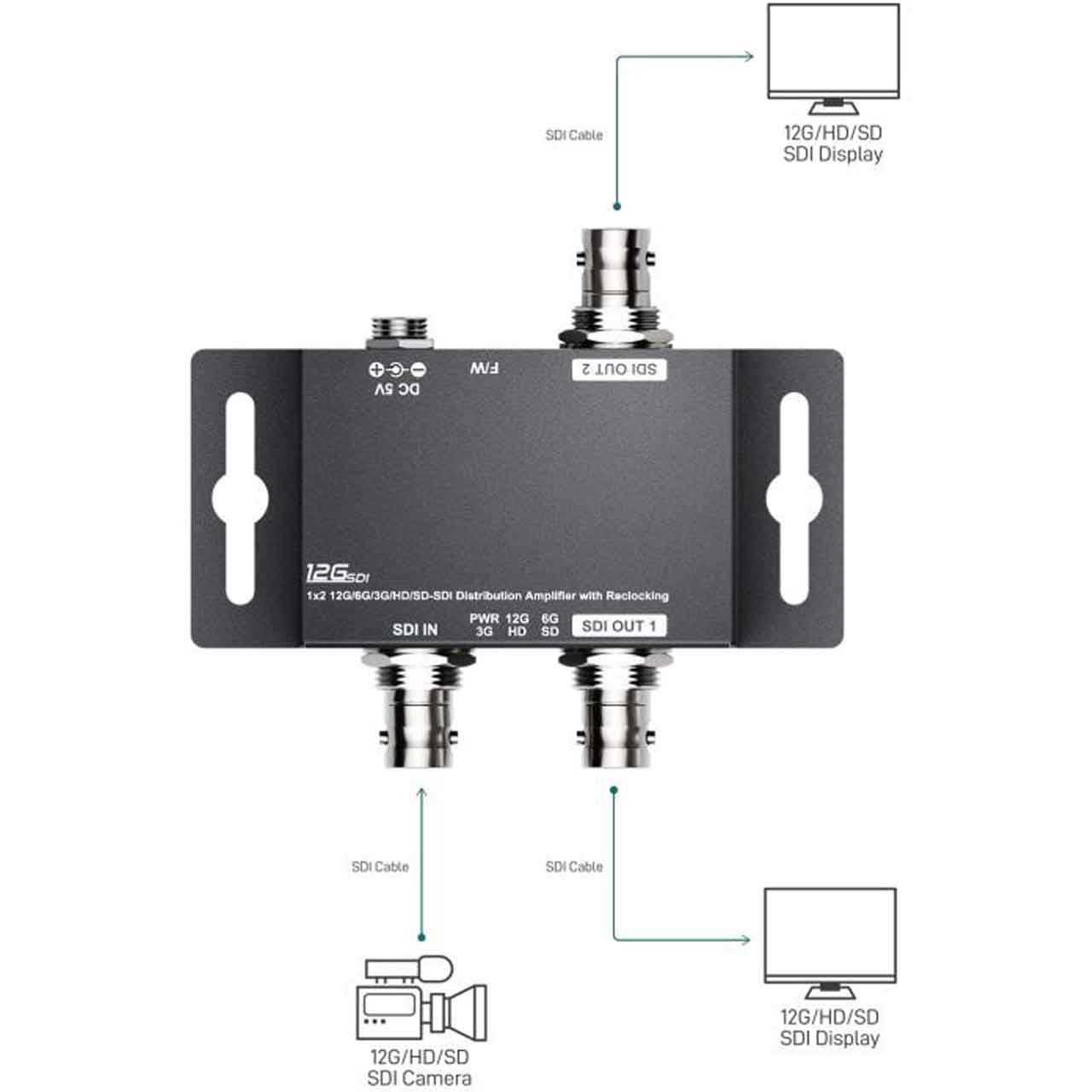

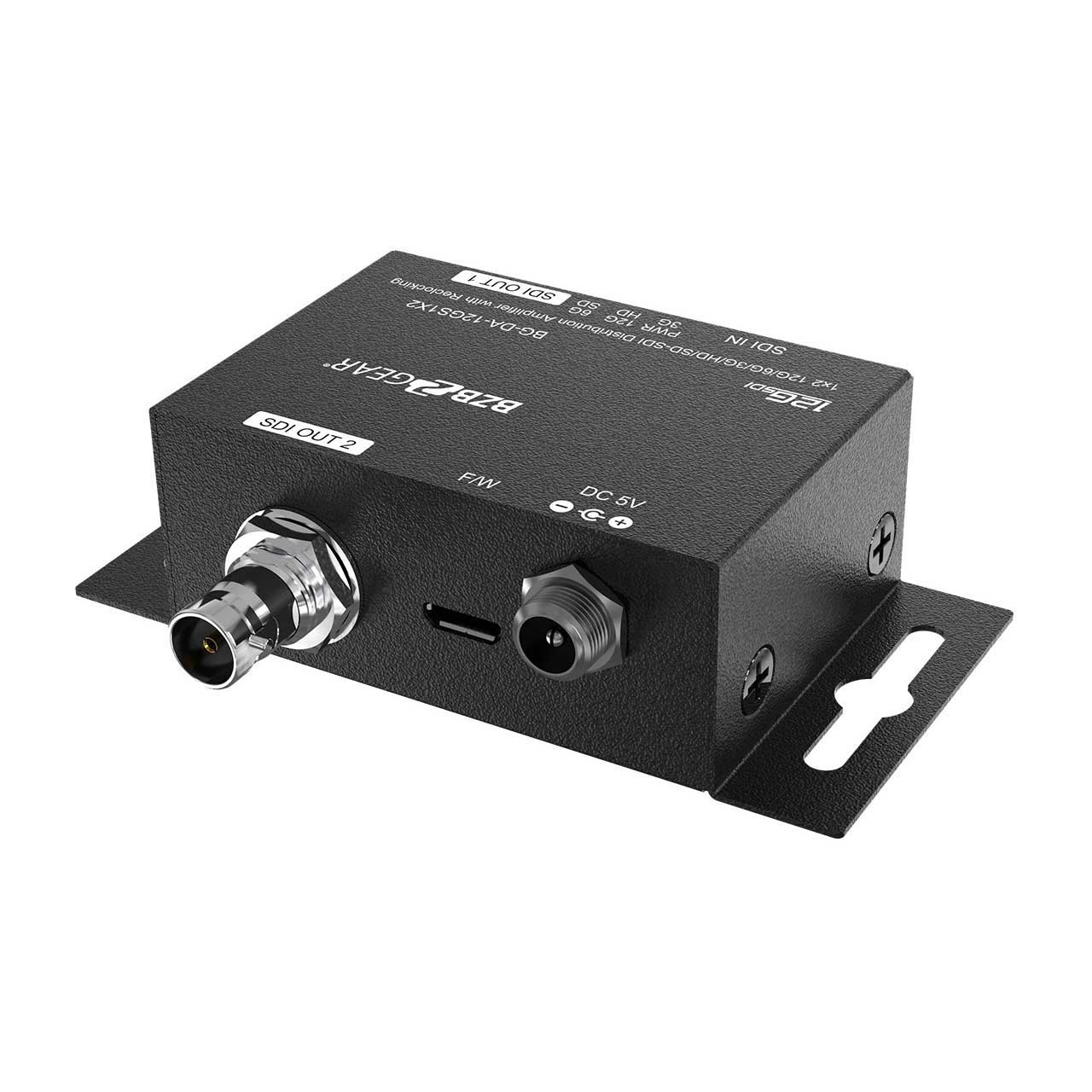

The BZBGEAR BG-DA-12GS1X2 is a 1x2 12G-SDI splitter. This device can split an SD, HD, 3G, 6G, or 12G-SDI video source to two SDI outputs simultaneously. If you need to connect additional display for video feed monitoring or distribute 4K signal to a long distance - this product is what you need.
For any situation where range, quality, consistency, and reliability are all factors, the BG-DA-12GS1X2 can check these boxes.
Connectivity and Features
Each output from the BG-DA-12GS1X2 is buffered independently and re-clocked. This helps to eliminate signal disruption and makes it possible to extend the transmission at much greater distances. With automatic input cable equalization, higher quality can be provided at 70m (230 ft) for 12G-SDI signal. For 6G connections, the range is up to 100m (330 ft), and up to 180m (594 ft) with 3G connections.
The device has a maximum SDI bandwidth of 11.88 Gbps to support high quality video transmission with low latency at the highest possible quality when splitting video to multiple outputs. Installers can also gain the advantage of the device’s LED indicators that show the status of the signal lock and current video rate to reduce the amount of configuration needed to get the device up and running. This helps to save valuable time with setup.
The whole device's design is built around ruggedness and durability. With an inter-locking power supply and SDI connectors, metal housing and surface mount brackets the device is built to last a long time while remaining reliable and consistent with video transmission uptime.
