Ross SRA-8901-4-R3S openGear Card 12G/6G/3G/HD/SD/MADI Distribution Amplifier 1 In / 4 Out w/ R3S Split Rear Module

ITEM #: ROSS-SRA89014R3S MFG #: SRA-8901-4-R3S

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$750.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SRA-8901-4-R3S - Overview

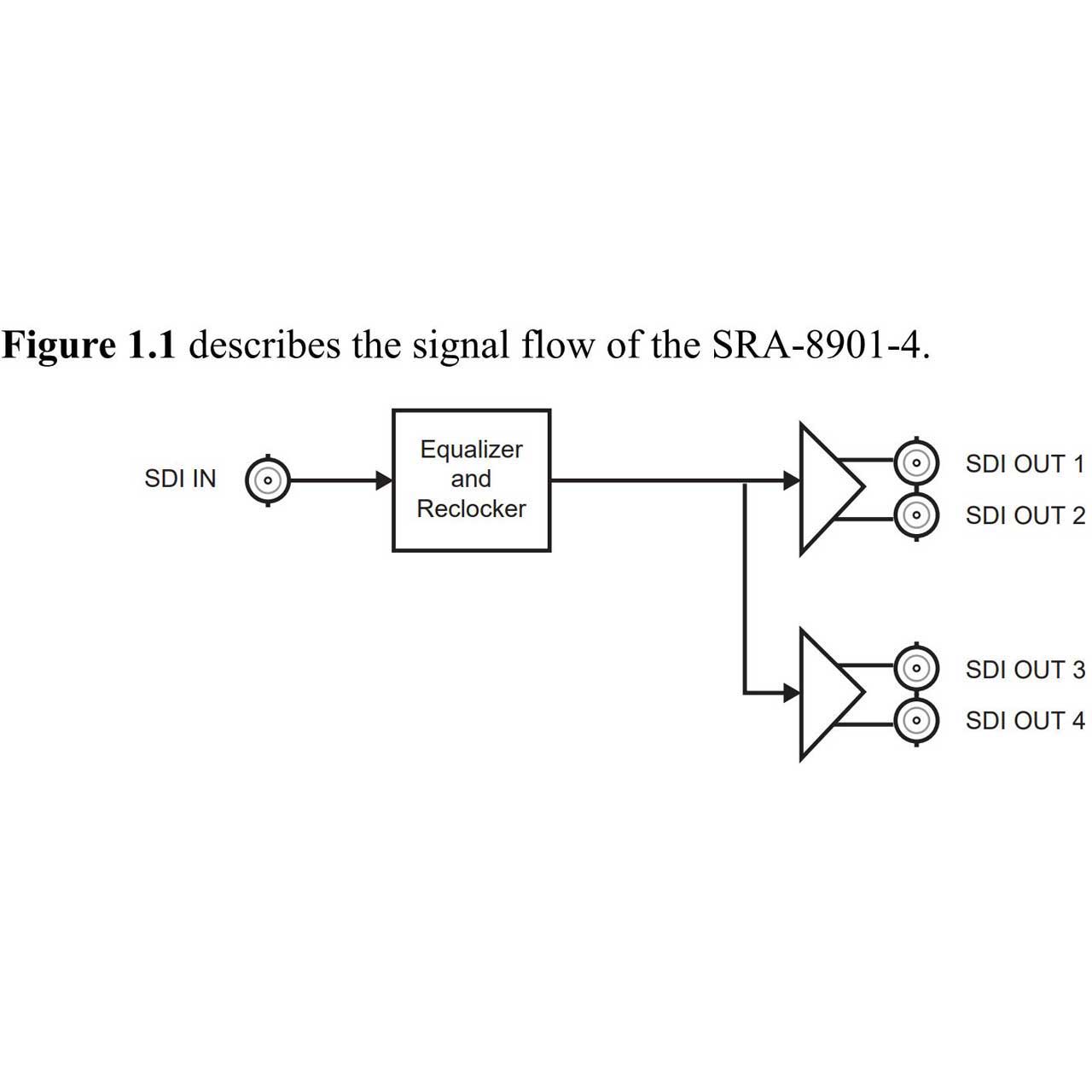

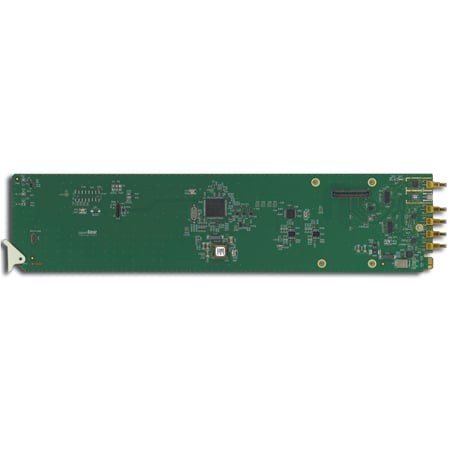

The SRA-8901 is a premium-level, highly versatile single-channel digital video distribution amplifier. It has been designed to aid customers in the build-out of signal chains that are supporting the emerging UHD 4K workflows. This 12G-SDI DA is capable of supporting SDI data rates from 270Mb/s up to 12Gb/s. In addition, it can also support DVB-ASI and MADI signals, making it easy to use in a variety of applications. The SRA-8901 uses the latest technology and connectors to achieve the industry's best EQ performance offering cable lengths up to 200m at HD while still meeting critical return loss specifications up to 12G. Equalization and reclocking are performed on all common serial digital signals.

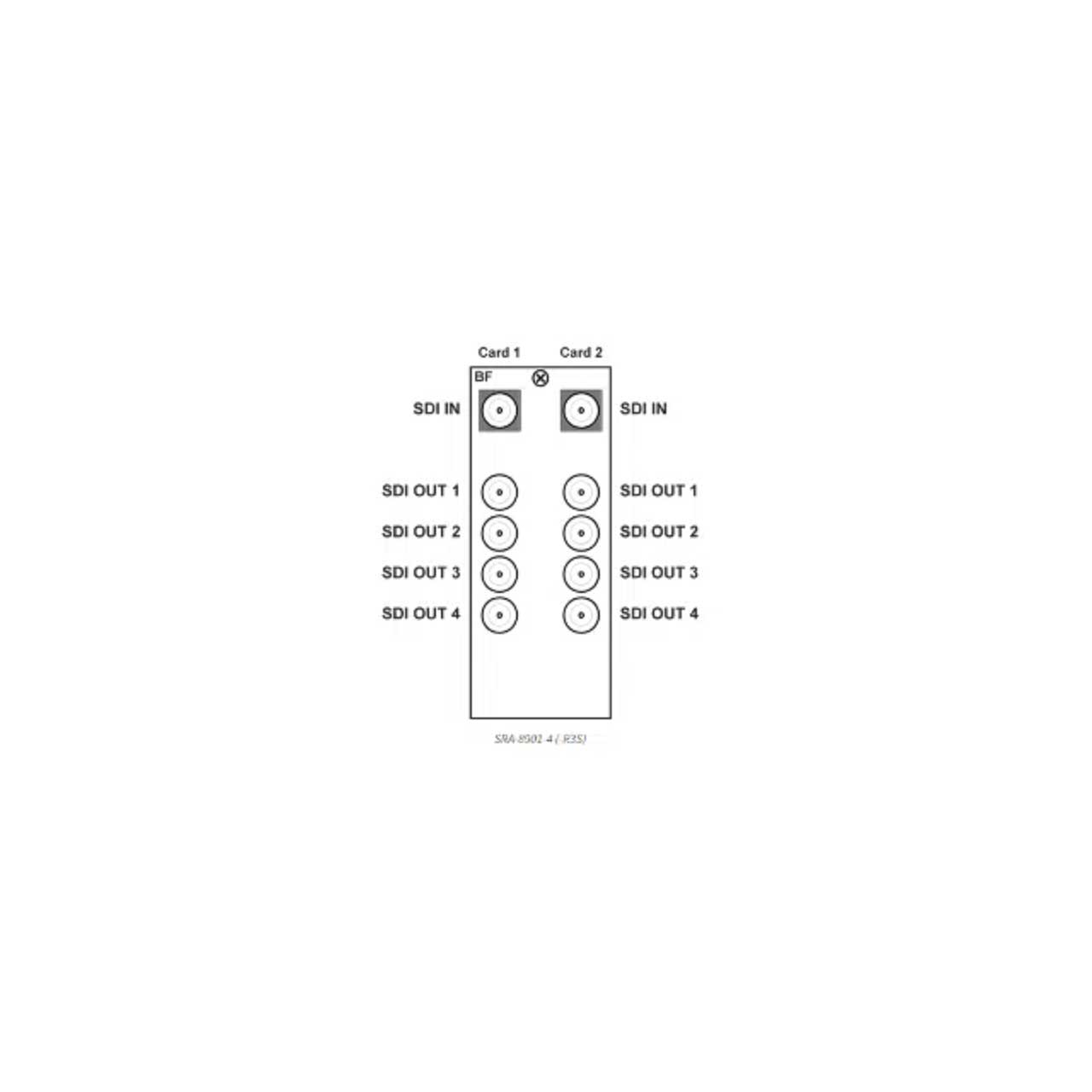

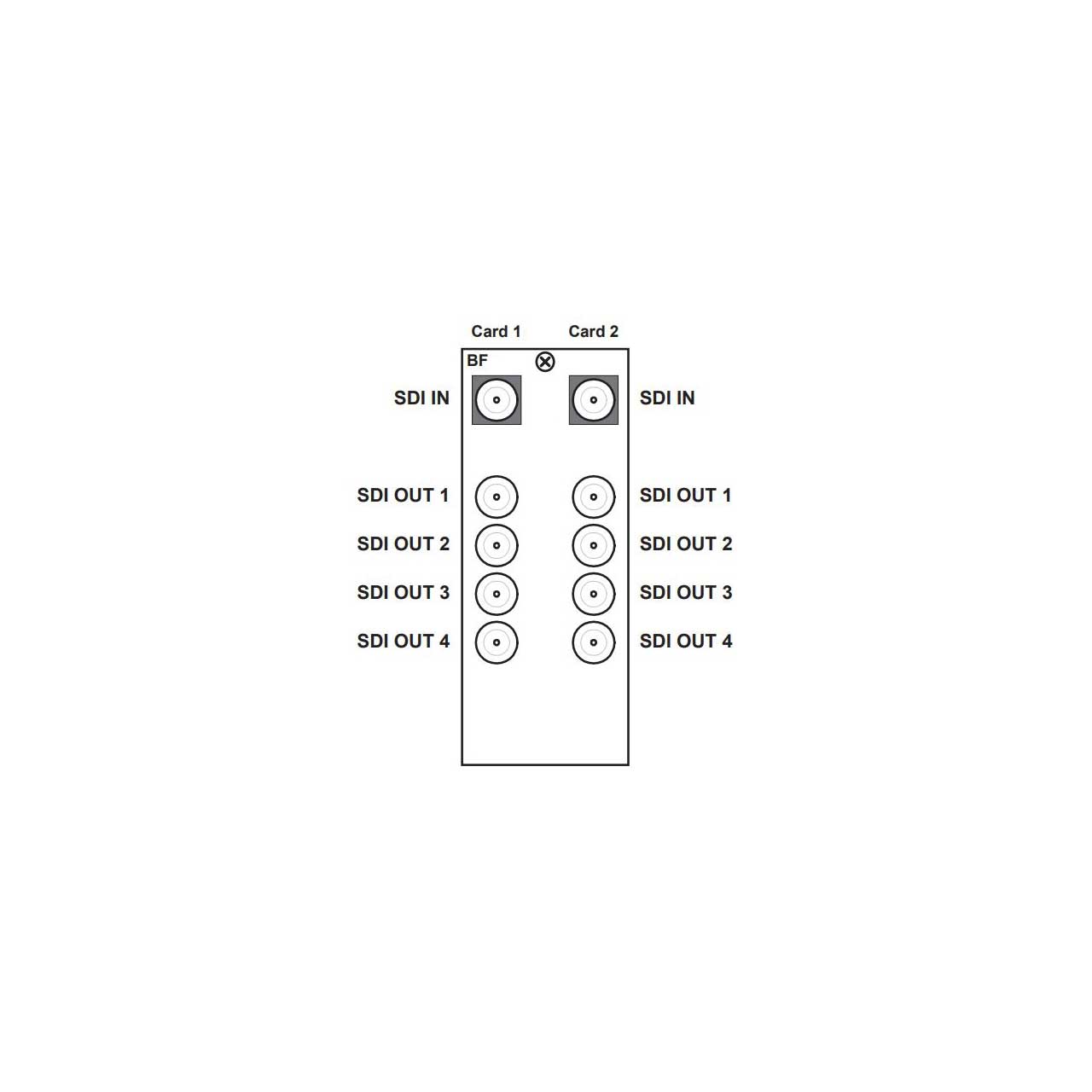

The SRA-8901-4-R3S is a 1x4 12G/6G3G/HD/SD SDI, MADI and ASI distribution with Automatic Reclocking and Equalization. It includes the R3S-8901-4 rear module which accommodates 2 SRA-8901 cards, and is compatible with the OG3/OGX frames only.

Applications
4K/UHD SDI Signal Distribution
MADI Distribution
DVB-ASI Distribution
Signal fail-over

Please note! This openGear card includes the R3S rear module - Single UHD Reclocking DA (Split Rear) .

  • Features:

    • Automatic detection of incoming data rate
    • Configurable as reclocking or equalizing-only
    • HD-BNC rear module I/O options
    • Up to 20 channels of 1x4 distribution in a single frame
    • LED indicators for signal presence and data rate for each channel
    • Excellent input / output return loss specifications up to 12G
    • Hot-swappable
