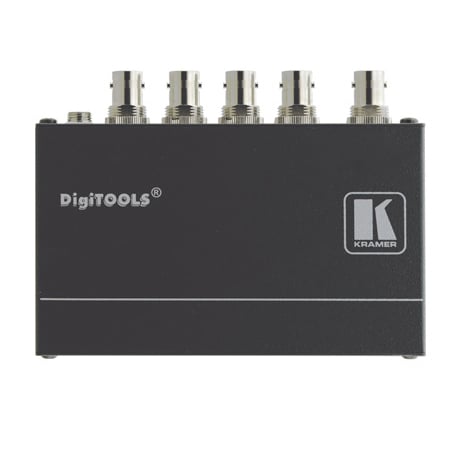

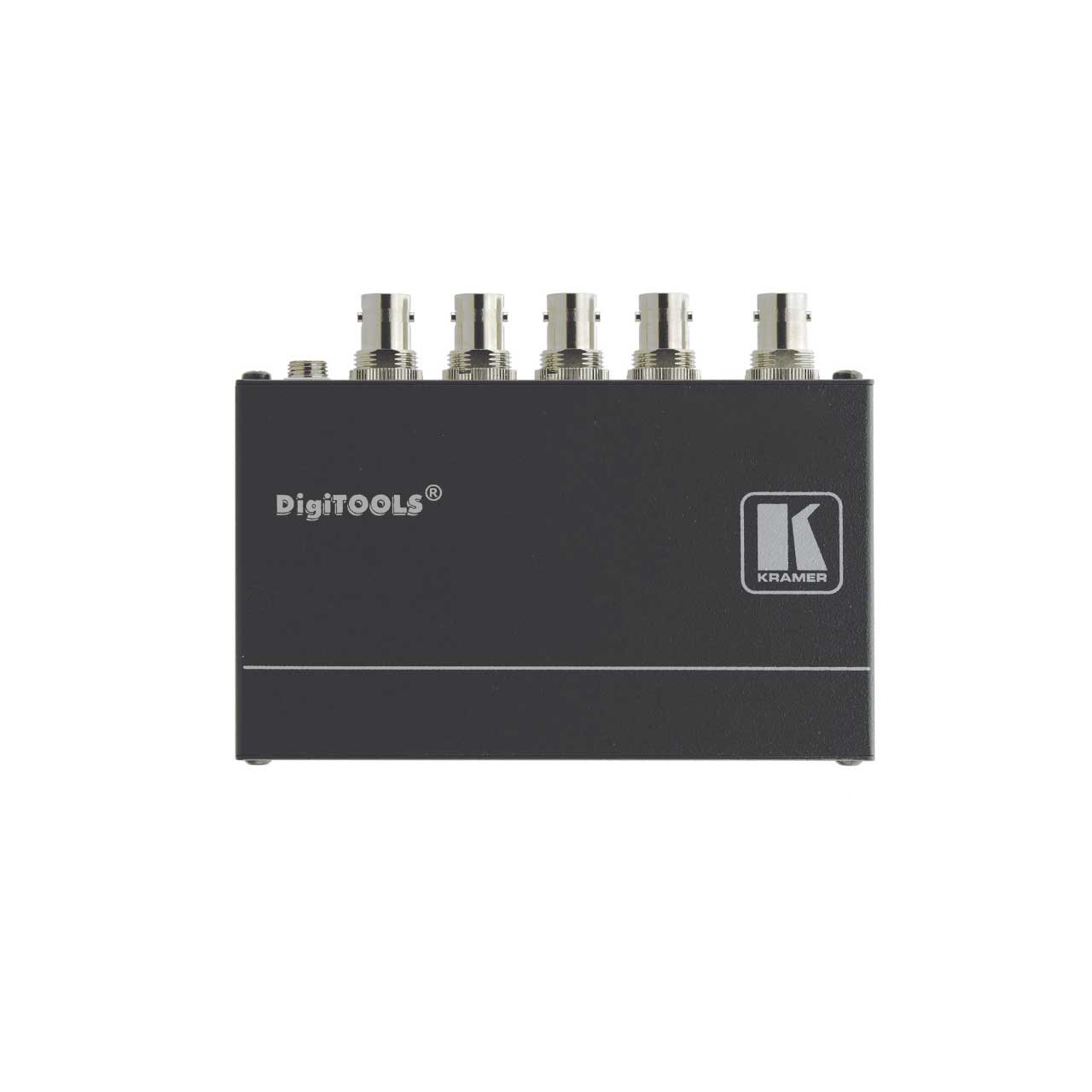

Kramer VM-4UX 1:4 4K 12G SDI Video Distribution Amplifier

VM-4UX - Overview

• Features:

  • Reliable Wire Connectivity - Coaxial broadcast-grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
  • Extended-reach Input Extension - Input signal equalization and output signals reclocking to gain extended-reach signal extension. Using Kramer high-quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (262ft) for 12G 4K signals. Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non-Kramer coaxial cables.
  • Transmitted Data Rate - Auto-adapting from 270Mbps to 12Gbps data rates.
  • Compliance - Complies with SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) standards.
  • Max. Resolution - 4K@60Hz (4:2:2) 30bpp.
  • SDI Signal Transmission - SDI, HD-SDI, 3G HD-SDI, 6G and 12G SDI compliant signals, supporting pass-through of standard embedded audio channels with ancillary ID and metadata information.

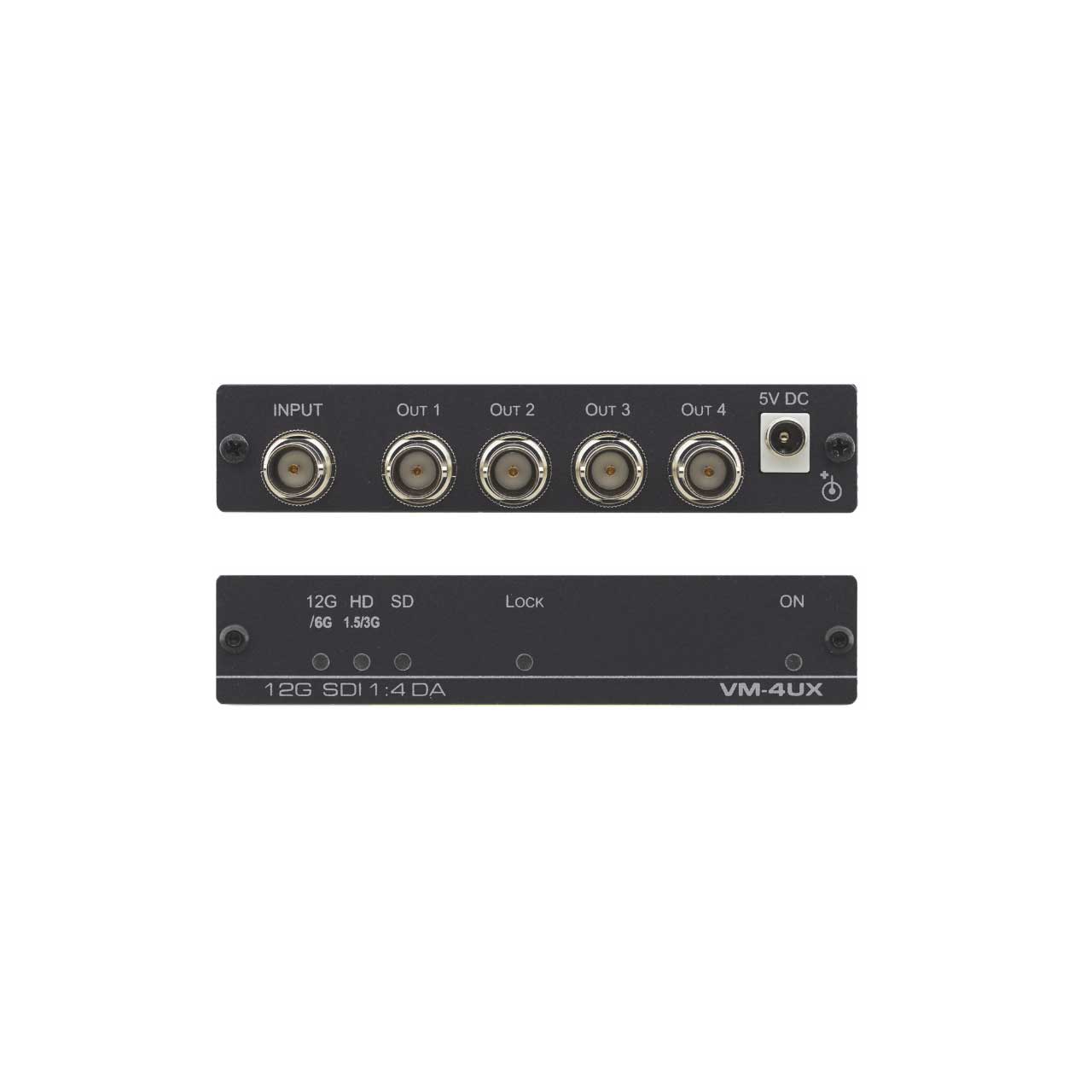

  • LED Indicators - Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
  • Easy Installation - Compact DigiTOOLS ™ fan-less enclosure for small footprint spaces and over-ceiling mounting, or side-by-side rack mounting.


• Specifications:

  • INPUTS
  • 1 SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) compliant serial video, 75Ω on a BNC connector

    OUTPUTS
  • 4 equalized and reclocked SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST 2082 (12G-SDI), outputs 75Ω on BNC connectors

    CABLE EQUALIZATION REACH
  • 12Gbps: Up to 80m (260ft), 3Gbps and 6Gbps: Up to 100m (330ft), 1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft), Note:The above specs apply when using Kramer cables

    VIDEO
  • Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps to 12Gbps data rate

    MAXIMUM OUTPUT LEVEL
  • 800mVpp /75Ω

    COUPLING
  • AC

    STANDARDS COMPLIANCE
  • SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI), ST-2082 (12G-SDI)

    POWER CONSUMPTION
  • 5V DC, 250mA

    POWER SOURCE
  • 5.2V/4A

    ENCLOSURE
  • Tools size, Aluminum type

    COOLING
  • Convection ventilation

    OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)

    STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)

    HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VM-4UX DA
  • Power supply
  • Mounting bracket
  • 2 male BNC 75Ω terminators


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063080419
