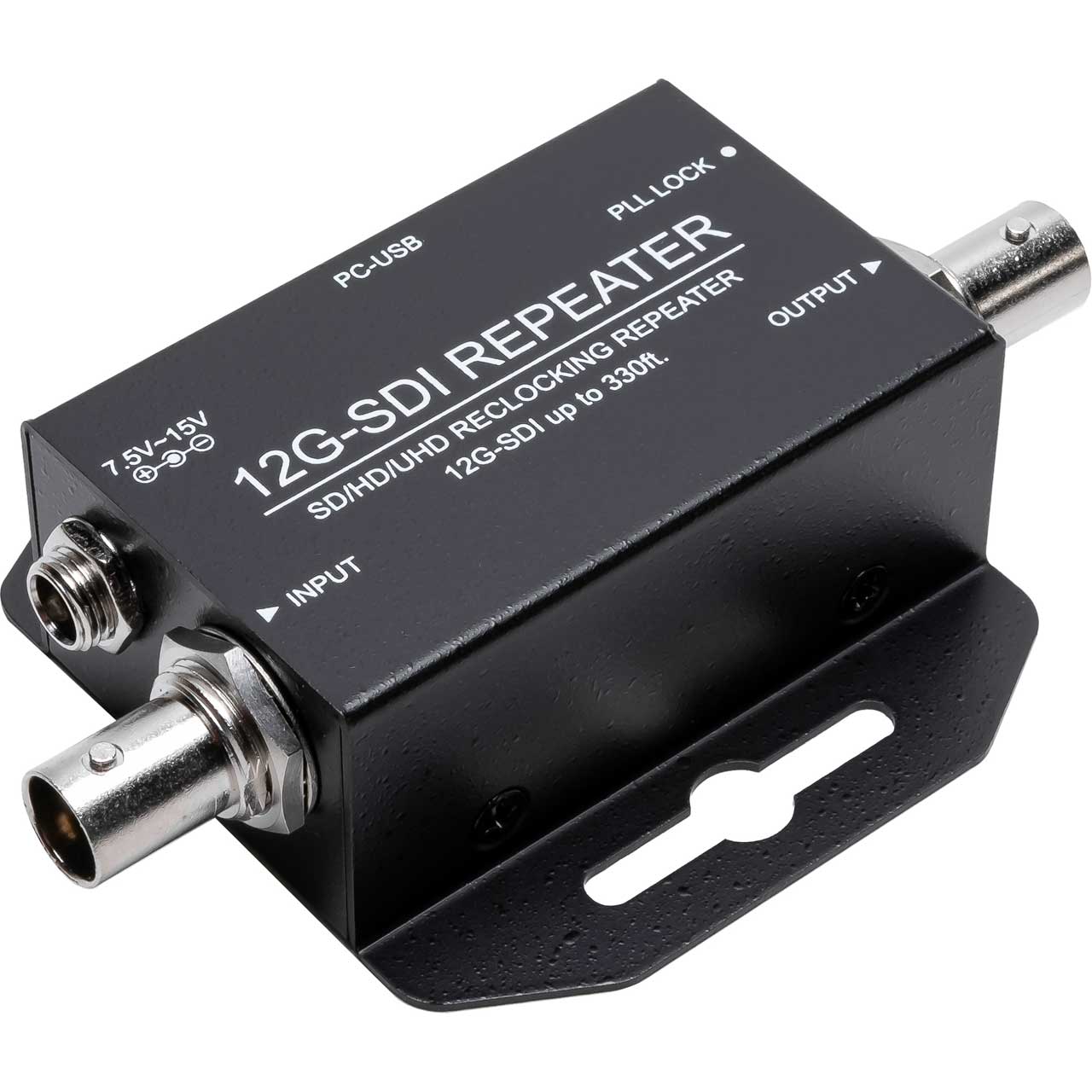

Connectronics 12G-SDI Reclocking Amplifier/Repeater

ITEM #: CTX-12GSDIAMP MFG #: 12GSDIAMP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Connectronics
Free Shipping with $49 Minimum Order

List Price:

$290.95

Our Price:

$266.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

12GSDIAMP - Overview

The Connectronics CTX-12GSDIAMP is a 12-G SDI to 12G SDI Reclocking Amplifier with Auto Source format detection. This compact, plug and play, 12G-SDI Repeater features High Quality Signal restore, a reclocked and amplified SDI output and 3G-SDI Dual Stream support. Extends signals up to 70 meters!

  • Features:

    • Auto Source Format Detection
    • High Quality Precision Signal Restore
    • Reclocked and Amplified SDI output
    • Compact Size
    • Plug and Play
    • 3G-SDI Level A/B Dual Link/B Dual Stream Support


  • Specifications:

    • Input Interface: 1x 12G-SDI Video
    • Output Interface: 1x 12G-SDI Loop-Through Video

      Supported Video Input Format
    • 12G-SDI
      - 4096x2160p@60/50fps
      - 3840x2160p@60/50fps
    • 6G-SDI
      - 4096x2160p@30/25/24fps
      - 3840x2160p@30/25/24fps
    • 3G-SDI
      - 1920x1080p@60/50fps
    • HD-SDI
      - 1920x1080p@30/25/24fps
      - 1920x1080i@60/50fps
      - 1280x720p@60/50fps
    • SD-SDI
      - 720x480i@60fps
      - 720x576i@50fps

    • Supported Video Output Format: SDI (Loop-Through) as Input SDI Format
    • Audio Input Format SDI: Up to 16 Channels, 24bit, 48KHz
    • Audio Output Format SDI: Up to 16 Channels, 24bit, 48KHz
    • DC In: 7.5V - 15V
    • Power Draw: 1.59W
