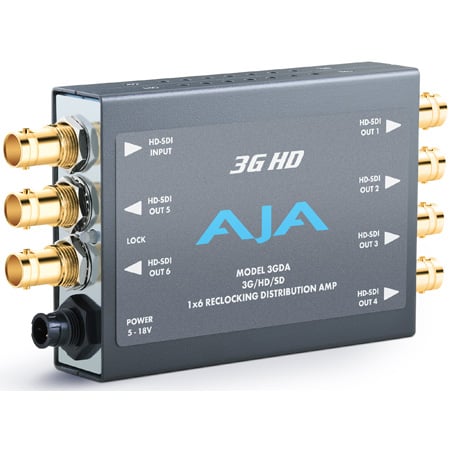

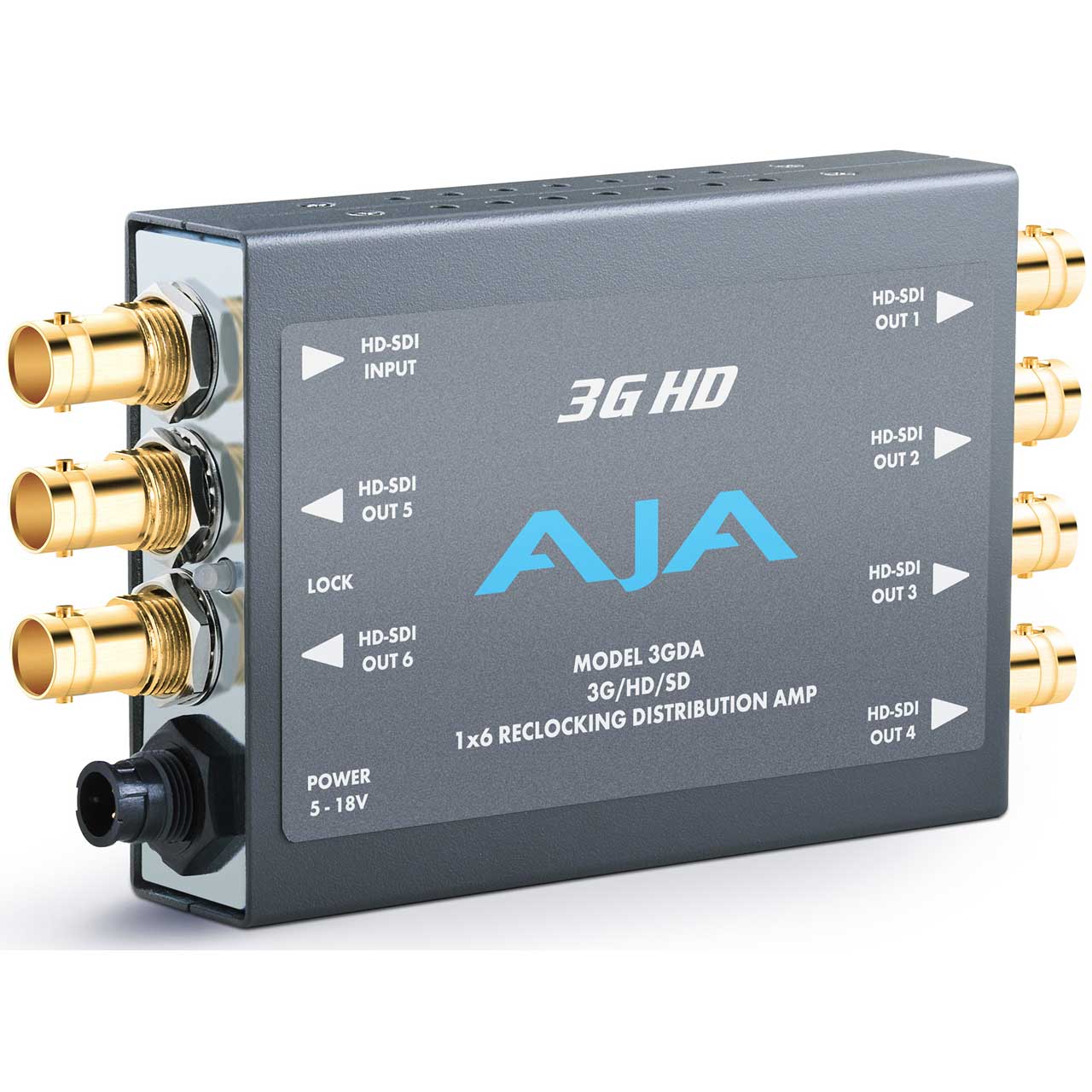

AJA 3GDA 1x6 3G/HD/SD Reclocking Distribution Amplifier

3GDA - Overview

• Features:

  • Compact SD/HD distribution
  • Six separately buffered outputs
  • 3G/HD/SD-SDI input, auto sensing
  • 3G cable equalization (1694 coax)
  • SD: 270mb, 350m, HD: 1.5Gb, 200m
  • Passes all ancillary data test


• Specifications:

  • Video Formats
  • 100 Mbps - 3 Gbps, format agnostic

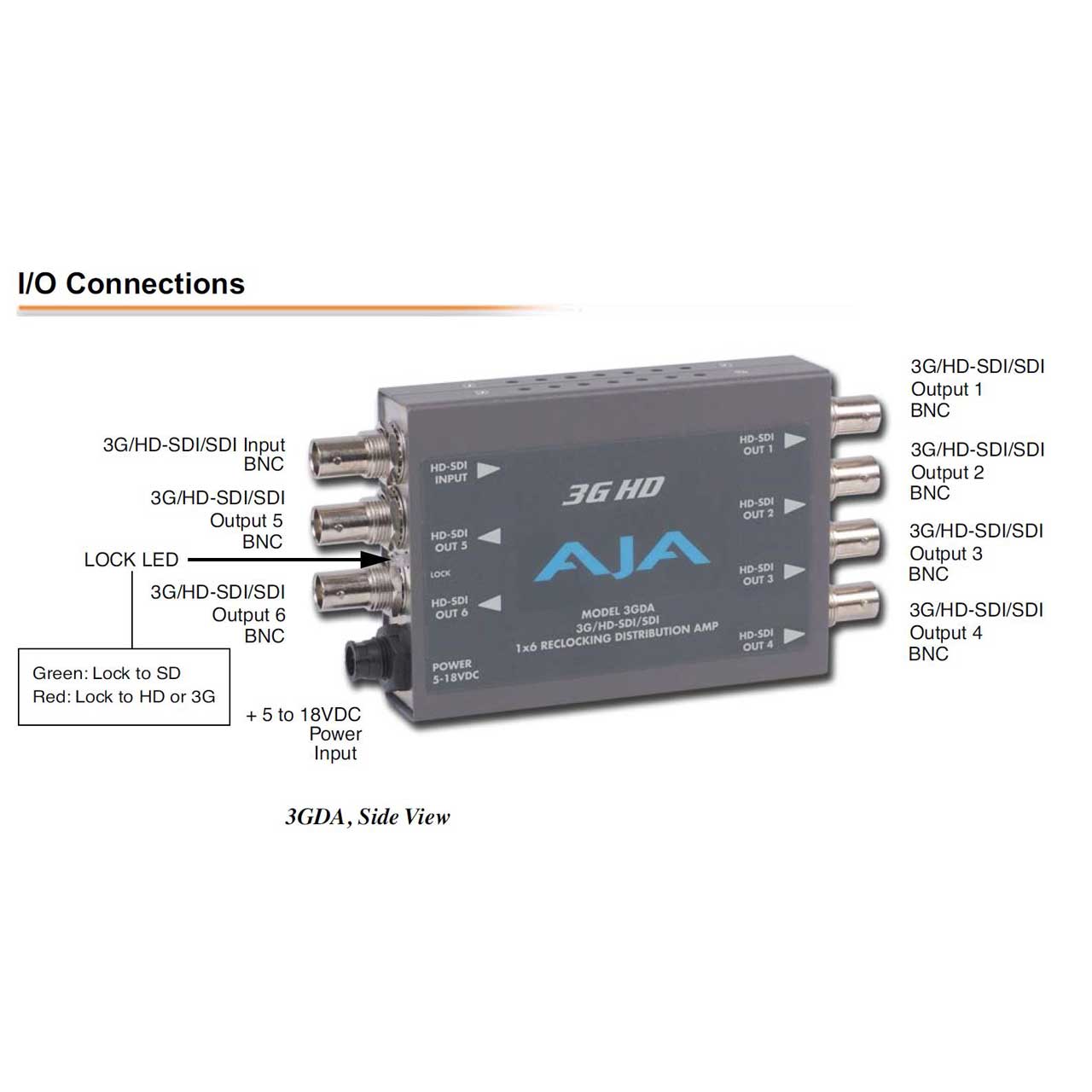

    Video Input Digital
  • 1 x 3G-SDI BNC, SMPTE-259/292/424

    Video Output Digital
  • 6 x 3G-SDI BNC, SMPTE-259/292/424

    Cable Equalization
  • (Belden 1694A coax)
  • 3 Gbps, 120m
  • 1.5 Gbps, 200m
  • 270 Mbps, 350m

    Input / Output Return Loss
  • >15db, 270 Mb - 3 Gb

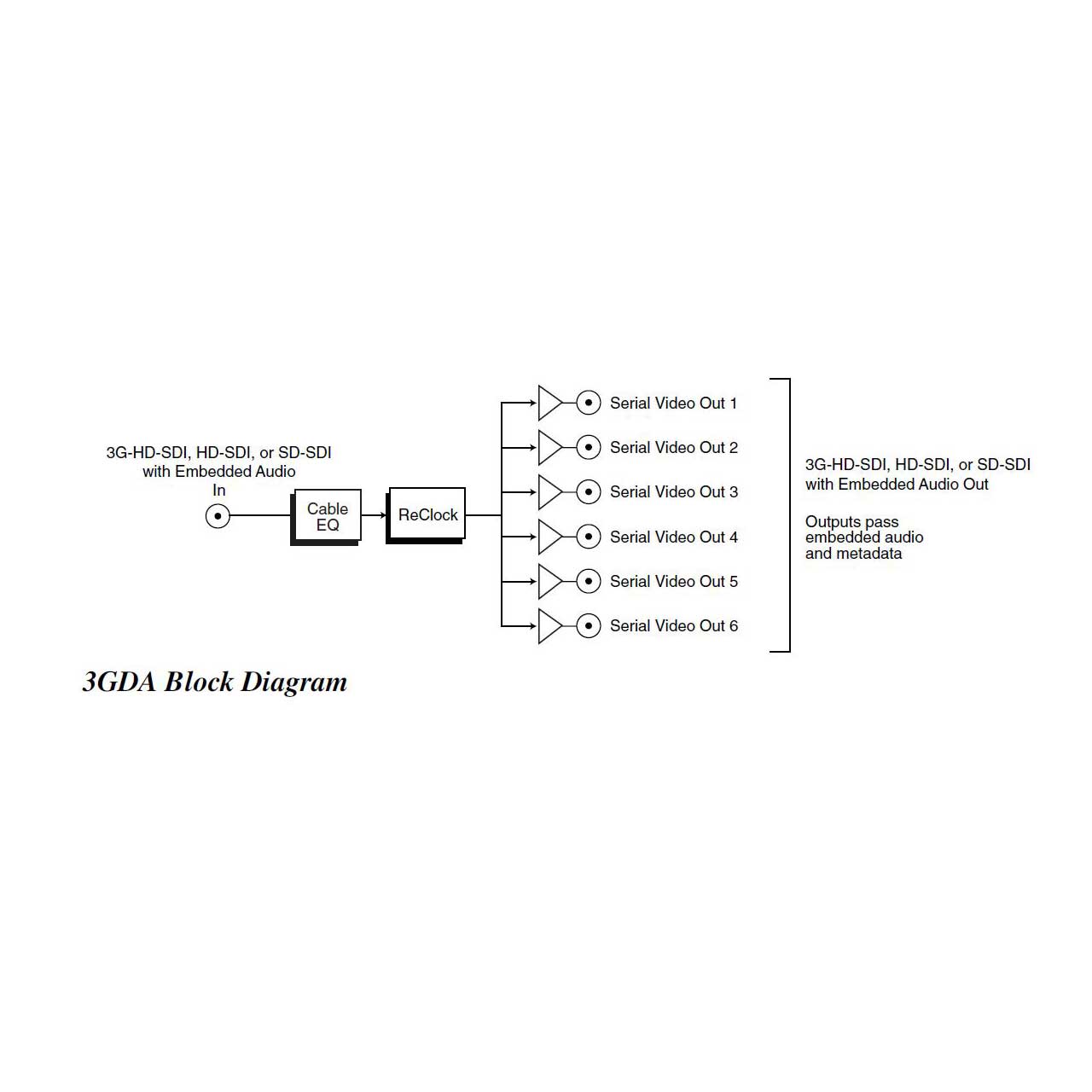

    Reclocking
  • 2.970 Gbps, 2.967 Gbps, 1.485 Gbps, 1.483 Gbps, 270 Mbps - Auto Select
  • All other rates are passed through and not reclocked

    Dimensions (WxDxH)
  • 5.8 x 3.1 x 1" (131 x 79 x 25mm)

    Weight
  • 0.7Lbs (0.3kg)

    Power
  • +5-18VDC, regulated, 3 watts, power supply required, included with purchase
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input

    Environment
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• GTIN:

  0892448000526
