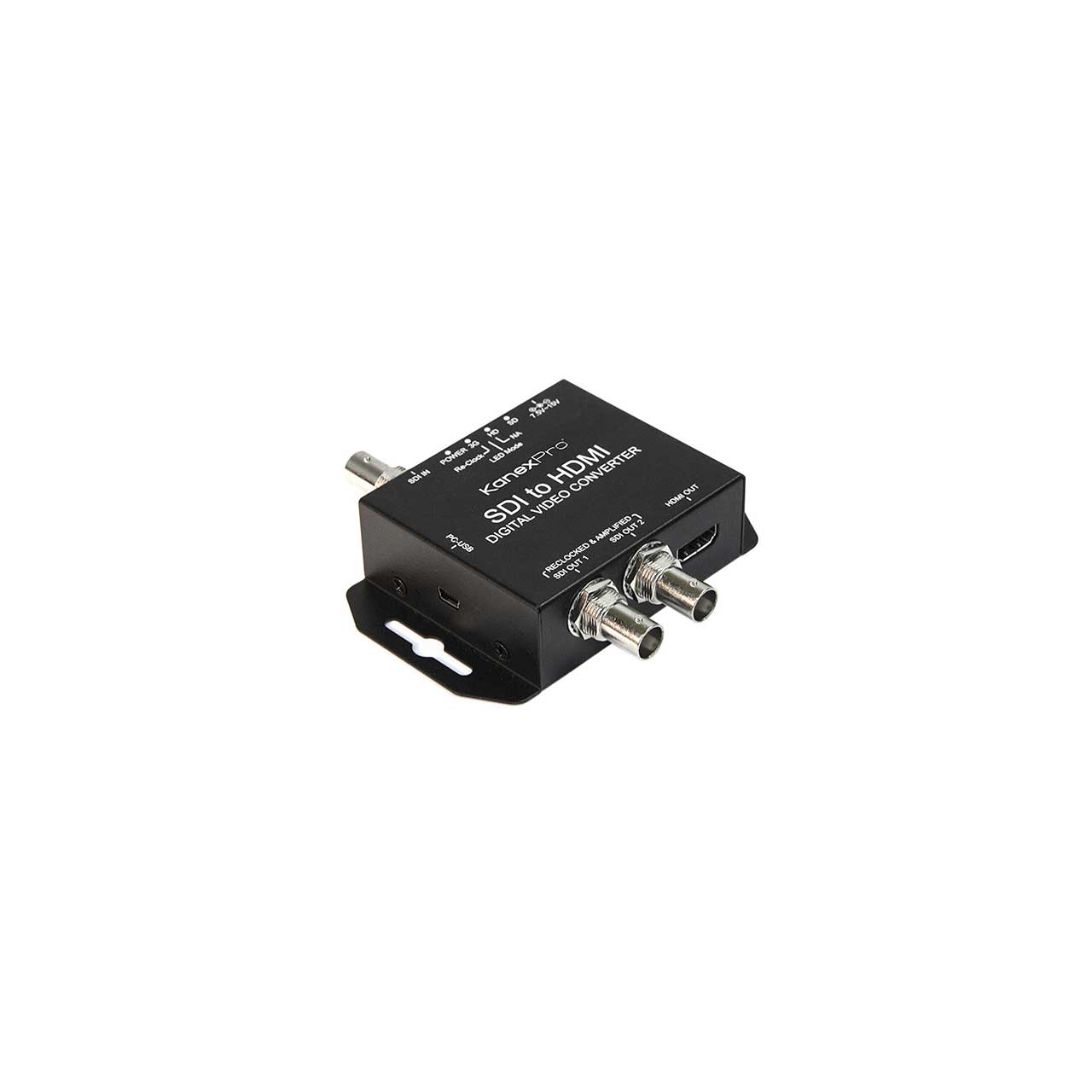

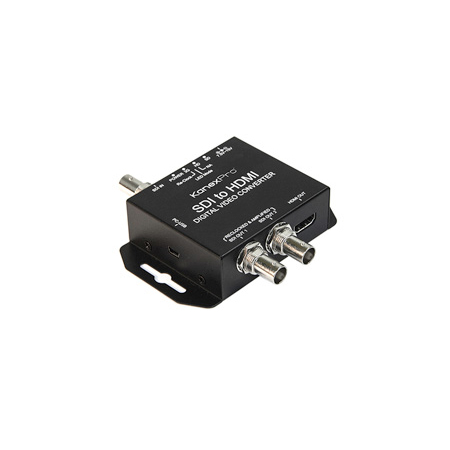

KanexPro SDI-SDHDXPRO SDI to HDMI Converter

SDI-SDHDXPRO - Overview

• Features:

  • Get the highest quality 3G-SDI conversion to HDMI
  • 2 x SDI Loop outputs
  • Supports 2-channel audio
  • Automatically switches between SD, HD and 3G-SDI standards
  • Supports multiple video resolutions: SDI 525i, 625i
  • HD: 720p 24, 25,30,50 & 60 Hz.
  • HD: 1080i 50 & 60 Hz.
  • HD: 1080p 24, 25,30, 50 & 60 Hz.
  • 3G mode length up to 130m
  • HD mode length up to: 170m
  • SD mode length up to 300m
  • Supports conversion to SMPTE 425M Level A 1080p 50/59.94/60 4:2:2 10-bit
  • Supports cascading of multiple SDI's in application
  • Compact in size, perfect for mobile broadcasting units and users
  • Micro-USB Port for firmware update
  • Locking power supply & mounting ears


• Specifications:

  • Video Input:
  • Input: 1 x SDI
  • Input Connector: 1 x BNC
  • Input Video Signal: SD/HD/3G SDI

    Video Output:
  • Output: 1 x HDMI Female
  • Output connector: HDMI
  • Output Video Signal: SD/HD/3G SDI/DVI/ HDMI

    Resolutions (HDTV):
  • 1080p,1920 x 1080
  • 720p; 1280 x 720
  • 1280 x 720, 480i (NTSC mode) 576i Standard PAL mode

    Enviromental:
  • Operating Temperature: 0°C to +70°C
  • Operating Humidity: 10% to 85 % RH (no condensation)
  • Storage Temperature: -10°C to +80°C
  • Storage Humidity: 5% to 90 % RH (no condensation)
  • Regulatory Approvals Converter: FCC, CE, UL
  • Regulatory Approvals Power Supply: FCC, CE, UL

    Mechanical:
  • Size: (LWH): 3.14"x1.61"x0.98"
  • Weight (net): 0.33 lbs (150g)

    Power Requirements:
  • External power supply: 5V -12V
  • Power consumption: 5 W


• Item Includes:

  • 3G-SDI to HDMI Converter
  • 5V DC power supply
  • Operation Manual


• Warranty:

  • 1 Year


• GTIN:

  0813982020917
