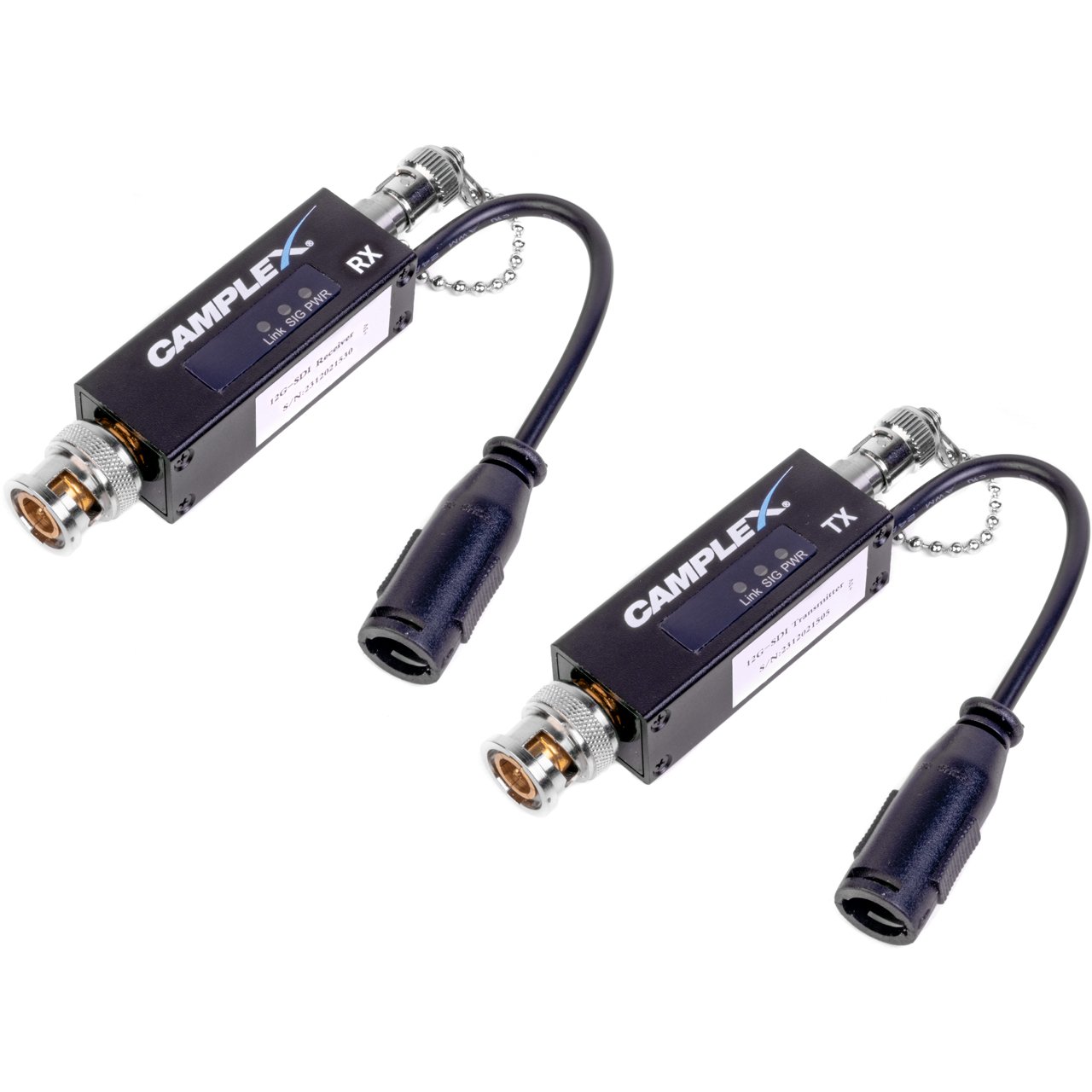

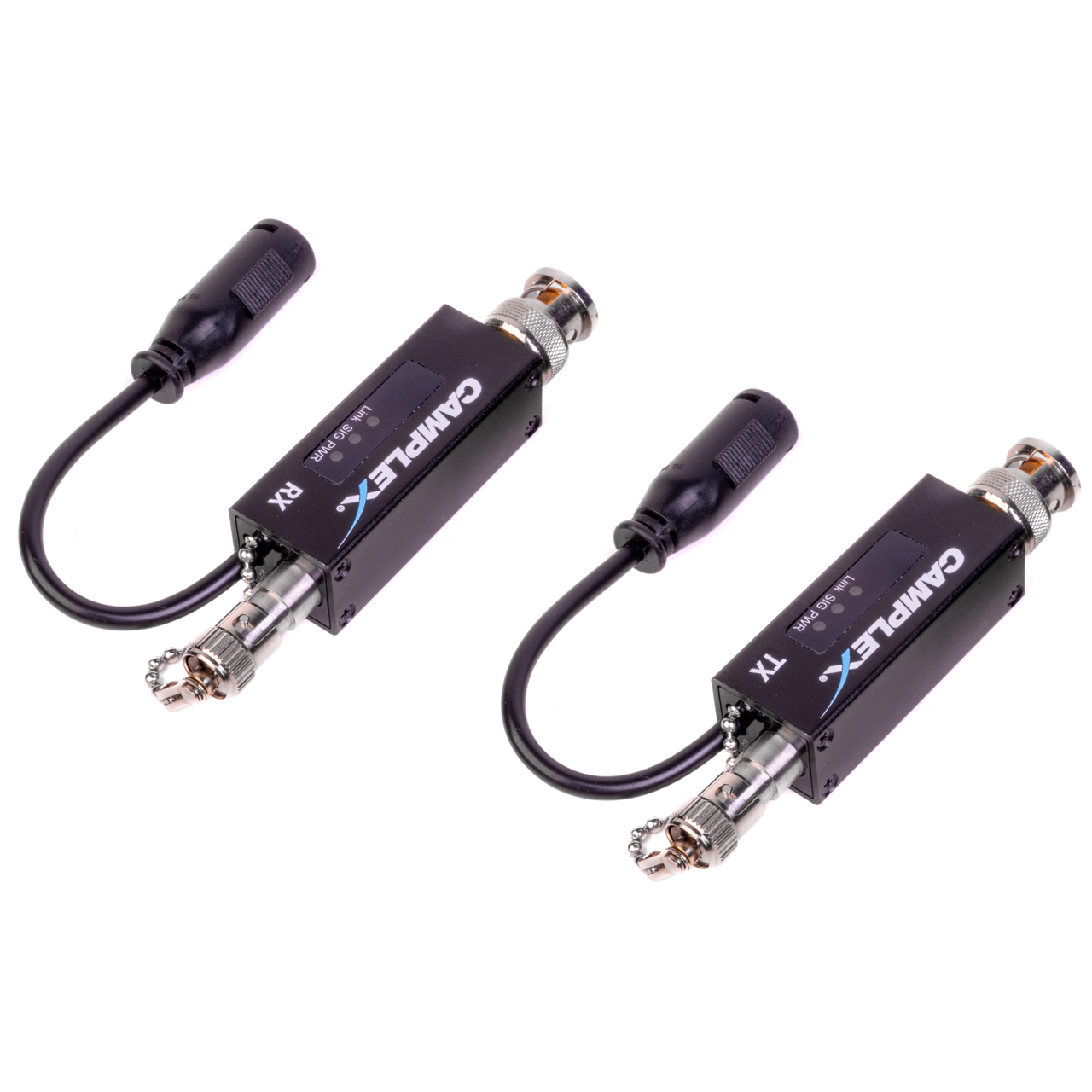

A compact, inline solution, the Camplex 12GSDI-MINI is the broadcaster's choice for reliable, long-distance transmission of 12G-SDI ultra-high-definition video signals. The unit supports a wide range of SMPTE standards, including ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and ST-259 (SD), ensuring seamless integration with 12G camera systems but is also compatible with DVB-ASI and AES10 (MADI) formats.
This unit is reminiscent of the Telecast Rattler that's been brought up to modern outside production requirements and standards. It features integrated reclocker technology, locking to SMPTE rates of from 11.88Gbps to 270Mbps and includes divide-by-1.001 sub-rates for precise signal integrity. The Camplex 12GSDI-MINI supports resolutions up to 4K (3840x2160@60Hz), 1080P, 1080I, and 720P and is able to transmit broadcast quality video over distances up to 12 miles on a single ST fiber run.

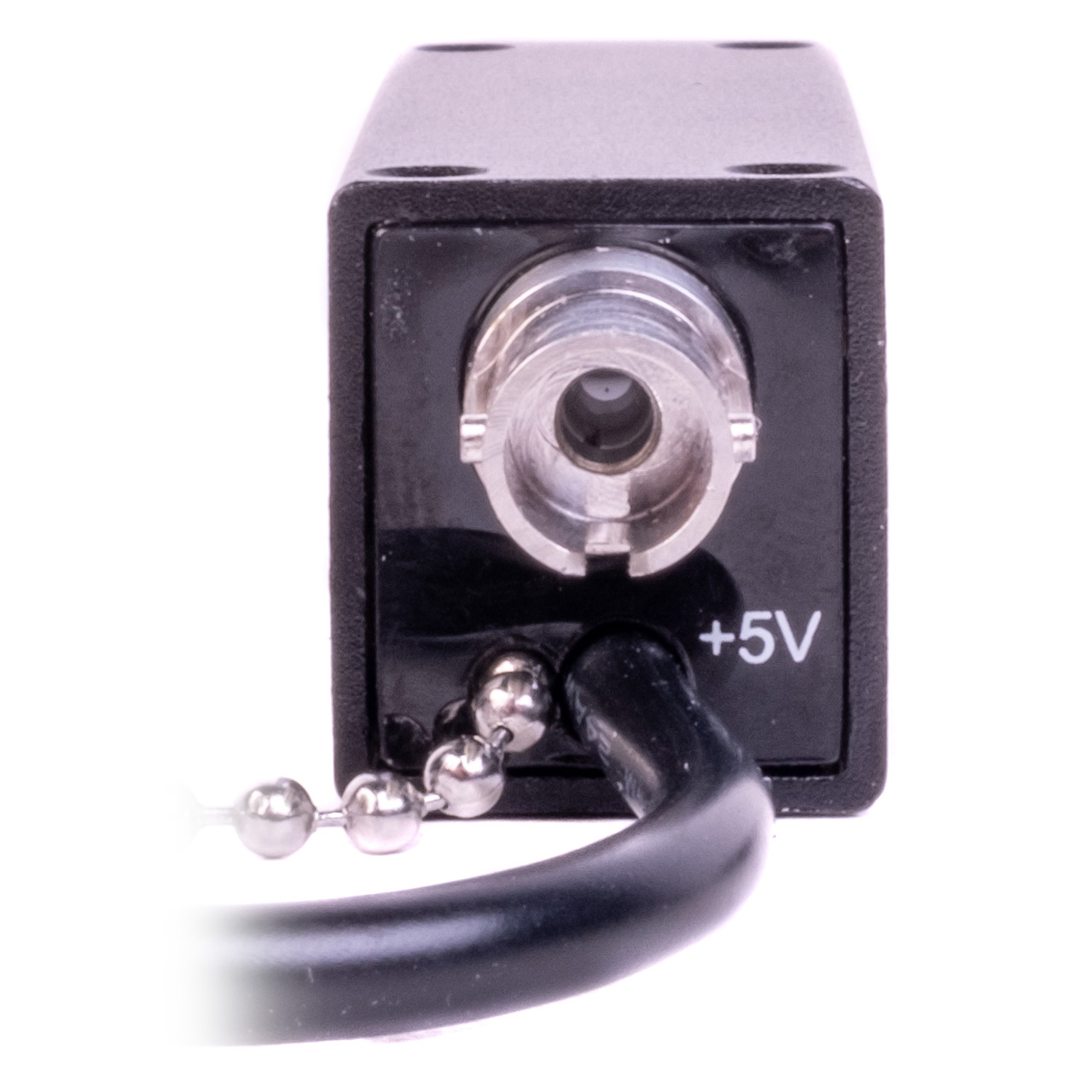

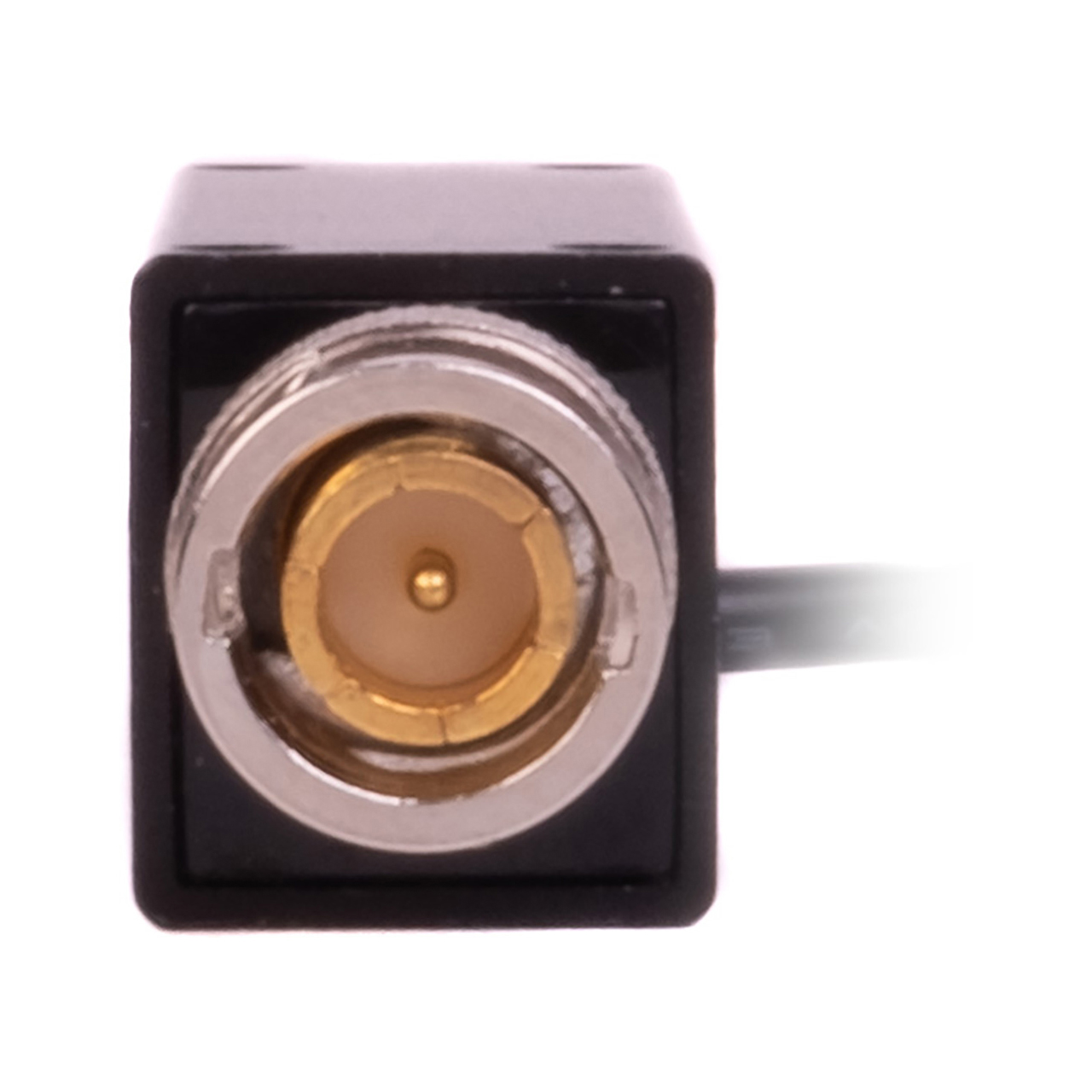

Transmitter and Receivers are equipped with standard BNC connections for simple inline connection to cameras and patch panels. Units are powered with micro USB-B connected power supplies. The compact design makes these ideal for sports video production, stadium events and on-location venues.
