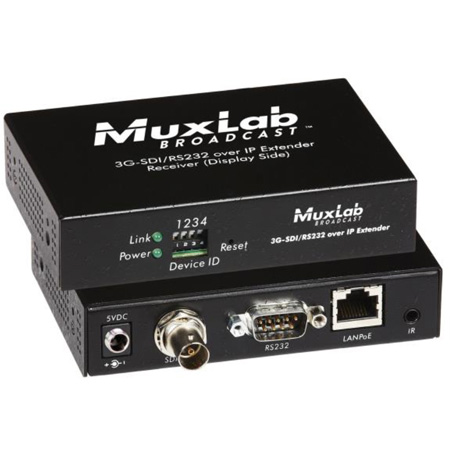

MuxLab 500756-RX 3G-SDI/RS232 Over IP Receiver with PoE

500756-RX - Overview

• Features:

  • Supports up to 1080p resolutions
  • Motion JPEG compression with very low latency
  • Supports 100's of Transmitters and Receivers, depending on network bandwidth
  • LAN Switch based configurations support point-to-point, point-to-multipoint, and multipoint-to-multipoint
  • Extend transmission up to 330ft (100m) over an IP network (when a LAN Switch is used)
  • Extend transmission up to 400ft (120m) in a point-to-point configuration (when a LAN Switch is not used)
  • Supports RS232 and one way IR transmission for remote control of end devices
  • PoE Powered
  • Compatible with the 500811 ProDigital Network Controller for software management
  • Compatible with 500752, 500753, and 500754 products


• Specifications:

  • General
  • Environment: 3G-SDI
  • Devices: Camera, monitor and other broadcast equipment supporting 3G-SDI
  • Transmission: Transparent to the user
  • Videos Bandwidth: 2.94Gbps
  • Signals: 3G-SDI protocol
  • Connectors: One (1) 3G-SDI (BNC) One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair One (1) 3.5mm jack for IR emitter/sensor One (1) DB9 Serial Port Connector Four (4) DIP Switches for device ID addressing
    Note: Cables not included
  • Maximum Distance: Cat5e/6: 330ft (100m) with LAN switch Cat5e/6: 400ft (120m) without LAN switch (point to point only)
    Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted pair cable used.
  • Latency: One (1) Frame
  • Compression: Motion JPEG
  • Network Bandwitdth: 60Mbps
  • RJ-45 Pin Configuration: RJ45 Link, Pin 1 (R), Pin 2 (T), Pin 3 (R), Pin 6 (T), Pin 4 (R), Pin 5 (T), Pin 7 (R), Pin 8 (T)
  • IR Frequency: 38KHz to 56KHz
  • Network Requirement: 100BaseT for Point to Point; 1000BaseT for other configurations
  • Cable: One (1) Cat 5e/6 or better twisted pair cable required
  • Power Supply: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
  • PoE: IEEE 802.3af
  • Power Consumption: Transmitter: 2.9 Watt; Receiver: 1.8 Watt

    Physical
  • Temperature: Operating: 32 to104°F Storage: -4 to 185°F Humidity: Up to 95% non-condensing
  • Enclosure: Metal black
  • Dimensions: 4.4 x 3.0 x 1.0" (11.2 x 7.6 x 2.5cm)
  • Weight: 1.1lbs (0.5kg)
  • Compliance: Regulatory: FCC, CE, RoHS Flammability: 94V0
  • Warranty: 2 years


• Warranty:

  • 2 years


• GTIN:

  0627699807569
